We pay attention to practical results, never worry about EIA Equipped with PWM
Equipped with PWM solid-state high voltage power supply
the core electric field
Carbon steel chassis
Air Blower
Electrical circuit layout
Insulating ceramics
Working Principle
When the controller is powered on, the suction nozzle produces a strong negative pressure forcing the oil mist to be inhaled in a directional direction. The oil mist particles collide under the action of the wind wheel in the oil mist purifier, and the tiny particles gather into larger particles that can be controlled, which are intercepted under the block of the high-efficiency fog absorbing material, and collected and recovered through the backflow port.
Model
DL-CNC 100
Equipment Resistance
< 150 Pa

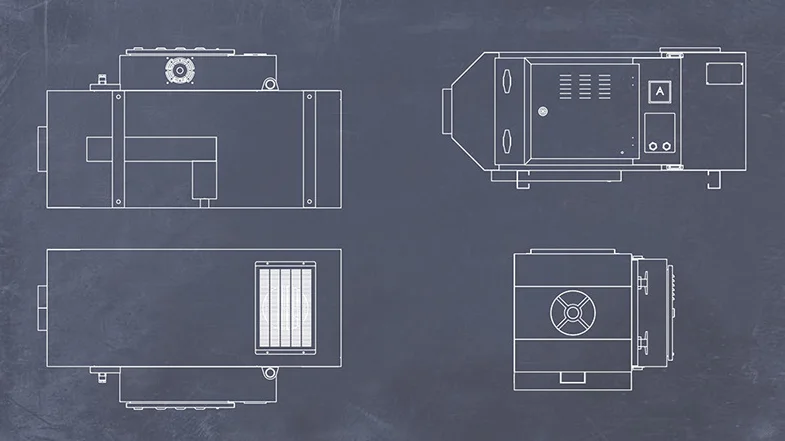

Overall Dimension
1070 * 526 * 468 mm
Input Power
220V 50/60 Hz
High Voltage Power Supply
100 W
Rated Power
380 W
Removal Mist Device
NO
Number Of Machine
1 unit
Weight
49 KG
Details Images

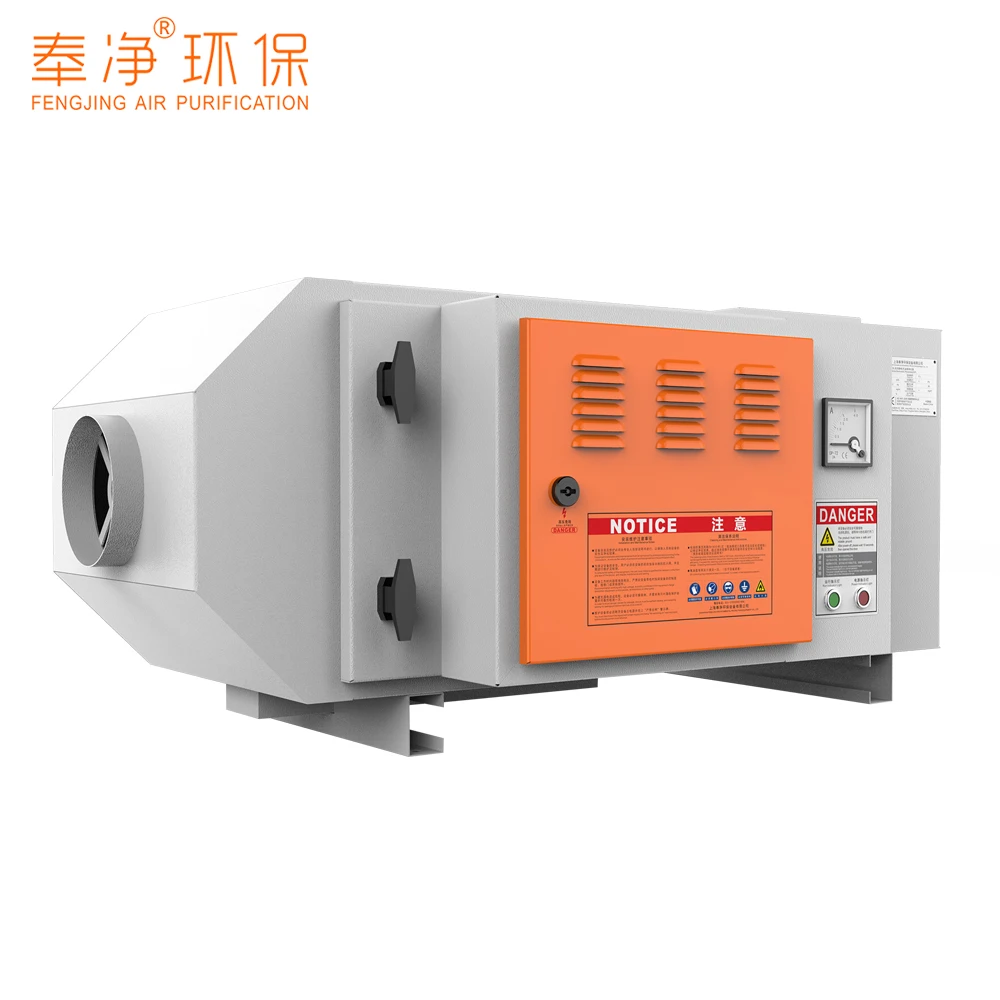

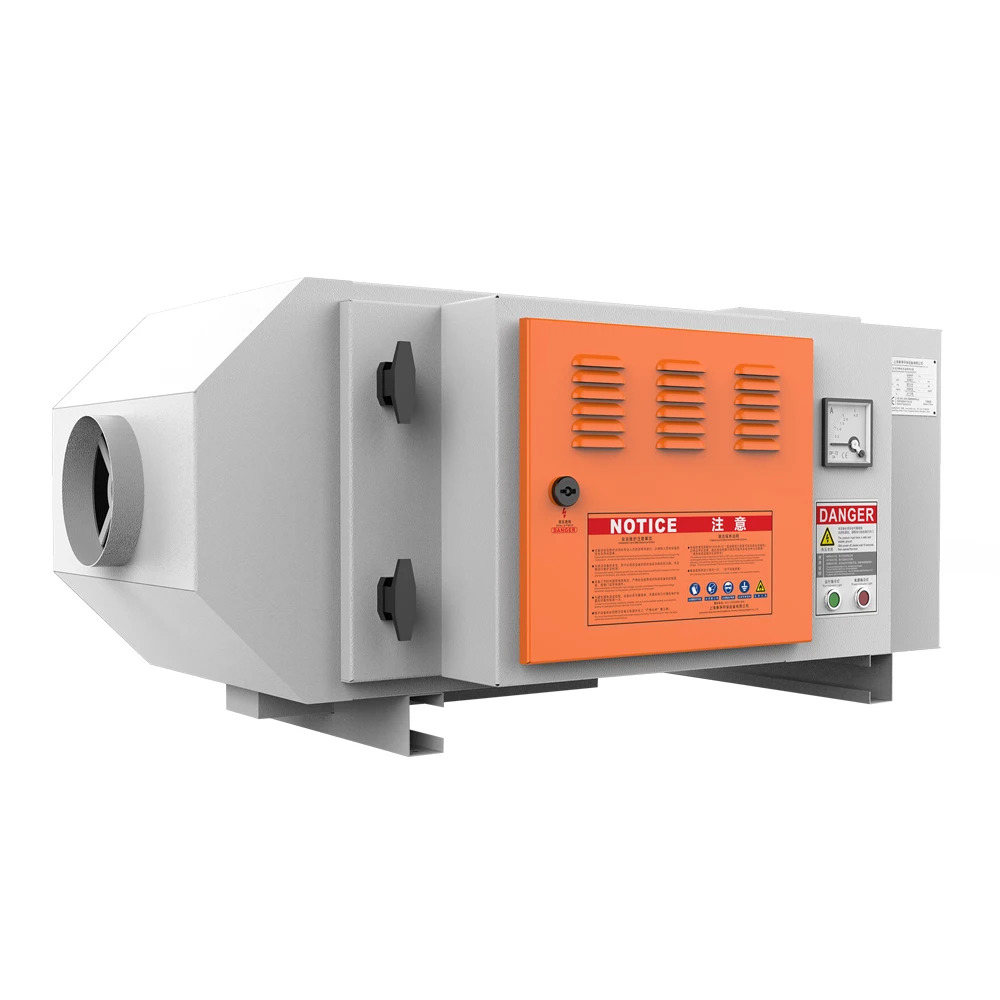

Oil mist purifier is an industrial environmental protection equipment. It is installed on machine tools, cleaning machines and other mechanical processing equipment to absorb and remove the oil mist in the processing chamber to purify the air and protect the health of workers.

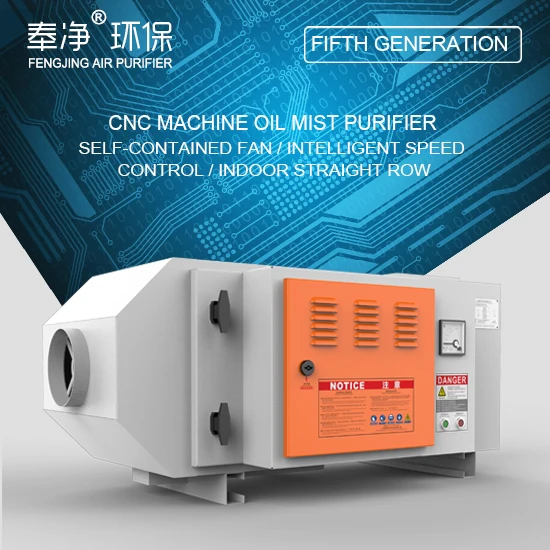

Oil mist purifier is a kind of equipment which is installed in CNC machining center, grinding machine, lathe and other kinds of machine tools to collect and purify the environmental pollution substances such as oil mist, water mist and dust produced in mechanical processing.
High Voltage Power With Disruptive Discharge Protection, Open Circuit Protection, Short Circuit Protection And Overheating Protection, Also Has The Unique Arc Suppression Technology, To Be Able To Control Discharge Spark Energy To A Very Low Level, Effectively Avoid The Spark Discharge And Arc Of Fire, Explosion And Other Accidents, The Safety Of The Oil Mist Purifier Make Lampblack Effectively Improve, It Helps To Ensure The Safety Of Users' Personal Property And Eliminate The Safety Concerns Of Manufacturers.

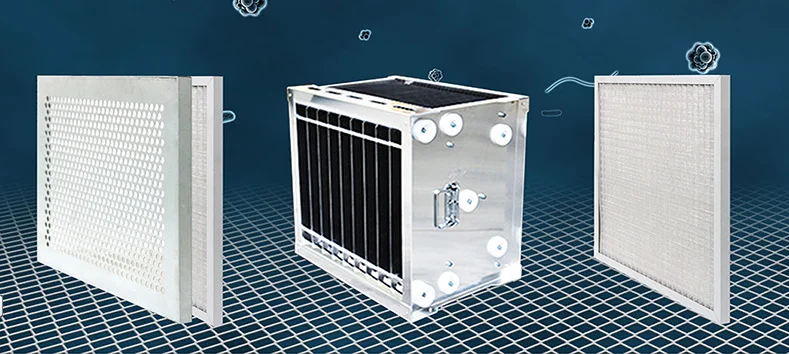

TERTIARY PURIFICATION
INDEPENDENT FILTER, PURIFICATION EFFECT IS MORE EFFECTIVE
Uniform current net intercepts the large particles and has a uniform flow effect on entering the electronic cell
Primary filter: pre-filter, reduce water vapor or particulate matter

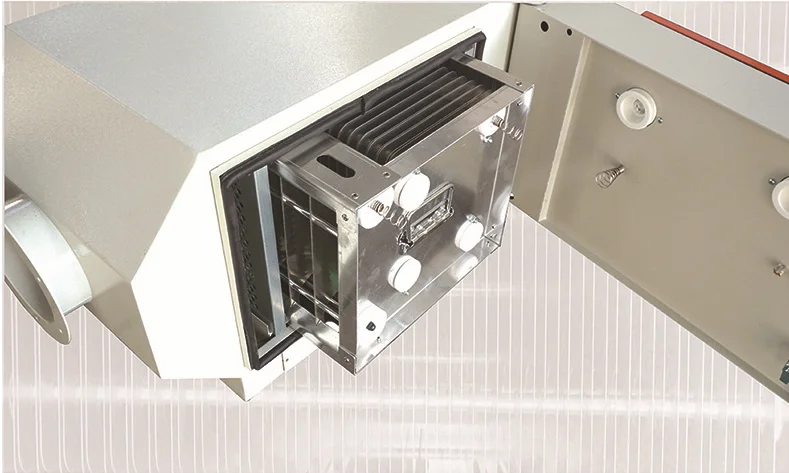

7mm spacing aviation core electric field ionization small particles of oil, and electrostatic adsorption on the plate
Metal filter: multiple filtration, purification effect is more thorough
Integrated fan
Double inlet
centrifugal fan supply system
The fan inhales oily smoke gas, and the charged particles of oil smoke are charged through corona discharge. When the charged particles pass through the electrostatic collector composed of high pressure plate, they will be adsorbed on the metal plate and collected for recycling, so as to purify the air and discharge.
