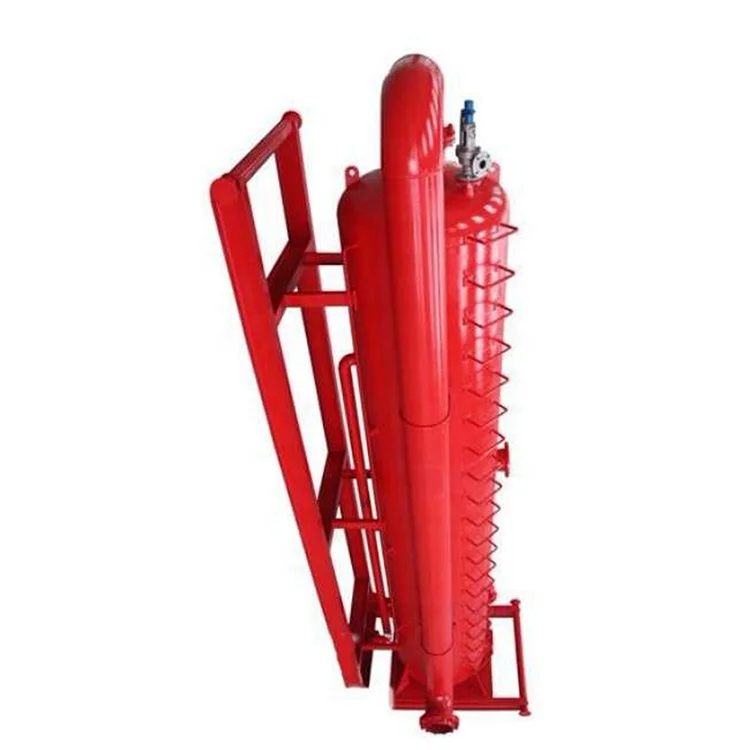

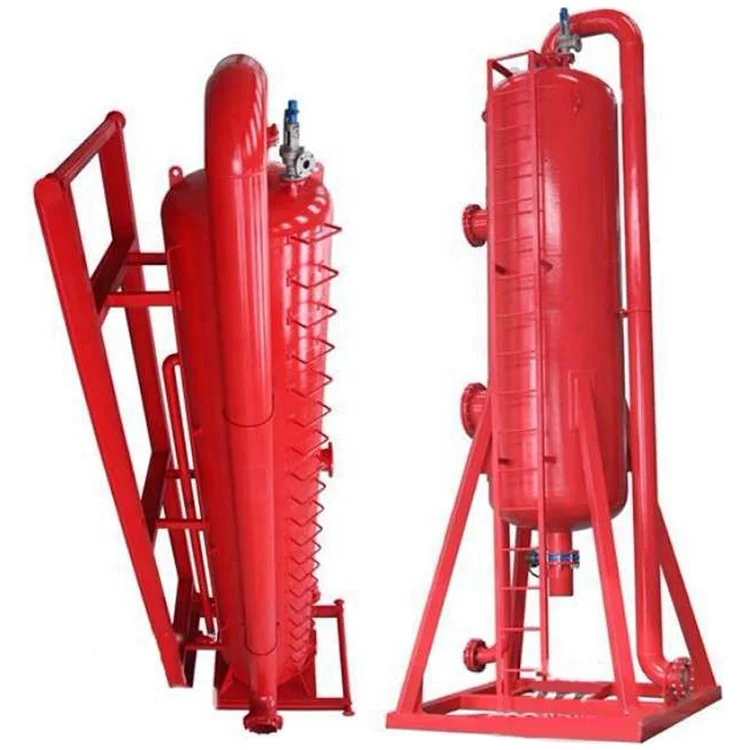

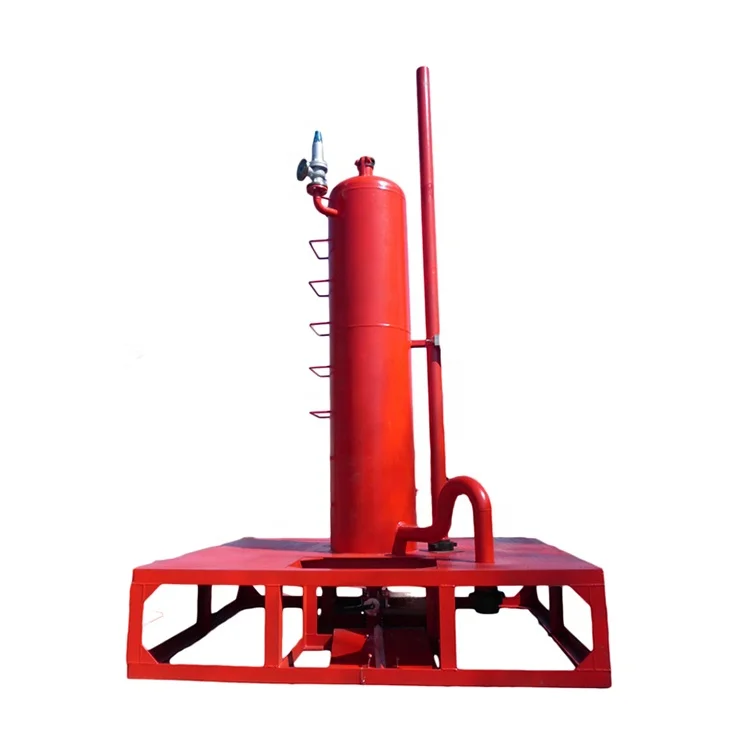

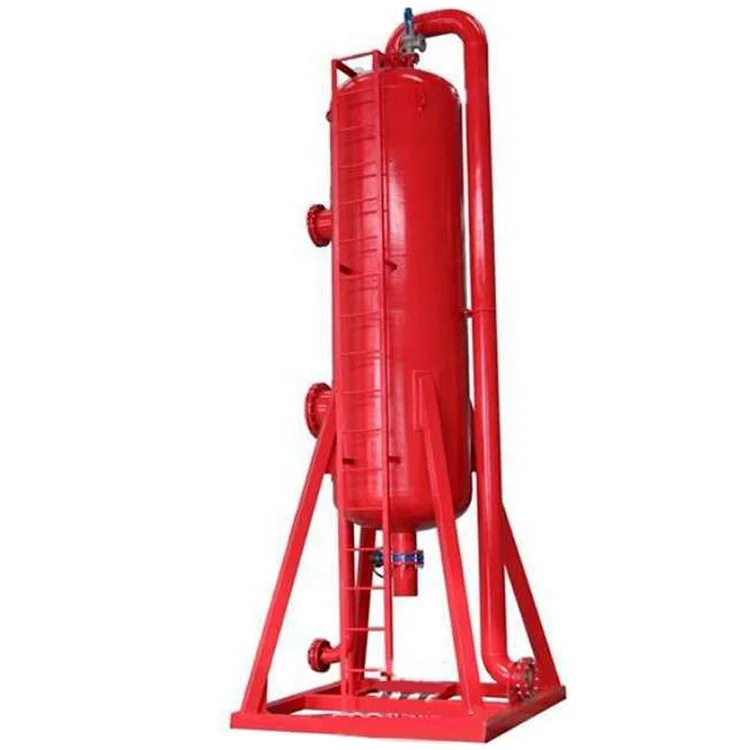

Drilling Fluids Mud Circulation System Separator Liquid Gas ManuFacturers
- Category: Oil Field Equipment >>>
- Supplier: Tangshan Ruilin Technology Co. Ltd.
Share on (62381875371):
Product Overview
Description

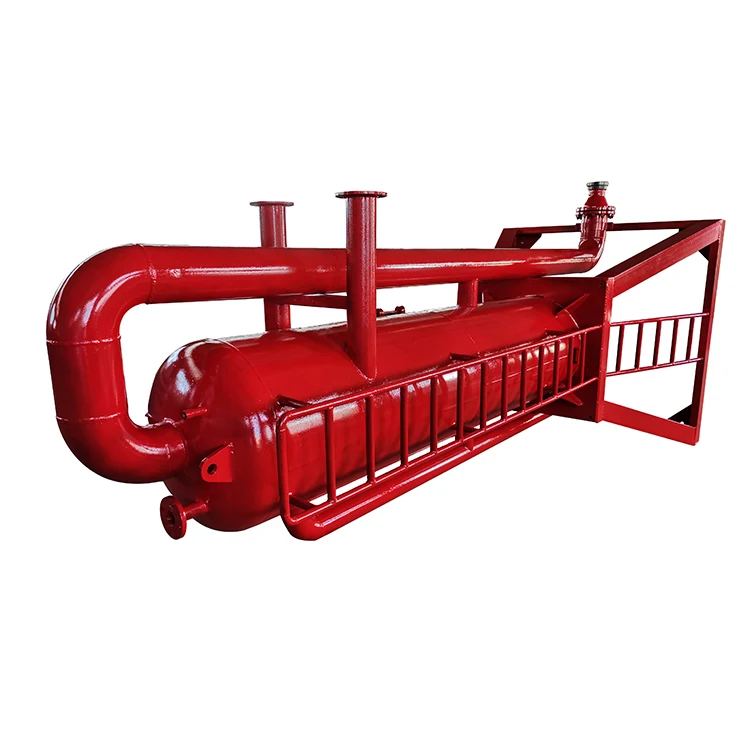

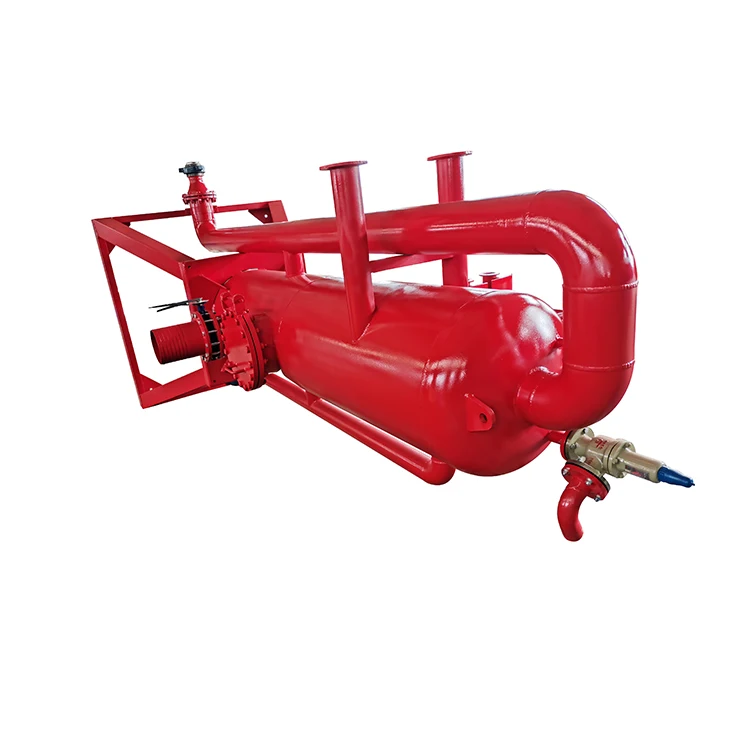

| Model | FLQ600 | FLQ800 | FLQ1000 | FLQ1200 | FLQ1400 |
| Vessel diameter | φ600 | φ800 | φ1000 | φ1200 | φ1400 |
| Treating capacity | 120m³/h | 240m³/h | 300m³/h | 380m³/h | 420m³/h |
| Inlrt pipe | 4″ | 4″/5″ | 4″/5″ | 4″/5″ | 5″ |
| Discharge pipe | 8″ | 10″ | 10″ | 10″ | 12″ |
| Vent line | 6″ | 8″ | 8″ | 8″ | 10″ |
| Weight | 1250kg | 1850kg | 2400kg | 3460kg | 4280kg |
| Dimension | 1600*1600*4300mm | 1900*1900*5700mm | 2000*2000*5860mm | 2200*2200*6634mm | 2300*2300*7380mm |
| Remark | 1.Vent line length de on user`s demand. 2.The capacity is 8000m³ per day as customers`requirements.The height of pedestal can be adjusted. 3.Vessel diameter arid mud seal can be customized. | ||||
