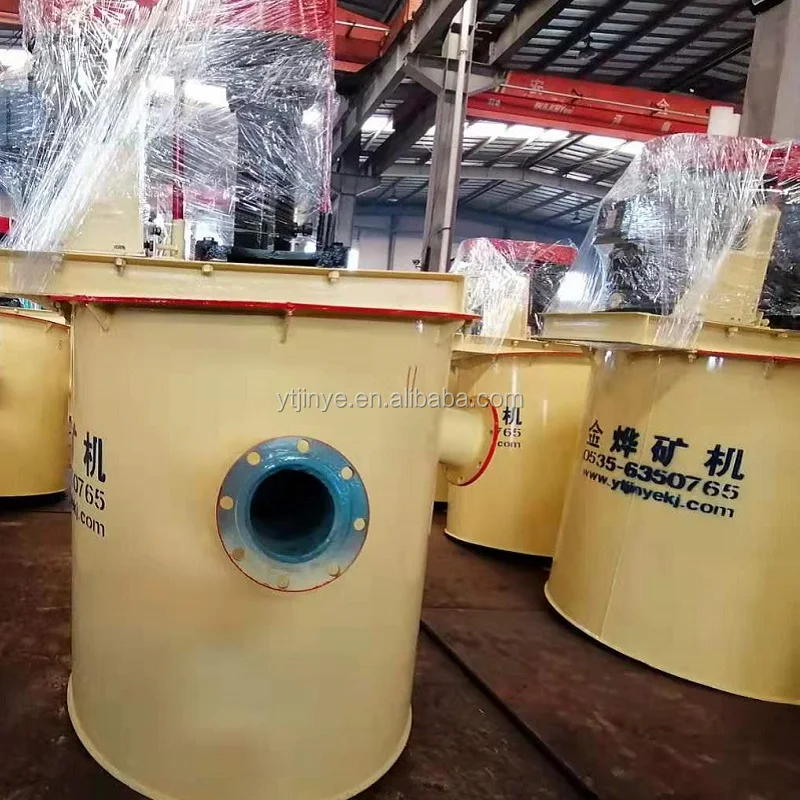

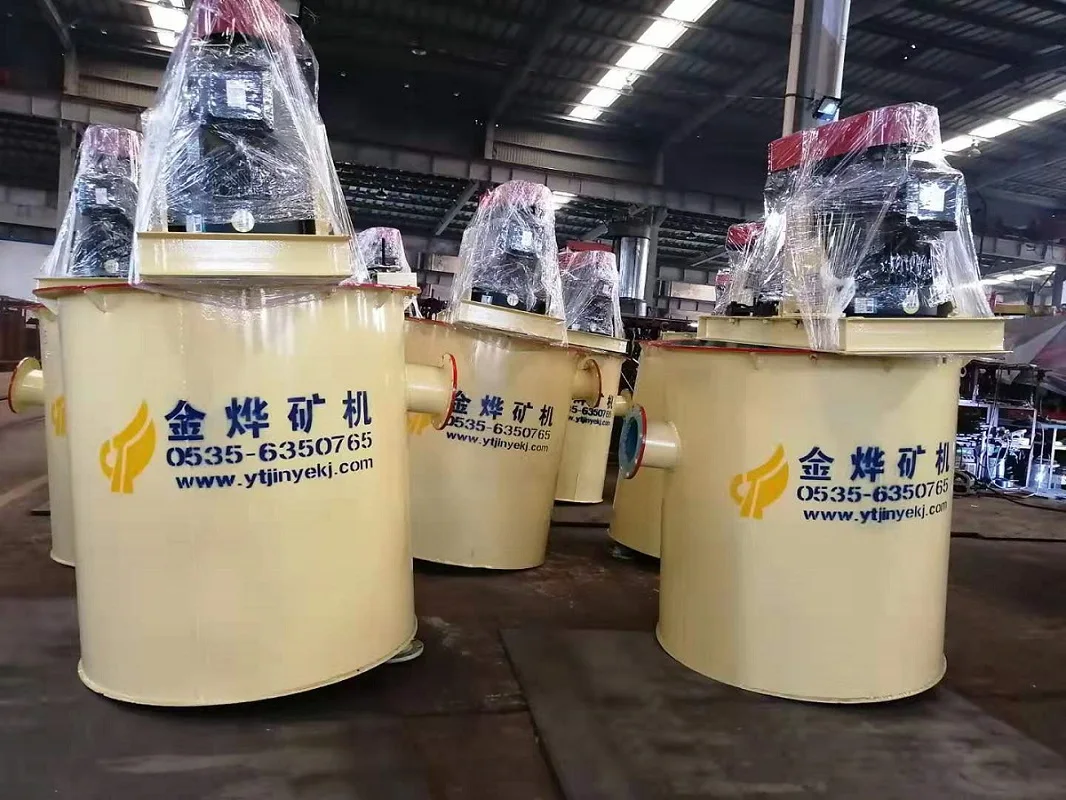

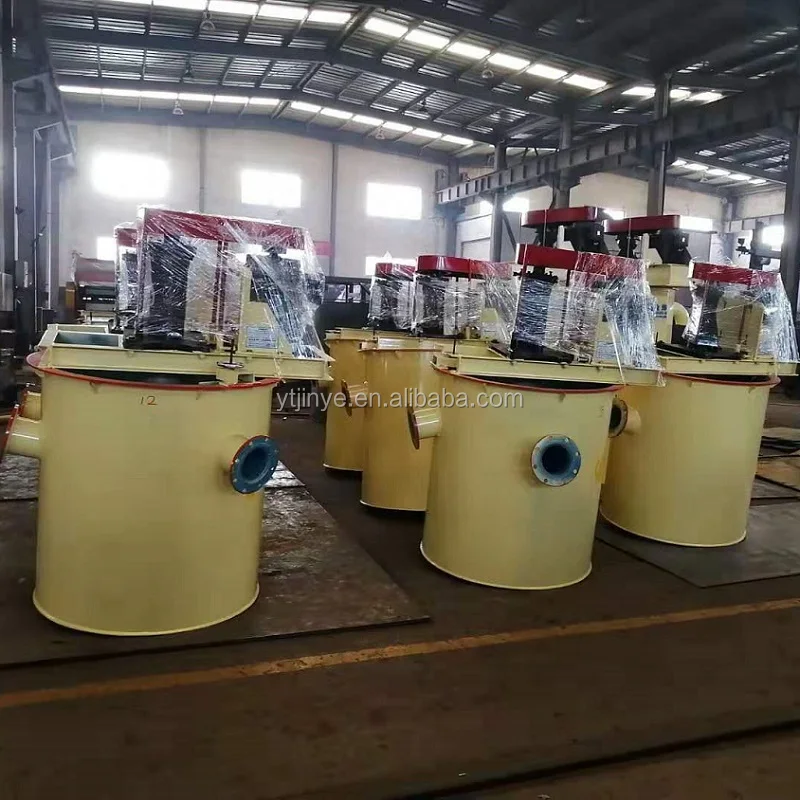

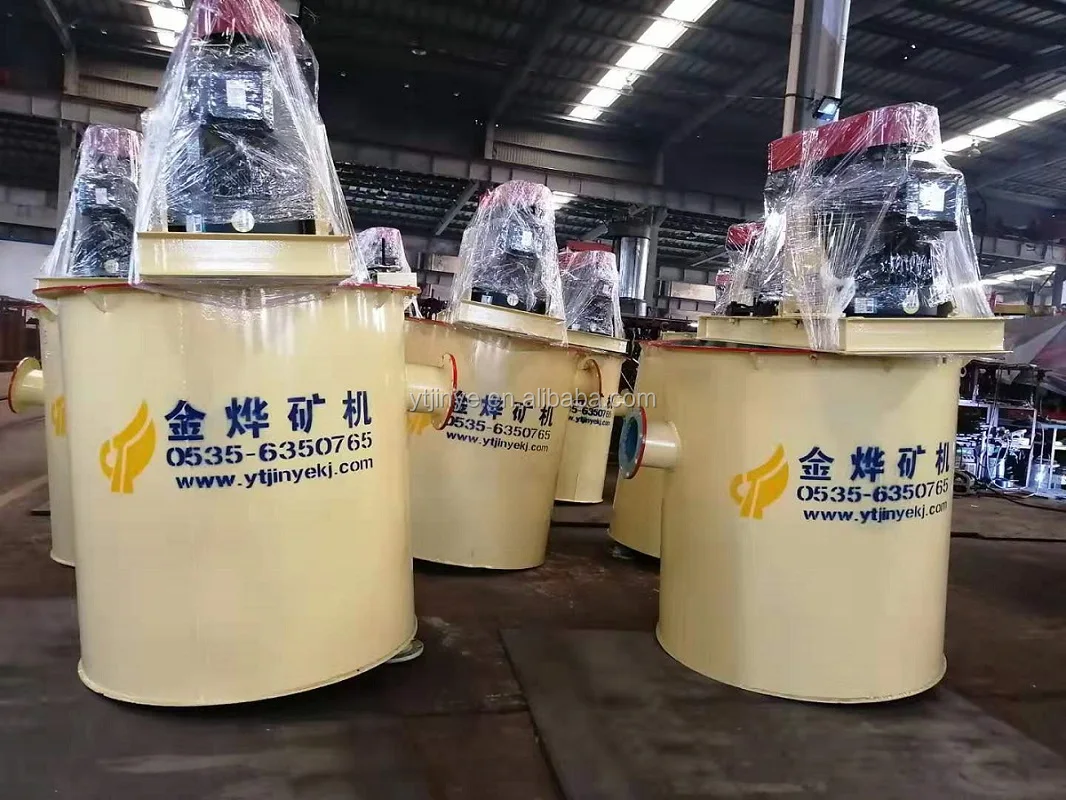

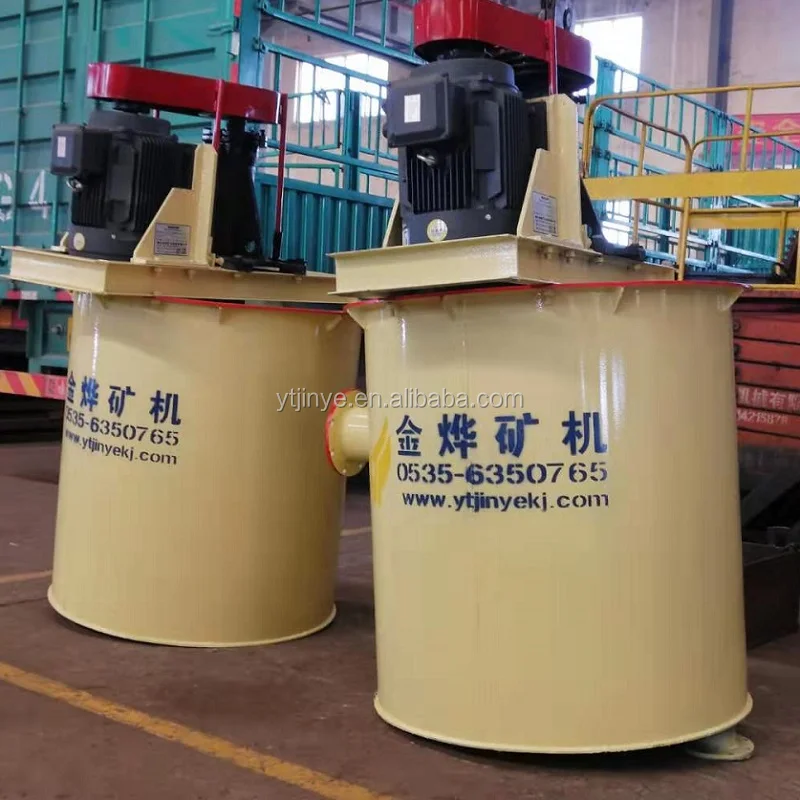

China Mine Machine Double Impeller Gold Agitation Leaching Tank
Double impeller high efficiency agitating tank is applicable to carbon process and rubber chemical process. Its upper and lower layer of impellers are of steel plate encapsulated with rubber,which are connected by means of bolts. With the features like good equilibrium,easy replacement and long service life.
Model
Specs of tank
Diameter x Height
Effective volume
(m3)
Impeller revolution
(r.p.m)
Diamater of impeller
(mm)
Motor model
(kw)
SJ2.0 X 2.5
2000 x 2500
6
52
909
2.2
SJ2.5 X 3.15
2500 X 3150
13.14
52
935
2.2
SJ3.0 X 3.0
3000 X 3000
18
40.85
1130
4
SJ3.0 X 3.15
3000 X 3150
18.93
43
1130
4
SJ3.0 X 3.5
3000 X 3500
21
43
1130
4
SJ3.15 X 3.55
3150 X 3550
24
43
1260
4
Feature of structure
Agitation tank is suitable for slurry mixing before further processing of raw material in mining. This machine features with high capacity, low invest and anti-corrosion design. Thus makes it a long life span and reliable mining agitator. The utility model relates to a device for mixing and lifting pulp and flotation reagent, which is used in the mines, the chemical and the coal industries, in particular to a lifting agitation tank. The device is suitable for flotation, re-election, and separation and so on. it stir for the concentration that is not more than 35% and solid components of the slurry practical size of less than 1 mm.it can also be used for mixing with flotation and other non-metallic minerals.
Certifications
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Working Principle
Mineral Agitation Barrel is used for mixing pulp before the flotation process, causes the pulp and medicament intensive mixing,and creates condition for the mine selection working. These machine rotaries by the Vbelt drives the impeller, make medicine and mash mix even enough, increase the medicine effect time, strength the medicine effect quantity, necessity set. It fits concentrating, and every chemical industry mixing.
Application
AC Motor Type and New Condition Gold Agitation Double Impeller Leaching Tank
SJ double impeller leaching tank is mainly used in cyanide leaching of gold producing and sewage treatment of cyanide factories. It is also used in metallurgy, chemical industry and light industry. In carbon slurry process and cyanide process, the leaching tank should be used together with carbon screen, carbon pulp and other auxiliary equipment.
