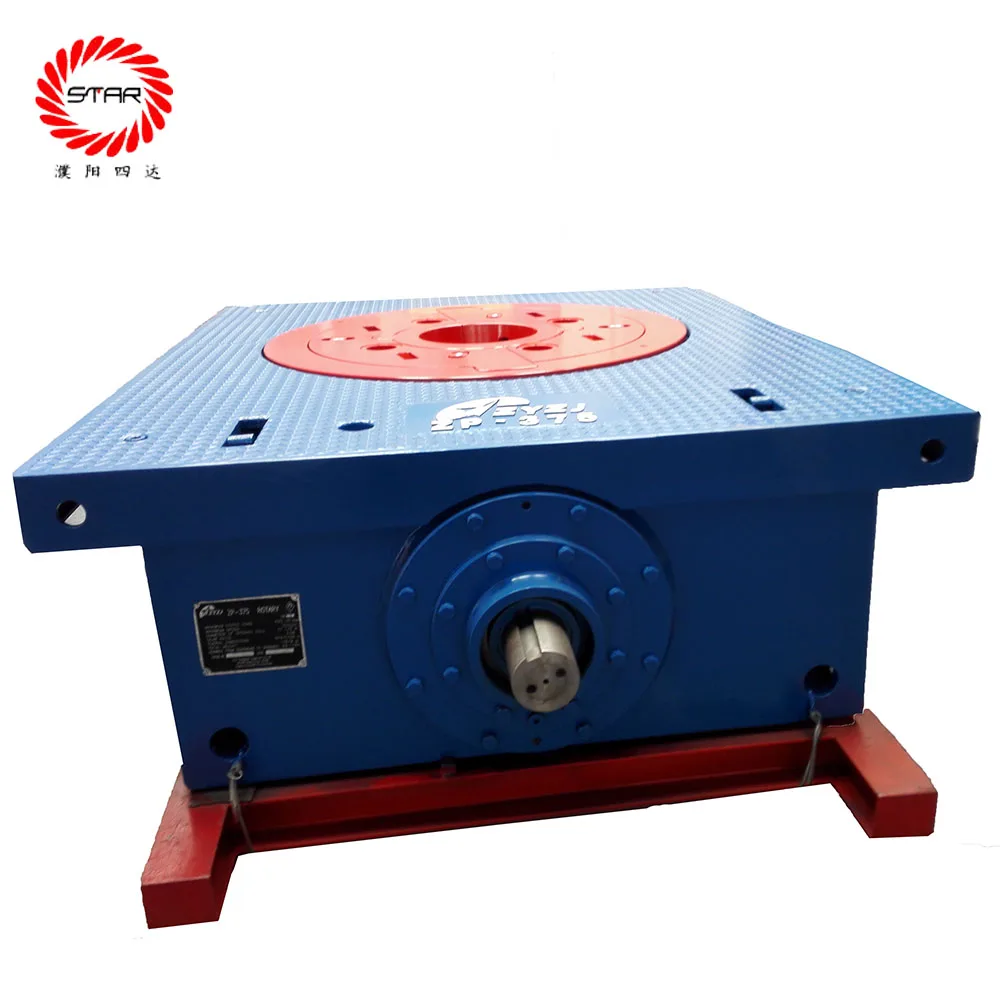

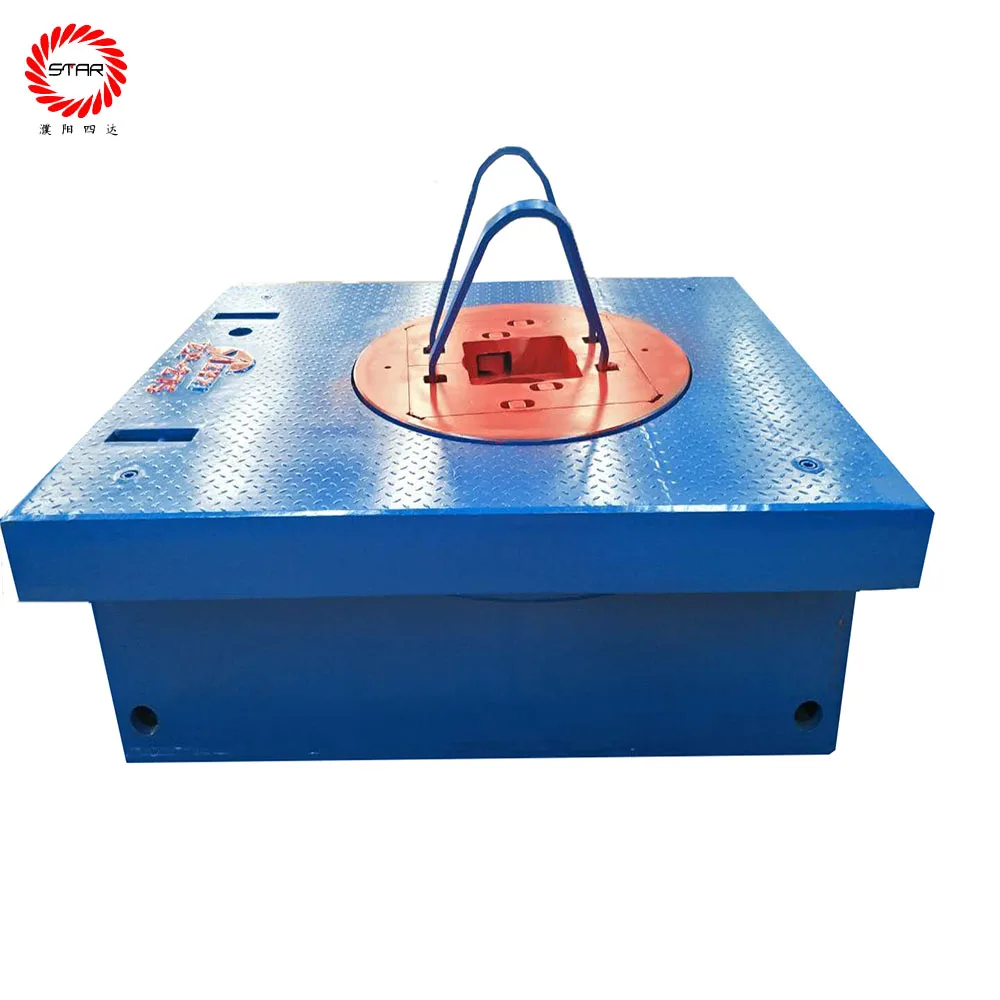

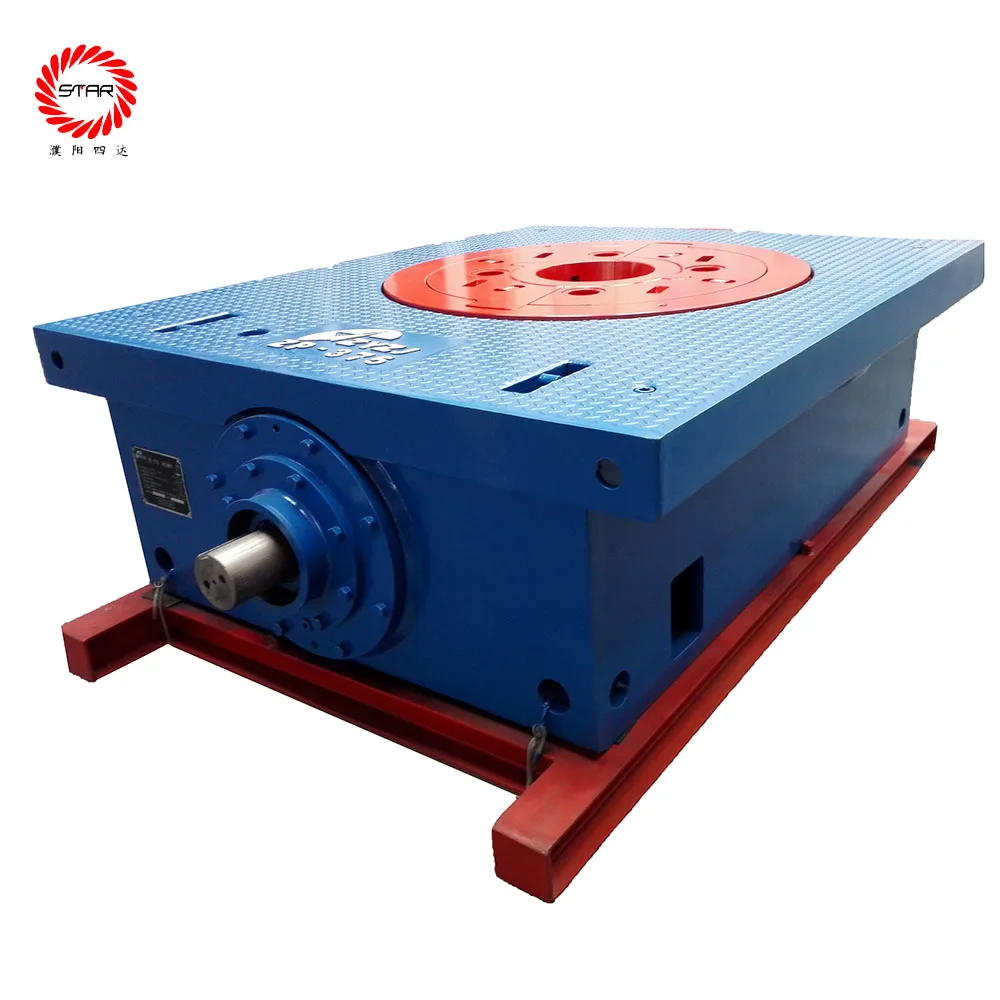

ZP 175 ZP275 ZP375 rotary table for oilfield drilling rig
- Category: >>>
- Supplier: Puyang Star Petroleum Machinery Co. Ltd.
Share on (62387294984):
Product Overview
Description
Product Description
Model | ZP175 Rotary Table |
Dia. Of Opening mm(in) | 520.7(20.5) |
Center Distance mm(in) | 1353(53.25) |
Max. Static Hook Load Rating kN | 3150 |
Max. Working Torque N.m(ft.lbs) | 22555(16646) |
Max. Speed r/min | 300 |
Gear Ratio | 3.22 |

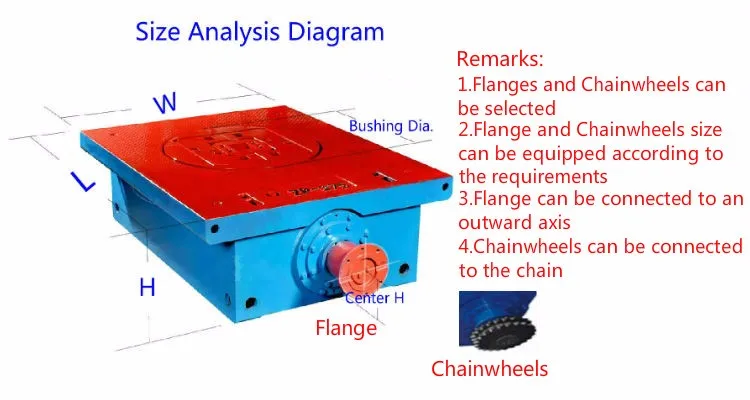

Overall Dimension mm(in) | 2292x1475x673(90x58x26.5) |
Weight kg (lbs) | 3888(8572) |
Product Information:
Rotary table is an important part of drilling rig. Its function is to slow down a pair of bevel gear pairs during drilling operation, so that the turntable can get a certain range of speed and torque output, and drive drilling tools for drilling operation.

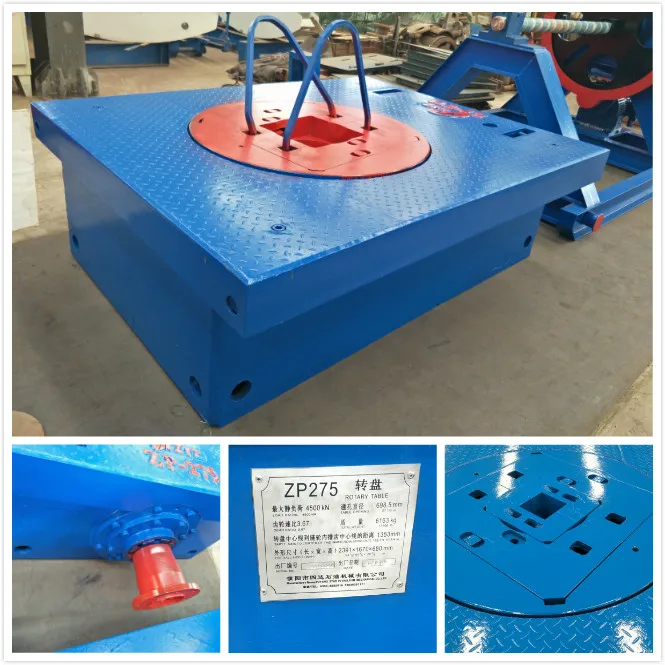

Detailed Images

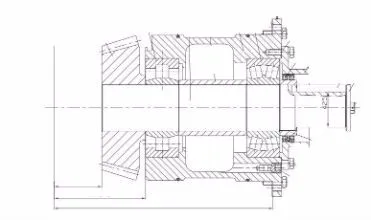

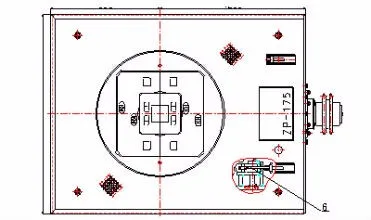

Rotary Table Structure Drawing
Rotary Table Structure Feature:* Meet the Api7k requirements.
* Conform to the requirements of industry standard SY/T5531.
* The rotary table adopts spiral bevel gear drive,have higher loading capacity and running smooth,long service life.
* The casing is a casting and welding structure which has a better rigidity and high precision.
* The gears and bearing adopt splash lubrication simple and reliable.
* The input shaft is a cylinder structure ,convenient to servicing.
* Conform to the requirements of industry standard SY/T5531.
* The rotary table adopts spiral bevel gear drive,have higher loading capacity and running smooth,long service life.
* The casing is a casting and welding structure which has a better rigidity and high precision.
* The gears and bearing adopt splash lubrication simple and reliable.
* The input shaft is a cylinder structure ,convenient to servicing.
Rotary Table Technical Paramaters
Packing & Delivery
Nude Packing
Shaft coated with grease as required.
The turntable should be used when lifting transport tools and equipment, and can only be hoisting from the four corners of the lifting hole, not allowed to drag directly on the ground.
Waiting For Delivery
Domestic Transport
Sea Shipping
