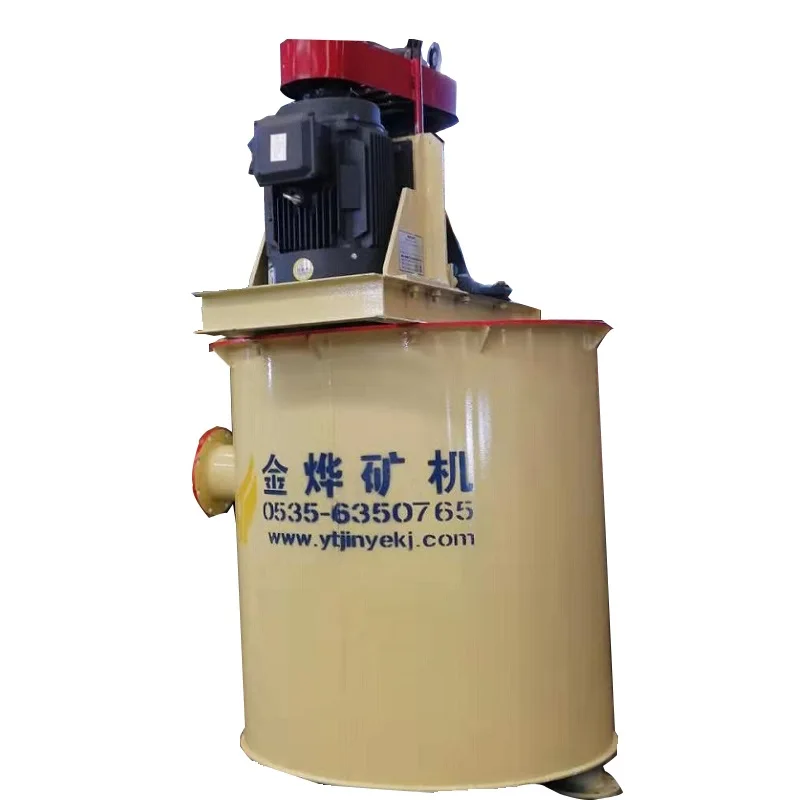

Gold Leaching Plant—Ieaching tank Double impeller high efficiency agitating tank is applicable to carbon process and rubber chemical process. Its upper and lower layer of impellers are of steel plate encapsulated with rubber,which are connected by means of bolts. With the features like good equilibrium,easy replacement and long service life.
.The equipment is produced by American technologu introduced.
.More spot air-filling system.
Model
Specs of tank
Diameter x Height
Effective volume
(m3)
Impeller revolution
(r.p.m)
Diamater of impeller
(mm)
Motor model
(kw)
SJ2.0 X 2.5
2000 x 2500
6
52
909
2.2
SJ2.5 X 3.15
2500 X 3150
13.14
52
935
2.2
SJ3.0 X 3.0
3000 X 3000
18
40.85
1130
4
SJ3.0 X 3.15
3000 X 3150
18.93
43
1130
4
SJ3.0 X 3.5
3000 X 3500
21
43
1130
4
SJ3.15 X 3.55
3150 X 3550
24
43
1260
4
Feature of structure

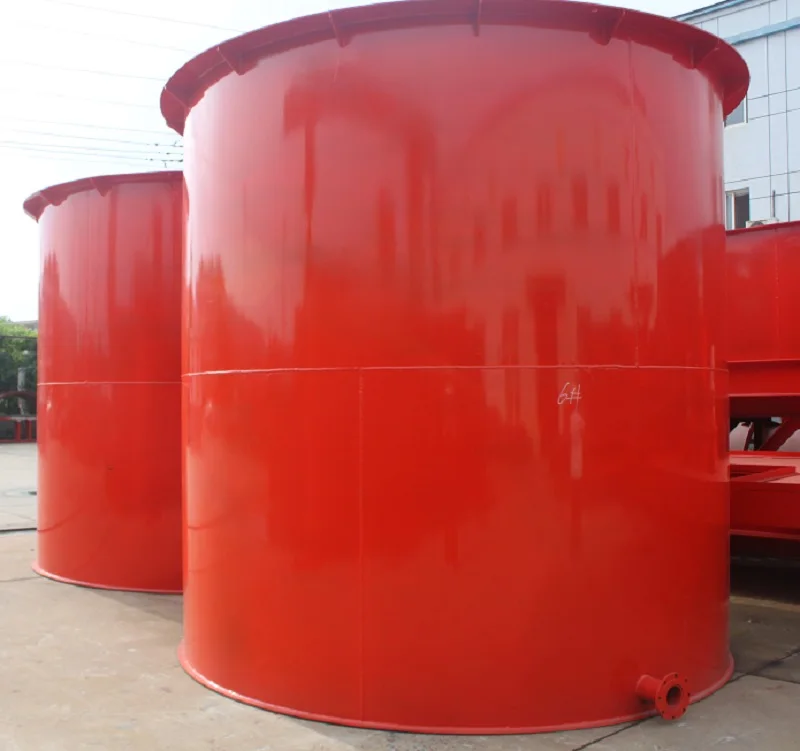

Cylinder is covered with abrasion resistant and corrosion resistant rubber. The high linear speed of impeller helps increase the agitation capacity of ore pulp. More spot air-filling system.
Certifications
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
The company will design the packing plan according to your needs.
Related Products
Products Name with link
91.8% Response Rate
Products Name with link
91.8% Response Rate
Products Name with link
91.8% Response Rate
Process Flow Cart
Application
AC Motor Type and New Condition Gold Agitation Double Impeller Leaching Tank
SJ double impeller leaching tank is mainly used in cyanide leaching of gold producing and sewage treatment of cyanide factories. It is also used in metallurgy, chemical industry and light industry. In carbon slurry process and cyanide process, the leaching tank should be used together with carbon screen, carbon pulp and other auxiliary equipment.
