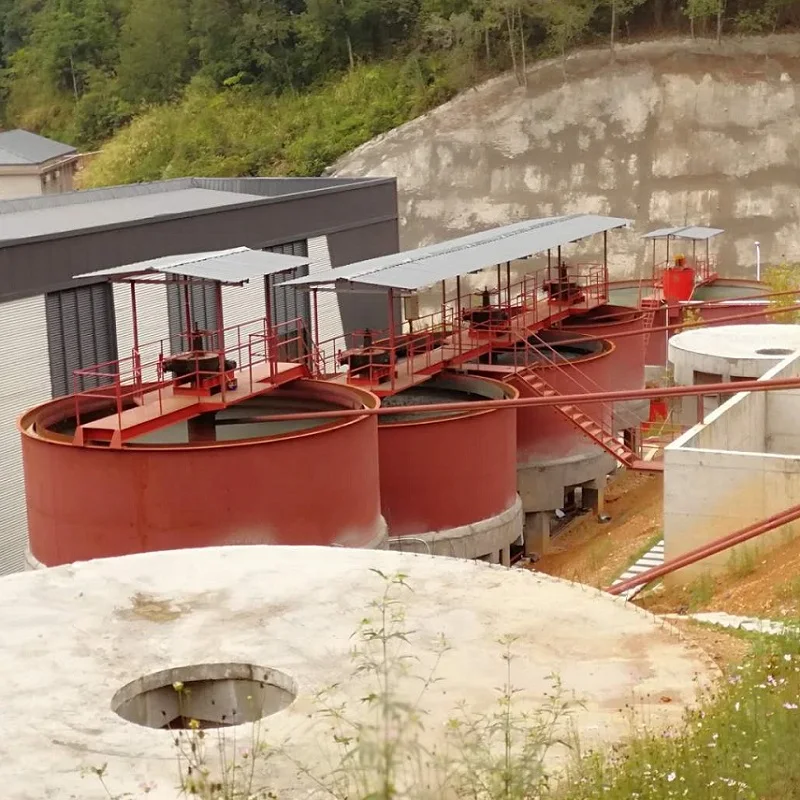

Mineral Processing High Efficiency Thickener , Concentration Tank

High efficiency densifier solid-liquid separation, can make the gold in the pulp can be completely discharged with the precious liquid, so the washing effect is very good.
The high-efficiency reforming thickener is mainly used in the beneficiation process, wet-selected dewatering, pre-dip
concentration or washing operation, usually before the filtration equipment or before the cyanide leaching equipment, sometimes for the dewatering or tailings before the selection dehydration.

Technical parameters

Model	Specs of tank Diameter x Depth (mm)	Sedimental area (m2)	Capacity (ton/day)	Motor model (kw)
NZSG-2.5	2500x1850	4.9	5-22.4	1.1
NZSG-3	3600 x 1800	7	5-28.5	1.5
NZSG-6	6000 X 2956	28.3	98	1.5
NZSG-9	9000 X 3376	63	210	3
NZSG-12	12000 X 3600	113	370	3
NZSG-15	15000 X 4000	176	580	5.5
NZSG-18	18000 X 4400	255	960	7.5
NZSG-20	2000x4400	315	1400	7.5

Feature of structure

1.Deaeration cell is provided to avoid soild perticles attaching to bubbles and settling as prachute phenomena.

2.The mineral-feeding pipe is beneath the liquid level lest air to be brought in while feeding.

3.The feeding casing is moved to a lower position and a receiving plate is equipped.Therefore,the fed slurry fall evenly and steadily,preventing rolling phenomena because of the residual pressure from feeding.

4.Inner overflow weir is equipped to have the pulp flow on pre-designed  route,avoiding short circuit enlarging the sedimental area.

5.The pattern of the overflow weir is made into indented shape,eliminating part suction phenomena induced by unleveled overflow weir.

6.The rabble blade is changed from oblique lines to curves.So the discharging underflow has higher density,and treatmentcapacity is enhanced.

Certifications

Working Principle

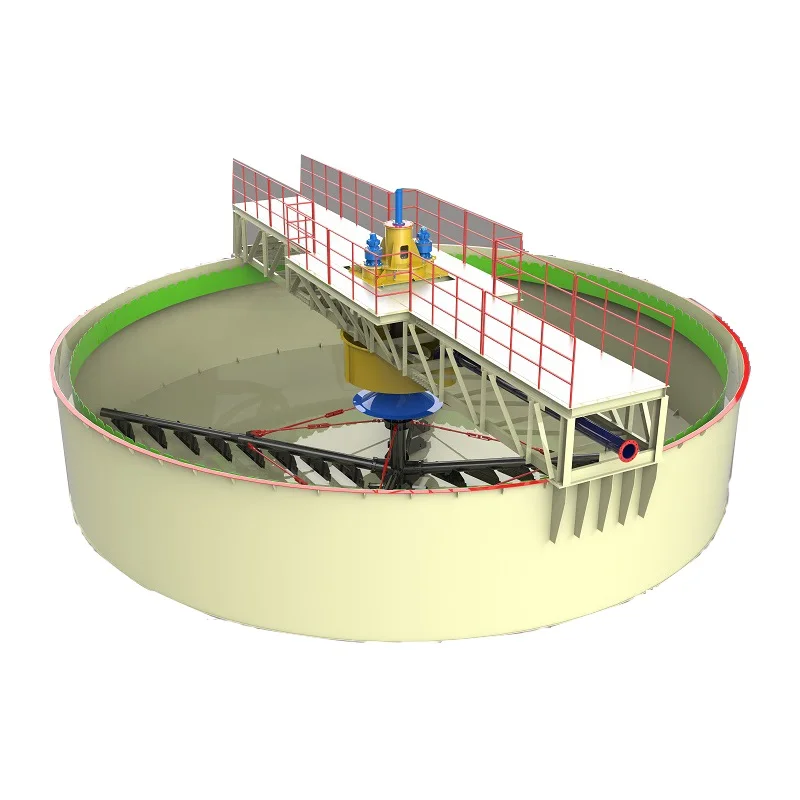

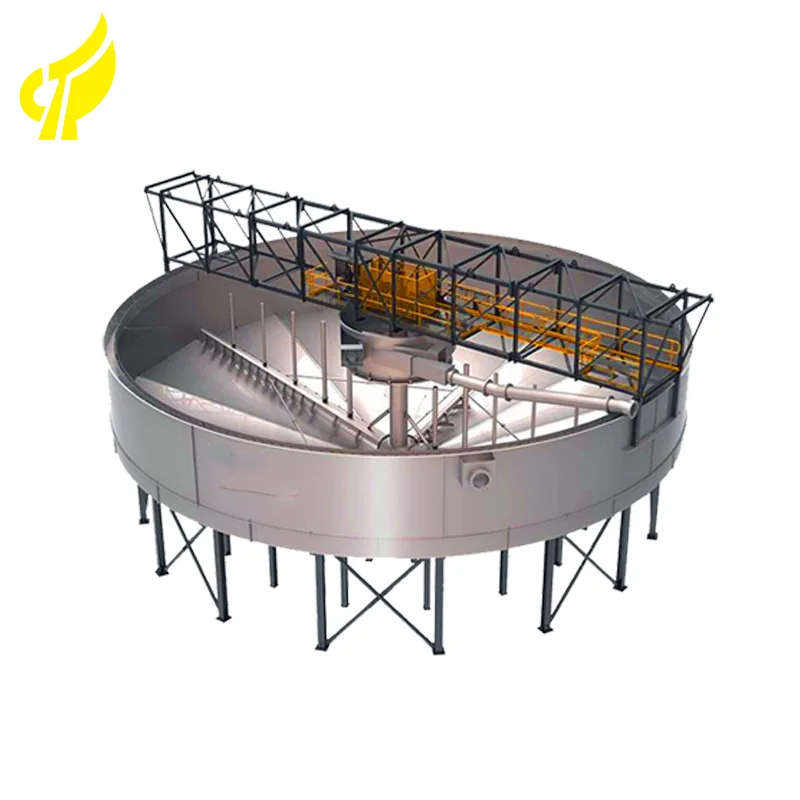

This thickener consists of round thickener and harrow scrapping machine, the solid particles suspend in thickener settling by gravity, the pulp in the upper turn into clean water, so that the separation can be realized. Slime that sediment in the bottom of the thickener is discharged by the harrow scrapping continuously, and clean overflow from the upside.

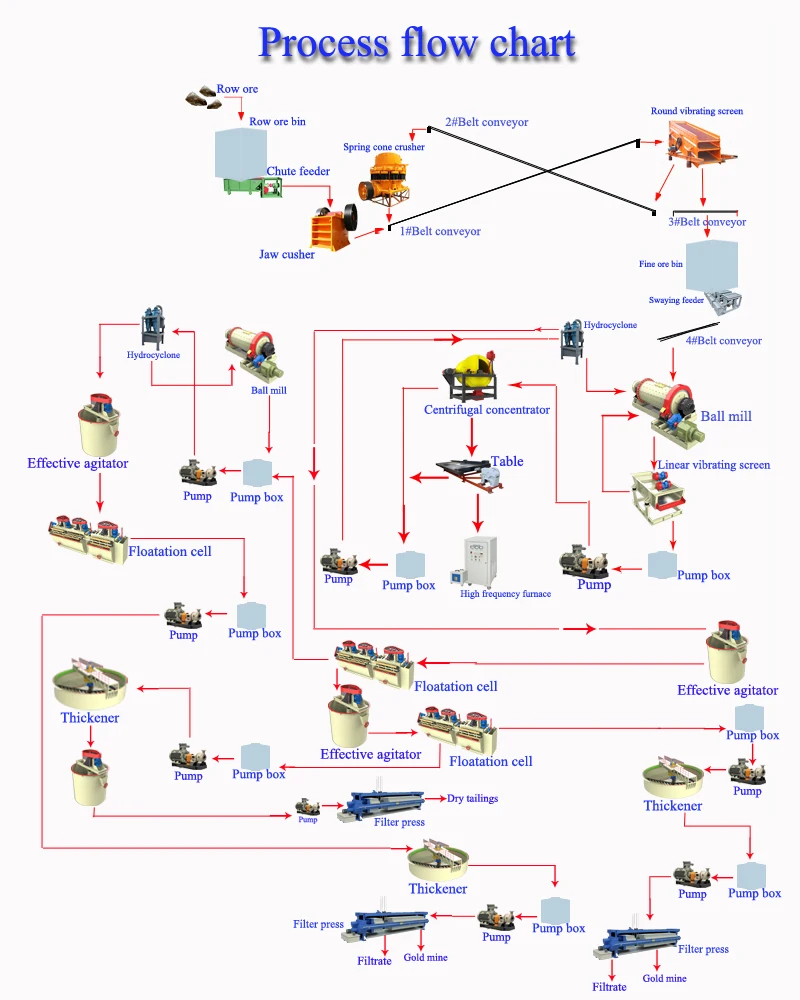

Process Flow Cart

Application

It is widely used for dealing with slime, wastewater, waste residue in metallurgy, mine, coal, petrochemical industry, building
materials, environmental protection department etc.

Our Service

Before sale:

1. Ore beneficiation test;
2. Designing and fabricating the products in accordance with the special requirements of the clients;
3. Training technical personnel for our clients;
4. Beneficiation equipment choose.

During sale:

1. Provide clients the base drawing;
2. Provide clients machinery drawing;
3. Training technical personnel for clients;
4. Invite clients to visit the workshop during manufacture.

After sale:

1. Assisting the clients preparing for the first construction scheme;
2. Installing and testing the equipments;
3. Training the first-line operators on site;
4. Providing technical exchanging and maintenance for big item
