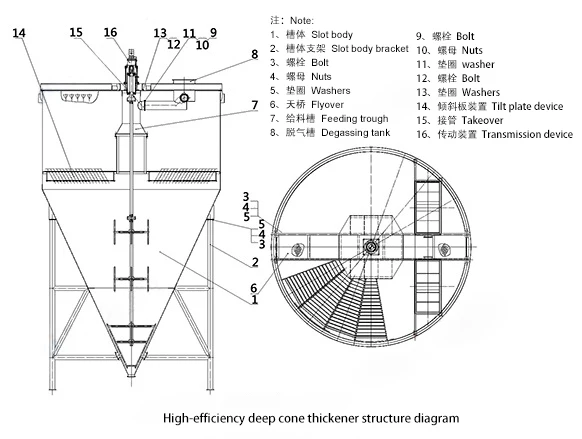

Working Principle of High Efficiency deep cone thickener :

The slurry or other liquid to be treated is fed from the feeding area to the sedimentation and concentration area, and a relatively dynamic and balanced suspension process is formed in this area. The particles with larger particle size in the slurry have higher velocity at the end of the settlement. The suspended filter layer in the sedimentation and concentration area filters and it quickly settles into the bottom discharge port for discharge. The particles with smaller particle size that have not settled due to the impulse of the water flow enter the inclined pipe area with the rising water flow. The oblique tube area fills the hexagonal thin-walled multi-empty oblique tube at a certain angle and divides the water flow into many sedimentation units. The finer particles entering the oblique tube area reach the oblique tube wall under the condition of laminar hydraulic settlement and accumulate to a certain amount. Sliding down to the sedimentation area under the effect of gravity, according to the design requirements of the separation particle size processing capacity, fine particles that fail to settle in the inclined tube area will be discharged with the overflow, thereby achieving the classification and sedimentation process.

 Numerical display of density and height of overflow water layer, sedimentation layer, dense phase layer and compression layer; process technology parameter setting of main equipment; process technology parameter and operation status display of main equipment
1) The material of the inclined plate is a modified PVC or PP polypropylene plate with a polymer treatment on the surface, which has wear resistance, aging resistance, and antistatic properties;
2) The bottom cloth achieves ideal countercurrent settlement, shortening the settlement distance and time; a filter layer is set up to further intercept the rising small particles, which greatly improves the solid-liquid separation efficiency.
3) Because the high bottom of the equipment can form a high pressure, the clearance water can be further removed here, and the underflow concentration can be greatly increased.

we can provide valuable successful cases for your reference.

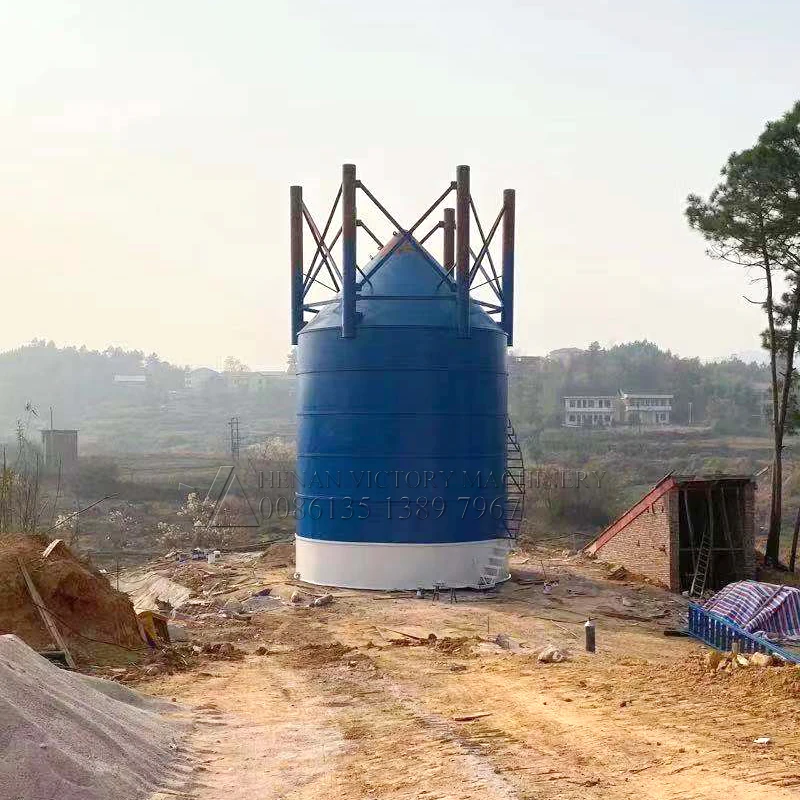

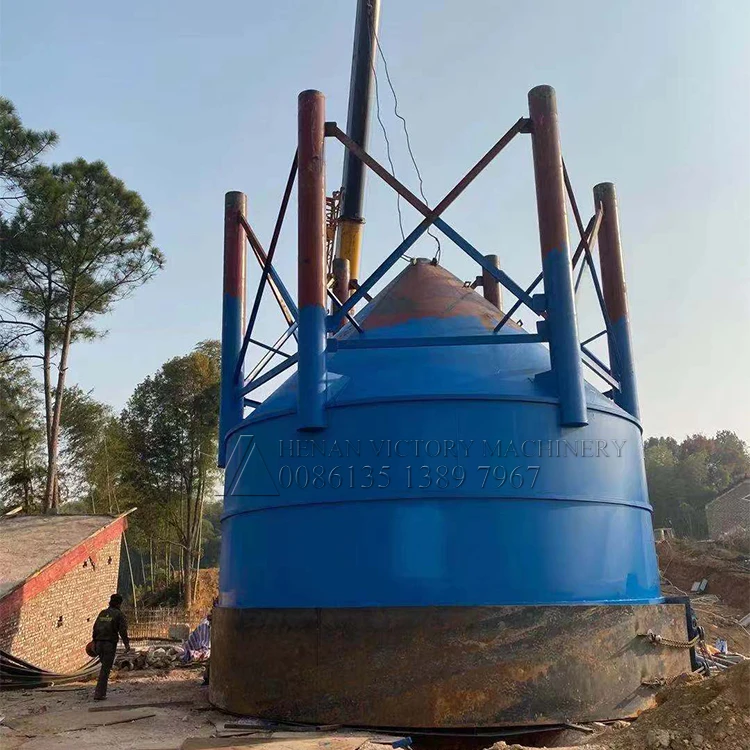

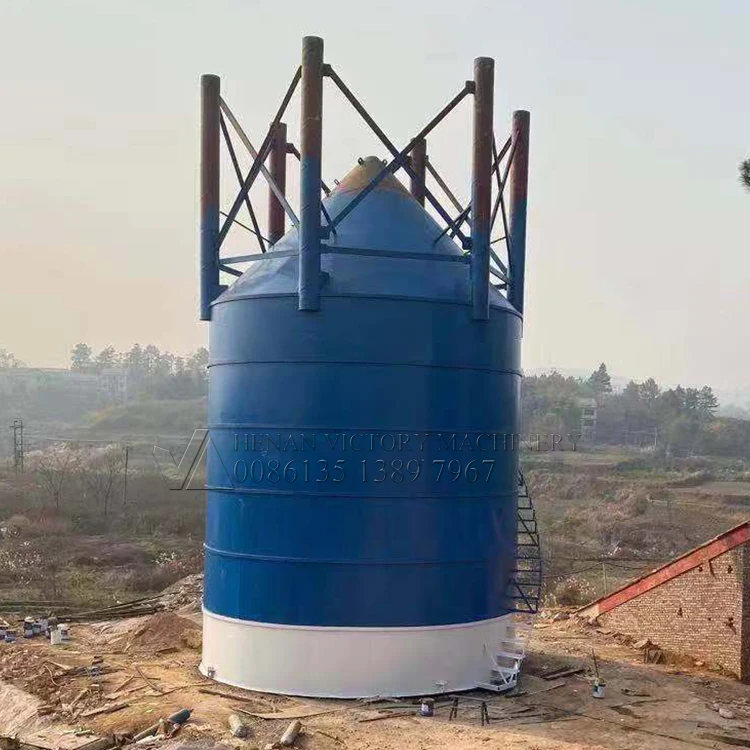

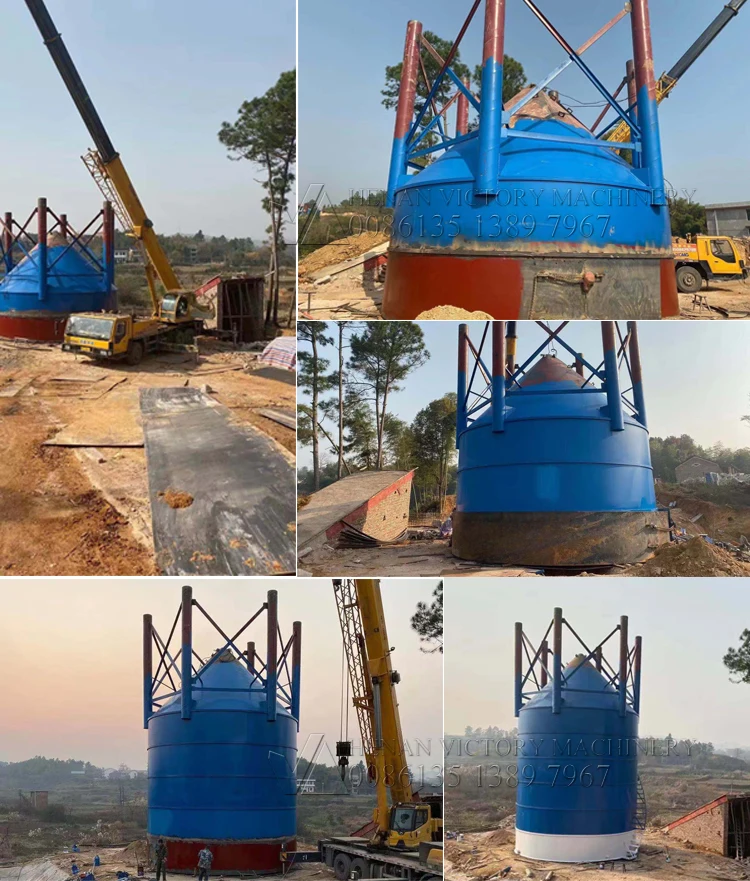

1. The machine is equipped with a circular support at the truncated cone section, and circular plane support at the bottom of the truncated cone. The equipment is in place butt welded with the embedded iron after it is in place.
2. When installing each section of this machine, it is necessary to strictly check its verticality and horizontality, and there shall be no leakage during continuous welding.
3. When installing a vertical shaft, ensure its verticality, keep the upper edge of the column horizontal, and make the periphery evenly overflow.
4. The installation of the inclined plate in the machine should be firm and evenly spaced, and the surface must not be damaged.

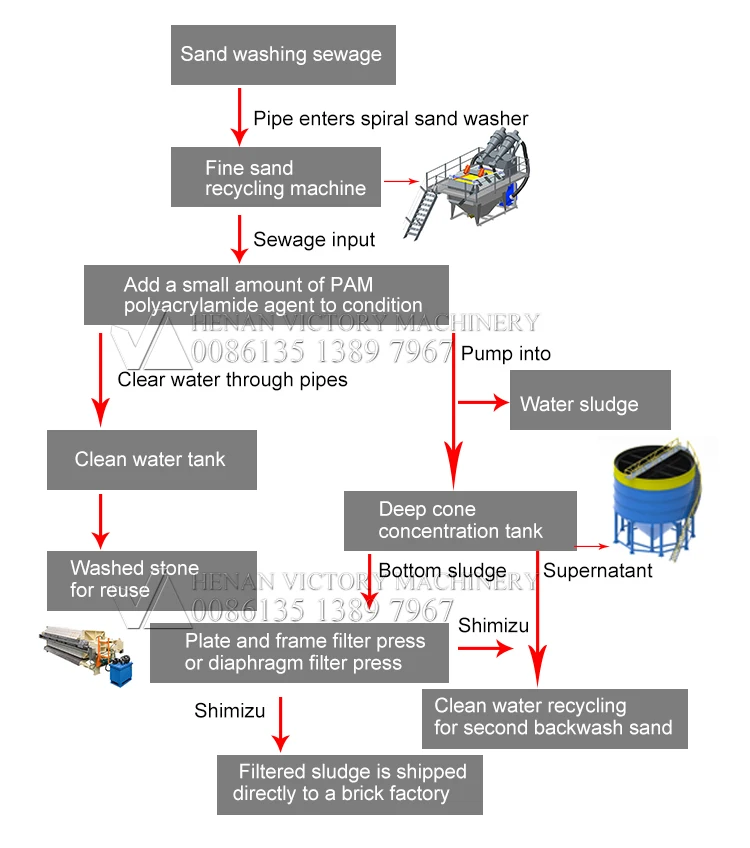

 Widely used in the treatment of sludge, waste water and waste residue in metallurgy, mining and other departments, it is of great significance to improve the utilization rate of backwater and the concentration of underflow transportation, and to protect the environment.
