RS485 датчик электропроводности электрода ec
- Category: PH Meters >>>
- Supplier: Ningbo Leadmed Technology Co. Ltd.
Share on (62388106066):
Product Overview
Description
Product Description

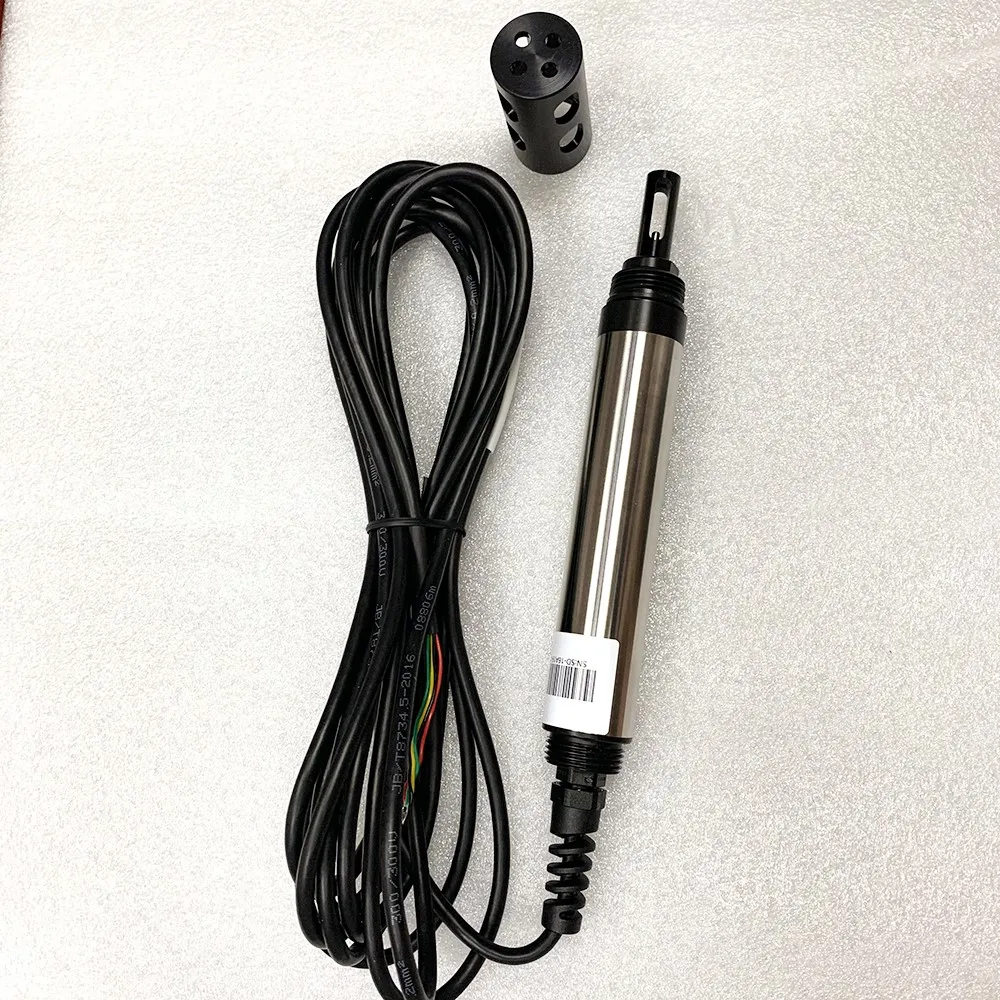

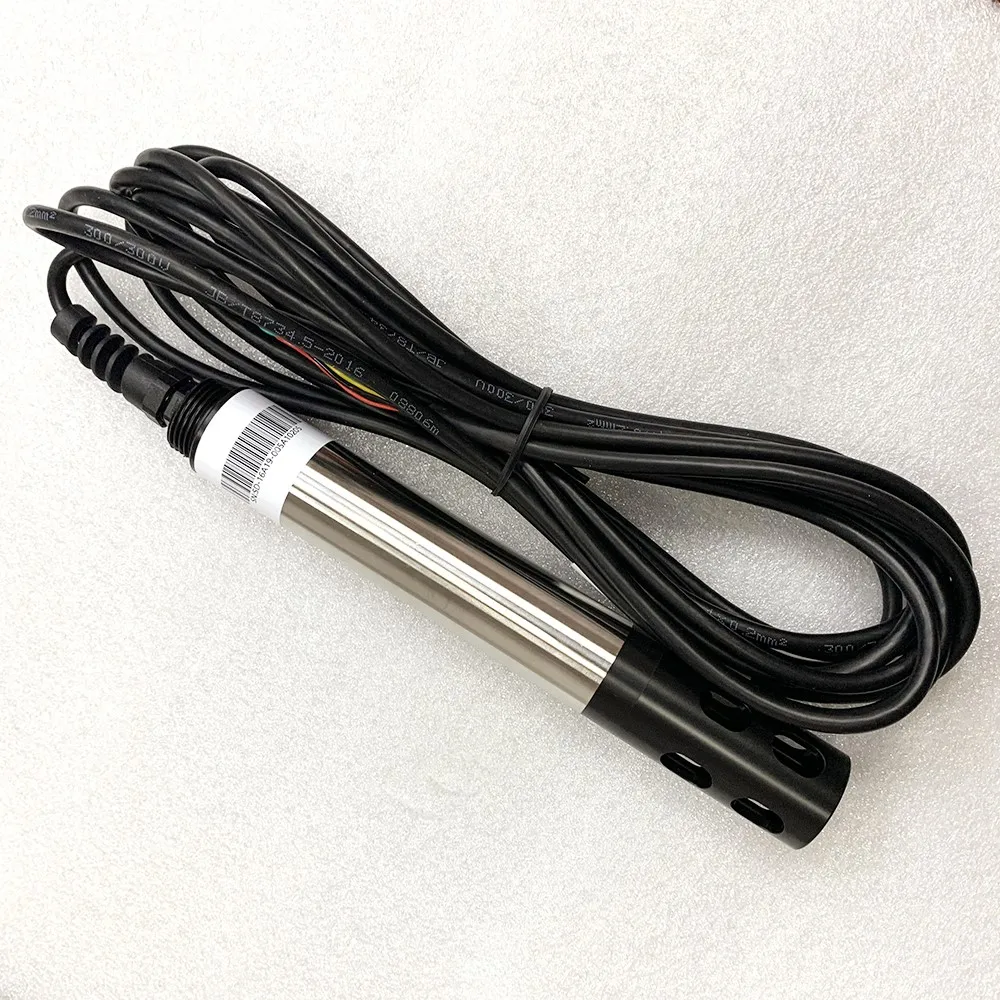

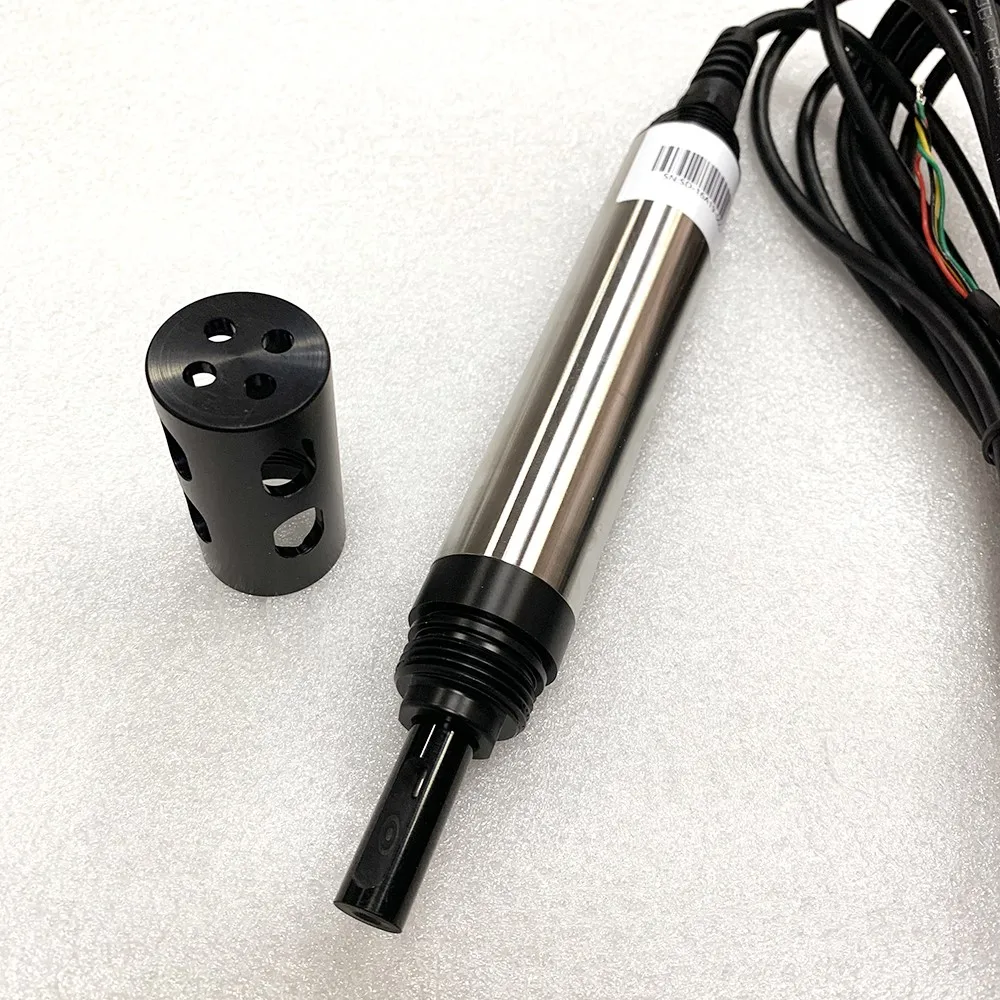

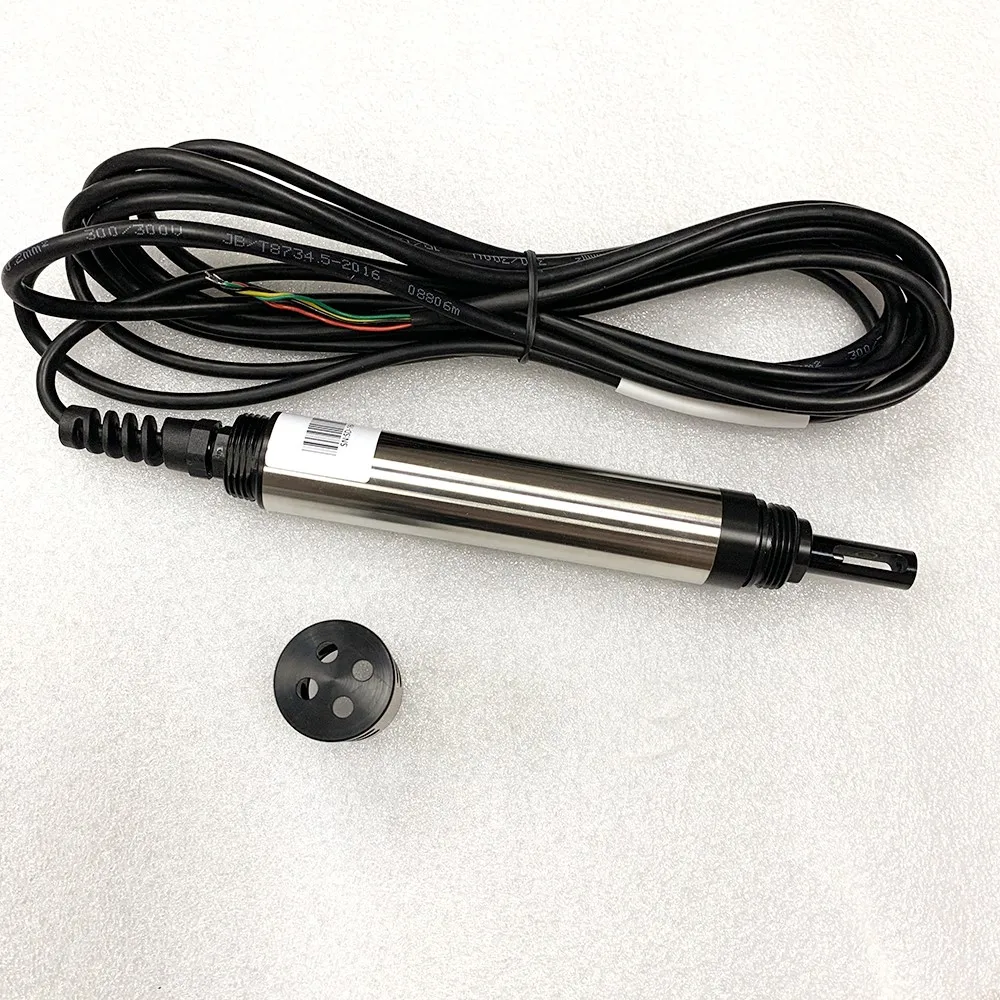

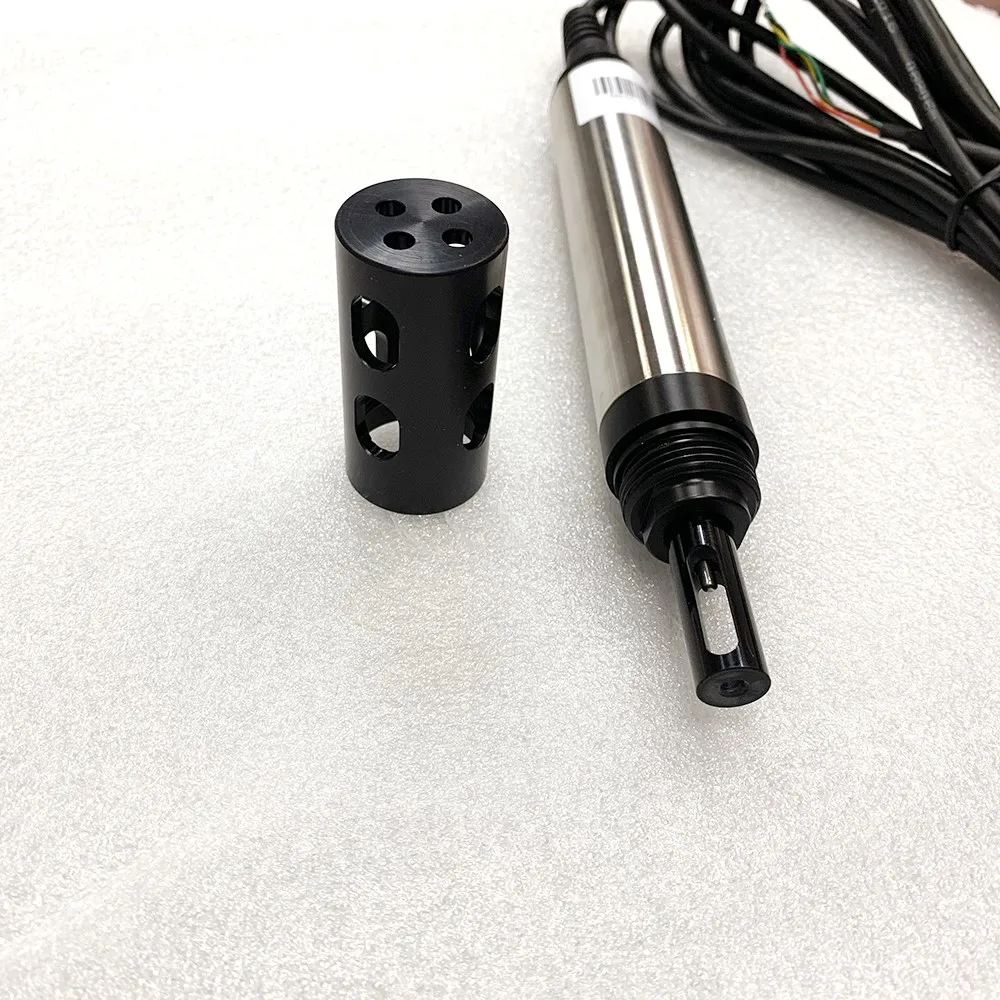

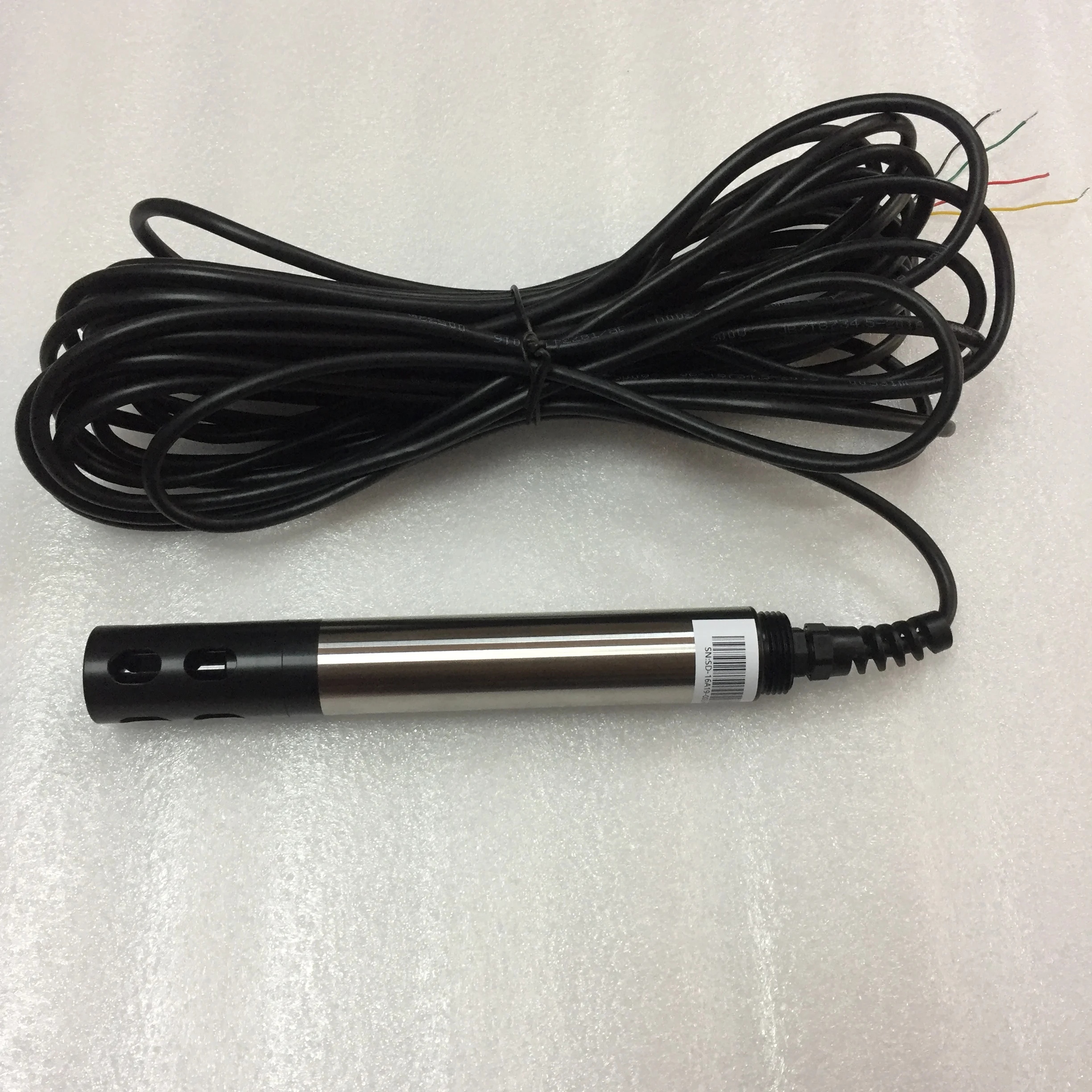

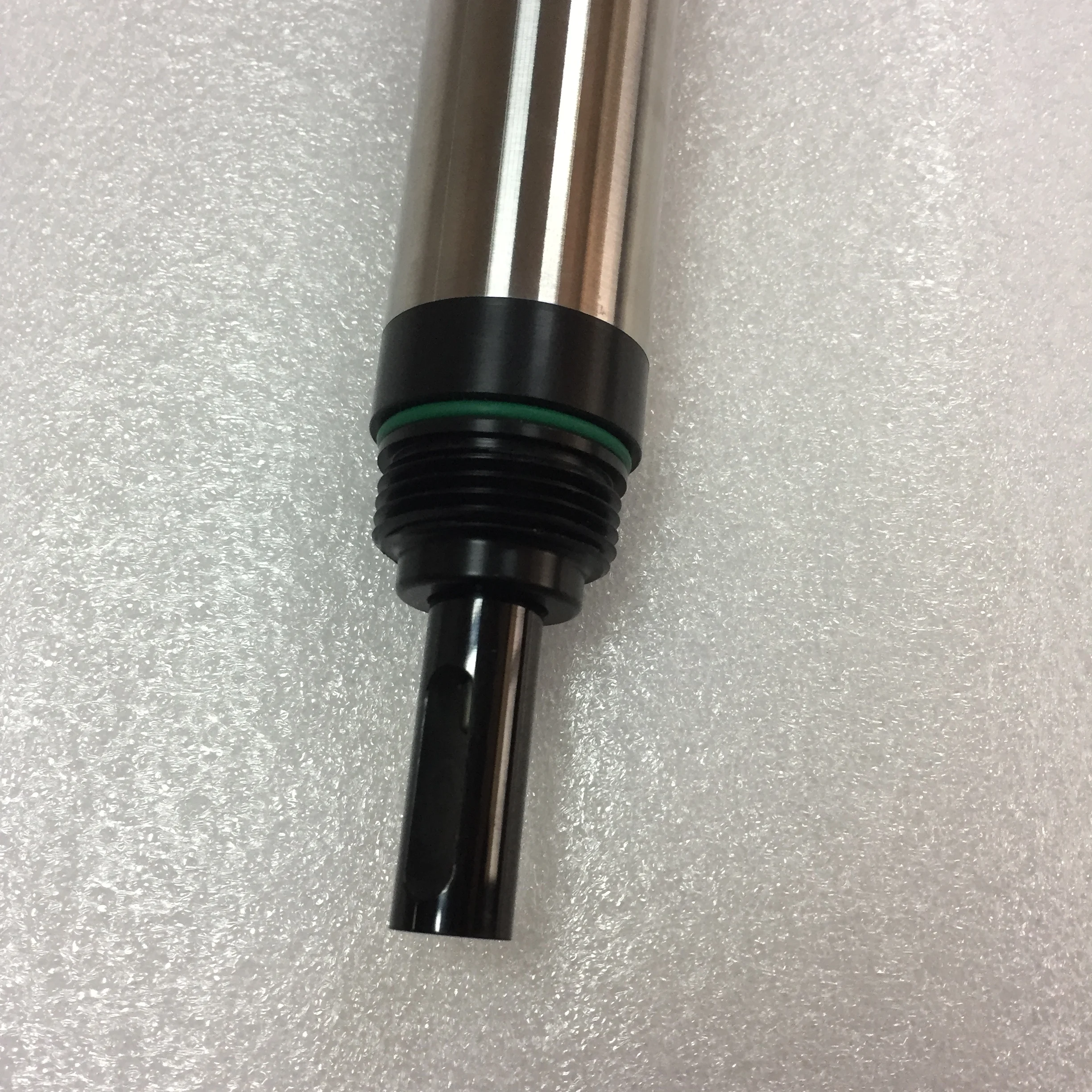

RS485 electrical conductivity ec electrode probe sensor
Electricity conductivity EC probe/electrode can be used in surface water, groundwater, industrial water, waste water and other application environments which need to measure electrical conductivity.
Characteristics
1. Four electrodes measurement principle, longer service time, more accurate;
2. With a variety of installation methods and body materials, suitable for many application environments;
3. Optional Automatic temperature compensation;
4. A variety of electrode shapes, easy to clean, rugged, corrosion resistance;
5. Large measurement range;
6. Quick response time; 7. Factory calibration, convenient installation and maintenance;
Product Paramenters
SD-16A14 | SD-16A19-002 | SD-16A19-005 | SD-16A19-007 | |
Range | 1μS/cm-200ms/cm | 0.05μS/cm-2000μs/cm | 2μS/cm-30ms/cm | 500μS/cm-200ms/cm |
Accuracy | 0-100ms/cm: ±0.5%of reading value; 100-200ms/cm: ±1%of reading value; | ±1% | ±1% | ±1% |
Resolution | 1μS/cm-100μS/cm | 0.01μS/cm | 1μS/cm-100μS/cm | 1μS/cm-100μS/cm |
Protection | IP68 | IP68 | IP68 | IP68 |
Max. Depth | 100m | 100m | 100m | 100m |
Storage | 0~65℃ | 0~65℃ | 0~65℃ | 0~65℃ |
Installation | submerge/pipe | submerge/pipe | submerge/pipe | submerge/pipe |
Temperature | 0 ~ 50℃ | 0 ~ 50℃ | 0 ~ 50℃ | 0 ~ 50℃ |
Power | DC 12 ~24V, <200mA | DC 12 ~24V, <200mA | DC 12 ~24V, <200mA | DC 12 ~24V, <200mA |
Diameter | 30 mm | 30 mm | 30 mm | 30 mm |
Length | 215mm | 215mm | 215mm | 215mm |
Material | POM/SS | POM/SS | POM/SS | POM/SS |
Cable | 5m, 10/15/30m available | 5m, 10/15/30m available | 5m, 10/15/30m available | 5m, 10/15/30m available |
Calibration | 1 or 2 point | 1 or 2 point | 1 or 2 point | 1 or 2 point |

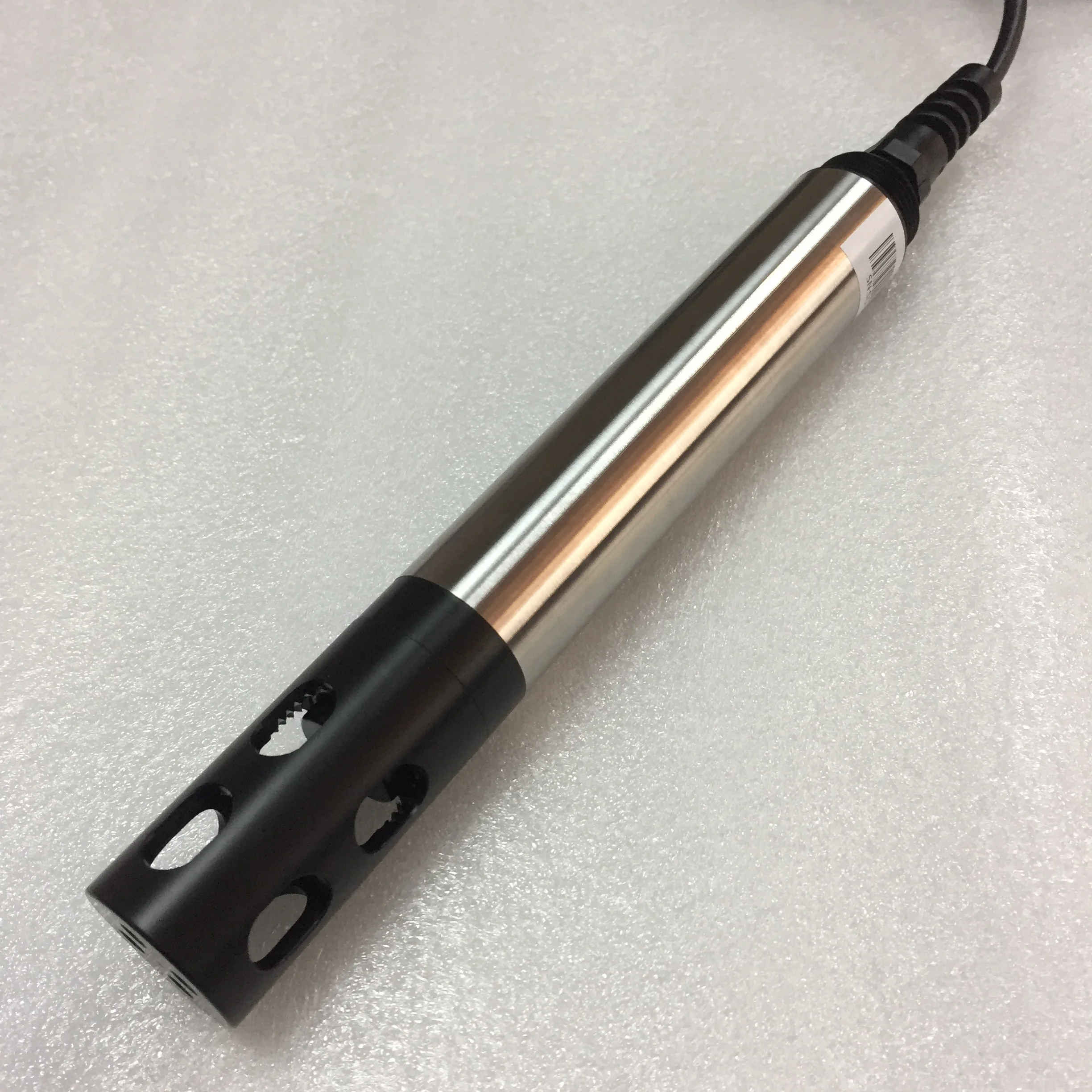

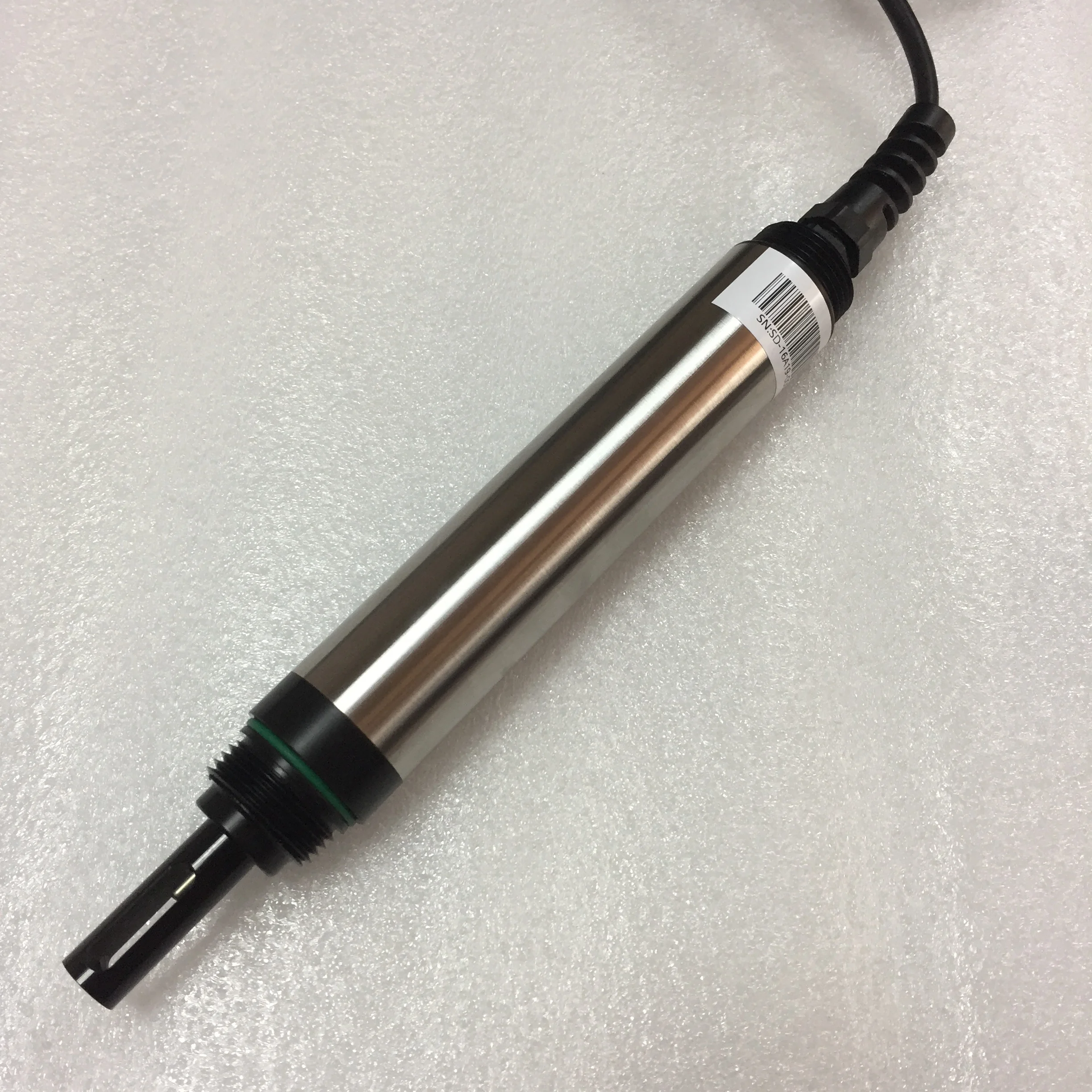

Details Images
Recommend Products
Manufacturing Technique
Product packaging
Safty Strong Packing is our Promise!
1. Each product will be packed individulely first;
2. We will make an outer carton to make it strong enough to support long distance transportion;
3. For sea shipment, wooden case is available;
Why Choose Us
COST EFFECTIVE
We are the direct facotry which can guarantee you the high cost performance;
PROFESSIONAL TEAM
Professional sales and technical engineers, who give you an effecitive suggestion;
STRICT QUALITY ASSURANCE
Before, during and post production process to make sure all the products a very high qualified ration;
Company Profile
a professional supplier of water analysis and instrument
A high-tech enterprice focused on water electrode analysis and measument industry located in Ningbo China. The company runs its own plants with superior advantage of technology and innovative talents.
The plants are equipped with precision production line and prefessional technology team with over 10-years experience in water analysis industry.
Building on years of experience and technical expertise in water analysis industry, Leadmed Technology ensures customers are provided with state-of-the-art products designed to give accurate, reliable and safe monitoring electrodes.
FAQ
What you concerns
1. Any Stocks;
Yes, we will keep enough stock for small orders lower than 10pcs;
2. Payment terms;
If total value is more than USD 1000.00, 50%T/T in advance, 50% T/T before shipment;
When total value is less than USD 1000.00, hopefully we can get your supporting for 100% in advance;
3. Delivery days;
Depends on which products you ordered, if with stock, within 7-10 days;
4. After-sale service;
Any problems will be got response within 12 hours;
If cannot be solved by on-line guidance, we will replace the goods or do on-site repair;
5. Warranty;
All products are guaranteed for 12 months;
Yes, we will keep enough stock for small orders lower than 10pcs;
2. Payment terms;
If total value is more than USD 1000.00, 50%T/T in advance, 50% T/T before shipment;
When total value is less than USD 1000.00, hopefully we can get your supporting for 100% in advance;
3. Delivery days;
Depends on which products you ordered, if with stock, within 7-10 days;
4. After-sale service;
Any problems will be got response within 12 hours;
If cannot be solved by on-line guidance, we will replace the goods or do on-site repair;
5. Warranty;
All products are guaranteed for 12 months;
