The Round Pipe Polishing Machine is mainly used for polishing the surface of round pipes, covering range from 12.7mm to 113mm (0.5'' to 4.44''pipe diameter). It offers economic solution for mirror polishing, sand polishing and matte polishing of tubes, using flap wheels, sisal wheels, cloth wheels, sisal mixed and polishing wax.
Parameter

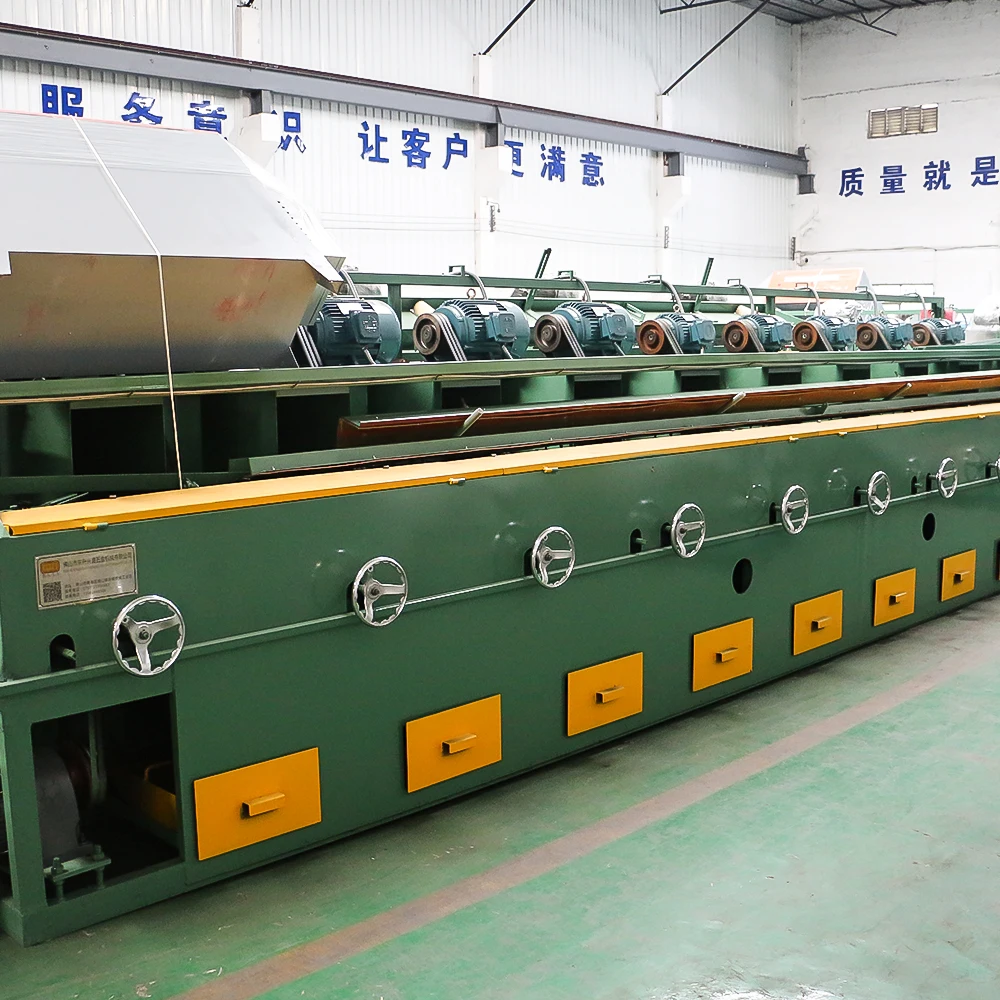

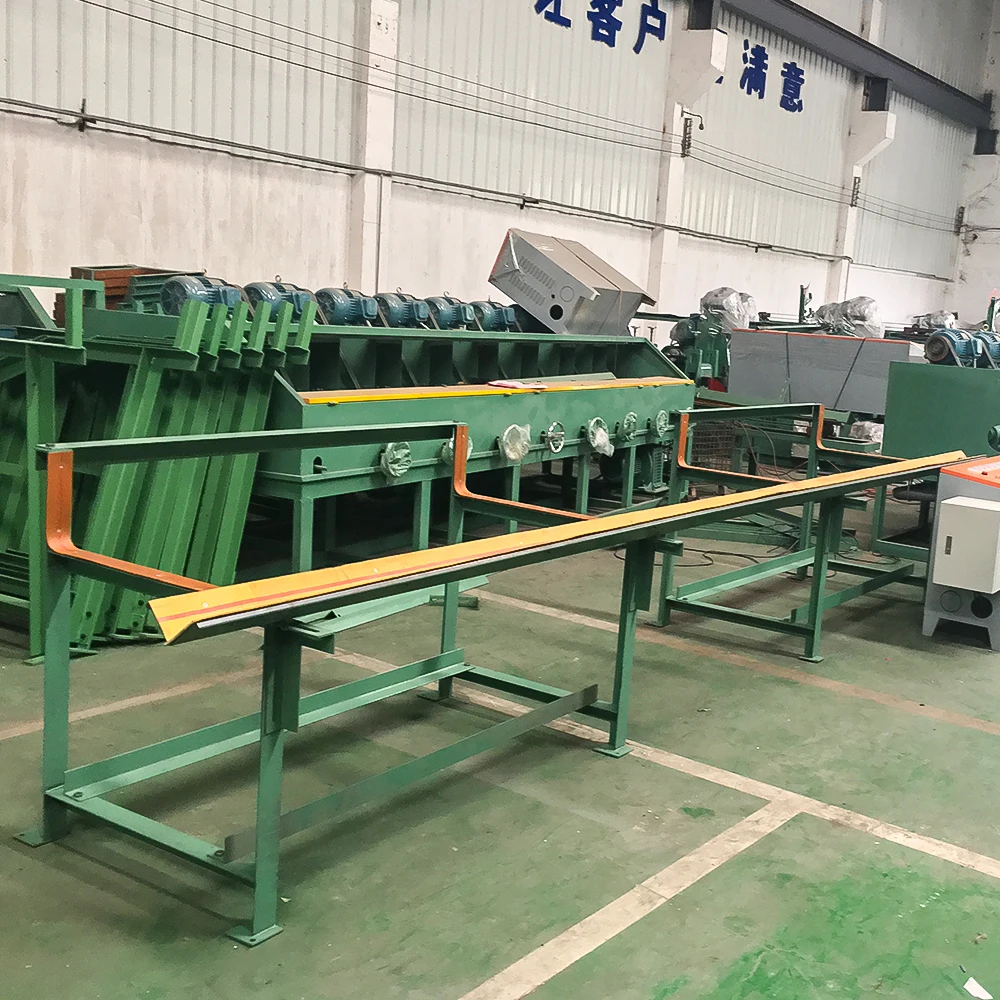

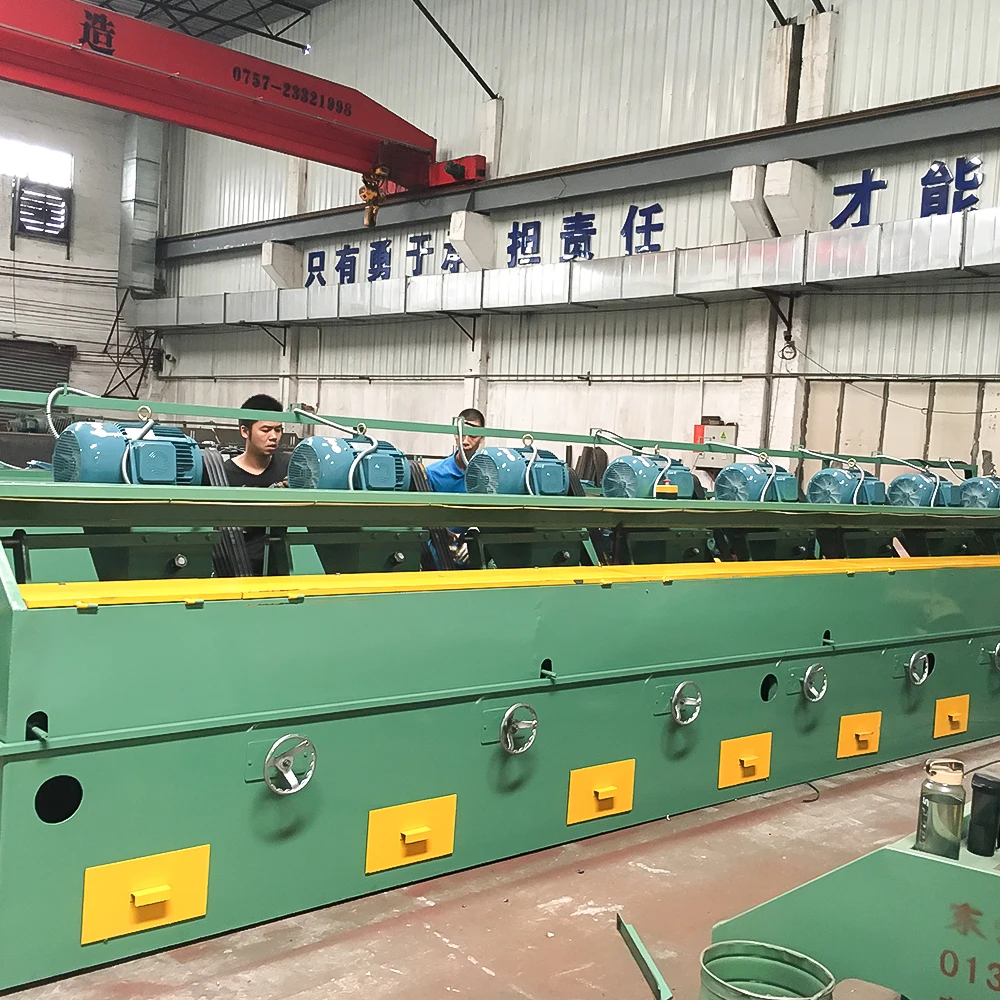

Automatic Polishing Buffing Machine to Polish Stainless Steel Pipe
Technical data
YP-8
YP-10
DYP-10
YP-8(New)
DYP-8(New)
Model(Unit)
8
8
10
8
8
Working range
12.7—Φ63
12.7—Φ63
50—Φ113
12.7—Φ63
50—Φ113
Polishing speed
2~30M/NIM
2~30M/NIM
2~30M/NIM
2~40M/NIM
2~40M/NIM
Rated power(KW)
5.5KW=4,4KW=4
5.5KW=5,4KW=5
All 5.5KW
All 7.5KW
All 11KW
Motor power(KW)
3kw VFD
3kw VFD
4kw VFD
4kw VFD
4kw CVT
Total power(KW)
41
50.5
59
64
92
Voltage(V)
380V/50HZ
380V/50HZ
380V/50HZ
380V/50HZ
380V/50HZ
Machine size (L*W*H MM)
5640*1270*1350
7040*1270*1350
7040*1270*1350
7940*1270*1350
7940*1270*1350
Details
CAD drawing of Automatic Polishing Buffing Machine to Polish Stainless Steel Pipe

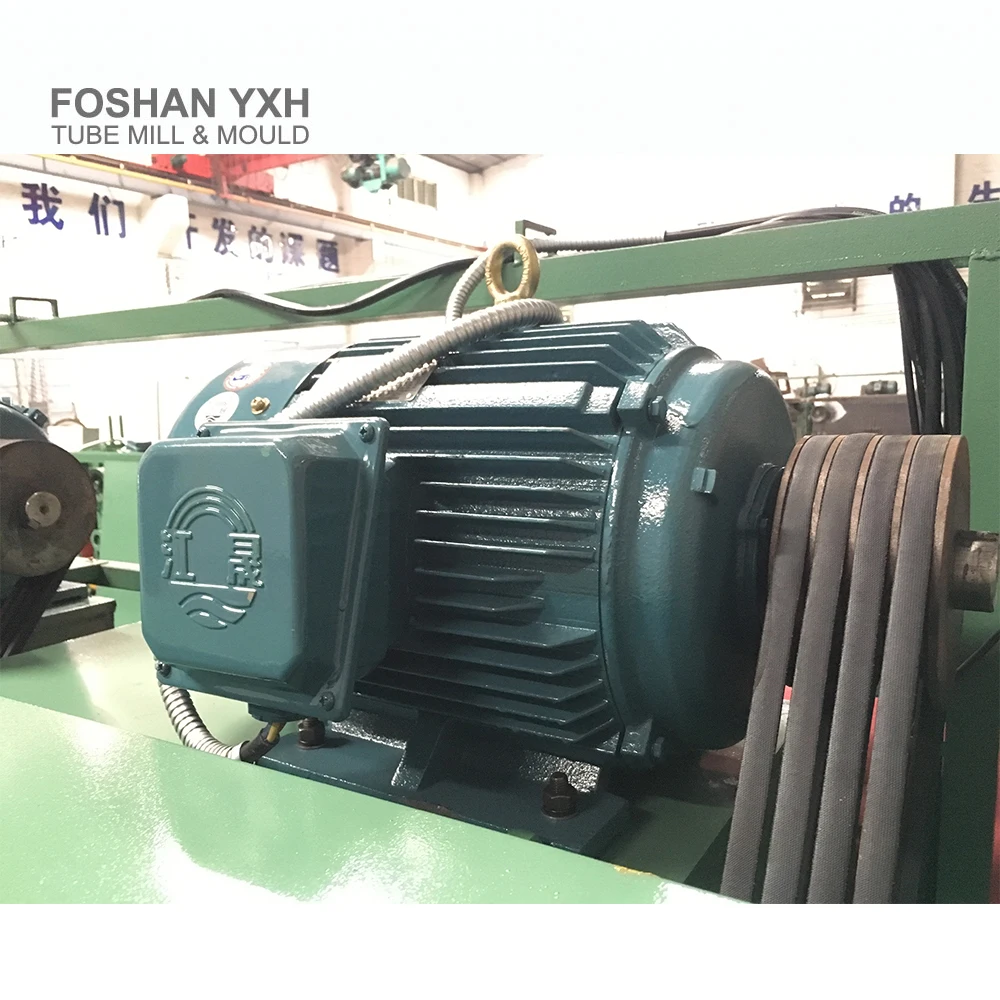

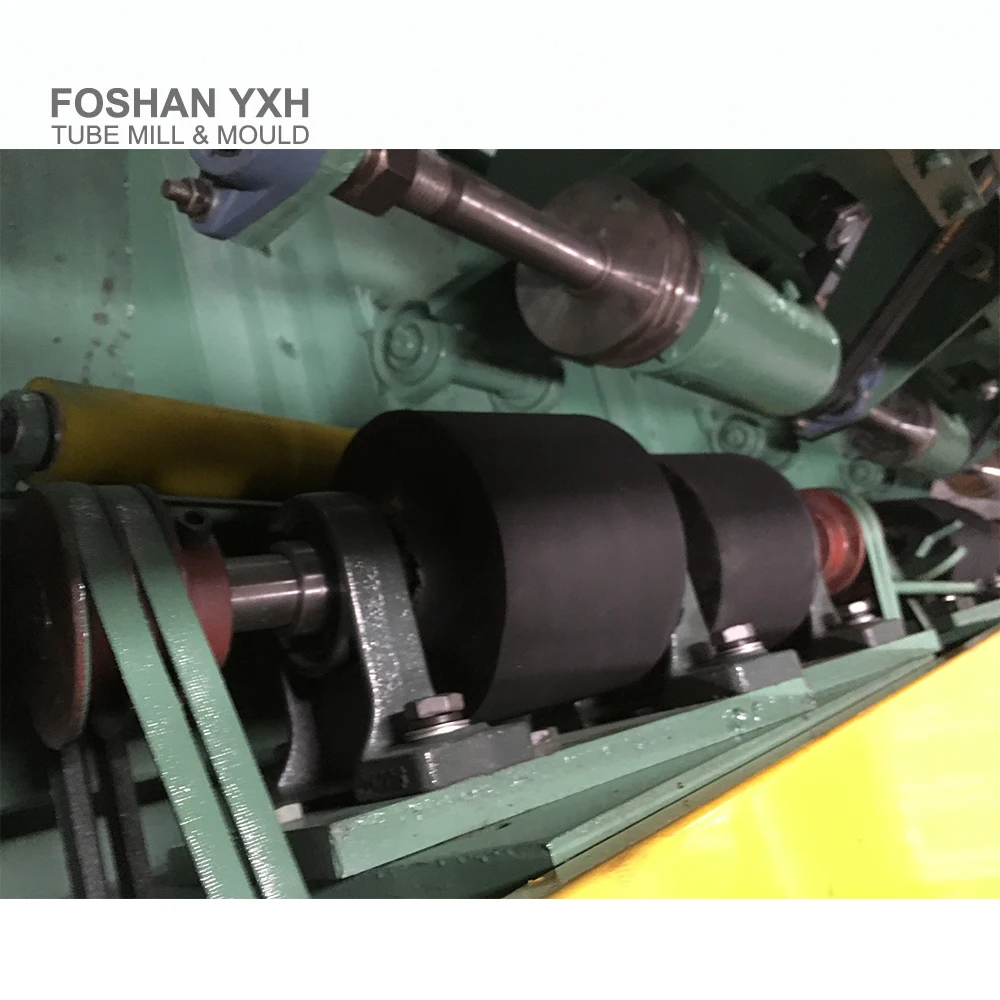

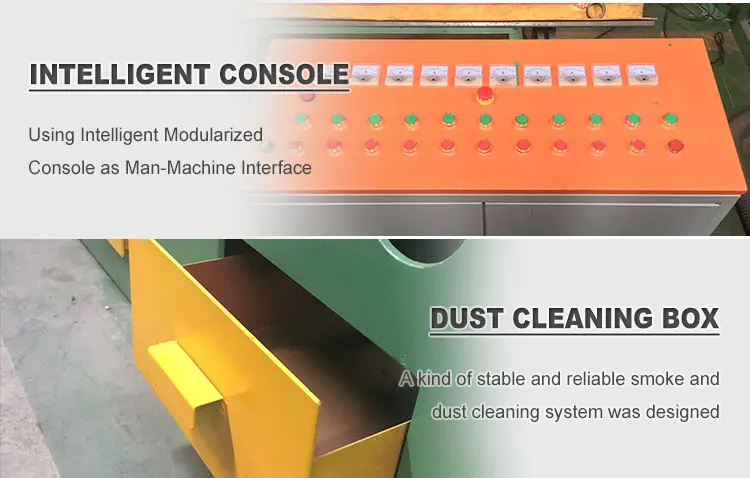

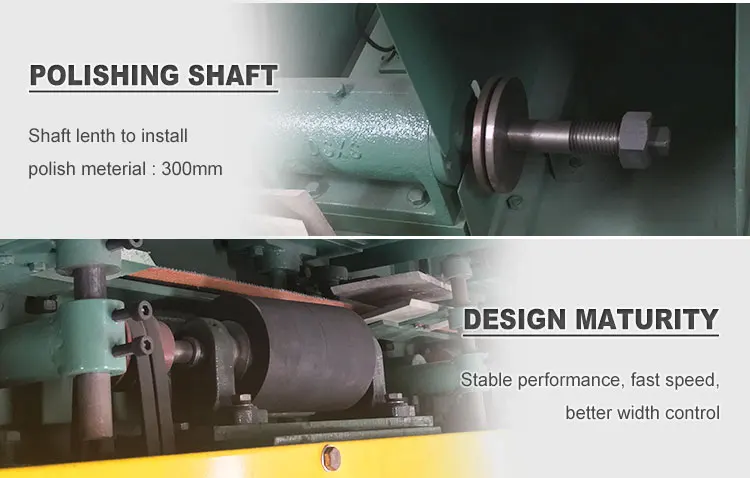

Important parts of Automatic Polishing Buffing Machine to Polish Stainless Steel Pipe
Application
Round Stainless Steel Pipe Polishing Machine can be used in these areas:The stainless steel pipes can be use for Furniture, Handrail, Security Door & Windows, etc.
Packaging & Shipping
We use steel wire and wooden frame to fix the pipe polishing machine;
In addition, used shockproof film to protect the main motors.
We use the container to deliver goods to our customer. Generally speaking, we start at FOSHAN port, but we also can start at other port according to customer's need.
