2,54 мм H = 5,7, 7,1, 8,0, 8,5, 11,0, 12,0 мм Женский Разъем Y типа, двухрядный прямой гнездовой разъем, 40 контактный, с гальваническим покрытием
- Category: Headers & Wire Housings >>>
- Supplier: Dongguan Lianda Precision Products Co. Ltd.
Share on (62388441915):
Product Overview
Description

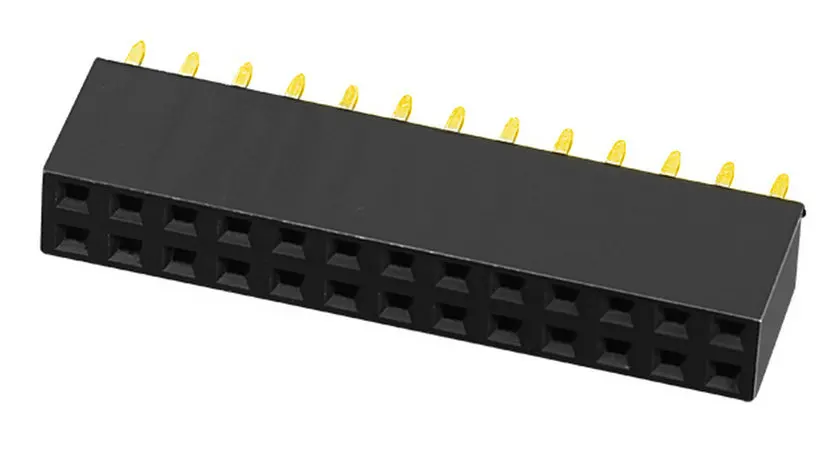

2.54mm H=5.7, 7.1, 8.0, 8.5, 11.0, 12.0mm Female Header Y-type Dual Row Straight Type Female Connector,40pin,golad plated
| ARTICLE PROPERTIES | |
| Pins | 2-30 |
| KIND PROPERTIES | |
| Pitch | 2.54mm |
| Rows | dual |
| Gender | Female header |
| Type | through hole |
| MATERIAL PROPERTIES | |
| Insulator Material | PA6T |
| Insulator Flammability Rating | UL94 V-0 |
| Contact Material | Phosphor Bronze |
| Contact plating | Gold |
| UL Approval | E503010 |
| Packaging | tube or tary |

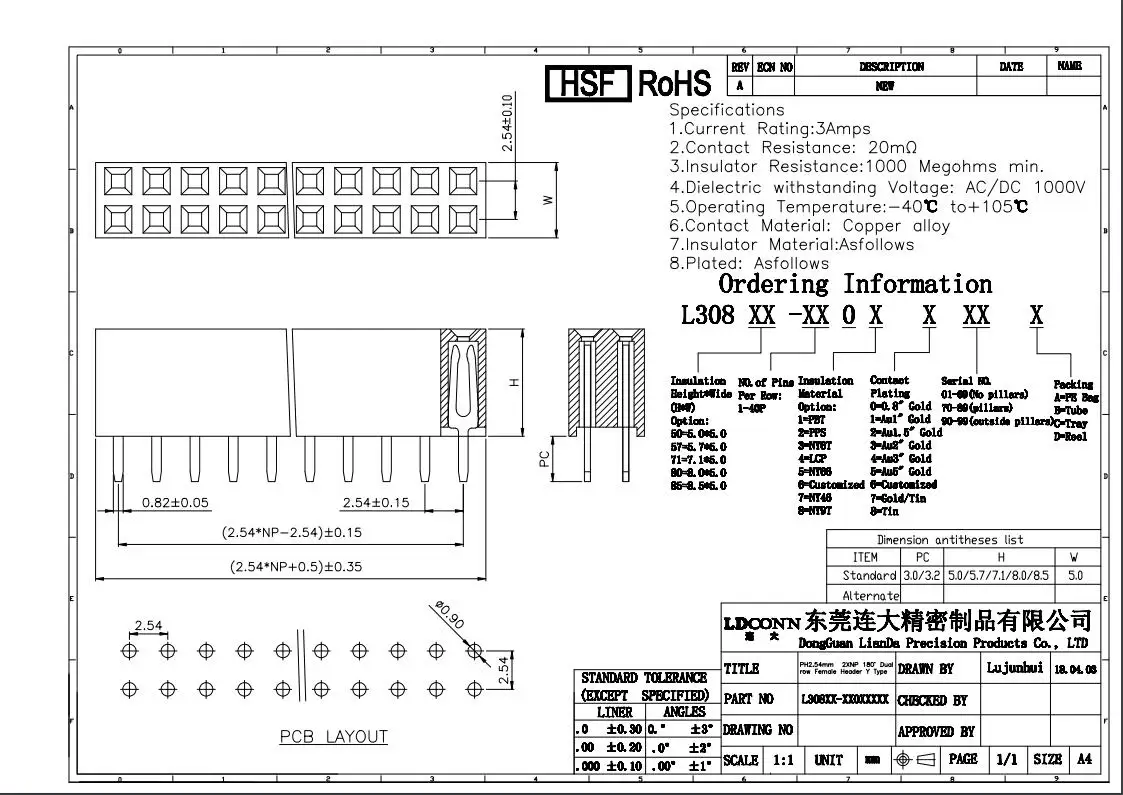

Products Drawing :
Male and female connector :
Our customer :
Here below is our company short profile :
1.Manufacturing since 2002 , 90% automatic production , defective rate is less than 0.001%
2. 5-7 days delivery time and reasonable price for work further
3. Customized pin header & sockets solution

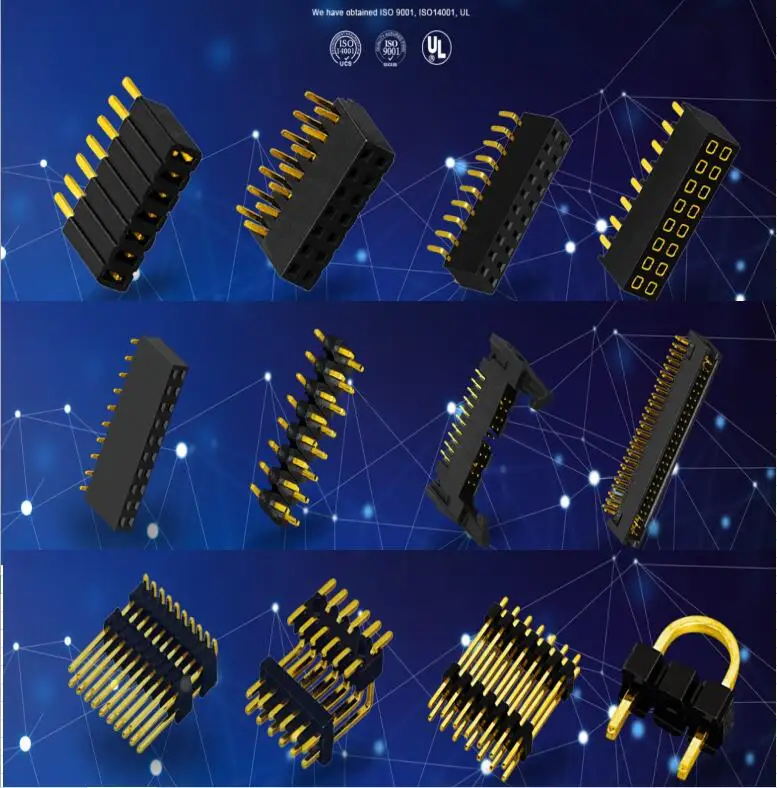

4. Main product :pin header , female header ,box header ,RJ 45 connector , USB connector, board to board connector ,D-sub connector ,terminal block , SIM connector and so on
5. Top 3 customers of BizLink , TP-link and Foxconn
6.Our components are manufactured to the ISO 9001 / ISO 14001 / IATF16469 / UL certifications and are RoHs 2.0 compliant as well as Halogen free.
7.You will enjoy the security of knowing that each product LDCONN is offering to you has been designed with high quality materials and engineered to
optimize the performance characteristics still providing low cost installations and an excellent reliability.
