Professional cnc wood turning lathe machine with double axis

Product Overview

Description

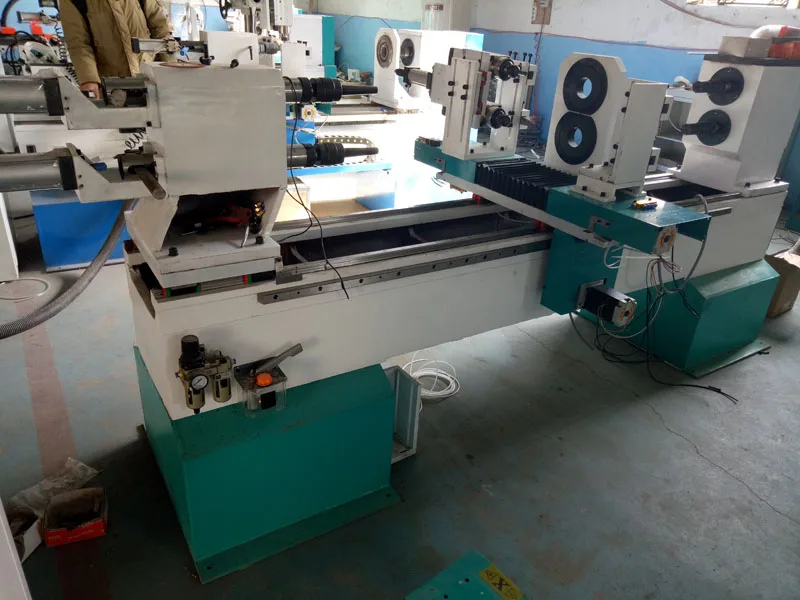

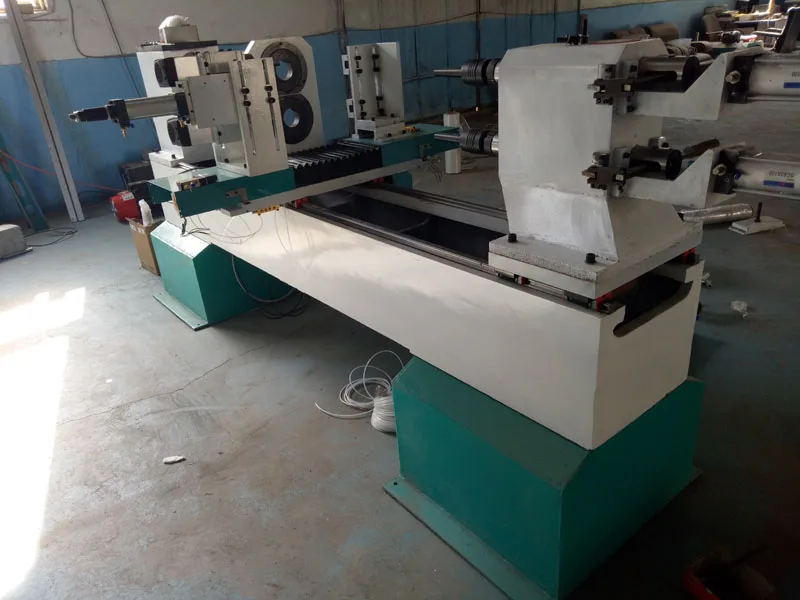

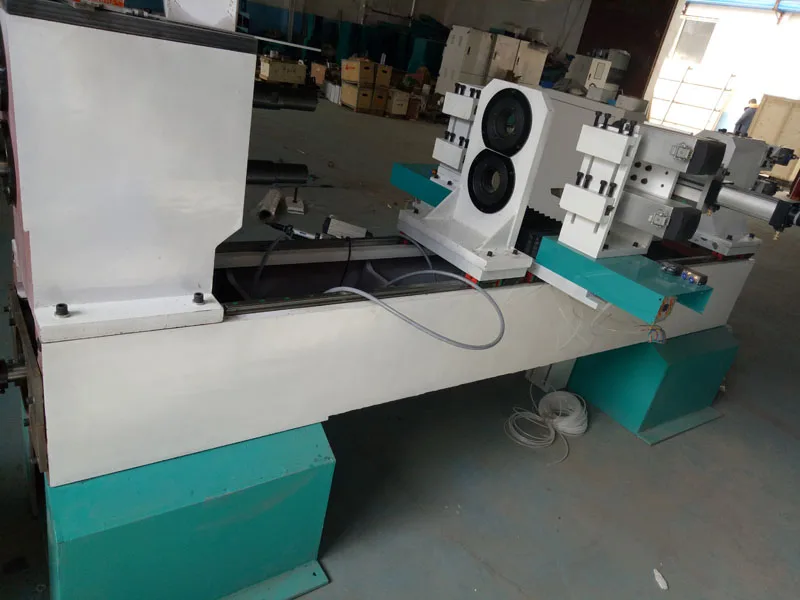

Professional cnc wood turning lathe machine with double axis





Parameter:



Model	GC1530-L2
Max processing length	1500mm(can custom 2000/2500/3000mm)
Max turning diameter	300mm
Air pressure	0.6-0.8Mpa
Powersupply	AC 380V 3 phase 50HZ/60HZ (can custom 220V)
Max feed rate	2000mm/min
min setting unit	0.01cm
Transimission type	ballscrew for X Z axis,gear for Y axis
Guider	Taiwan Hiwin orbit
Main shaft rotating speed	0-3000r/min
Motor power	4kw
Cutter material	Super hard alloy
Control System	DSP control system
Motor	Stepper motor
Driver	Yako driver
Inverter	Best inverter
Drawing Software	AutoCAD
Interface	Internet cable
Hand controller recognise file	*.dxf



Feature:



1). Maximum working length is 3000mm, Max.turning diameter is 300mm.



2).You can choose 1 cutter machine, Also can choose 2 cutters at two sides of the machine, the 2 cutters work together,improve the efficiency greatly.Also , you can choose machine with one spindle for engraving pattern



3).Linear square rails, ballscrews,some electronic components are imported, high precision and durable.



4). It is heavy-duty, heavy weight, avoid shaking when the spindle rotates fast.



5). Easy operation, we can draw by autoCAD and other softwares, transfer the files to machine  by a USB.



6). If you want to engrave stripe, we will add a 3.5kw air cooling spindle, and add a 4.0kw stepper motor on 1 cutter machine/ a 5.5kw stepper motor on 2 cutters machine.



7). We will customize the size of machine according to customer’s need.



Main parts:

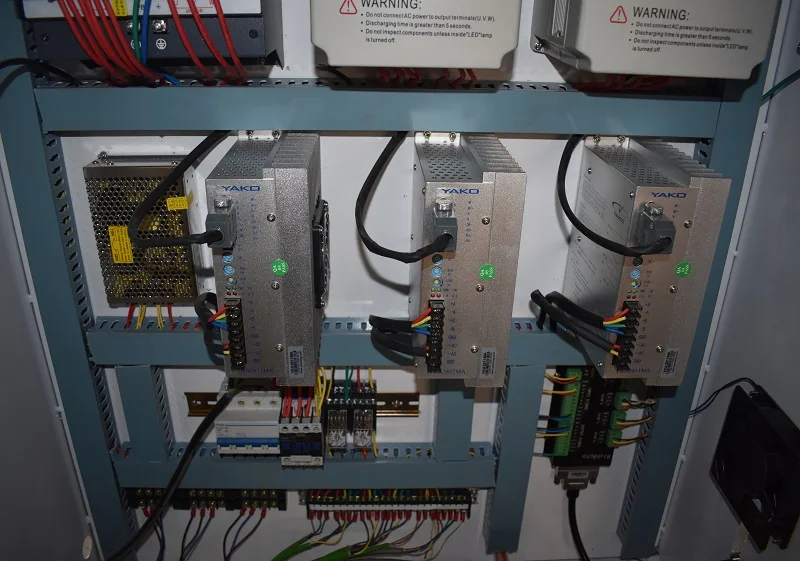

Name: Inverter

Brand: YAKO

Original: China

Domestic famous engines, strong driving force, low fuel consumption.

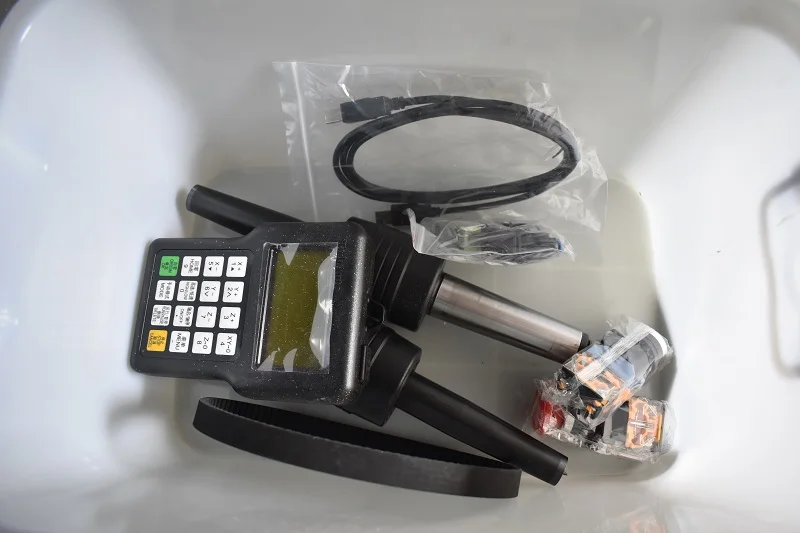

Name: Control system
Brand: DSP
Original: China
No need to connect PC,simple and easy for freshman to learn and operate the machine. A18 can support G codes drawing,such as dxf,3ds,stl, psd,ai,dwg,bmp,stp,igs etc.

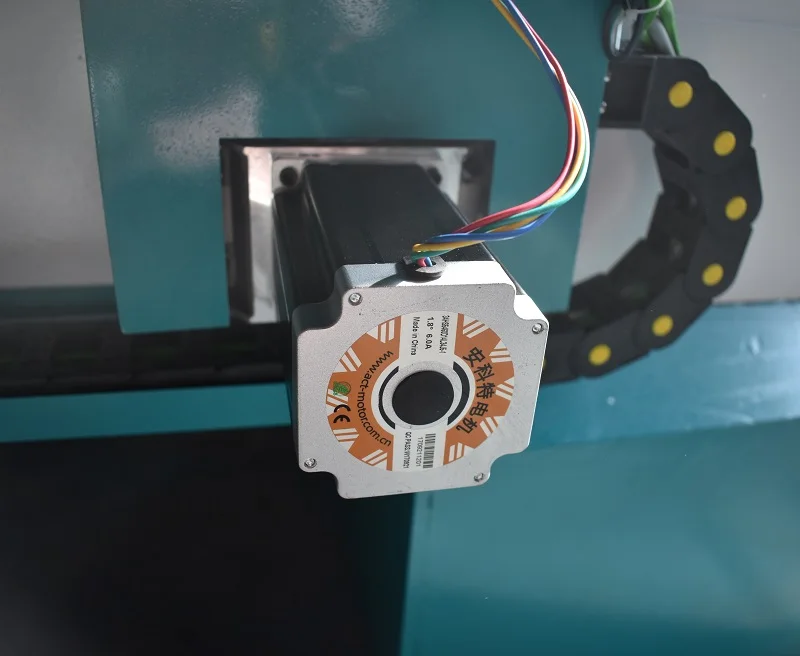

Name: Motor
Brand: Stepper motor
Original: China
Most famous brand of China,won't lose step when working,speed performance increased about
30%,adopted current control system technology,save power consumption,especially for solid wood and soft metals works,it's very powerful.





Name: Guide rail
Brand: Hiwin
Original: Taiwan
high precision and less wear , with world famous taiwan Hiwin self-lubricating sliding block





Description:



1) Driving system:Adopt frequency conversion speed regulation system, could adjust the turning speed at any time to solve the problem of materials' vibration.

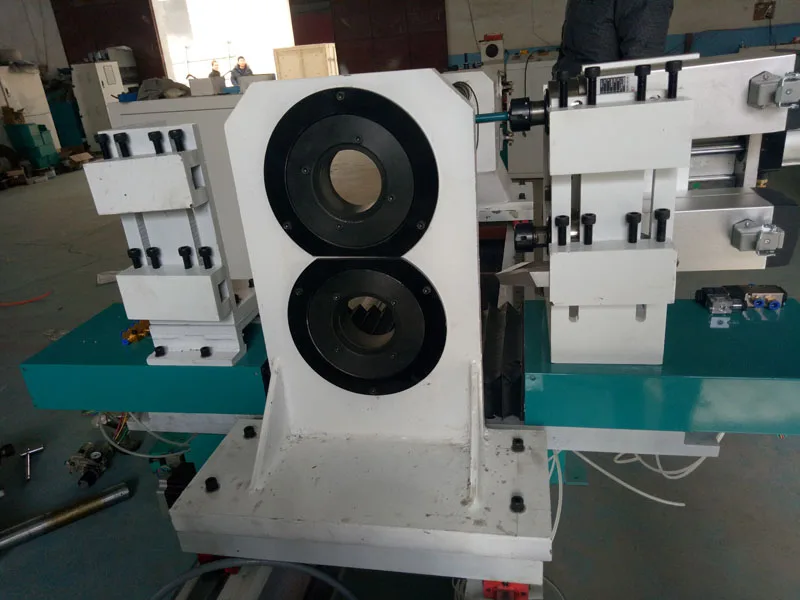

2) Spindle:we could configure single spindle or two spindles, single spindle could configure chuck, two spindle could process two pieces at the same time for high efficiency.



3) Performance part: high accuracy stepper motor, after program calculating, guarantee the exact processing size.



4) Feeding part:Taiwan TBL high quality straight line sliding rails and Germany NEFF precise ball screw, control the linear error effectively.



5) Japanese frequency converter with high stability



6) Operation system developed by ourself with patent is easy to operate.

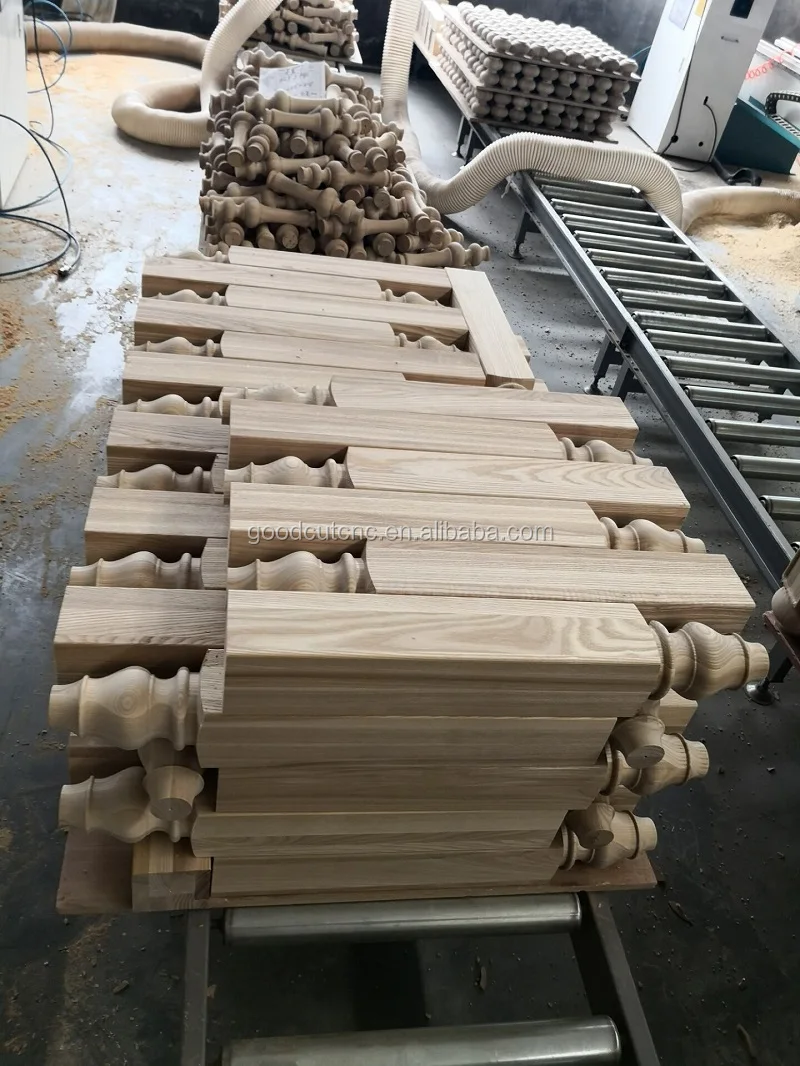

Application:

Various cylindrical workpiece, bowl sharp, tubular sharp and vehicle wood crafts, various staircase column, stairway balusters, stairway newel posts, dining table legs, end table legs, sofa table legs, bar stool legs,cRoman column, general column, washstand, wooden vase, wooden table, baseball bat, car wooden furniture, children' s bed column, chair arm posts;chair stretchers;sofa and bun feet;bed rails;lamp posts;baseball bats and so on.etc.













Guarantee:
The machine is guarantee for 12 months.Within 12 months under normal using and maintenance.If the machine has something problem,you will get spare part for free.More than 12 months,you will get the cost price for accessories.You will also get technical support and service all the time.

Technical Support:
-Technical support by Phone,Email,Wechat,Whatsapp and Skype 24 hours online
-We provide English version manual.
-Engineer available to service machinery overseas.

Our Service:

1. We will supply the whole day on-line service to foreign customers. According to foreign customer's requirement, we will arrange
technicians go abroad to install or maintain the machine.

2. Within warranty period and the machine parts damage under normal using condition, we will offer new ones for replacement.
3. After the expiry of warranty, we can renewal of the contract, which can enjoy the same service that during the warranty period.

4.Our company will research the staffs service attitude aperiodically to improve the service satisfaction
