plastic honeycomb gravel grid geocell stabilizer for driveways
- Category: Geocells >>>
- Supplier: The Best Project Material Co. Ltd.
Share on (62388958096):
Product Overview
Description
Product Details
plastic honeycomb gravel grid geocell stabilizer for driveways

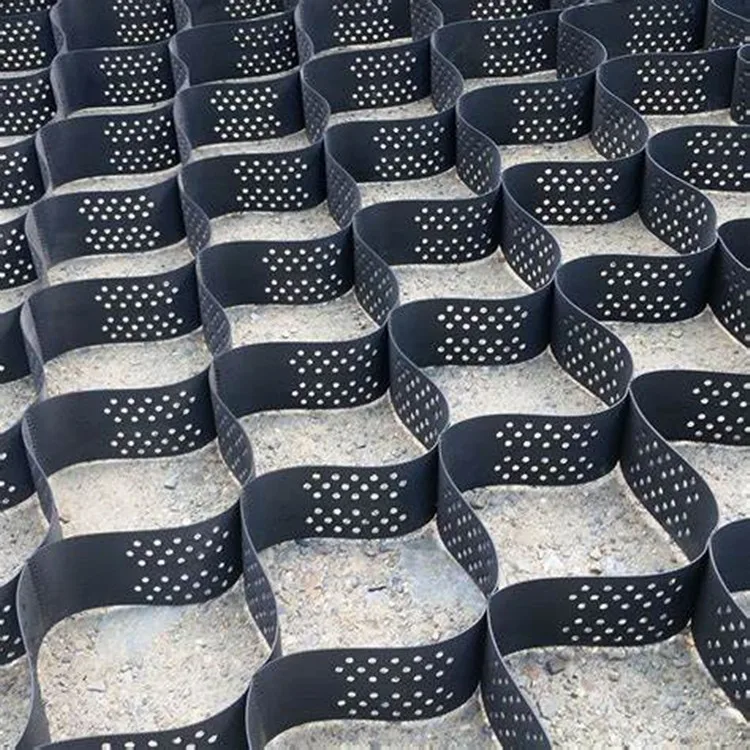

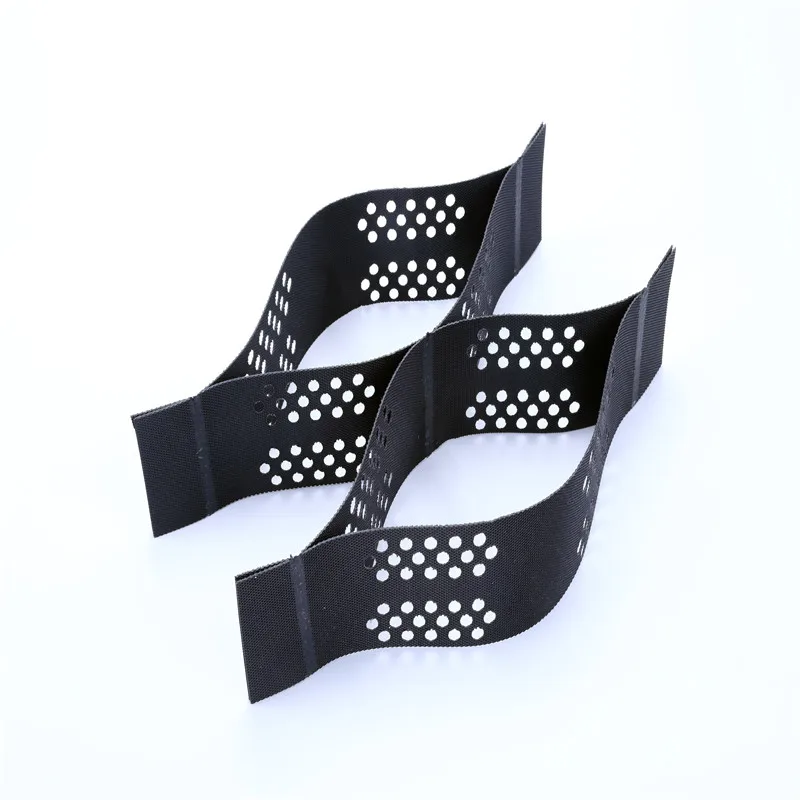

BPM HDPE geocell is three dimensional, honeycomb like structures manufactured from high density polyethylene and jointly welded by ultrasonic technics .
It is flexible to fold during the transport and installation on construction site.

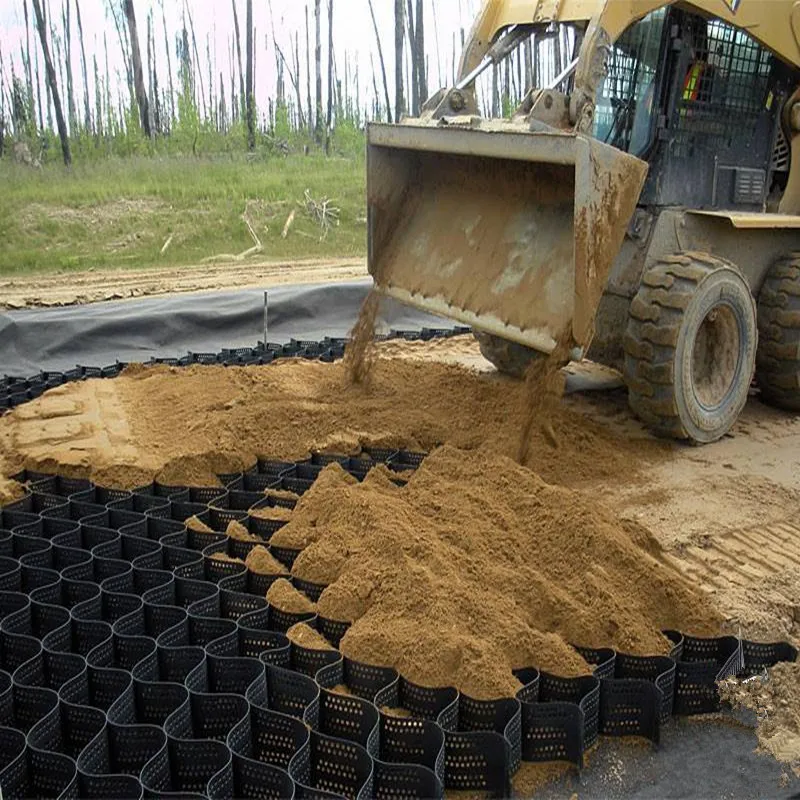

The geocell nets will be filled with soils,granular, cements or other on-site infill materials when stretched into web structures, which has powerful and rigid confinement in the lateral and vertical sides.BPM geocell is widely used for soil stabilization,slope protection,load support,etc.
Product Introduction
HDPE geocell cellular confinement systems application
1.Load support: solve unacceptable road,parking, and yard surface problems.

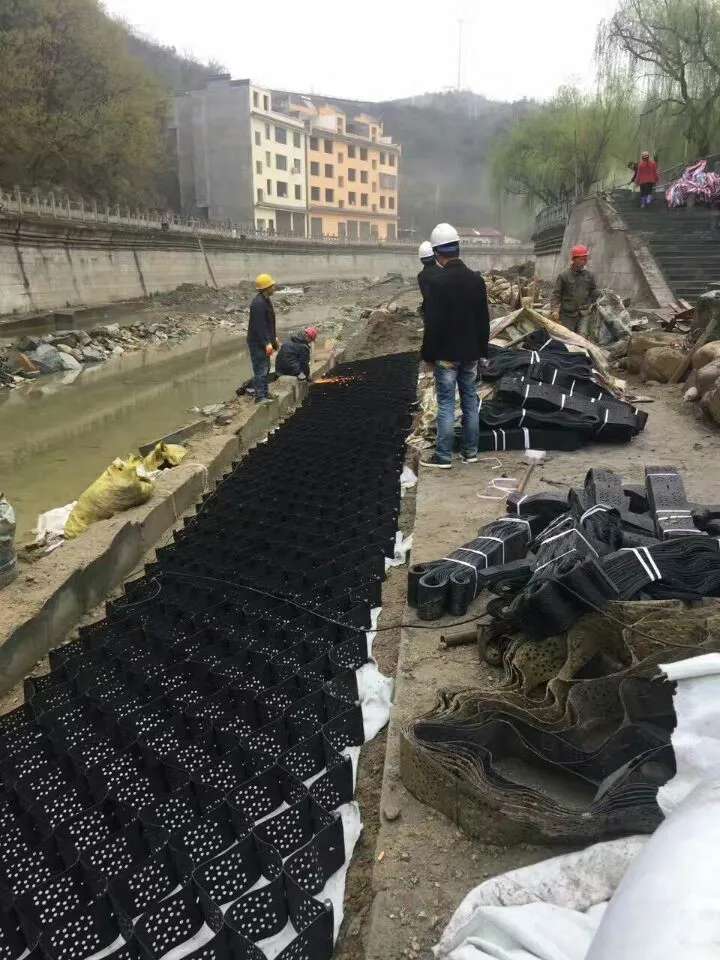

2.Slope protection: create a stable environment for long-term sustainability of embankment material.
3.Channel protection:Ensure stability and protection of channels exposed to all types of erosive conditions.
4.Vegetated retaining walls;includes steepened slopes, retaining walls, gravity walls and so on.
2.Slope protection: create a stable environment for long-term sustainability of embankment material.
3.Channel protection:Ensure stability and protection of channels exposed to all types of erosive conditions.
4.Vegetated retaining walls;includes steepened slopes, retaining walls, gravity walls and so on.
Product Parameters
Geocell Type(height mm-welding distance mm) | Norminal Thickness(mm) | Seam Peel Strength minimum(N) | Norminal Section Area(m2) | Loading Quantity for one 40HC container | ||||
Smooth&Perforated | ||||||||
BPM75-330 | 1.1 | 1065 | 16.32 | 29376 | ||||
BPM100-330 | 1.1 | 1420 | 16.32 | 22032 | ||||
BPM150-330 | 1.1 | 2130 | 16.32 | 14688 | ||||
Textured&Perforated | ||||||||
BPM75-330 | 1.5 | 1065 | 16.32 | 27744 | ||||
BPM100-330 | 1.5 | 1420 | 16.32 | 21052 | ||||
BPM150-330 | 1.5 | 2130 | 16.32 | 14035 | ||||
Product Details Show
Why Choose Us
About us
With 10 years of exporting experience,our geosynthetics have been exported to all over the world with considerable service.
Equipment & technology
With Ultrasonic welding technology,the geocell panels are welded together,the seam has high tensile strength.
Finished Geocell Testing
We have our own laboratory to test the finished geocell,in order not let defective goods to leave factory,ensure the quality.
Product Processing

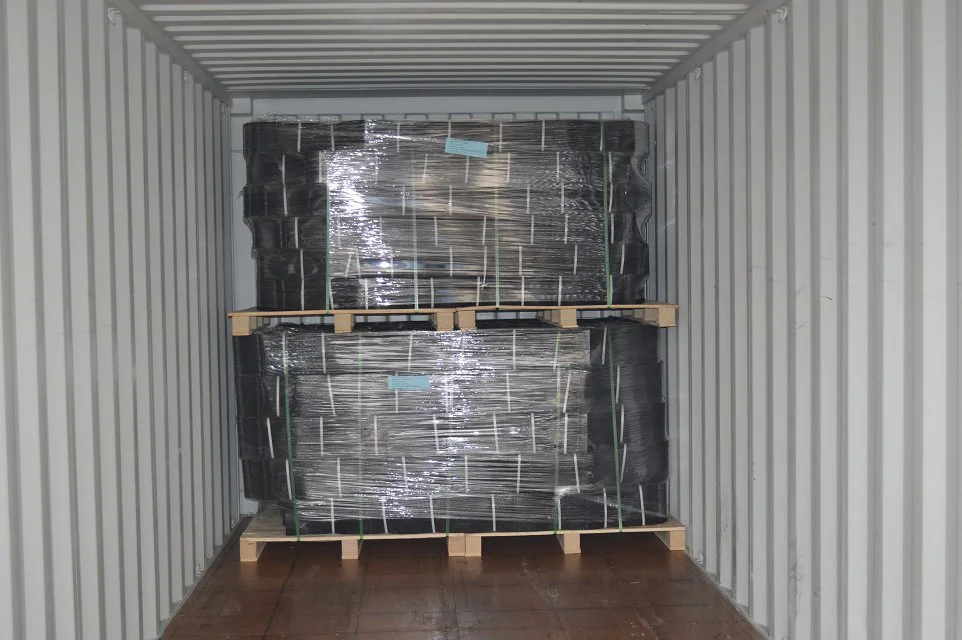

Product Packing
HDPE Geocell Model
Product Type | Height(mm) | Welding Distance(mm) | Thickness(mm) | Seam Peel Strength(N/10cm) | Norminal Section Area(m2) |
Smooth and Not Perforated | 50mm-250mm | 330mm-1000mm | 1.0-1.4 | ≥1000 | Contact us for specifications |
Smooth and Perforated | 50mm-250mm | 330mm-1000mm | 1.0-1.4 | ≥1000 | |
Textured and Not Perforated | 50mm-250mm | 330mm-1000mm | 1.5-1.7 | ≥1000 | |
Textured and Perforated | 50mm-250mm | 330mm-1000mm | 1.5-1.7 | ≥1000 |
If you want to know the final price of HDPE geocell,please specify your requirement as follows:
Geocell Height,Geocell Welding Distance,Geocell sheet thickness,Geocell Seam Peel Strength
Geocell how to connect the systems
Plasitc onfining caps for geocell connection
Screw to connect geocell
Any more details, please feel free to contact me:
+86 152 7538 7609
