UL IEC62133 KC BIS MSDS UN38.3 approved 401230 3.7v 120mah battery for earphone

Share on (62390261090):


Price:$1.00 - $1.30

Quantity:


Product Overview

Description


UL IEC62133 KC BIS MSDS UN38.3 approved 401230 3.7v 120mah battery for earphone



Product Description


401230 3.7v 120mah lipo battery specification




























































































Item



Rating



Note



3.1    Capacity



Typical



120mAh



Discharge:0.2CmA


cut off Voltage:3.0V for cell



Minimum



100mAh



3.2    Nominal Voltage



Average  3.7V



Discharge:0.2CmA


cut off Voltage:3.0V for cell



3.3    AC Impedance Resistance



≤420mΩ







3.4    Discharge Cut-off Voltage



3.00V







3.5    Charge Current



24mA



Standard Charge



3.6    Charge Voltage



4.2V







3.7    Max. Charge Voltage



4.23V







3.8     Storage humidity



< 75%RH



Hygrometer



3.9    Max. Charge Current



120mA



1.0CmA



3.10   Max. Discharge Current



120mA



1.0 CmA



3.11   Weight



Approx 3.1g







3.12  Operating


Temperature



Charge



0~+45°C







Discharge



-20~+60°C







3.13  Storage


Temperature



less than 1 month



-20~+45°C



Recommended storage


temperature: 20°C,at the


shipment state



less than 3 months



-20~+35°C








If you have any problems, please click on me, so we will solve all your problems!





Product Pictures:

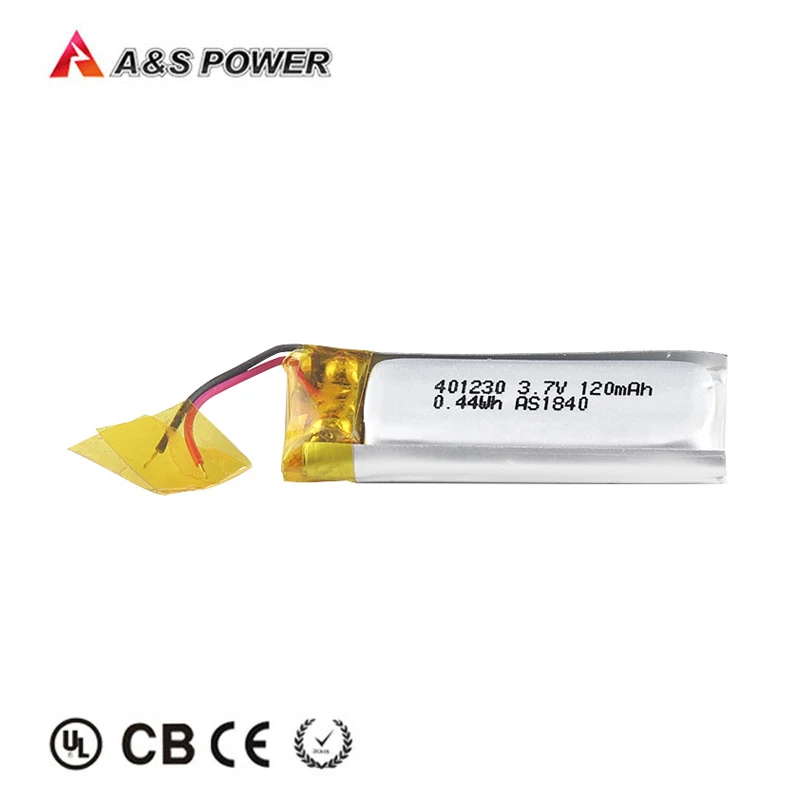

401230 3.7v 120mah 1.jpg

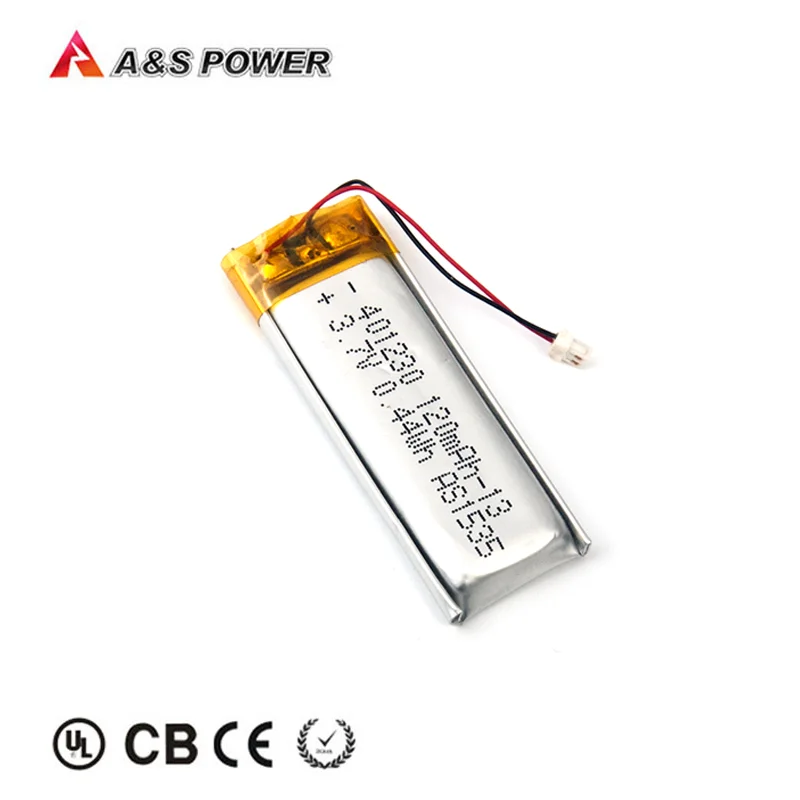

401230 3.7V 120mAh 1






Detail Display


lipo details.jpg





1) Environmental friendly
2) High density of energy
3) Light weight
4) Low self-discharge
5) Low internal resistance
6) Long cycle life, chargeable up to 500 times
7) No memory effect
8) Doesn’t contain Mercury, No fire, No explosion, No leakage
9) Very good and quick charge, capability can be charged to 90% within 10 min.
10) Thickness can be adjusted while width and height keep the same.








Application


 application



  • Application for Lithium polymer battery:

  • Mobile phones, tablets,  headsets, smart watches and other smart wearable devices, GPS, electric toys, beauty instruments, aromatherapy machines, LED lights, quadcopters, drones ,etc.

  • Tips: If you are interested in our products, please tell us your specific needs such as voltage, capacity, shape, size, working current, etc. We can customize the battery according to your needs and offer you samples to test quality. Welcome to contact us for specification and quotation. Thank you!





Advantages


18650 advantages.jpg


1) Green product


2) Long standby time


3) One year warranty


4) Excellent safety performance


5) Excellent storage performance and low self-discharge rate


6) Short circuit testing passed


7) Overcharge testing passed


8) Over discharge testing passed


9) 150C thermal shock test passed


10) 1.2m drop testing passed





Packaging & Shipping


lipo packing.jpg





















































Shipping
Destination Normally arrive port time in working days
Ship by expressShip by seaShip by air
 North America 3-7 days 15-28 days 5-7 days
 South America 3-7 days 15-30 days 5-7 days
 European 3-7 days 20-30 days 5-7 days
 Africa 5-7 days 45-50 days 5-7 days
 The Middle East 3-5 days 15-30 days 3-5 days
 Australia 3-7 days 10-20 days 5-7 days




related products


CB IEC62133 KC UL approved lipo battery for your reference:













401230 3.7V 120mAh 2423040 3.7V 530mAh 3461730 3.7v 200mah




 401230 120mah lipo battery                             423040 530mah lipo battery                              461730 200mah lipo battery

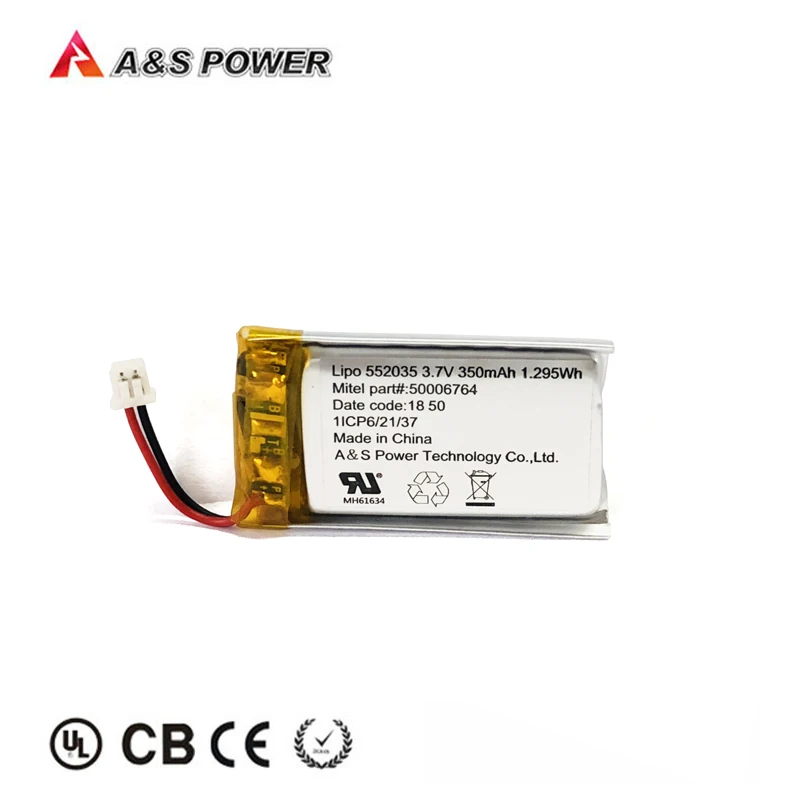

552035 3.7V 350mAh 7603040 750mah lithium battery

853450 3.7V 1500mAh 1






  552035 350mah lipo battery                             603040 750mah lipo battery                             853450 1500mah lipo battery








Other KC/UL approved lithium polymer battery model as below:
























































































































































Model Dimension  With PCM DimensionCapacity
3020253.0*20*25mm3.2*21*27.5mm 3.7V 100mAh
302530 3.0*25*30mm3.2*26*32.5mm 3.7V 180mAh
401824 4.0*18*24mm4.2*19*26.5mm 3.7V 180mAh
402525 4.0*25*25mm4.2*26*27.5mm 3.7V 200mAh
483450

 4.8*34*50mm


5.0*35*52.5mm 3.7V 850mAh
502030 5.0*20*30mm 5.2*21*32.5mm 3.7V 240mAh
502525 5.0*25*25mm5.2*26*27.5mm 3.7V 180mAh
503030 5.0*30*30mm 5.2*31*32.5mm 3.7V 430mAh
523450 5.2*34*50mm5.4*35*52.5mm 3.7V 1000mAh
553444 5.5*34*44mm5.7*35*46.5mm3.7V 850mAh
553640 5.5*36*40mm5.7*37*42.5mm 3.7V 850mAh
553759 5.5*37*59mm5.7*38*61.5mm   3.7V 1400mAh
602030 6.0*20*30mm6.2*21*32.5mm 3.7V 300mAh
602240 6.0*22*40mm6.2*23*42.5mm 3.7V 500mAh
602535 6.0*25*35mm 6.2*26*37.5mm3.7V 500mAh
602663 6.0*26*63mm6.2*27*65.5mm  3.7V 1000mAh
603030 6.0*30*30mm6.2*31*32.5mm 3.7V 520mAh
603040 6.0*30*40mm6.2*31*42.5mm 3.7V 750mAh
603048 6.0*30*48mm6.2*31*50.5mm 3.7V 900mAh
603450 6.0*34*50mm6.2*35*52.5mm  3.7v 1050mAh
702040 7.0*21*40mm7.2*22*42.5mm3.7V 500mAh
753048 7.5*30*48mm 7.7*31*50.5mm  3.7V 1200mAh
803035 8.0*30*35mm8.2*31*37.5mm 3.7V 800mAh










Our Services


over 100 models certificated by UL, with wide capacity range from 20mah-10000mah, various dimensions for your demands (contact us for model lists)


lipo collection.jpg


Low Risk Promise
1. For lithium polymer battery, we can provide 5pcs( capacity < 500mAh) of free samples and buyers pay for the shipping cost. If items in stock, we can send out sample within 5 days.
2. For order over 2000pcs, Buyer gets a cash coupon of 50 USD for next order
3. For order over 10000pcs, Buyer gets a cash coupon of 100 USD for next order



Our cooperative policy
1. Making the sample until you are satisfied with it.
2. Offering professional one-on-one service and replying your E-mail within 12 hours
3. Inspection before shipment.
4. Priority to get the our latest product information after our cooperation





One-Year-Warranty


We want you to be fully satisfied with every item that you purchase from A&S Power.


Furthermore, we also provide one-year warranty for batteries.


And if any quality problems, not caused by improper use or man-made, A&S Power will replace it one by one.








Company Information


A&S Power Technology Co., Ltd. was established in 2001, and specialize in manufacturing and exporting rechargeable lithium battery, like li-ion battery, li-polymer battery and LiFePO4 battery.





Company Overview



  • Established :  2001

  • Capital:    20,000,000.00 RMB

  • Location:    Dongguan,Shenzhen

  • Employee:  > 600

  • Daily output:  100K Li-Poly, 50K LiFePO4,  80K Li-ion 18650


company lipo.jpg



  • OEM rechargeable battery manufacturer in China over 15 years

  • Specialized in Lithium polymer battery, LiFePO4 battery and Li-ion Battery pack

  • Our batteries got UL, KC, BIS,IEC62133, CB, CE, ROHS certifications

  • We’re officially recognized by Philips, JVC, Skullcandy, Flex, Mitel etc. from 2013.

  • We have succeeded in selling our batteries to the international markets of America, Canada, Europe, Africa, middle-east and South Asia.

  • A&S Power has well presence in international fairs each year, such as CEBIT,Intersolar, KES, HK Electronic Fair










FAQ:


Q1:Where can I get the price?
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price,
please call us or tell us in your email so that we'll regard your inquiry priority.





Q2: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.





Q3: What about the lead time for mass production?
 A: Honestly, it depends on your order quantity and the season you place the order. We suggested t hat you start inquiry two months before the date you would like to get the products at your country.

Q4: What is your terms of payment?
 A: We accept T/T and L/C.
