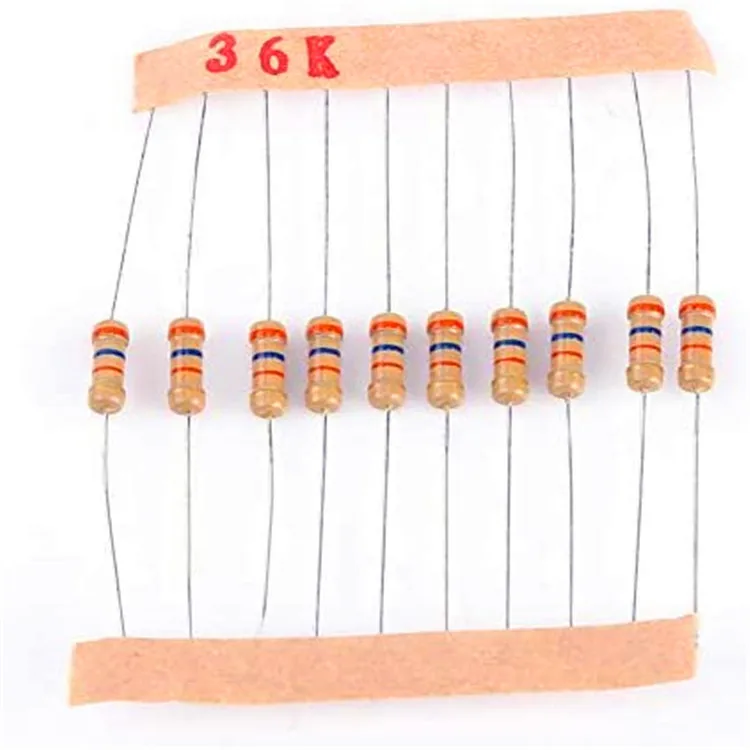

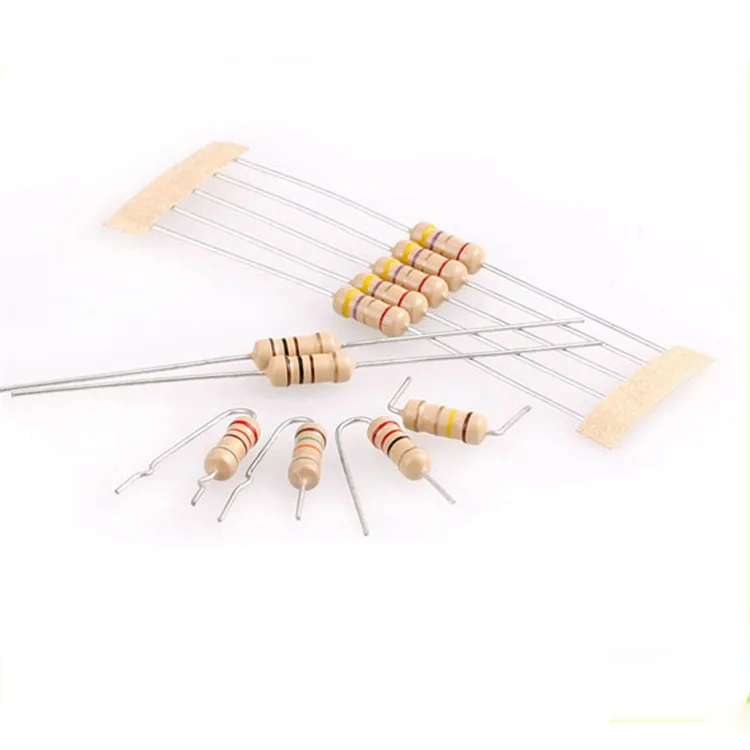

precision resistor series 1/8w, 1/6w, 1/4ws, 1/4w, 1/2ws China Wholesale Carbon Film Resistor
- Category: Resistors >>>
- Supplier: Dongguan City Hanxiang Electronics Co. Ltd.
Share on (62390861458):
Product Overview
Description
Metal Film Resistor
Max. Working Voltage:500V
Max. Overload Voltage: 1000V
Temperature Coefficient: -55to+175deg C
Package Dimensions: 200mm x 140mm x 40mm
Weight: 568 gram
Quantity: 5000PCS
24K ohm 27K ohm 30K ohm 33K ohm 36K ohm
39K ohm 43K ohm 47K ohm 51K ohm 56K ohm
68K ohm 75K ohm 82K ohm 91K ohm 100K ohm
120K ohm 150K ohm 180K ohm 200K ohm 220K ohm
270K ohm 300K ohm 330K ohm 360K ohm 390K ohm
470K ohm 560K ohm 680K ohm 820K ohm 1M ohm
- Color Code: Orange,Black,Black,Orange,Brown
- Lead Diameter:0.4mm/0.016'' ; Power: 1W; Tolerances:1%(F), Resistance:300k Ohm
- Body Length:11±2mm ; Body Width:4mm / 0.16''; Total Length:60±1mm;
- Package Content: 200pcs(+/-2%) x Metal Film Resistor
- Metal film resistors have much better temperature stability than their carbon equivalents,lower noise and are generally better for high frequency or radio frequency applications.
- High precision,Automatic insertion is applicable.
Wide operating range,long-term stability,low tolerance ,low temperature co-efficient of resistance and very small in size.
Metal film resistors have much better temperature stability than their carbon equivalents,lower noise and are generally better for high frequency or radio frequency applications.
CF
STYLE
| MAX WORKING | MAX OVERLOAD | RESISTANCE VALUE RANGE |
CF1/6W / CF1/8W | 200V | 400V | 0.1Ω~22MΩ |
CF1/4W / CF1/4WS | 300V | 600V | 0.1Ω~22MΩ |
CF1/2W / CF1/2WS | 350V | 700V | 0.1Ω~22MΩ |
CF1W / CF1WS | 500V | 1000V | 0.1Ω~22MΩ |
CF2W / CF2WS | 500V | 1000V | 0.1Ω~22MΩ |
CF3W / CF3WS | 600V | 1000V | 0.1Ω~22MΩ |
CF5W / CF5WS | 600V | 1000V | 0.1Ω~22MΩ |
precision resistor Carbon film resistance series
Product Description

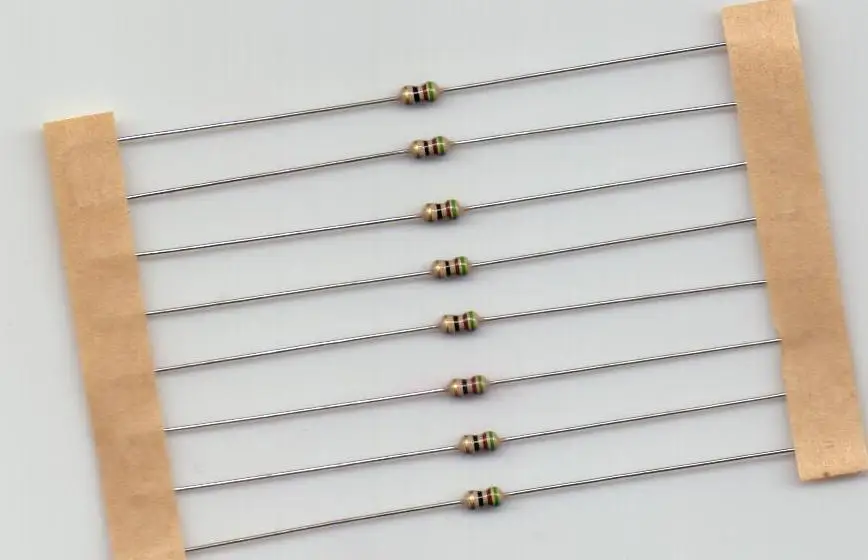

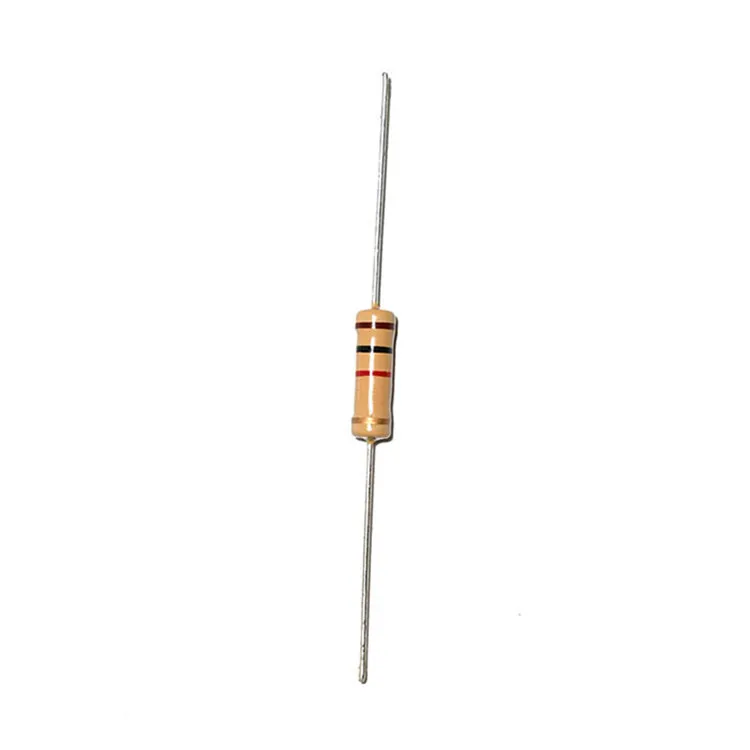

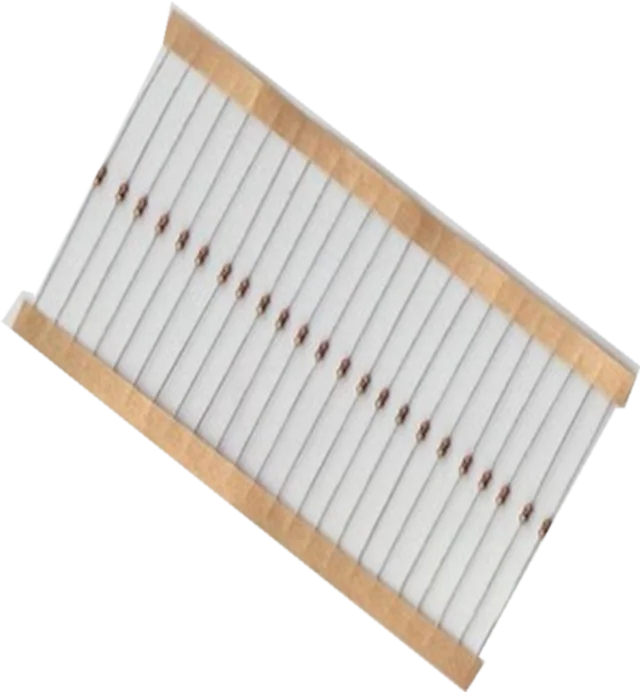

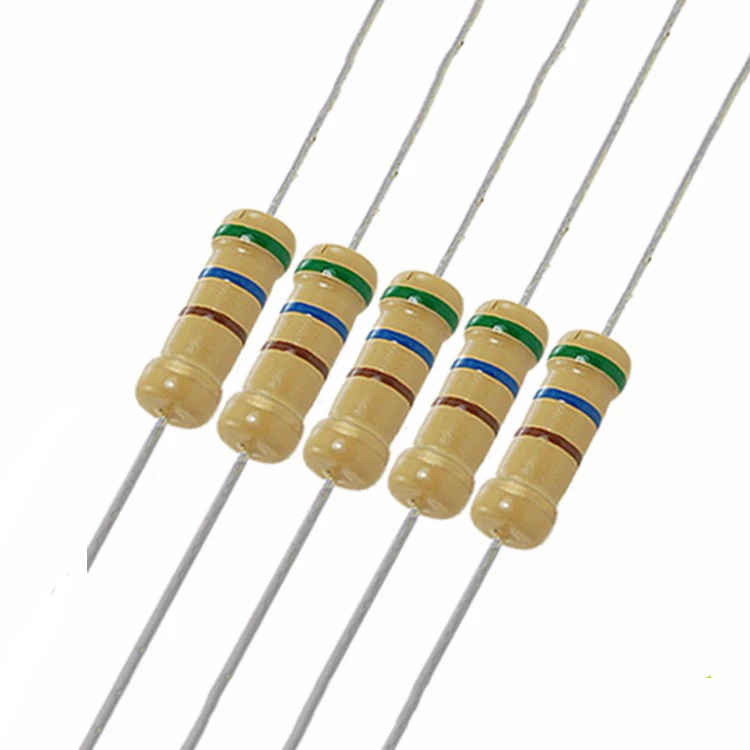

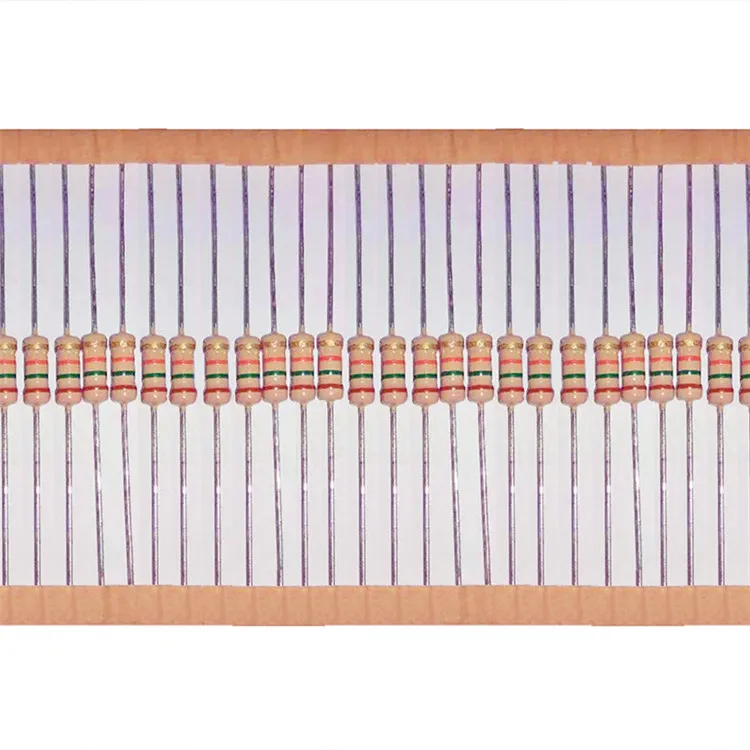

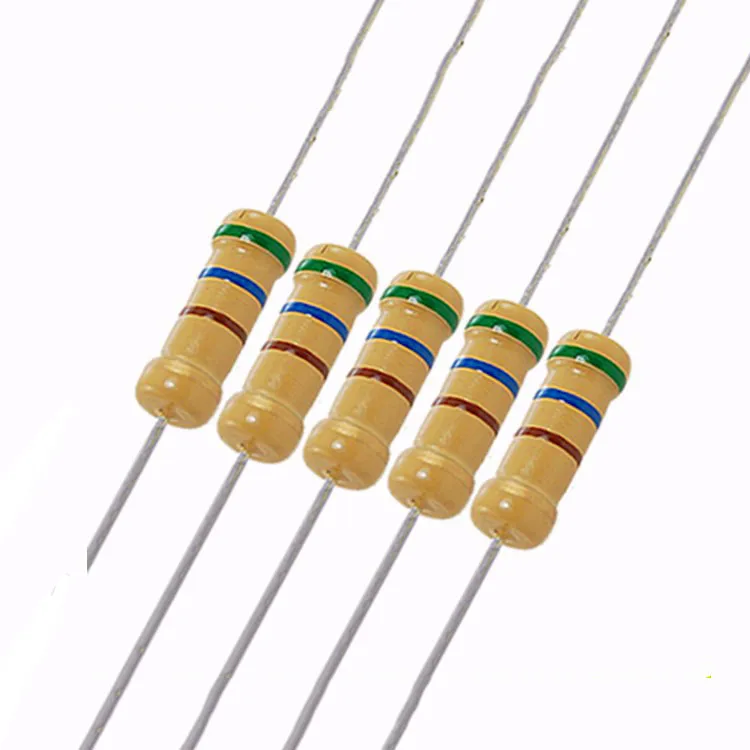

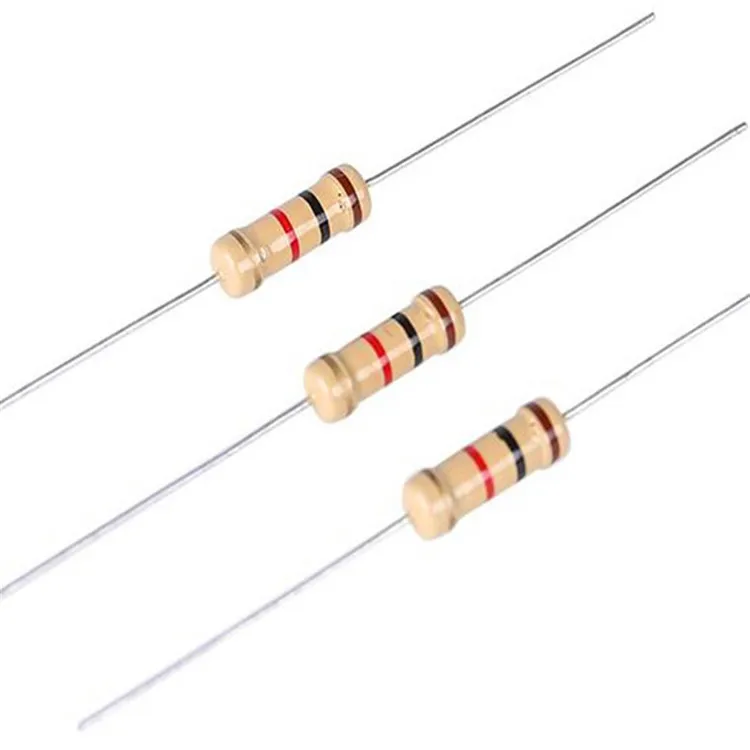

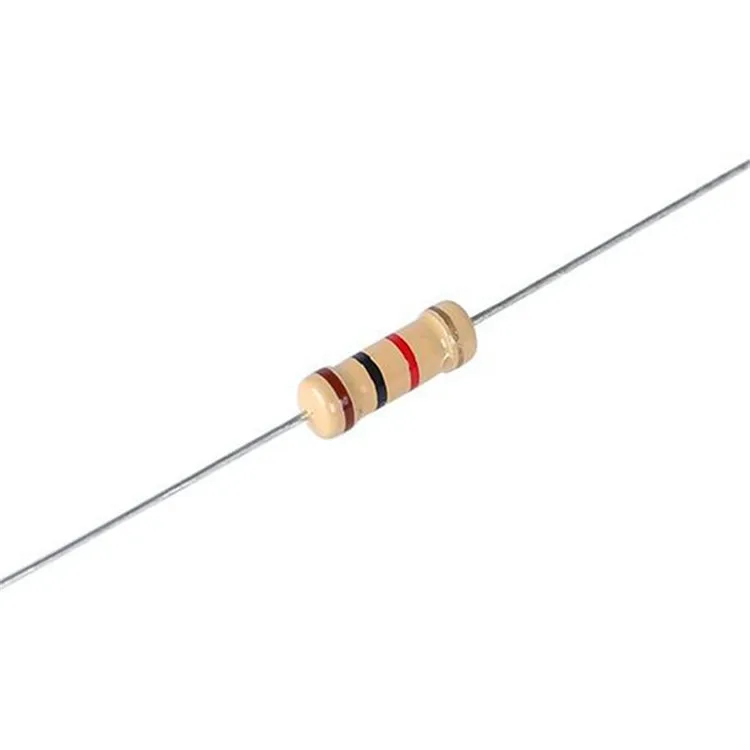

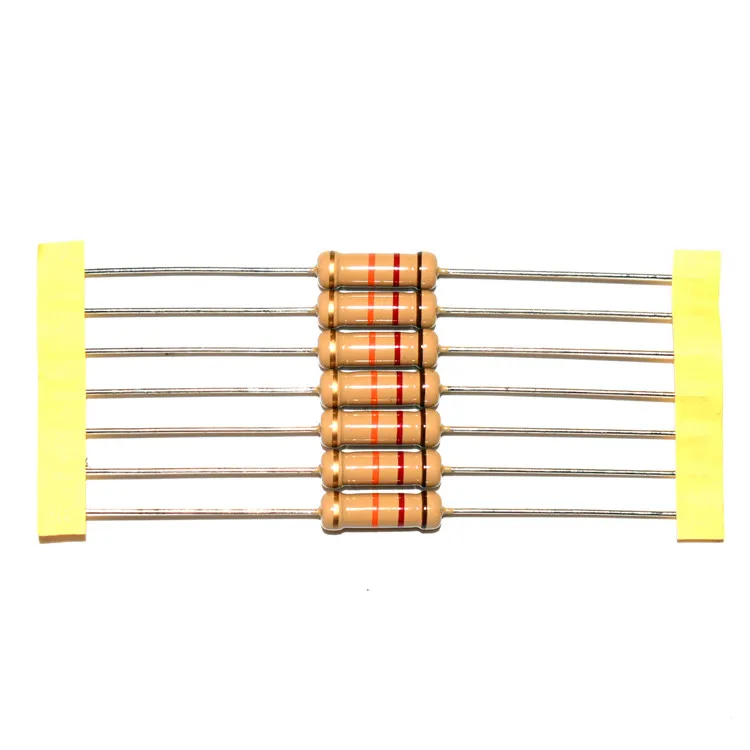

Carbon film resistor (CF)
1. Stable performance, wide resistance range, small volume, high operating temperature and limit voltage.
2. Strong pulse load adaptability and high frequency characteristics.
3. The ambient temperature is -55℃ to +125℃
4. The color of the body is earthy yellow, and the miniaturized color is apple green.
5, power: 1/8w, 1/6w, 1/4ws, 1/4w, 1/2ws, 1/2w, 1WS, 1W, 2WS, 2W, 3WS, 3W, 5WS
6. Accuracy: ±2%,±5%,± 10%
7. Resistance range: 0r-22m
Company Information
Packaging & Shipping
FAQ
1.How can i get the price?
-We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
2. Can I buy samples placing orders?
-Yes.Please feel free to contact us.
3.What is your lead time?
-It depends on the order quantity and the season you place the order.
Usually we can ship within 7-15 days for small quantity,and about 30 days for large quantity.
4.What is your payment term?
-T/T,Western Union,MoneyGram,and Paypal.This is negotiable.
5.What is the shipping method?
-It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).Please confirm with us before placing orders.
6.How do you make our business long-term and good relationship?
-1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
