Products Description

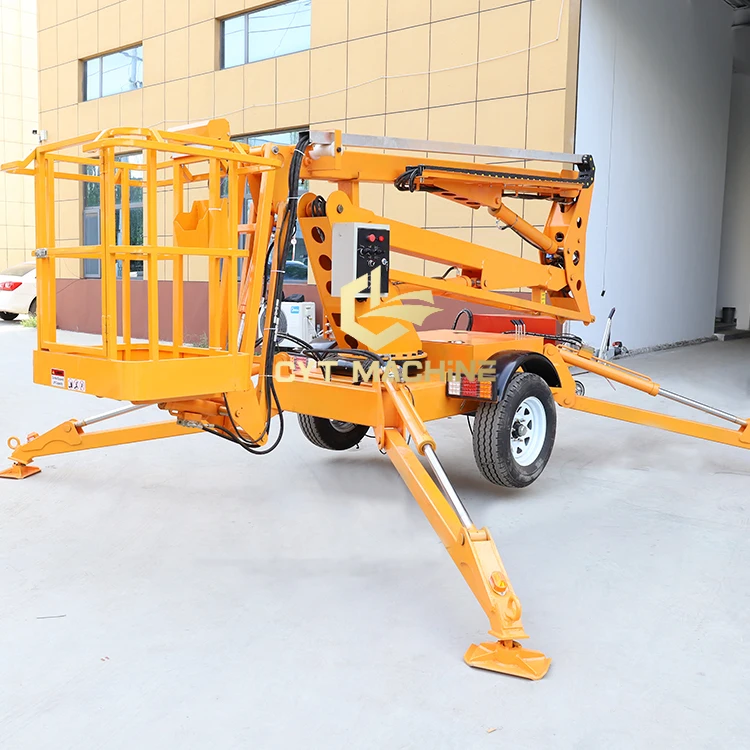

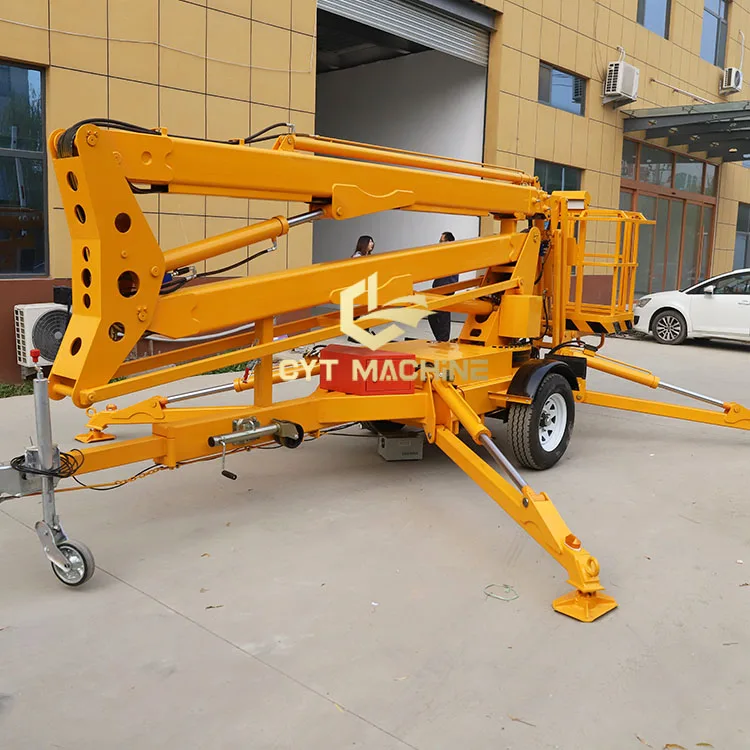

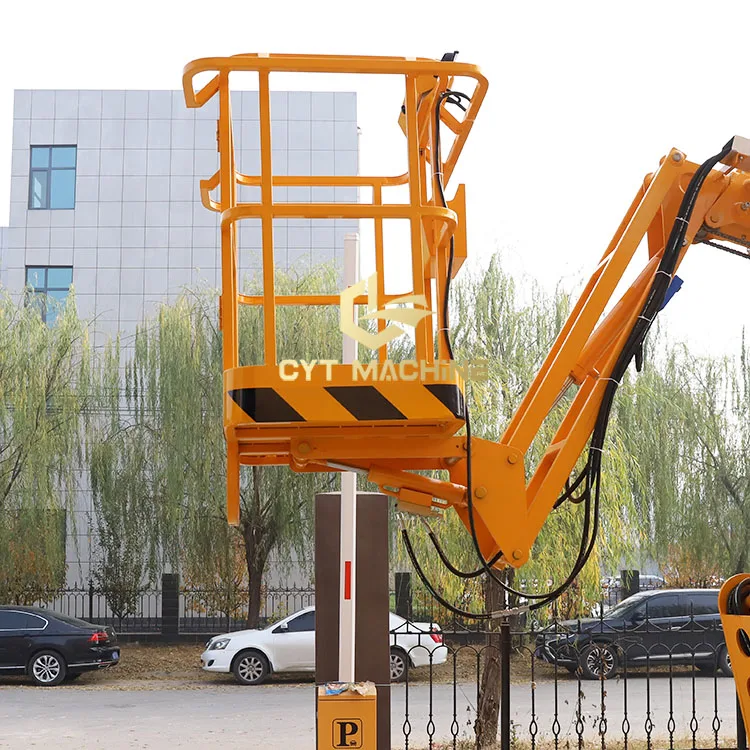

Towable Boom Lift
CYT trailer towable boom lift is specifically designed for those trick, high-up, hard to squeeze-in jobs. Easy to transport and move, simple to operate.
► Working height 8 m to 24 m.
► Custom platform size and load capacity
► 360° continuous bottom rotation and 160° manned rotating platform
► Multiple power supply options: DC / AC / gasoline / diesel, or dual power supply.
It is widely used in construction site, building maintenance, factory daily aerial work maintenance and various kinds of aerial work.


Specification


MODEL
CYT0.2-10
CYT0.2-12
CYT0.2-12s
CYT0.2-14
CYT0.2-16
CYT0.2-20
MAX.PLATFORM HEIGHT
10m
12m
12m
14m
16m
20m
MAX.WORKING HEIGHT
12m
14m
14m
16m
18m
22m
LOAD CAPACITY
200kg
200kg
200kg
200kg
200kg
200kg
MAX.WORKING RADIUS
5m
6.5m
7.5m
8.5m
10m
12.5m
PLATFORM SIZE
0.9*0.7m
0.9*0.7m
0.9*0.7m
0.9*0.7m
0.9*0.7m
0.9*0.7m
DIMENSIONS
5.8*1.8*2.2m
5.8*1.8*2.2m
5.8*1.8*2.2m
6.55*1.66*2.13m
7*1.8*2.25m
7.6*1.8*2.25m
TELESCOPIC BOOM
NO
NO
YES
YES
YES
YES
SELF-WEIGHT
1600kg
1800kg
1600kg
2500kg
2800kg
3800kg
WIND LEVEL
≤5
≤5
≤5
≤5
≤5
≤5
LIFTING POWER
Optional
Optional
Optional
Optional
Optional
Optional
UNITS FOR 40GP
3 units
3 units
3 units
3 units
2 units
1 units

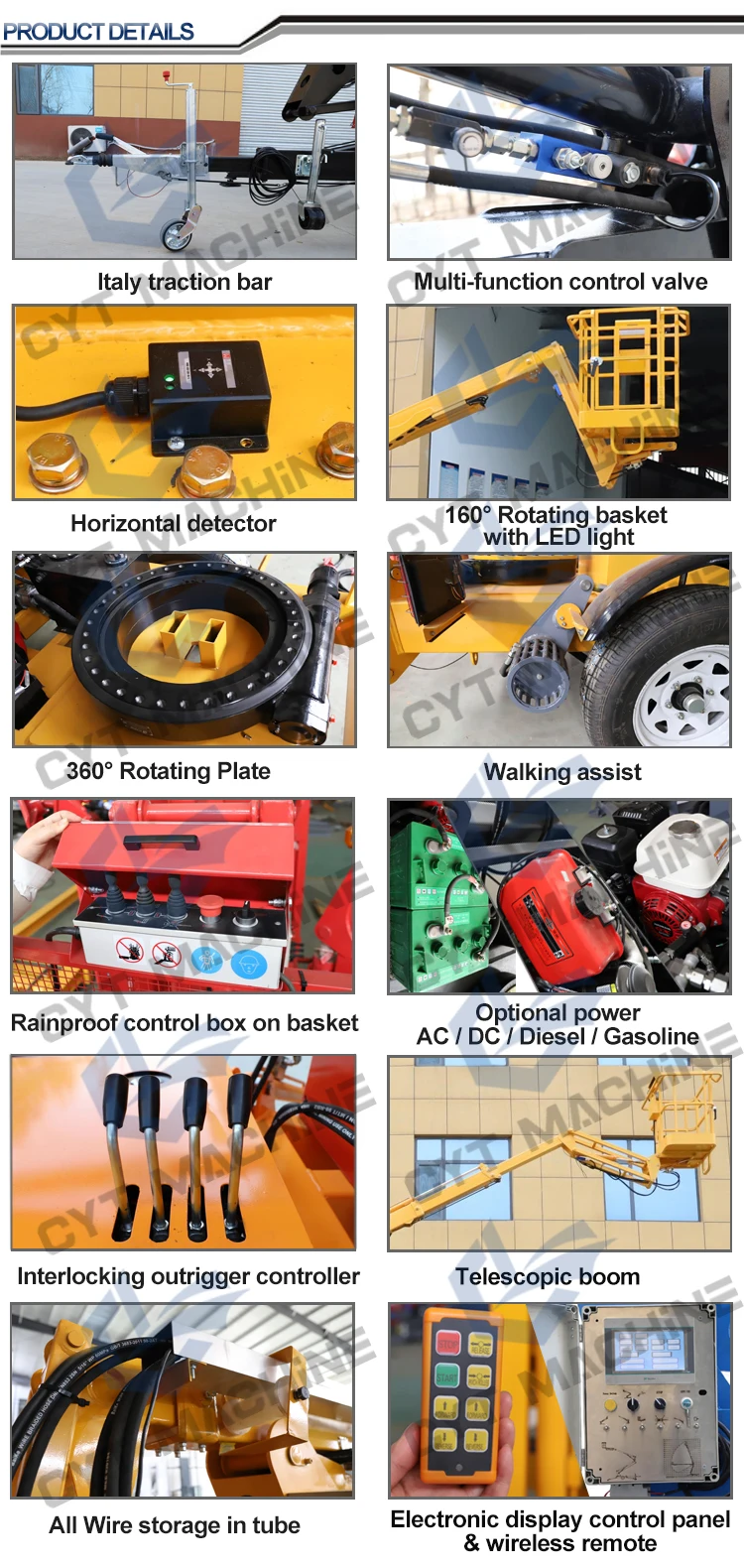

Products Details


The articulating boom lift offers several benefits
► International standard traction bar, Italy brand.
► Telescopic arm increase working radius and saves space in storage
► All Cables and hoses put inside the machine. Avoid tangled sun and rain or other objects
► High and low dual platform control
► Automatic leveling system and tilt alarm
► Multi safety measures: Emergency Stop Button, Emergency Lowering System, Anti Explosion Valve, Safety warning light
► Hydraulically arms and outrigger interlocks
► Complies with all by ISO manufacturing standards, CE-approval.
► Double acting hydraulic cylinder
► Unique electromagnetic brake Assist system

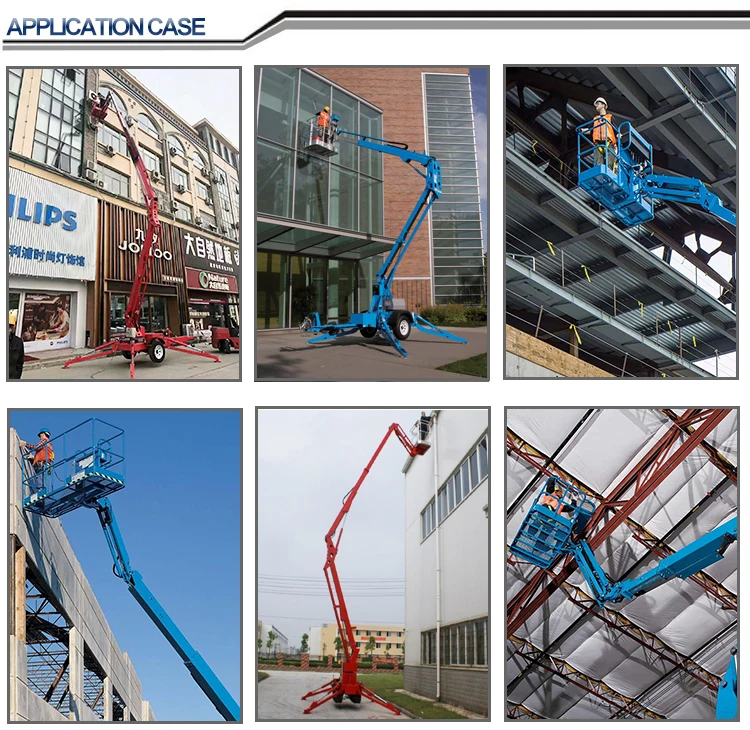

Application Case




Packing and Shipping




Packaging: Standard export packages plywood boxes or according to customer requirements
Shipping:  Within 7 working days after confirm the order

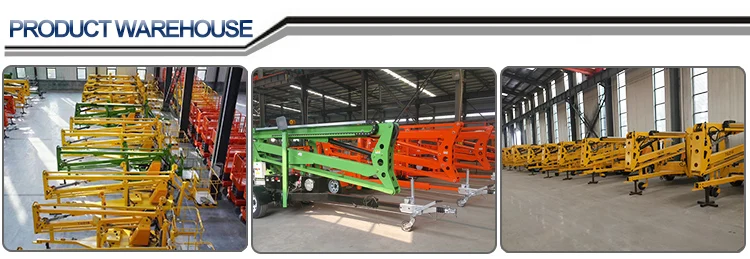

Product Warehouse
