Hot Sale Automobile Household Electrical Hydraulic Piston Polyurethane PU O Ring For Machinery
- Category: >>>
- Supplier: WENZHOU YILIN RUBBER & PLASTIC PRODUCT. LTD
Share on (62391062487):
Product Overview
Description
Products Description

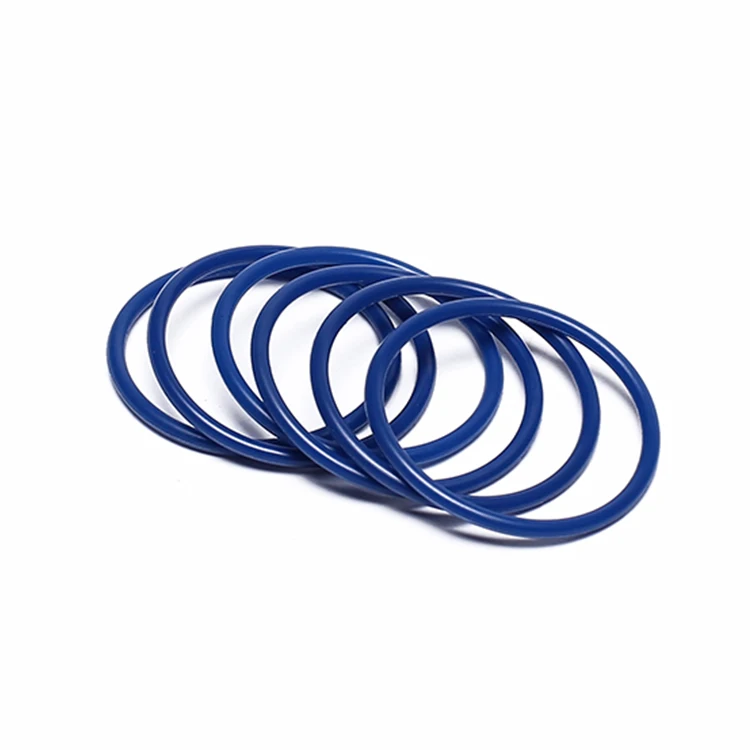

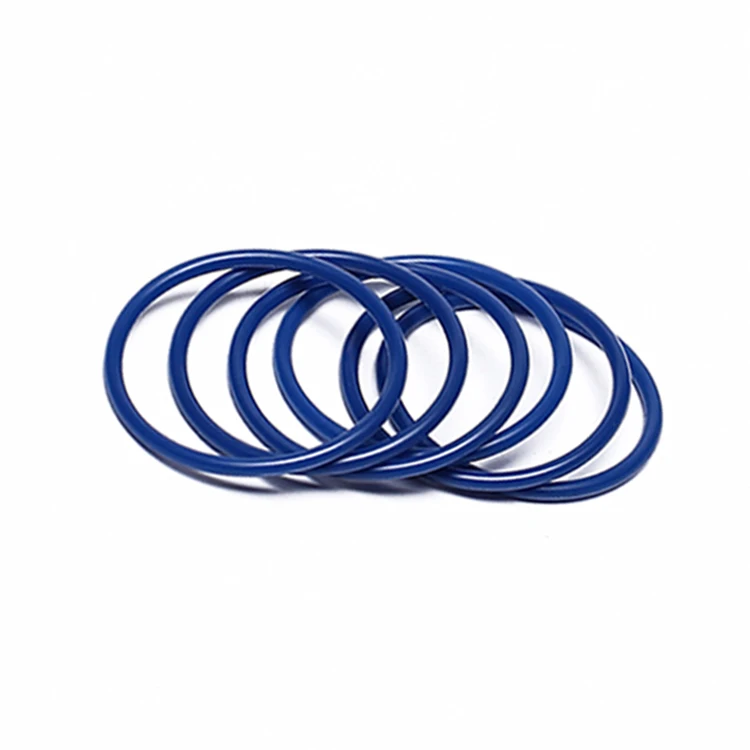

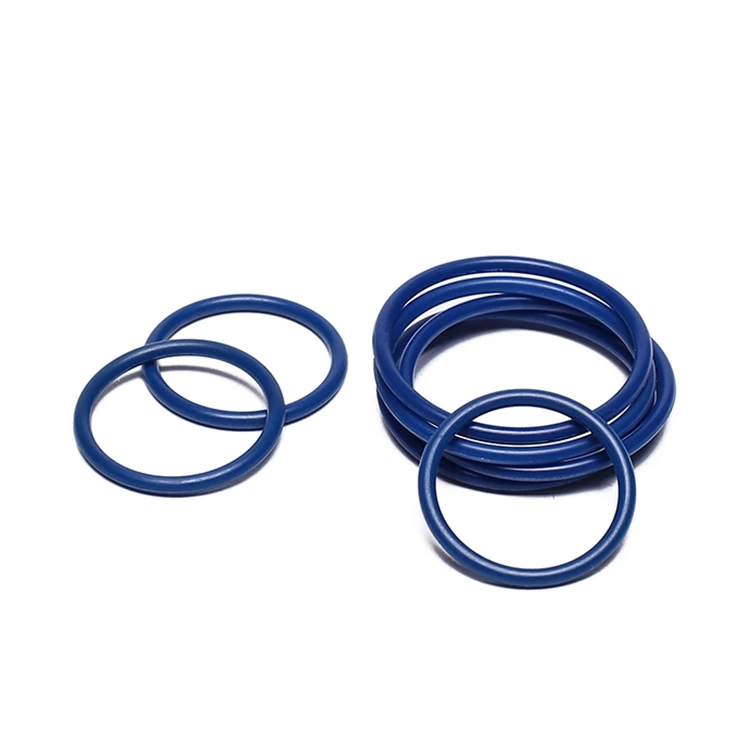

O-rings are one of the most common seals used in machine design,it can be used in static applications or in dynamic applications where there is relative motion between the parts and the O-ring. Dynamic examples include rotating pump shafts and hydraulic cylinder pistons.
It has the advantages:
1. inexpensive;
2.Small installation space;
3.easy to make,easy to install;
4.stable performance;
Material | PU |
Color | blue,colors according to customer request |
Hardness | 70-90 Shore A |
Pressure | static applications: without back-up ring ≤20Mpa, with back-up ring ≤40Mpa dynamic applications: without back-up ring ≤5Mpa |
Temperature | -35~+110°c |
Media | Hydraulic oils(Mineral oil-based) & Acid-proof alkali |
Application | machinery,automobile,sanitaryware,household electrical,every static or dynamic applications |
Different materials and different model number have different application scenarios and performances.
For details, please click Send Inquiry!
Introduction of other products
Click the corresponding product picture to jump to the corresponding product.
For more products, please click >>> HOME
TC Oil Seal
TC skeleton oil seal is a mechanical component used to seal oil. It isolates the parts of the transmission component that need to be lubricated from the output components so that lubrication and leakage are not allowed.
Material:NBR / FKM +Metal
Technical Data
Temperature range: -30℃ to +200℃
Speed: ≤25m/s
Medium:Lubricating Oil, Grease, Water
Advantage:
●The structure is simple and easy to manufacture.
●Lightweight and low consumables.
●The oil seal has a small axial dimension, is easy to machine, and makes the machine compact.
●The sealing machine has good performance and long service life.
●The oil seal has certain adaptability to the vibration of the machine and the eccentricity of the spindle.
●Easy to disassemble and easy to test.
Temperature range: -30℃ to +200℃
Speed: ≤25m/s
Medium:Lubricating Oil, Grease, Water
Advantage:
●The structure is simple and easy to manufacture.
●Lightweight and low consumables.
●The oil seal has a small axial dimension, is easy to machine, and makes the machine compact.
●The sealing machine has good performance and long service life.
●The oil seal has certain adaptability to the vibration of the machine and the eccentricity of the spindle.
●Easy to disassemble and easy to test.
O RING
Types of O-ring compounds
FKM (Viton )
BUNA-N (NBR)
Hydrogenated BUNA-N ( HNBR)
Chloroprene ( Neoprene ) EPDM
FFKM
Sllicone Fluosilicone Natural Aflas
More compounds
We offer standard O- RINGS(AS568),
Metric O-rings, JIS 0- rings, BS O-rings,
Spliced or Vulcanized O-rings,
O-rings by material, Custom Molded O-rings, 0-ring kits.
Our operational application temperature limits:
EPDM 70:-45 "Cto +130。
CFKM:-15 °C to +200。
CHNBR70: -30 °C to +150*
CNBR: -30°C to +100°
CVMQ70: -55 °C to +200°C
FKM (Viton )
BUNA-N (NBR)
Hydrogenated BUNA-N ( HNBR)
Chloroprene ( Neoprene ) EPDM
FFKM
Sllicone Fluosilicone Natural Aflas
More compounds
We offer standard O- RINGS(AS568),
Metric O-rings, JIS 0- rings, BS O-rings,
Spliced or Vulcanized O-rings,
O-rings by material, Custom Molded O-rings, 0-ring kits.
Our operational application temperature limits:
EPDM 70:-45 "Cto +130。
CFKM:-15 °C to +200。
CHNBR70: -30 °C to +150*
CNBR: -30°C to +100°
CVMQ70: -55 °C to +200°C
KDAS Piston compact seal
Material
Profile seal: NBR /Back-up ring: polyester elastomer / Guider ring: POM
Color: Profile seal: Black / Back-up ring: Blue / Guider ring: Black
Technical Data
Pressure:s 35Mpa
Temperature: -35 ~ +100*C
Speed:s0.5m/s
Media: Hydraulic oils (mineral oil-based)
Profile seal: NBR /Back-up ring: polyester elastomer / Guider ring: POM
Color: Profile seal: Black / Back-up ring: Blue / Guider ring: Black
Technical Data
Pressure:s 35Mpa
Temperature: -35 ~ +100*C
Speed:s0.5m/s
Media: Hydraulic oils (mineral oil-based)
