1. It has integrated the pneumatic and the mechanic technologies, which makes it has the functions of faster working speed, higher safety-performance, safer operation and easier maintenance than the conventional one.

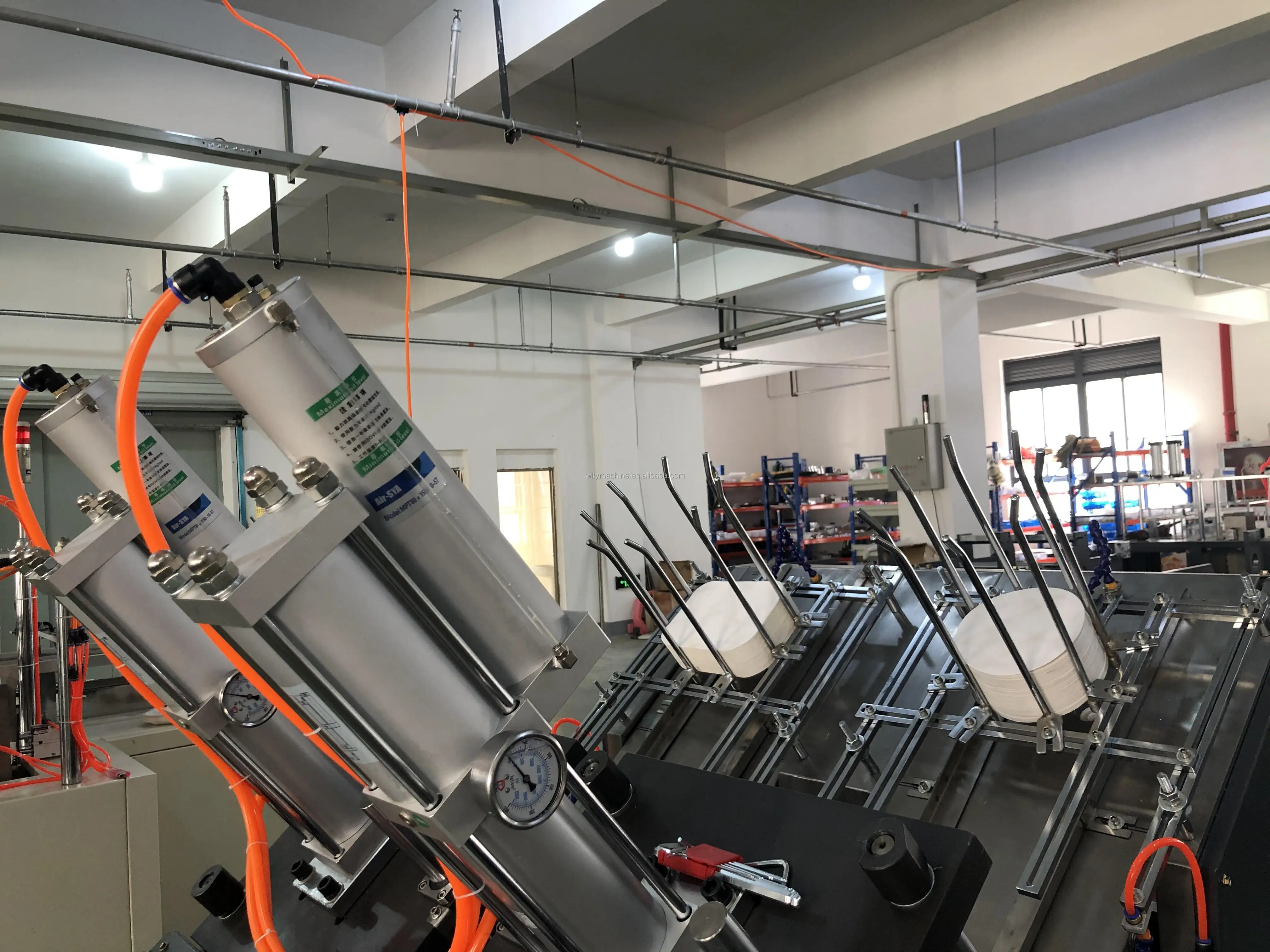

2. It adopts high efficient pressurizing air cylinder, so that the Max. pressure can reach to3T , Compared with the oil pressure one, it has the advantages of faster speed, environment protection and humanism design .

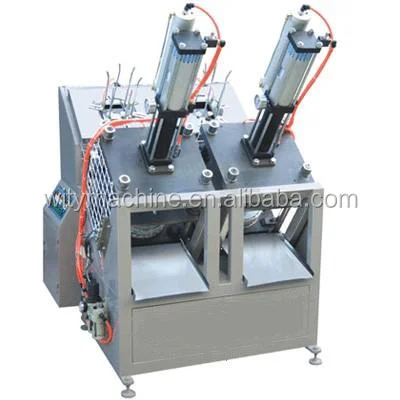

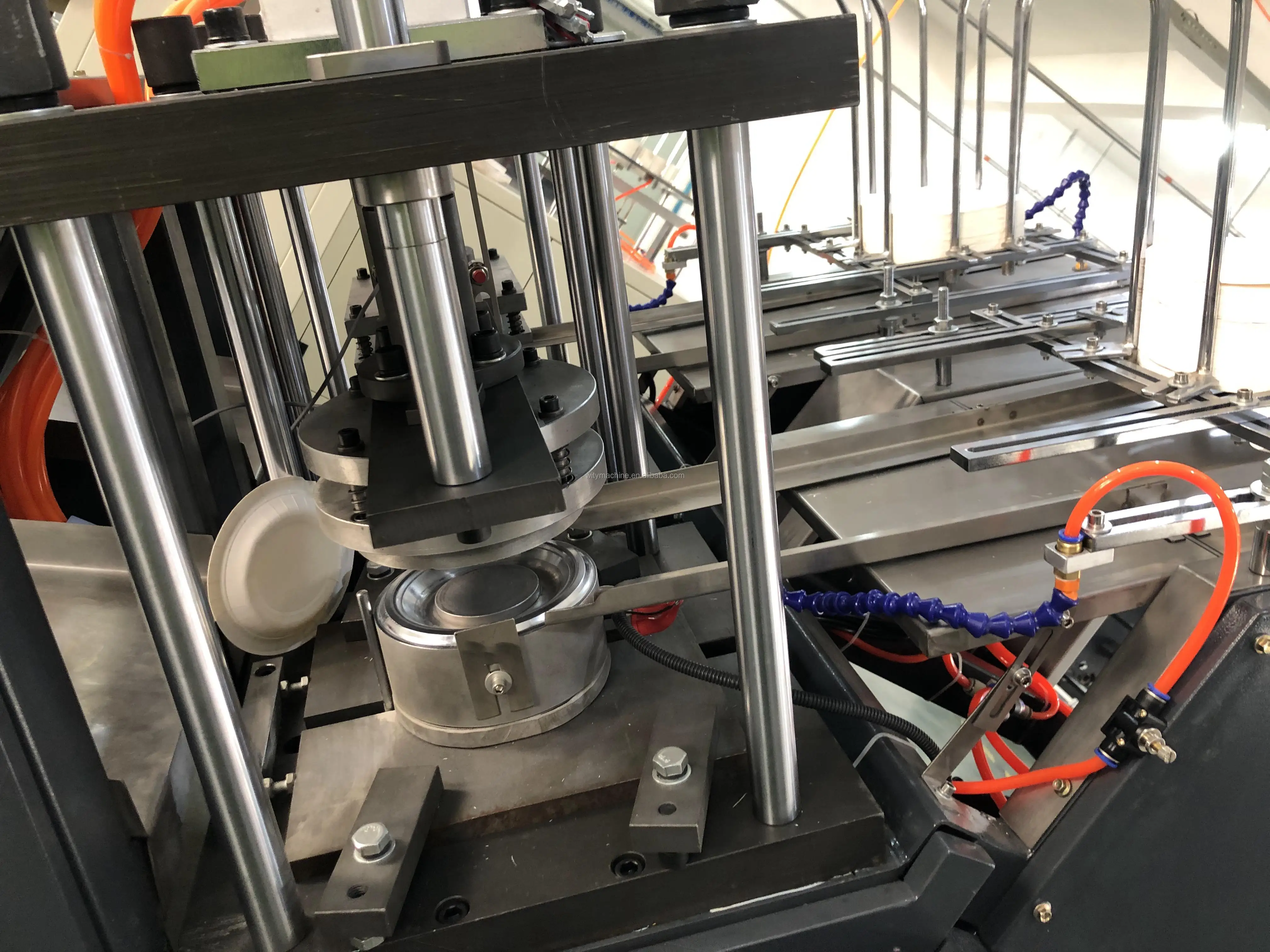

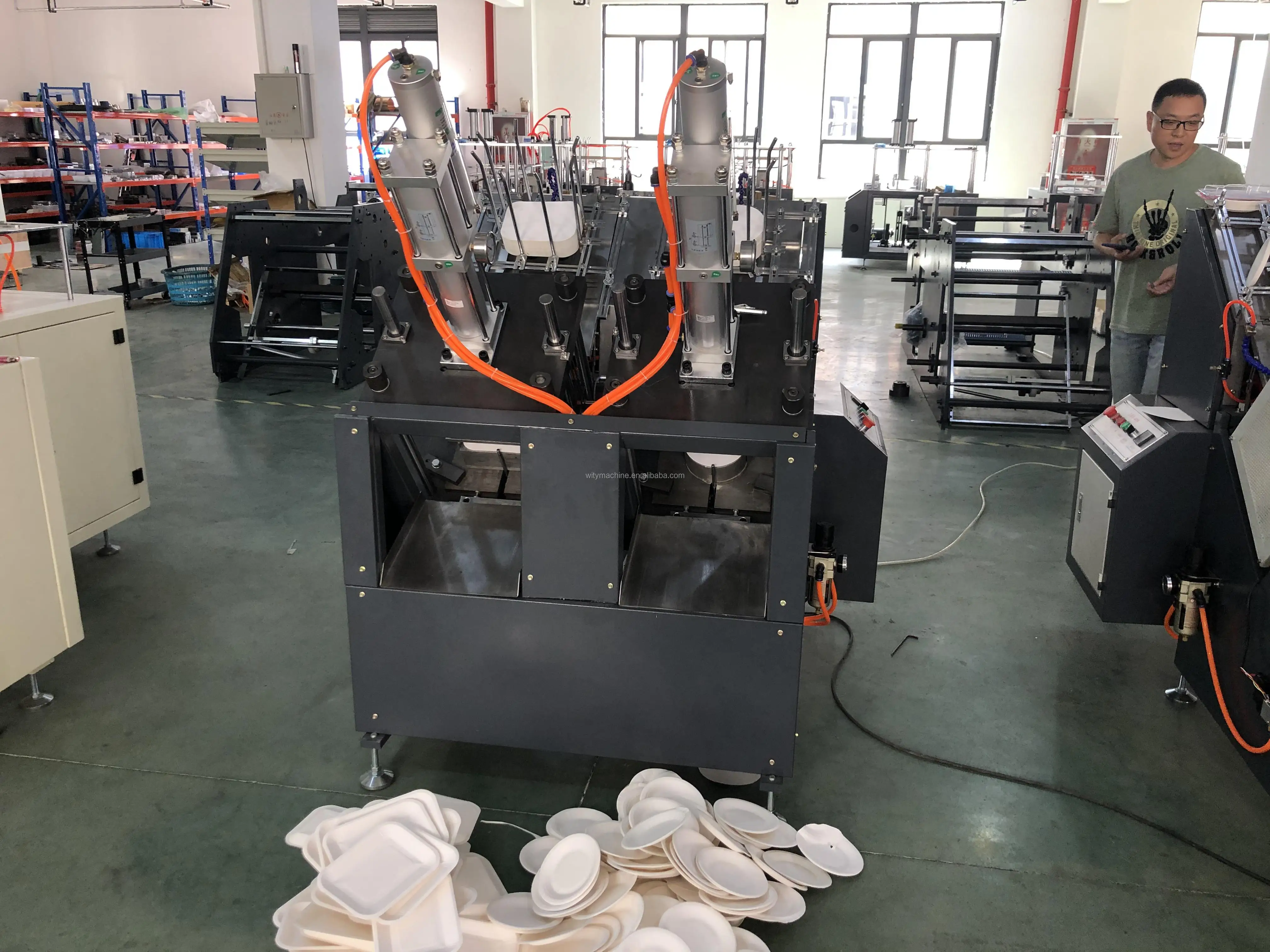

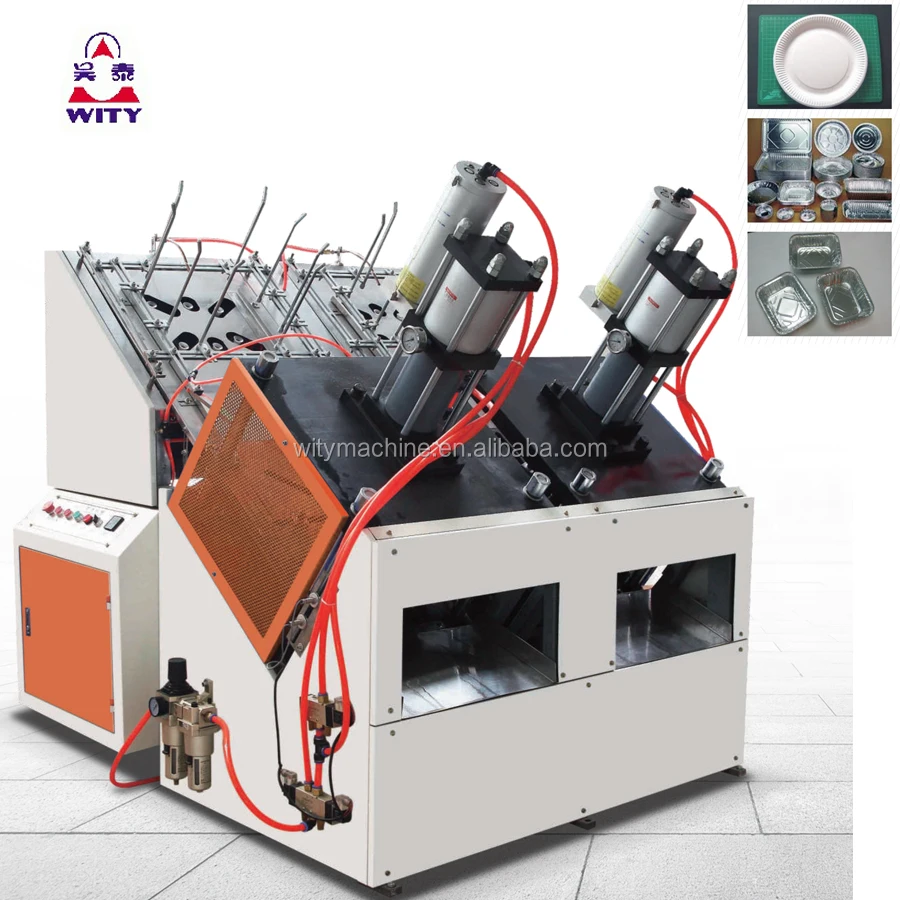

3. The Paper plate machine has two working stations, each station install one set of mold and each station has separately digital control and electric control.
4. It is widely applied to make paper plate (or aluminum foil laminated paper plate) in round (rectangle, square, circular, or irregular) shape. Machine speed changes against the material (paper) thickness and the plate size producing PET plastic containers and bottles in all shapes.

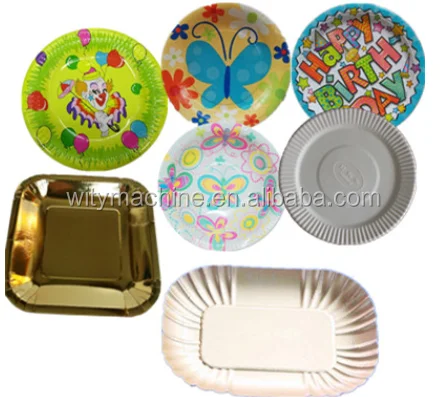

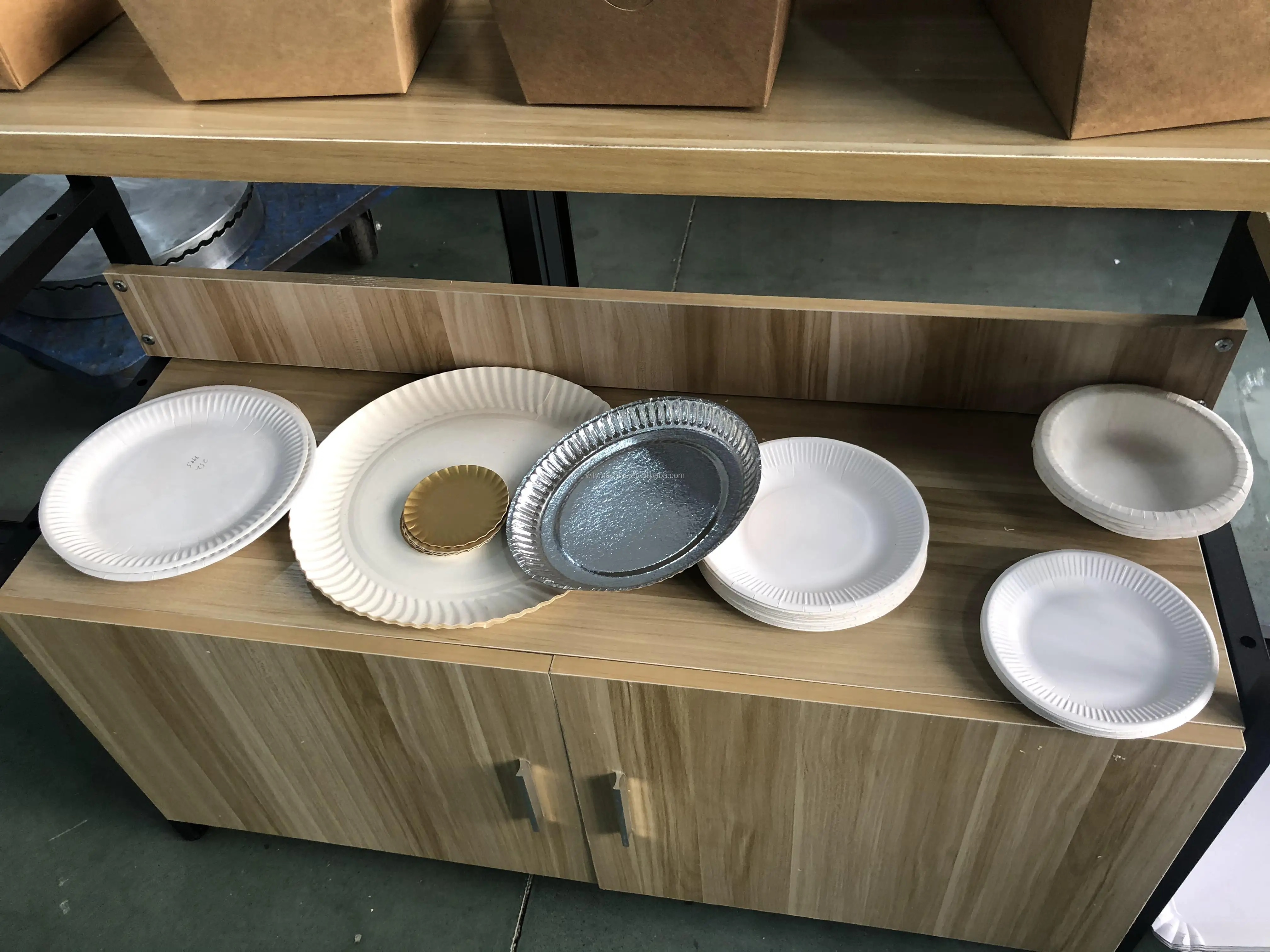

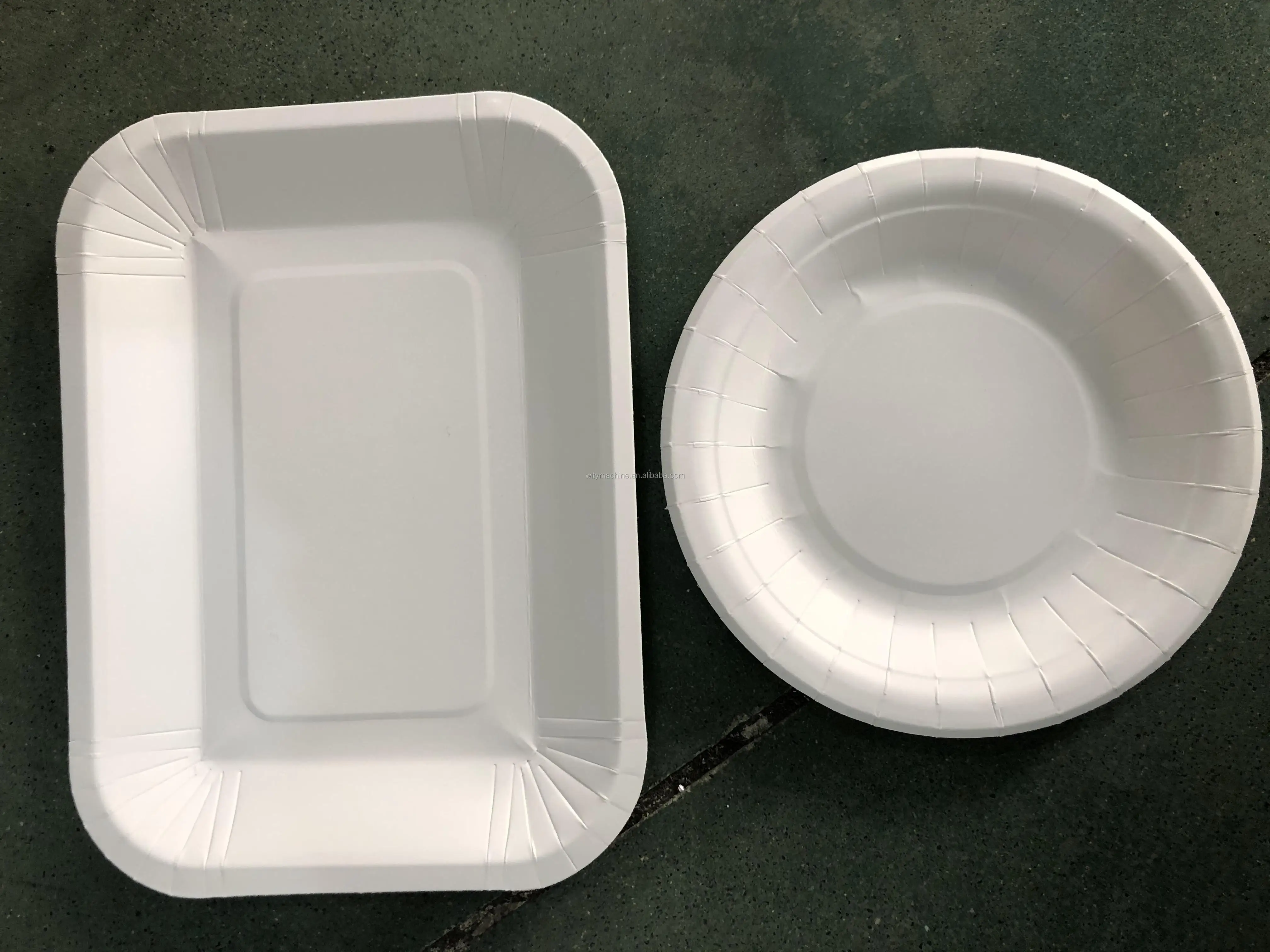

Samples
Technical Parameters
Paper plate size
5--9 inch (mold exchangeable)
Raw material
(100gsm—1000gsm) paper/paperboard, Aluminum foil coated paper, One side PE coated paper or other
Speed
25—50 pcs /min
Total Power
220V 50Hz；3kw or 380V,50HZ，3kw
weight
600kgs
Overall size
1430 x1570x 1800 mm；
Working air supply
Air pressure :0.8MPa，air out-put: 1 m3/minute (need to buy Air compressor)
If your plate is very large, and the paper is up 600gsm, we design a special machine for you
