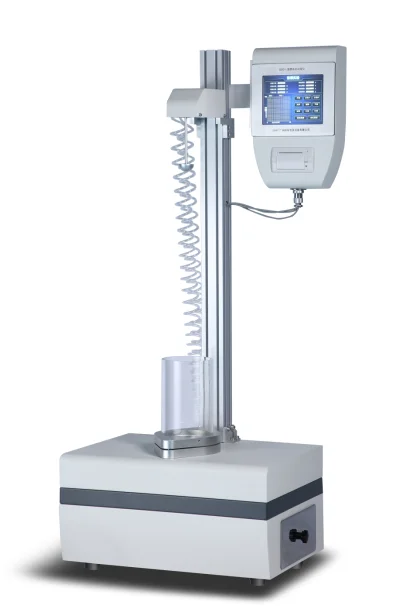

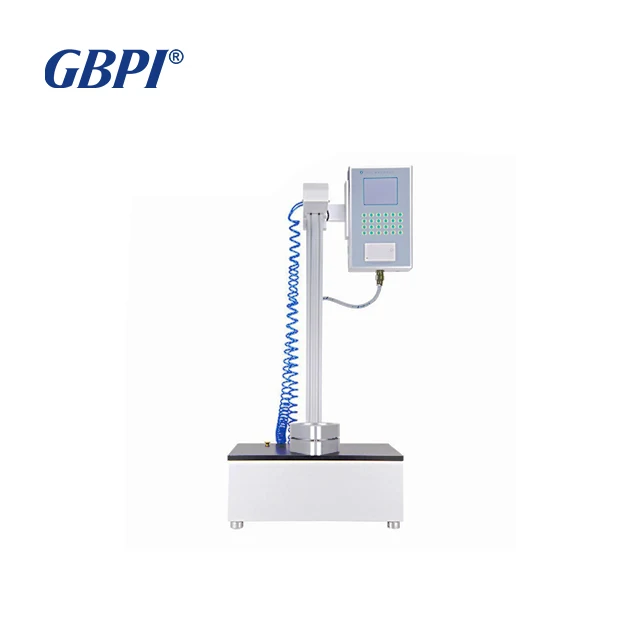

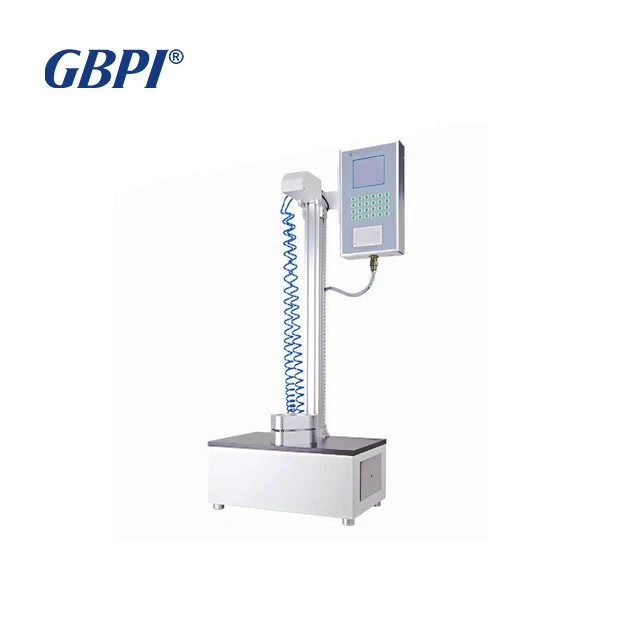

GBD L Plastic Film Sheet Falling Dart Impact Test Equipment Plastic Paper and Paperboard Drop Ball Impact Tester

Item

Technical Parameters

Test range

Method A:50~2000g,Method B:300~2000g

Test precision

1g

Weight of dart head

50-2000g,5g/weight increase,weight error≤0.5%

Size of dart head

Method A:Φ38±1mm,Method B:Φ50±1mm

Weight of weights

5g,15g,30g,45g,80g,90g (8 pieces for each)

Size of weights

Method A:Φ30mm,Method B:Φ45mm

Impact height

1500mm/660mm

Size of clip

Pneumatic clip,outer:150mm,inner:125mm

Size of sample

180×180mm

Gas source

compressed air,0.6~0.8MPa

Gas source port

Φ8mm gas tube

Size

550×380×2300mm

Weight

70kg

Power supply

AC 220V,50Hz

Power

1000W

A,Spare parts

NO.

Name

Remark

Quantity

1

Power cable

1 PC

2

Aluminium dart head

1 PC

3

Matching weights for

method A

Aluminium 5g, stainless steel 15g,stainless steel 30g,stainless steel 80g( 8 pieces for each one)

1 Set

4

Stainless steel dart head

1PC

5

Matching weights for

 method B

Aluminium 15g, stainless steel 45g,stainless steel 90g( 8 pieces for each one)

1Set

6

Aluminium rod

1PC

7

Connection fittings of

aluminium rod

4PCS

8

Allen wrench

1Set

9

Cross screwdriver

6-10mm

1PC

10

Pneumatic clips

 Installed in the instrument

1Set

B,Optional parts

NO.

Name

Unit

Quantity

Remark

1

Metrology Certificates

Optional

2

Air compressor

Optional

User provide

1

Power supply 500W   220V   10A    3 holes socket    ground wire

2

Air source(such as air compressor)specification 2.5HP,8KG pressure

3

High-pressure air pipe(Φ6mm plastic pipe)

4

Air filter(filter dust, filter oil, filter water)
