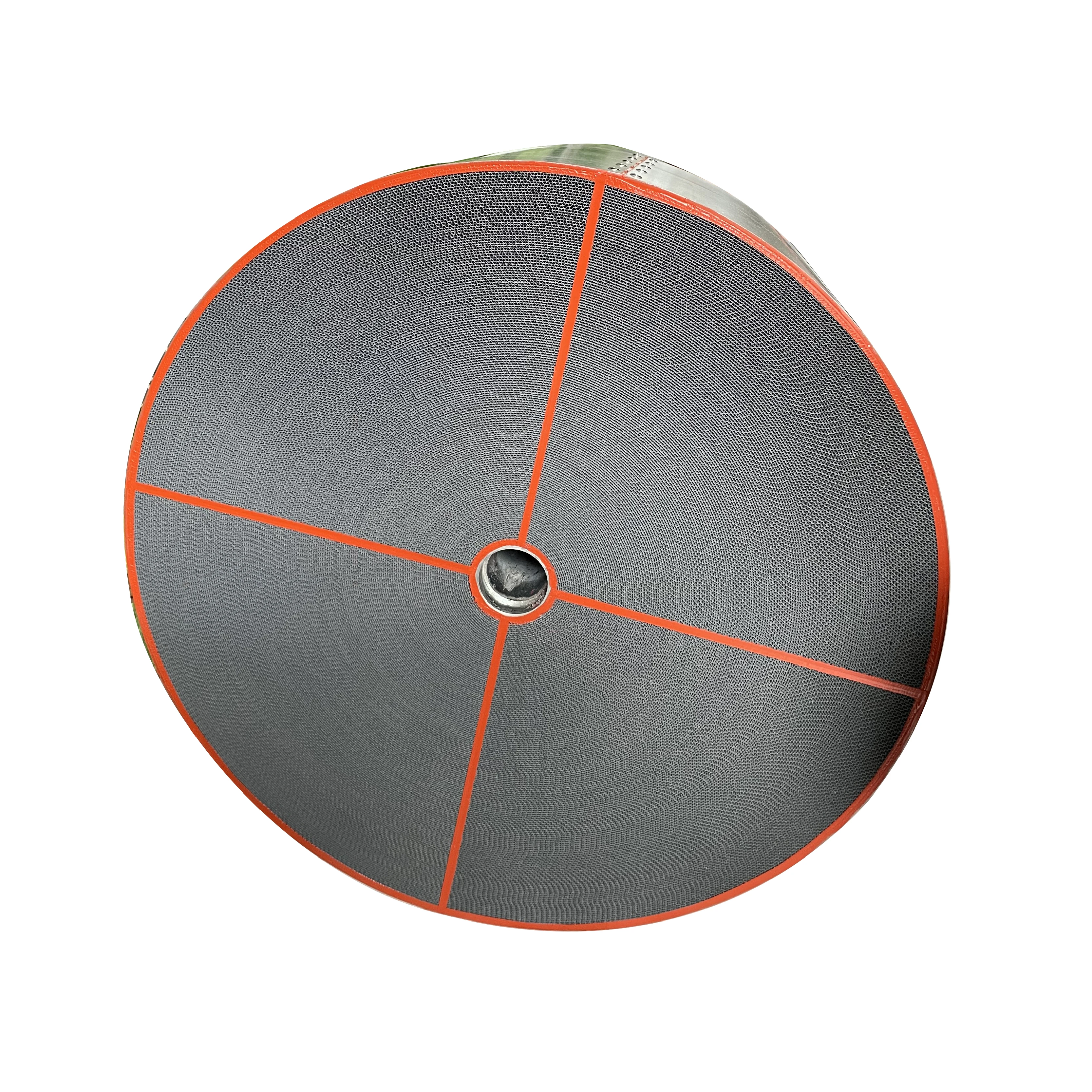

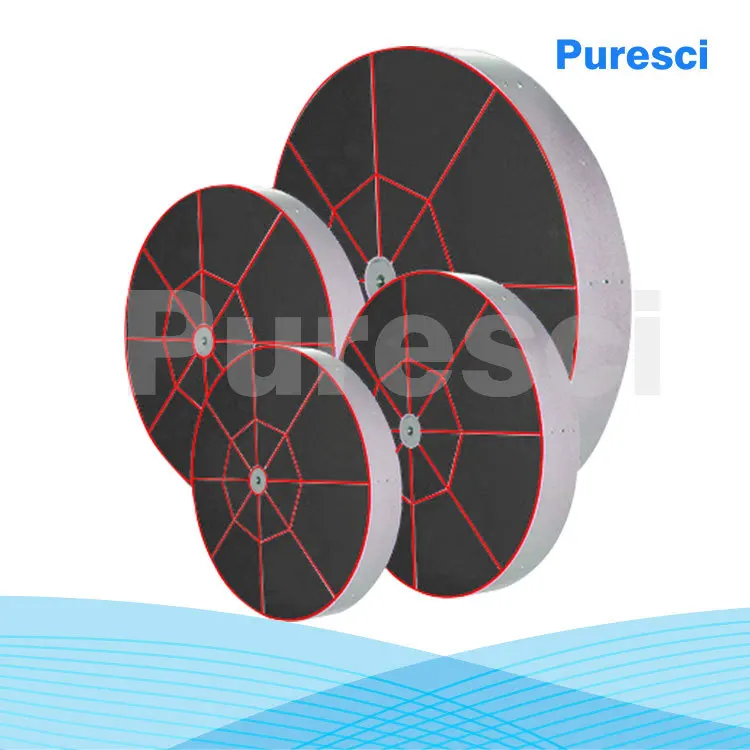

Сертификаты CE и RoHs и индивидуальный осушительный ротор для осушителя
- Category: Industrial Dehumidifier >>>
- Supplier: Puresci Environment Technology Limited
Share on (62394036271):
Product Overview
Description
Products Description

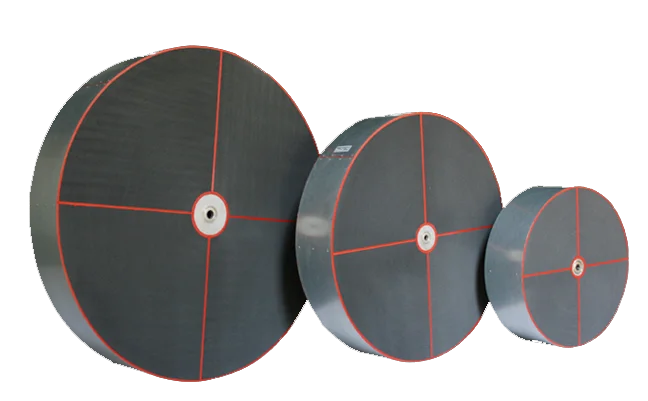

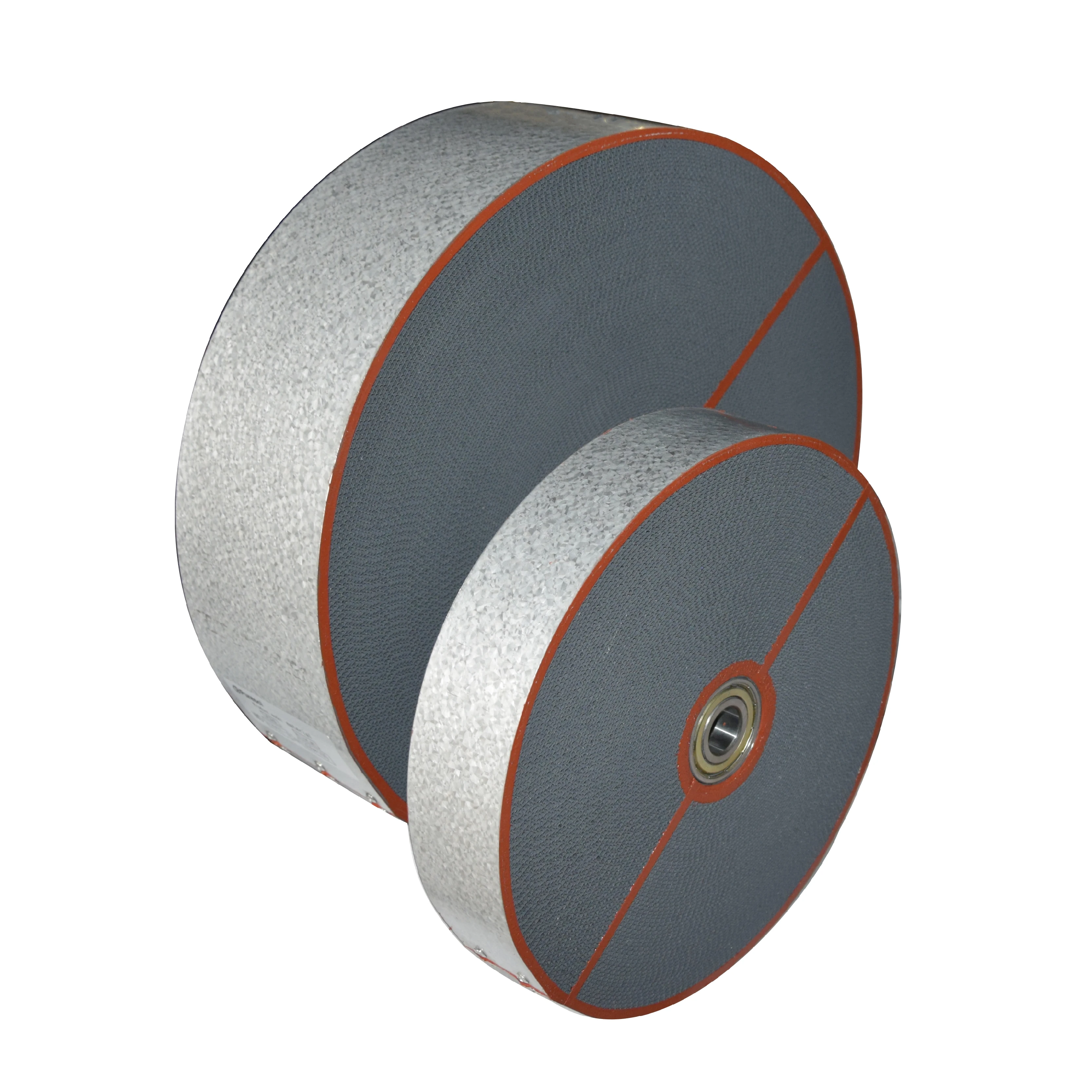

Regular Desiccant Rotor : PSS
PSS rotor is used for normal humidity and low dew point operation in high regeneration temperature, and suitable for most dehumidification applications.
It has cost-effective, good dehumidification performance in wide range of applications.
General Partition 1 : 3
Features
1. Unique Moisture Adsorption
Relative humidity 10% ~ 40%, Dew point -50℃ ~ -75℃
2. Advanced Manufacturing Techniques
Axis Perpendicularity error precision ±0.1mm（Below 1500mm）, ±0.2~0.3mm（1500~3000mm）,
Improve tightness, reduce friction, reduce the probability of rotor cracking.
3. Professional Surface Treatment
Adopt international standard environmental paint with water-resistant, high temperature resistance, strong weather resistance, anti-corrosion, no odor and high hardness.
4. High Surface Strength
500N/㎝²{50kgf/㎝²}
5. Water Washable
Silica gel does not dissolve in water and any solvent. Non-toxic and tasteless. Therefore, rinse and maintain with water and organic solvent.
6. Variety Construction
It is recommended that using the split type for diameter ≥ 2200mm, due to transporation problems. It's easy way to assemble upper and lower parts on site.
If the space is narrow, the rotor can be shaped into fans to assemble.
7. Long Life Service
We made the life test and calculated use life according to Arrhenius theoretical formula. As the combination of losts of repeated experiments and accurate theoretical calculation, serivice life can be as long as 10 ~ 12 years.

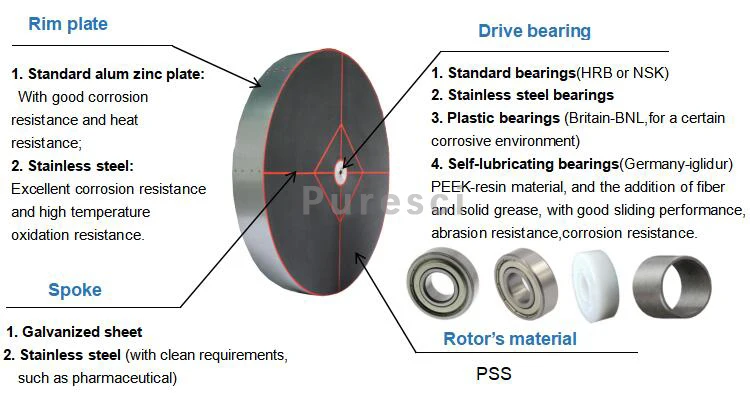

Products Structure and Dimensions
Besides standard dimensions (Diameter and Thickness), non-standard rotors can be customized according to customers' requiremens, such as 50mm, 65mm, 100mm and 150mm.
ROTOR SIZE | ||||||||
Diameter(mm) | Thickness(mm) | Bearing/ Inner hole | Shaft Diameter(mm) | Delivered knock-down | ||||
180-550 | 50, 100, 150, 200, 300, 400 | 6204/20 | 50 | NO | ||||
600-850 | 200, 300, 400 | 6204/20 | 70 | NO | ||||
965-1070 | 200, 300, 400 | 6204/20 | 100 | NO | ||||
1200-1650 | 200, 300, 400 | 6206/30 | 150 | CAN | ||||
1730-4250 | 200, 300, 400 | 6206/30 | 240 | YES | ||||

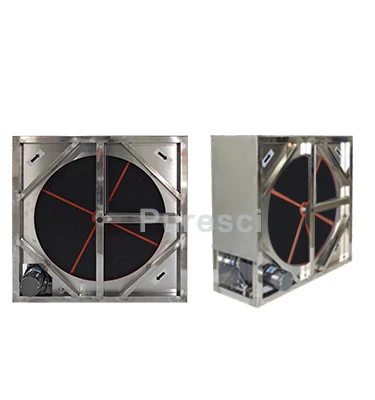

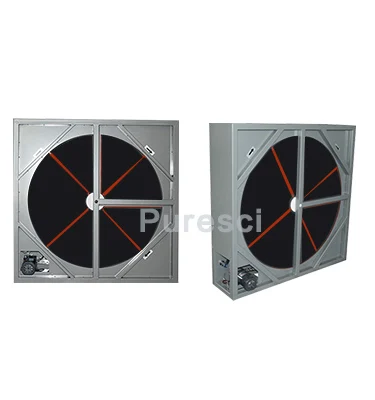

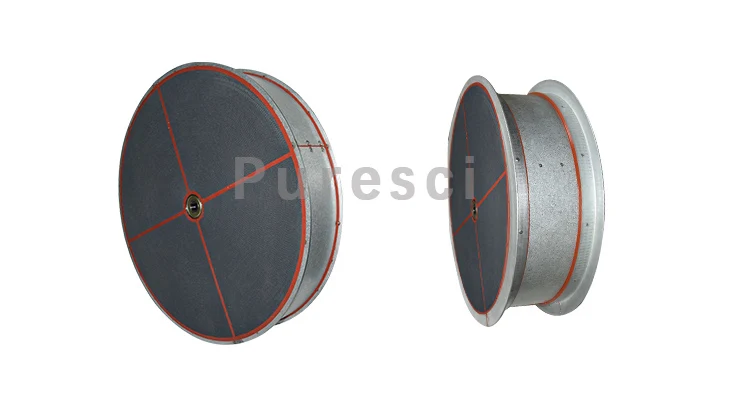

Accessories - Cassette, Flange, etc
Cassette's material
(1) Cold drawn square tube, high temperature paint
(2) Stainless steel square tube
Gear motor
Applicable environment is -10℃ ~ 40℃), Motor can be customized.

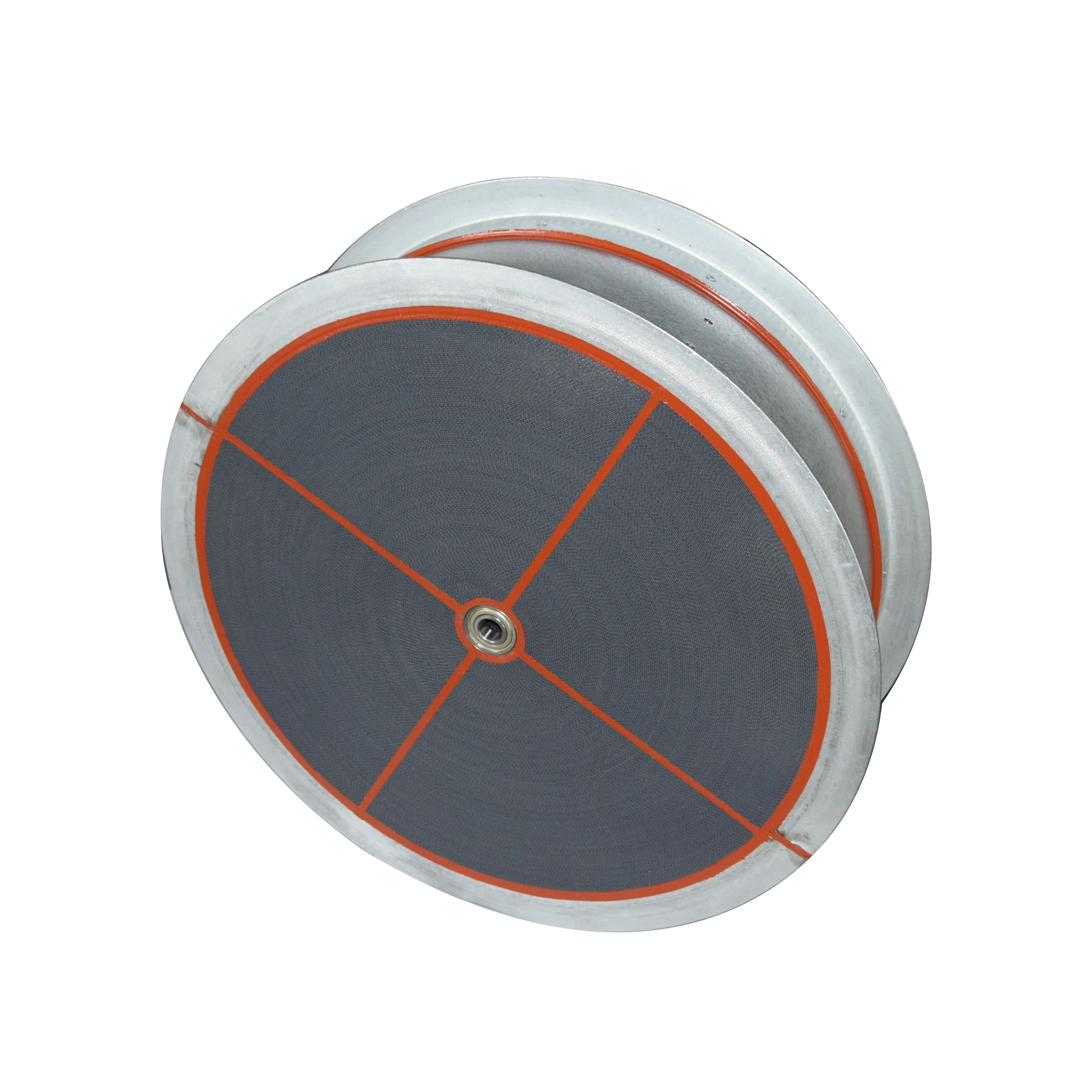

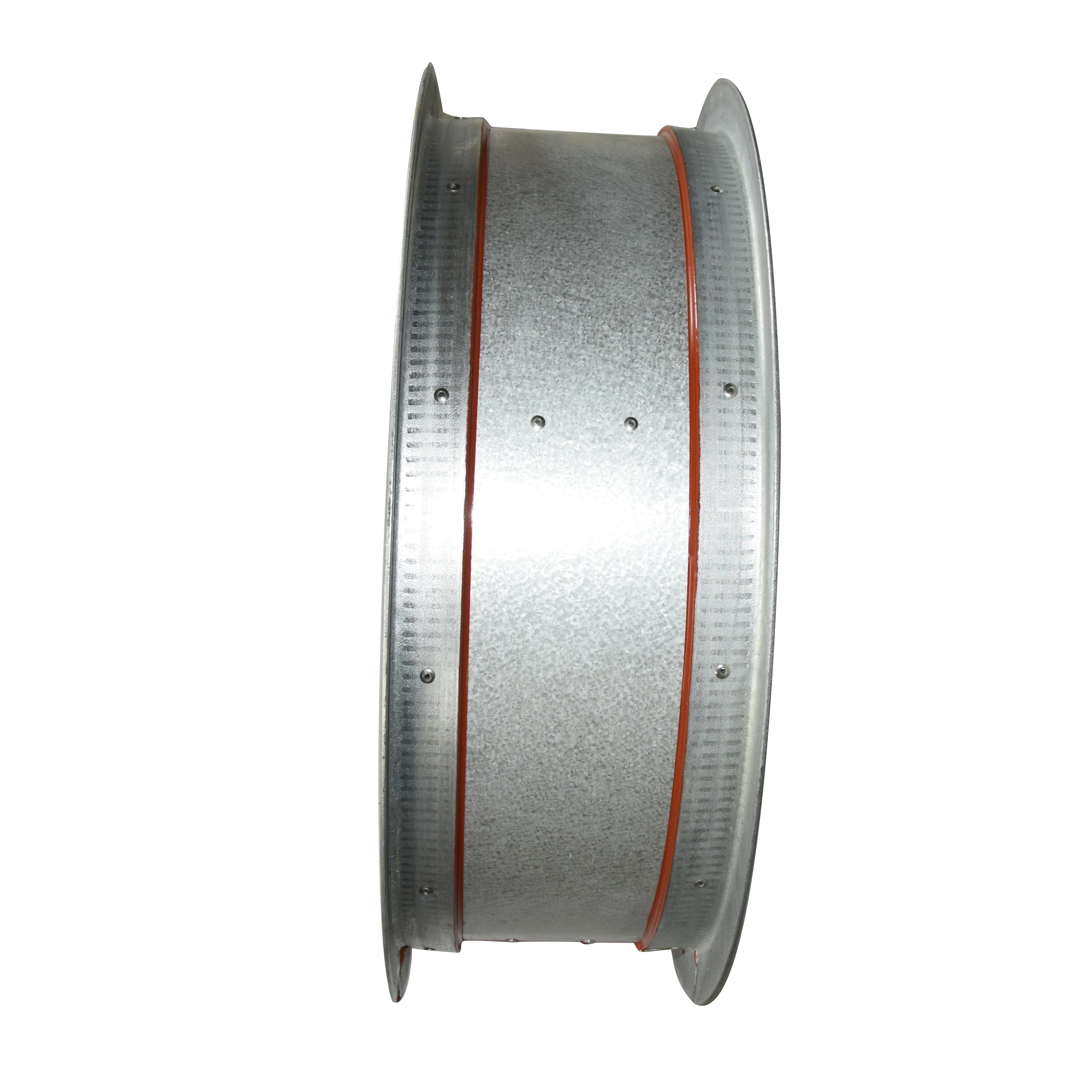

If the rotor is equipped with flange, flange is:
(1) Hot dip galvanized angle steel flange: 30*30mm or 40*40mm
(2) Stainless steel angle steel flange: 30*30mm or 40*40mm
Product Packing and Shipping
Shipping:
Via containers by Sea or Air,
Or via UPS/ DHL/ FEDEX, Tracking will sent to you via email after samples or goods are shipped out.
Application
Puresci desiccant rotor are widely used in different industries:
Pharmaceutical manufacturing;
Food producing,processing and storing;
Lithium battery and electronic producing;
Ship manufacturing and bridge corrosion resistant;
Plastic and chemical products producing;
Storage and maintenance for military;
Our Service
1. Pre-sale Service
(1) Technical service consultation.
(2) PC and mobile phone selection software.
(3) Support service - product test, system design, R&D technical support.
2. Medium-sales Service
Precision production facilities and consummate production technology is a guarantee of high quality.
3. After-sales Service
Timely delivery, quickly help customers solve technical problem and optimize equipment performance, ensure terminal customers to run dehumidification equipment efficiency.
FAQ
Q1: What's your temrs of trade?
EXW, FOB, CFR, CIF, DDU, DDP.
Q2: What's your terms of payment?
100% advance pament before delivery by T/T.
Q3: How about your delivery time?
Normal is 7 days. The specific delivery time depends on the items and the quantity of your order.
Q4: What's your terms of packing?
The package of desiccant rotor is polyfoam and wooden case. It will be very safe for shipping.
Q5: Can you produce according to the samples?
Generally, we offer customized services.
Q6: What's your sample policy?
We can supply the sample if we have ready parts in stock, but the customers have to pay sample cost and courier cost.
