Product Overview

Description




Aplication

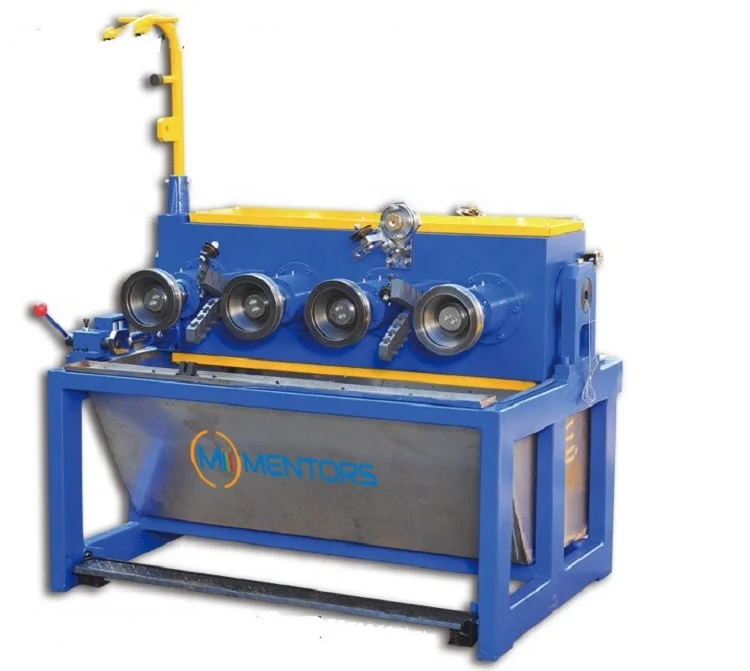

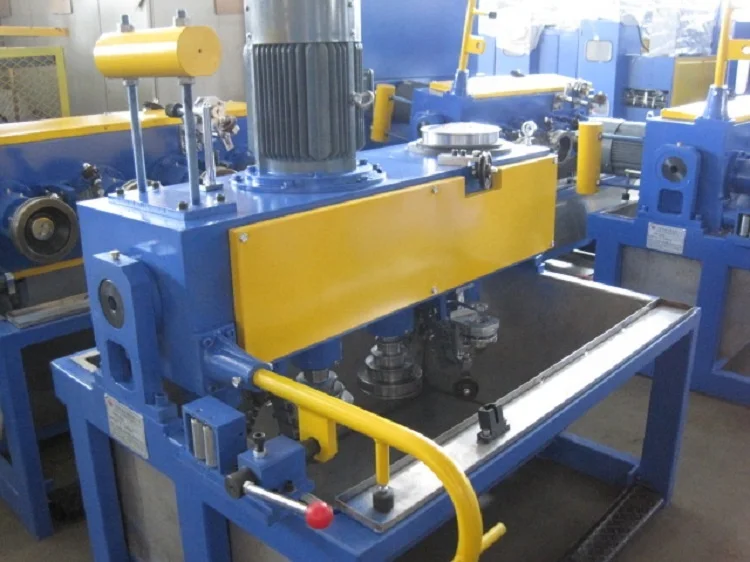

Turnover Wet Type Wire Drawing Machine is special used for drawing Nickel alloy or copper alloy .

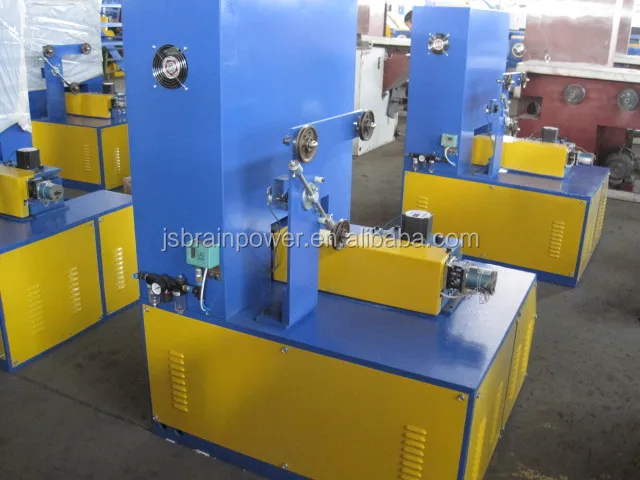

Finished wire is wound by plastic bobbin.

Feature

1) Wire quantity: 1 wires

2) Max.Inlet wire: 1.0mm, outlet wire: 0.20-0.40mm

3) Max.Die Quantiry:17

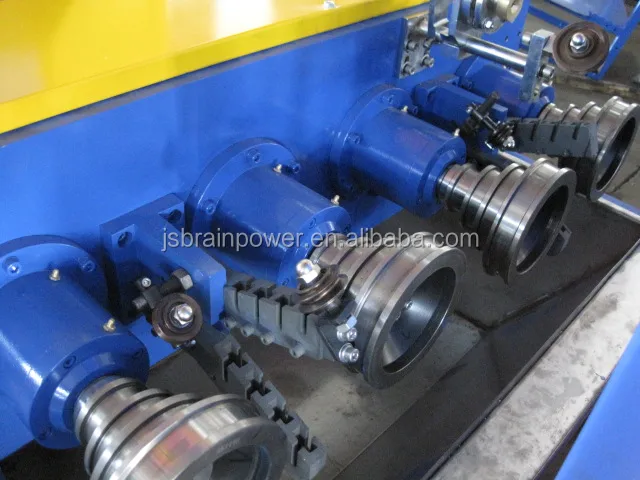

4) Capstan quantity: 4PCS(horizontal)

Main Specification



Machine type

BRN-FZ9

BRN-FZ17/B

BRN-FZ17/A

Control system

Dual inverter+PLC+HMI

Drawing dies No./Max.

9

17

17

Max. Inlet diameter

1.50mm

1.00mm

1.50mm

Outlet diameter

0.80--1.20mm

0.20--0.40mm

0.40--0.80mm

Max. Drawing line speed

240m/min

Capstan raw material

Tool steel

Main motor

7.5KW

4KW

5.5KW

Spooler motor

1.1KW

Spool bobbin size

DIN160/200/250

or according to customers requirements

Traversing unit

Stepping motor

Transmission type

Teeth belt + Flat belt

Lubrication type

Full immersed

Power source

380V 50/60HZ or others

Advantages

1) Double drivers ensure precisely tension and minimum ratio of the wire.

2) Easy string-up and maintenance operations.

3) Energy saving and excellent wire surface quality.

4) Best choice for diversify products manufacturer.

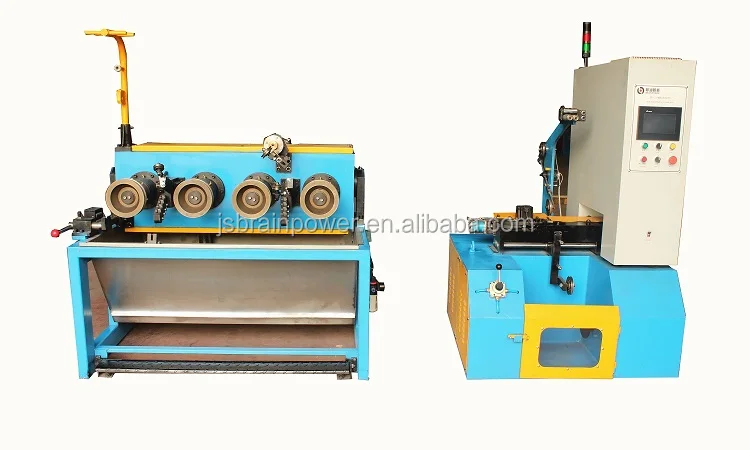

FZ17A-nickel alloy wire

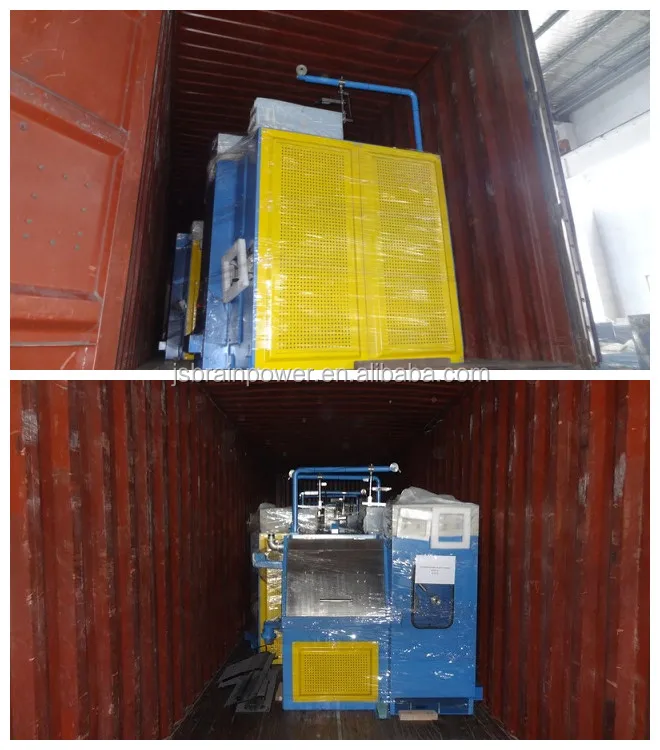

Packaging & Shipping

 full container

Trade Shows

 _20190510164055 -

FAQ

faq[1]

1) What’s the payment terms?

Standard type is 30% T/T as deposit, 70% T/T before shipping.



2) How about the after-sell service?

Engineer will be dispatched at needed.



3)How much need pay for after-sell service?

The buyer provides engineer's roundtrip flight tickets, board and lodging,

the security as well as each person of daily wage.



4)What kind of Gurantee you can offer?

12 months since shipping date and charge for repair the whole life.



5) Can you support complete project instead of single machine?

Yes, besides machine, the whole solutions for raw material, auxiliary parts,worker training etc can be offer
