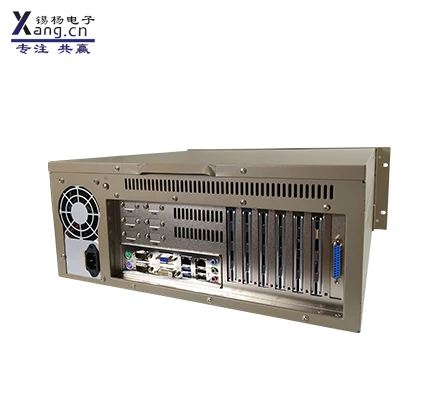

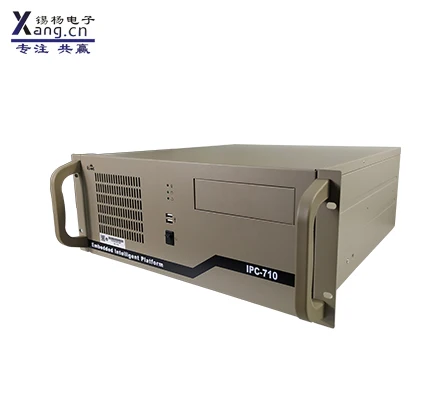

4U rack chassis IPC 710 Intelligent logistics; Intelligence Logistics;
- Category: Industrial Computer & Accessories >>>
- Supplier: Guangzhou Xiyang Electronics Co. Ltd.
Share on (62394710945):
Product Overview
Description
Product Description
The latest cos
| Supported motherboard | PICMG 1.0, PICMG 1.3, EPI 2.0, EPE standard full-size cards, Micro ATX SBC standard single boards, ATX SBC standard single boards |
| Support carrier board | 10-slot standard PICMG 1.0 carrier boards, 14-slot standard PICMG 1.0 carrier boards, 10-slot standard PICMG 1.3 carrier boards, 13-slot standard EPI 2.0 carrier boards, 10-slot standard EPE carrier boards |
| I/O ports | Two front-accessible USB 2.0 ports, ATX rocker switch, reset button, power supply, HDD indicator, safety door with lock |
| Storage | One 5.25″ CD-ROM bay, two 3.5″ HDD bays (with shock absorption) |
| Operating temperature | 0℃~50℃; 5%~90% (non-condensing) |
| Storage environment | -20℃~60℃; humidity: 5%~90% (non-condensing) |
| Power supply | Support standard PS2 ATX power supply |
| Dimensions (W×H×D) | 482mm(W) x 177mm(H) x 470.4mm(D) |
Order information:
IPC-710 quasi-system/Intel H61Motherboard/ 250W power supply
4U, 19 ′ ′ standard IPC-710 quasi-system/Intel H61Motherboard / CPU, LGA1155 supports Intel & Core TM Ivy Bridge / Sandy Bridge processors, Intel ® Pentium ® or Celeron ® G processors / no memory, supports two 800/1066M/1333M DDR3 memory bars, Maximum support 16G/no hard disk / ATX 250W power out/no optical drive / no keyboard and mouse/radiator, except for the motherboard with its own exposed interface, preceded by 2 USB 2.0, 1 LPT. (Main board with 5 PCI, 1 PCI-E * 1(PCI-E * 4 slot), 1 PCI-E * 16 extension slot). The quasi-system only has 2 COM ports brought by the motherboard, and more than 2 dealers need to be selected for COM wire.
Recommended configuration:
IPC-710/Intel H61Motherboard/G2120/4G memory/500G HDD/ATX 250W power supply / Optical Driver/ IO port: 10xCOM/1xLPT/ 5xPCI, 1xPCI-Ex1(x4 connector), 1xPCI-EX16
IPC-710/Intel H61Motherboard/G2120/4G memory/500G HDD/ATX 250W power supply / Optical Driver/ IO port: 6xCOM)/1xLPT/ 5xPCI, 1xPCI-Ex1(x4 connector), 1xPCI-EX16
IPC-710/Intel H61Motherboard/G1620/2G memory/500G HDD /ATX 250W power supply /No Optical Driver/ IO port: 6xCOM/1xLPT/ 5xPCI, 1xPCI-Ex1(x4 connector), 1xPCI-EX16
Packaging & Shipping
Company Information
Guangzhou Xiyang Electronics Co., Ltd. is a professional engaged in the sales and development of embedded computer motherboards and industrial computers. Since the establishment of the company, it has achieved rapid, stable development with efficient, standardized and scientific management. The company's products and business involve financial, supermarket, intelligent transportation, power, petroleum, chemical, metallurgy, electromechanical, food, textile and other industries, and has won the reputation of the industry users and the general business reputation.
CERTIFICATE OF AUTHORIZATION FROM EVOC:
