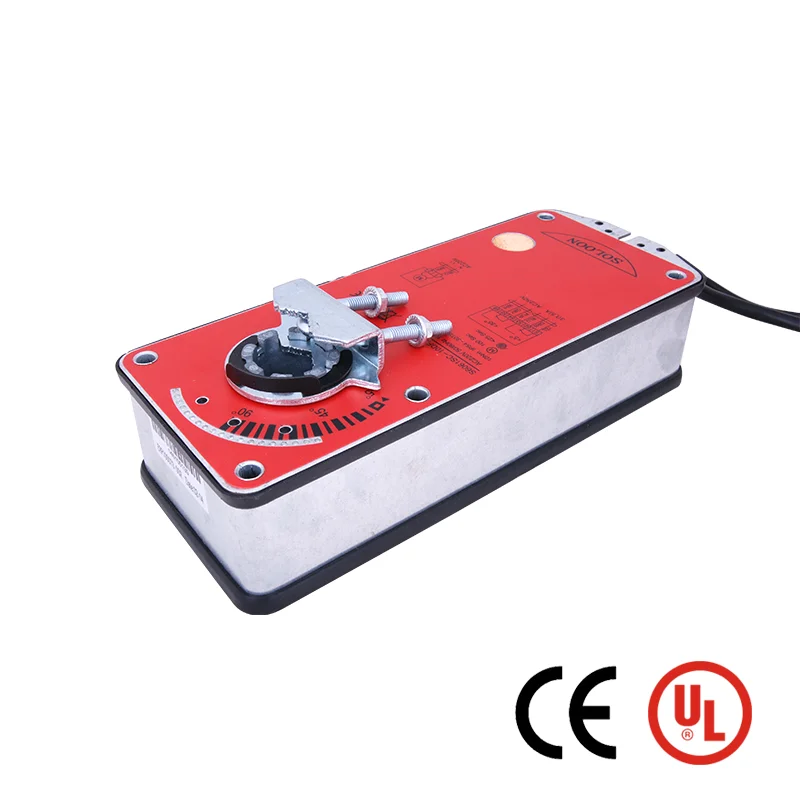

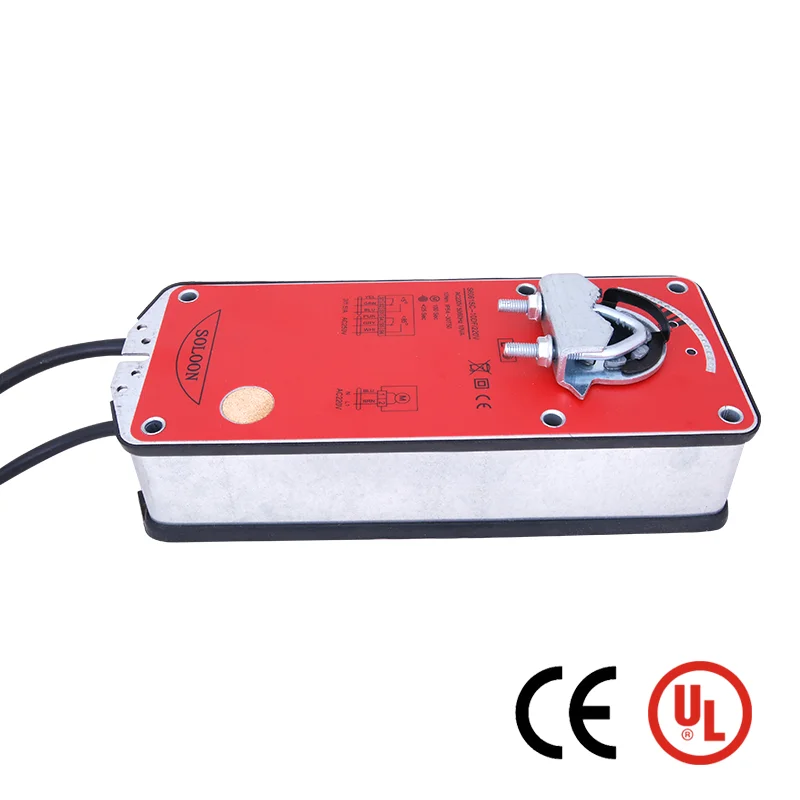

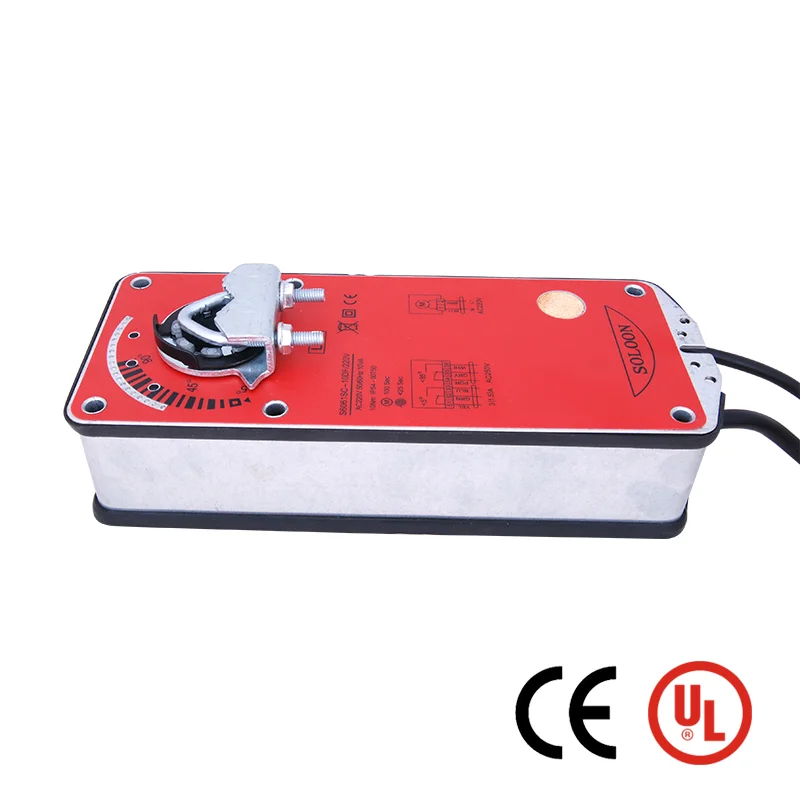

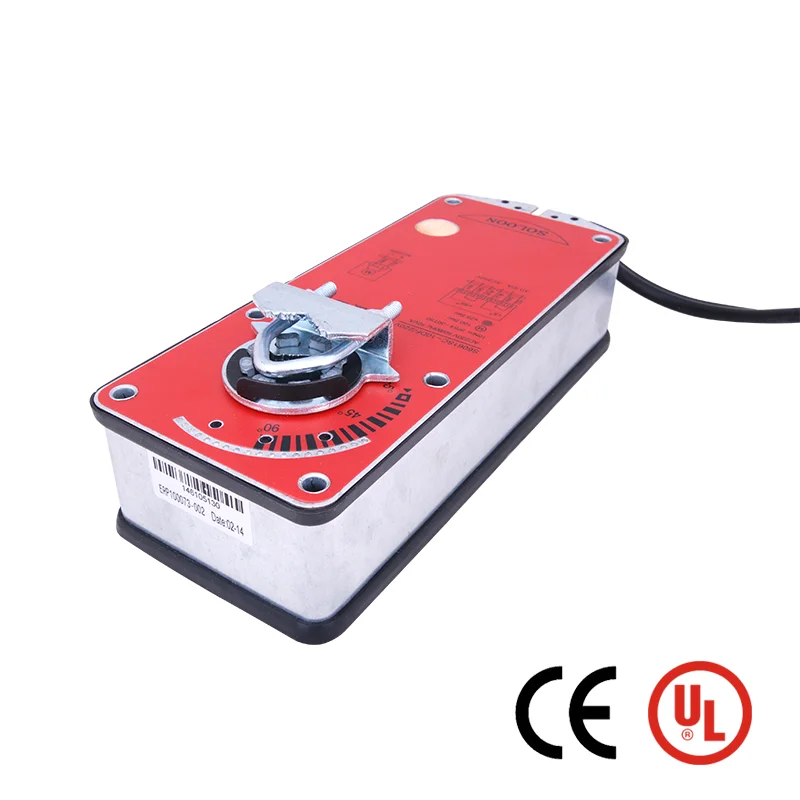

Привод демпфера с возвратом пружины, пропорциональный привод демпфера 10 нм

Item

S6061SC-

10D/24V

S6061SC-

10D/230V

S6061SC-

10A/24V

S6061SC-

15D/24V

S6061SC-

15D/230V

S6061SC-

15A/24V

Torque

10Nm

15Nm

Damper area

2m²

3m²

Power supply

24VAC/DC , 230VAC  50/60Hz

AC100-240V

24VAC

Operating Power Consumption

5W

6W

At end stops Power Consumption

2.5W

2.5W

Wire size

10VA

7VA

10VA

7VA

Connection cable

D type power:1m cable 2*0.75m²    A type power:1m cable  4*0.5 m²

Auxiliary switch (F):1m cable 6*0.5 m²

Control signal

On/off

0~10V

On/off

0~10V

Running time

Motor≤100S;

Spring return≤20S

Motor≤130S;spring return≤20S

Rotation angle

0~90°(Max 93º)

Limited angle

5~85º(Per step5º)

Indicate

Mechanical indicator

Weight

2.4Kg

Life cycle

70000

Noise

50dB(A) and 62dB(A)

Electric level

Ⅲ

Ⅱ

Ⅲ

Ⅲ

Ⅱ

Ⅲ

IP protection

IP54

Temperature

-20~+50℃

Humidity

5~95%RH

Certificate

CE & UL
