Full Automatic Pet Blow Machine Auto Bottle Blowing Machine
US $13000-$30000
Хорошее качество, хорошее послепродажное обслуживание, полностью автоматическая машина для выдувного формования пластиковых бутылок с минеральной водой из ПЭТ с 4 емкостями
- Category: Stretch Blow Moulding Machines >>>
- Supplier: Taizhou Baoge Machinery Co. Ltd.
Share on (62397278547):
Product Overview
Description
Product Description

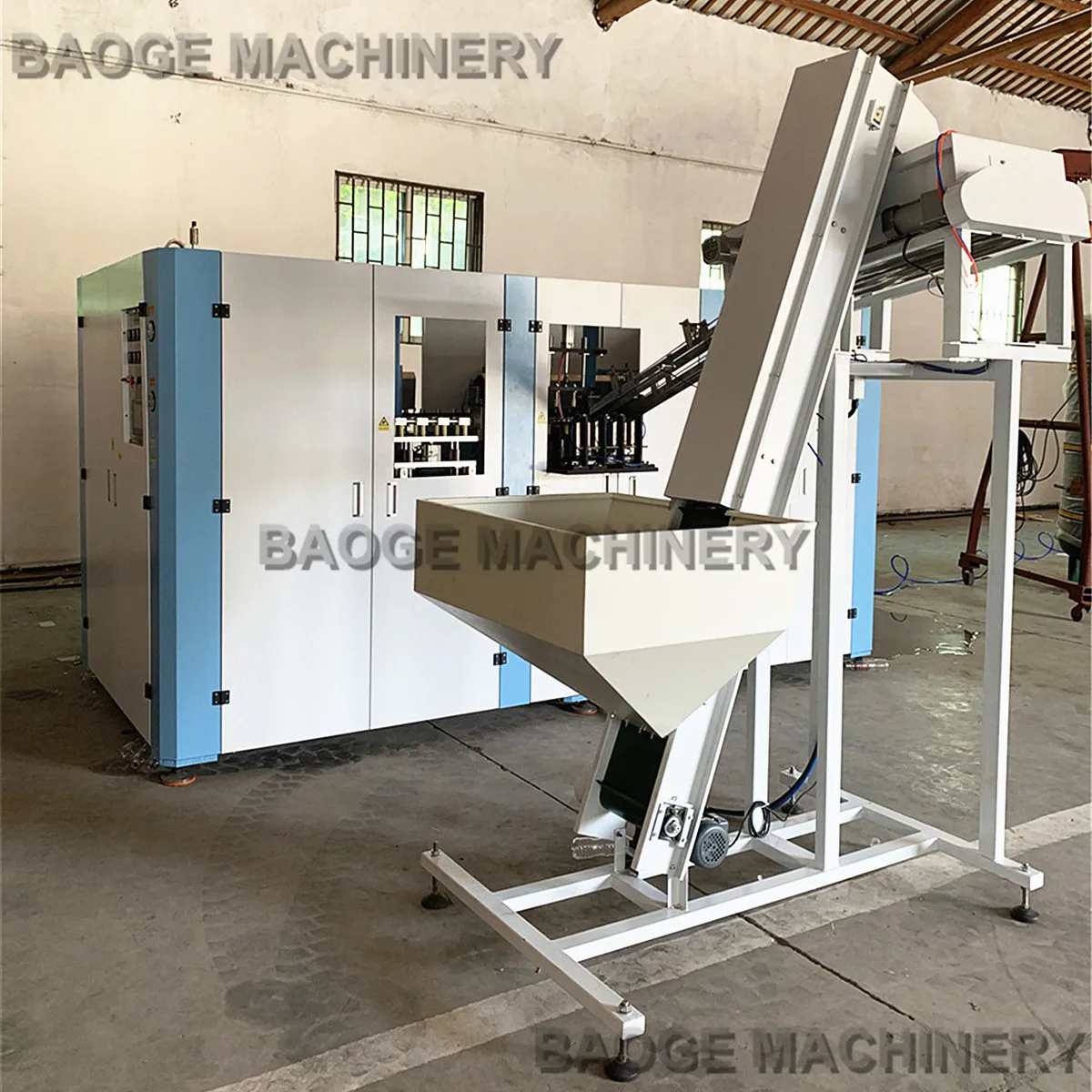

Cheapest 4 Cavities Full Automatic Carbonic Beverage PET Plastic Bottle Blowing Mold Machine , Blow Molding Machine Manufacturer
1. Machine Power : 18 KW
2. Theoretical Output: 4500 BPH
3. Suitable Bottle: Mineral Water Bottle, Beverage Bottle, Medicine Bottle.
4. Blower Size: 3500*1500*2200 (MM)

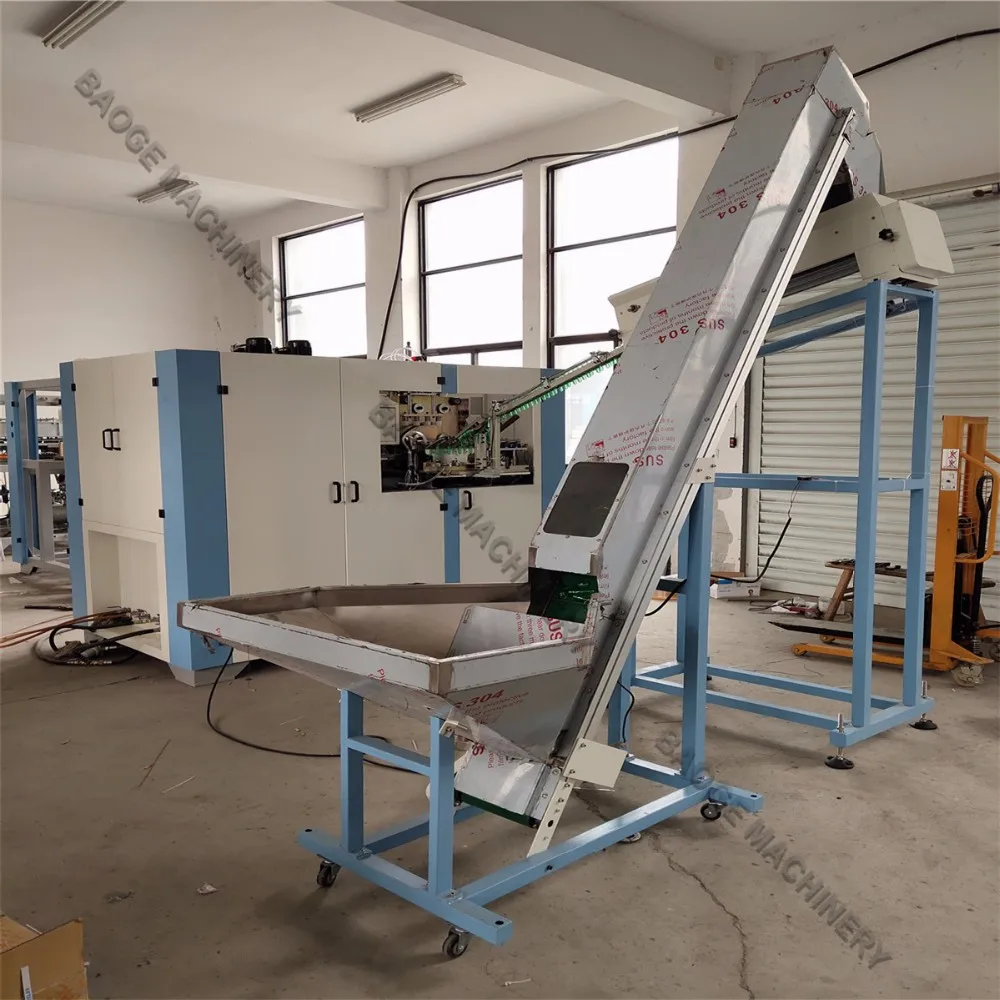

5. Preform Loader Size: 1750*960*2500 (MM)
6. The Weight Of Blower And Preform Loader : 3550 (KG)
Model | BG-4000 Cheapest 4 Cavities Full Automatic Carbonic Beverage PET Plastic Bottle Blowing Mold Machine , Blow Molding Machine Manufacturer | ||||
Theoretical output | 4500 pcs/h | ||||
Finished bottle | Max. bottle volume | 1.5 Liters | |||
Max. neck diameter | 38 mm | ||||
Max. bottle diameter | 90 mm | ||||
Max. bottle height | 330mm | ||||
Cavity | 4 | ||||
Automatic Lubricating Oil System | |||||
Mold thickness | 180mm-240 mm | ||||
Open stroke | 130 mm | ||||
Electrical system | Power voltage | 380v/3Phase/50HZ | |||
Installation power | 40 kw | ||||
Actual power consumption | 18 kw | ||||
Air source | Recommend air compressor | 3.2 m³/min 30Kg 1.6 m³/min 12Kg | |||
Cooling water | Recommend water chiller | 5HP | |||
Blower size | Length*width*height/weight | 3500*1500*2200 (MM)/3000 KG | |||
Preform Loader size | Length*width*height/weight | 1750*960*2500 (MM)/550kg | |||

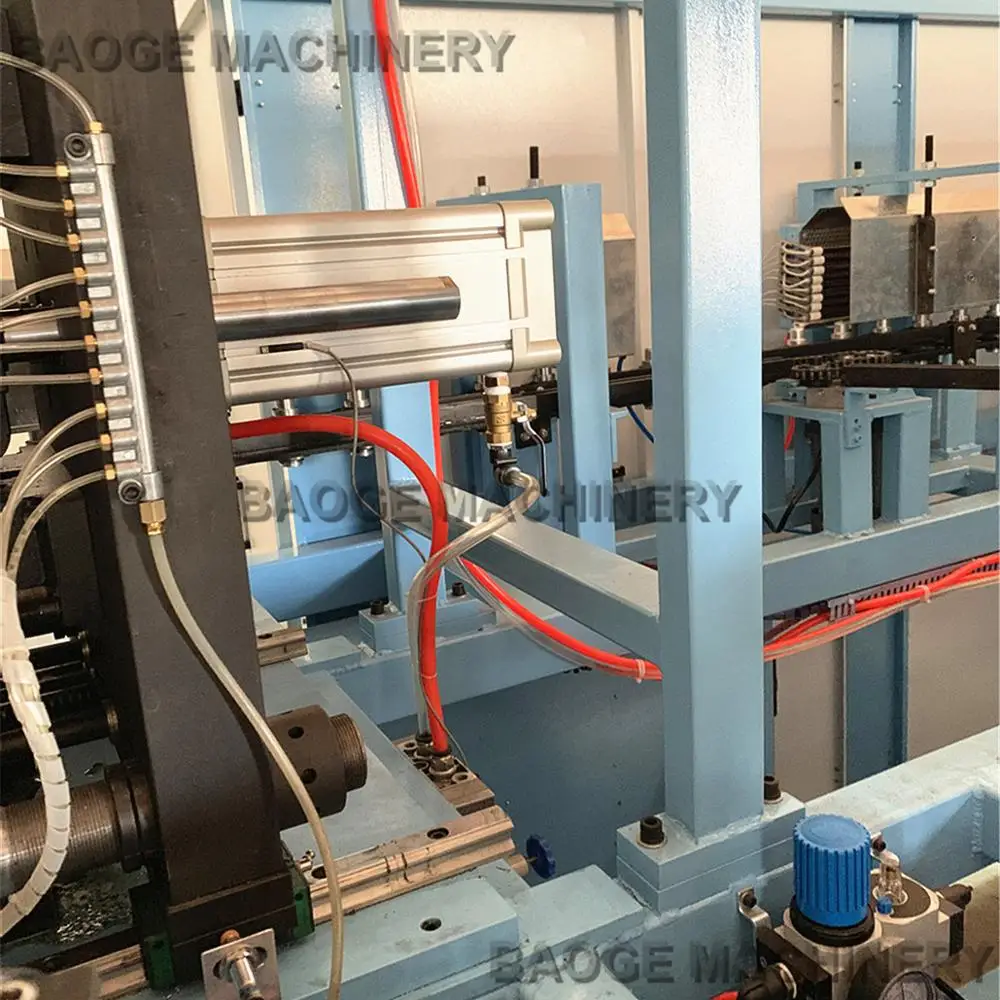

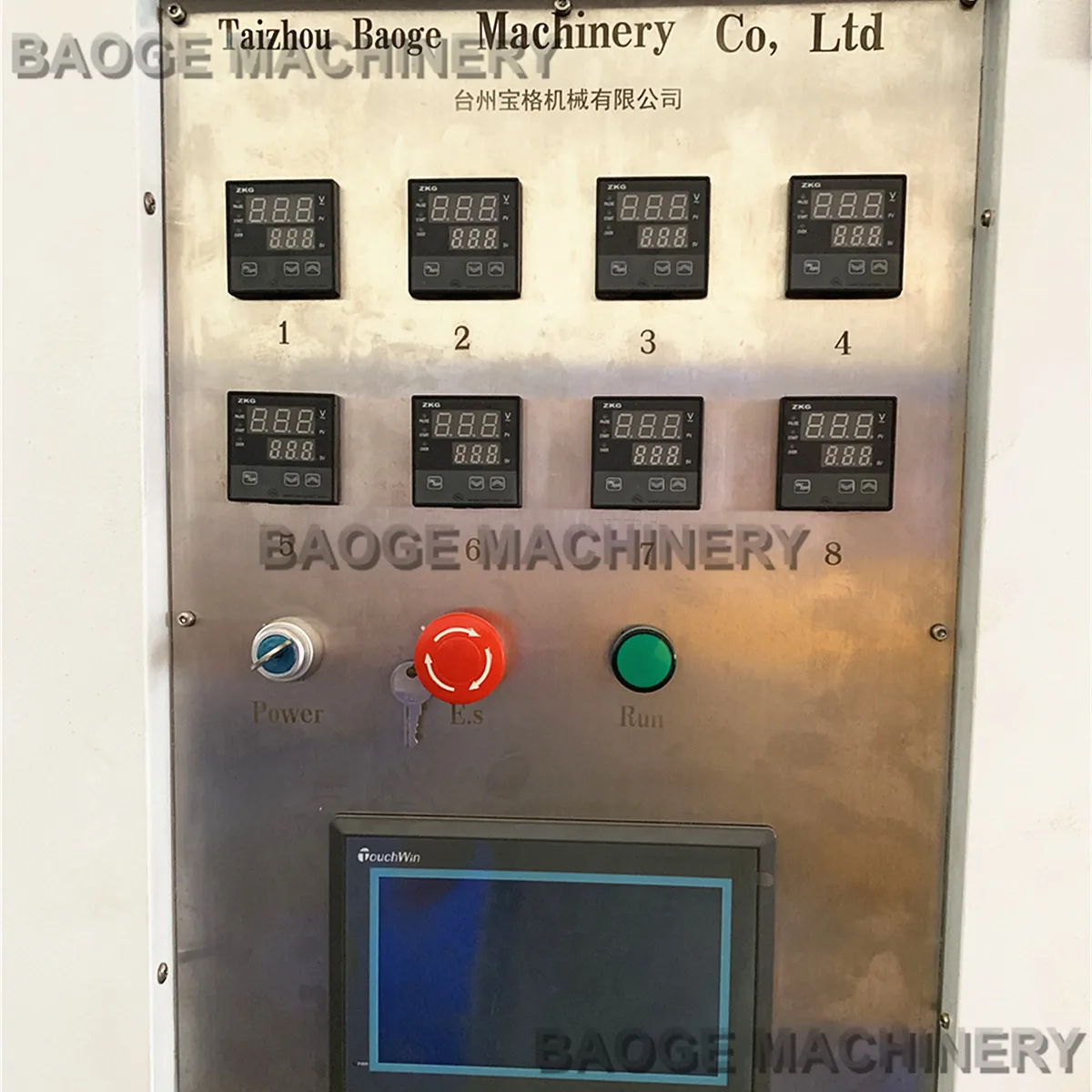

Mitsubishi PLC : It is a very popular brand all over the world . It has two big funcations: manual and automatic. Turn it to be Manual . It can help to install mold . Turn it to be automatic . It can produce bottles be stable.

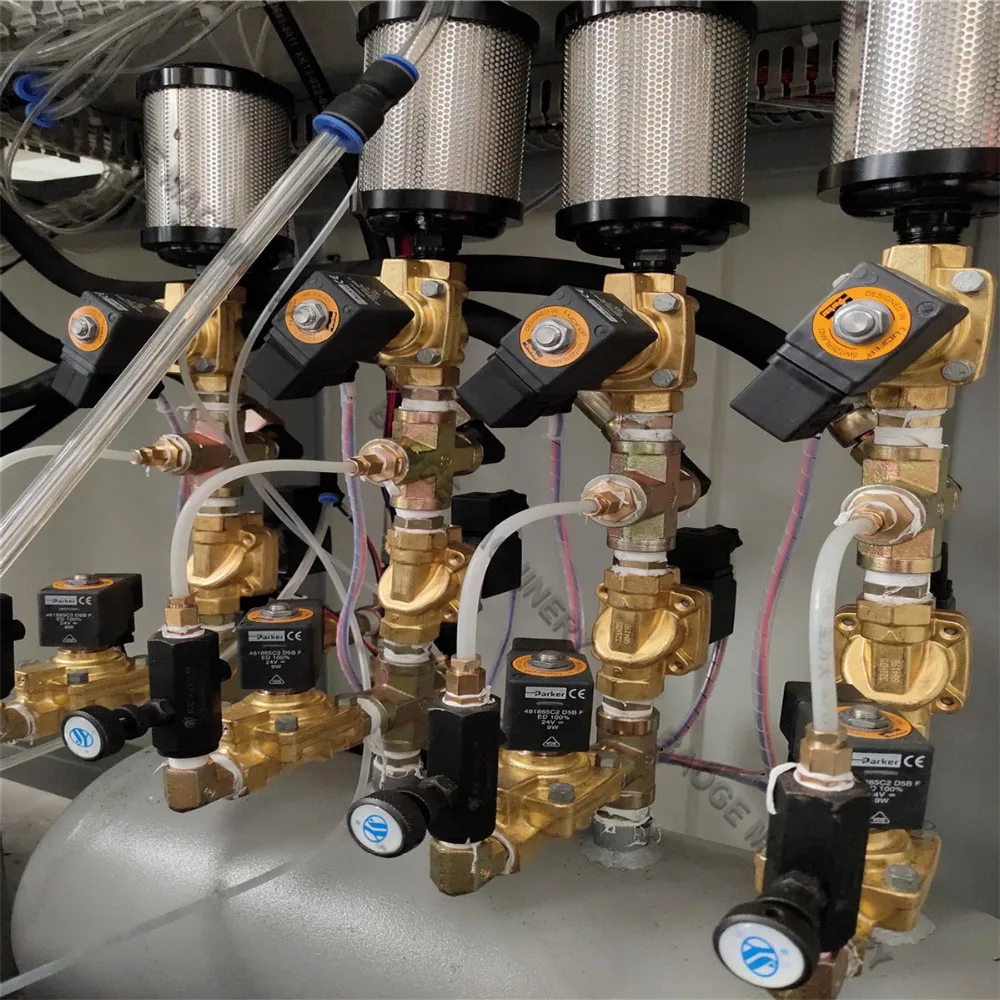

Festo operating valves: Festo valves made by Germany . The three Festo valves control three functions: Mold-closing , Left-stretching, Right-stretching. The three valves can work for a long time .
Bottle volume: BG-4000 can produce 100-1500 ml PET bottle . It also can produce PC bottle . Preform heating system has water cooling system and air cooling system .
Will let the heating system be stable .
Heating lamps: 28 pieces heating lamps can heat the preform be longer and longer . And the Heating lamps quality is very good . Let it can work for a long time .
Packing & Delivery

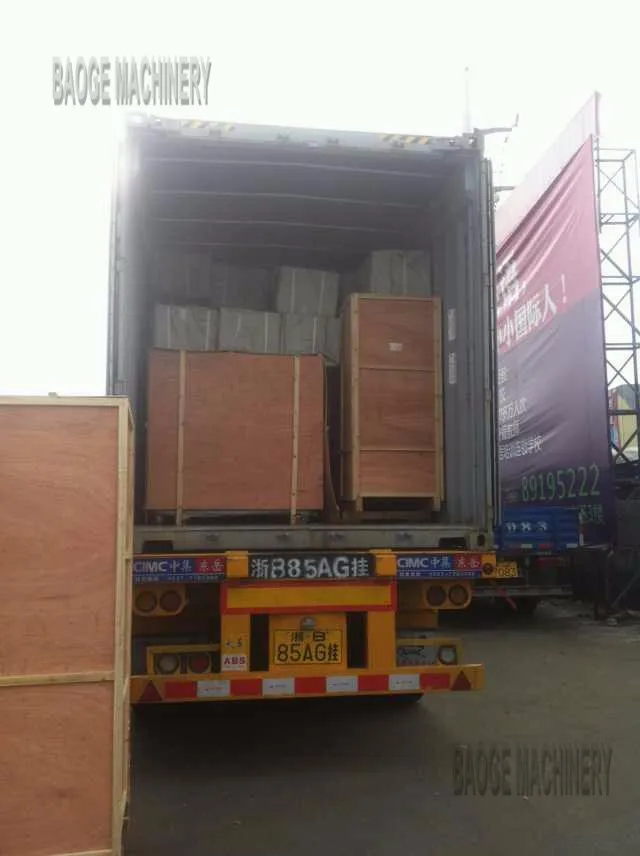

Packing by PE film inside and wooden case outside. Make sure it can be shipped be stable by sea .

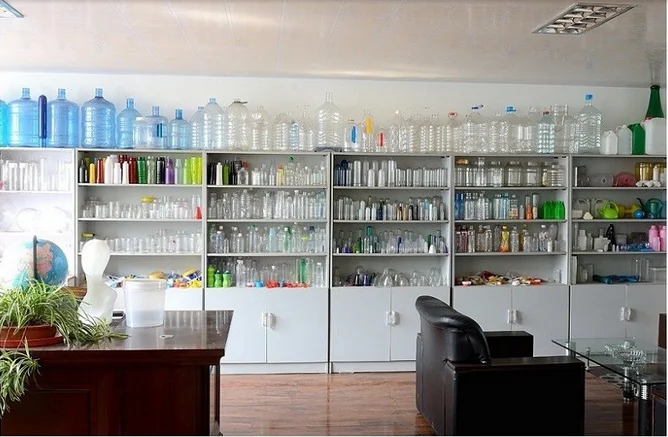

Our company
