Toowei 2 way 20A 12V spring return on off toggle switch
Toowei 2 way 20A 12V spring return on off toggle switch
Toowei 2 way 20A 12V spring return on off toggle switch
Toowei 2 way 20A 12V spring return on off toggle switch

Toowei 2 way 20A 12V spring return on off toggle switch

Share on (62398048829):


Price:$2.23

Quantity:


Product Overview

Description


Product Description

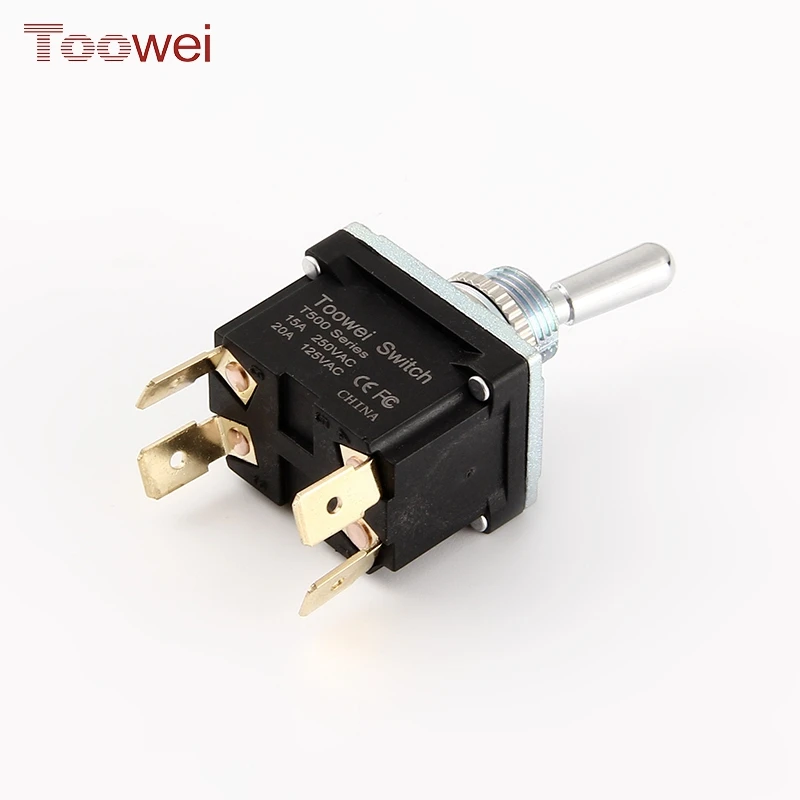

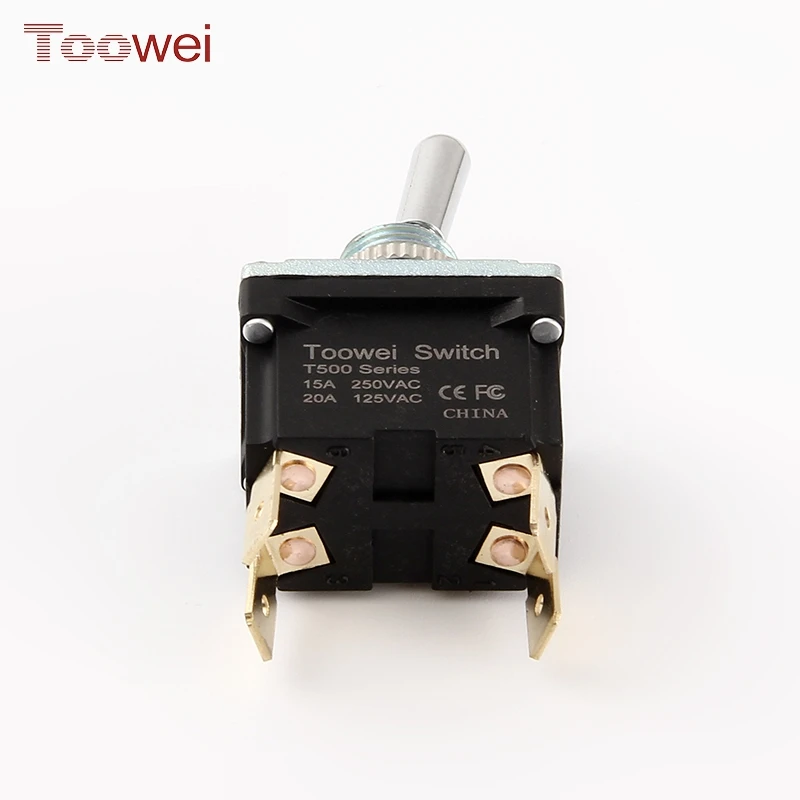

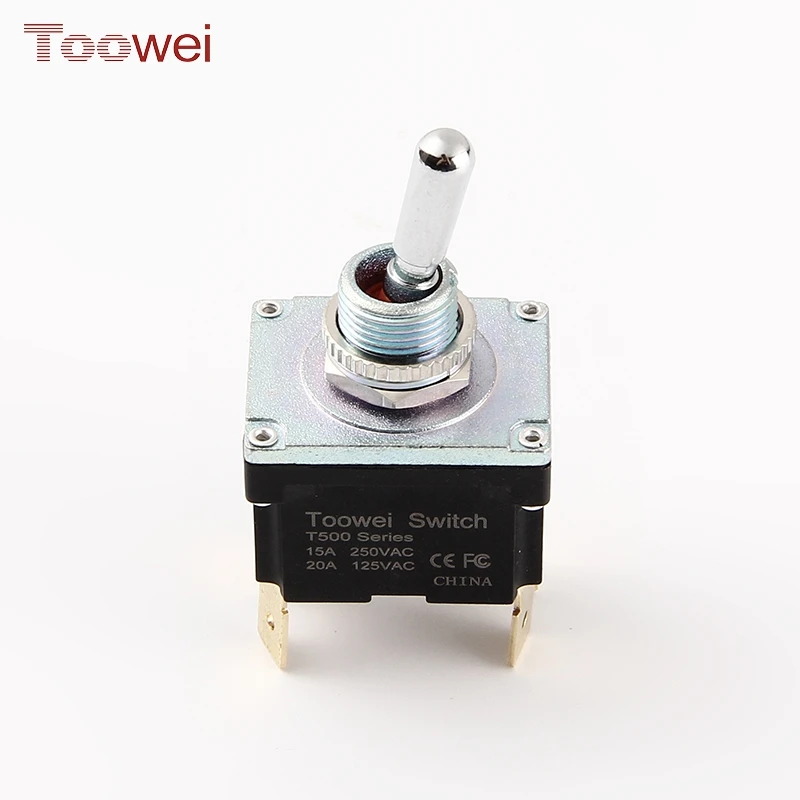

T500 series toggle switch is suitable for 50Hz/60Hz. This switch is used as the switching mode and reset mode in the circuit. The terminal block has screws, quick-connect terminals and soldering terminals. The waterproof level reaches IP67 with dustproof, waterproof and oil proof functions.
Model name
T502AT
Rating Value
20A 250VAC
Pole code
double group
Function code
ON-OFF
Terminal form
Quick connect terminal
color
Black

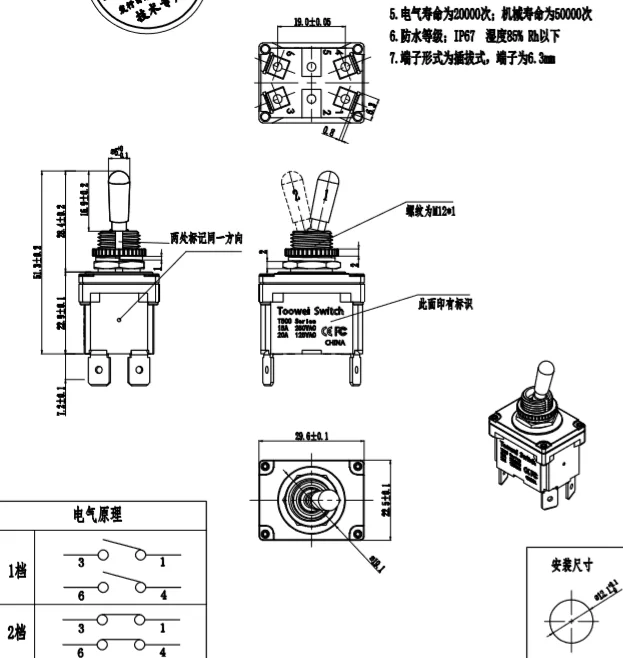

Technical parameters
Technical parameters
1. Rating Value: 15A 250VAC/20A 125VAC
2. Operating Force: 8N-24N
3. Ambient temperature: -25℃~+85℃
4. Withstand voltage： 1500VAC 50/60hz
Leakage current：5mA
5. Insulation resistance ≥100mΩ
6. Electrical life： 20,000 times
Mechanical life: 50,000 times
7. Protection degree: IP67
8. Humidity： below 85% RH
9. Terminal form : Soldering terminal
Solderable soldering iron: 345±5° 1~2S
Solder resistance soldering iron：345±5° 3~5S
