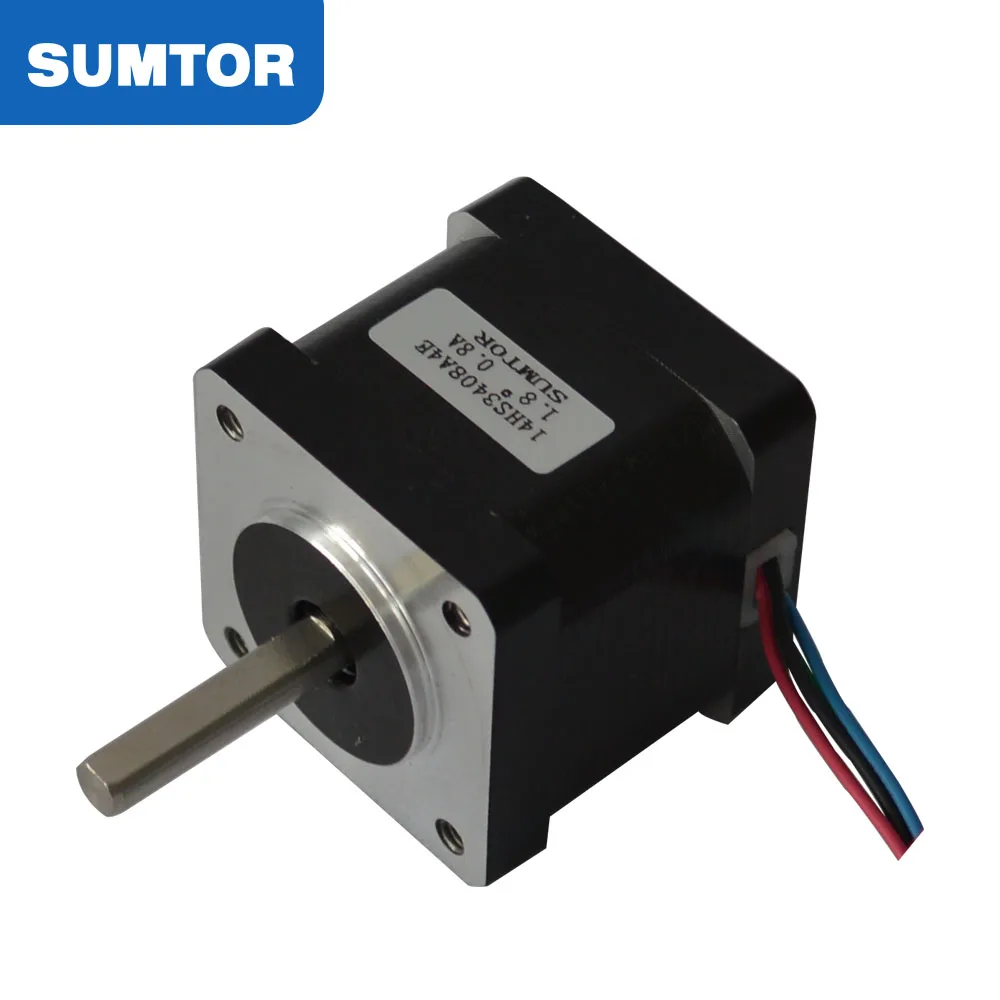

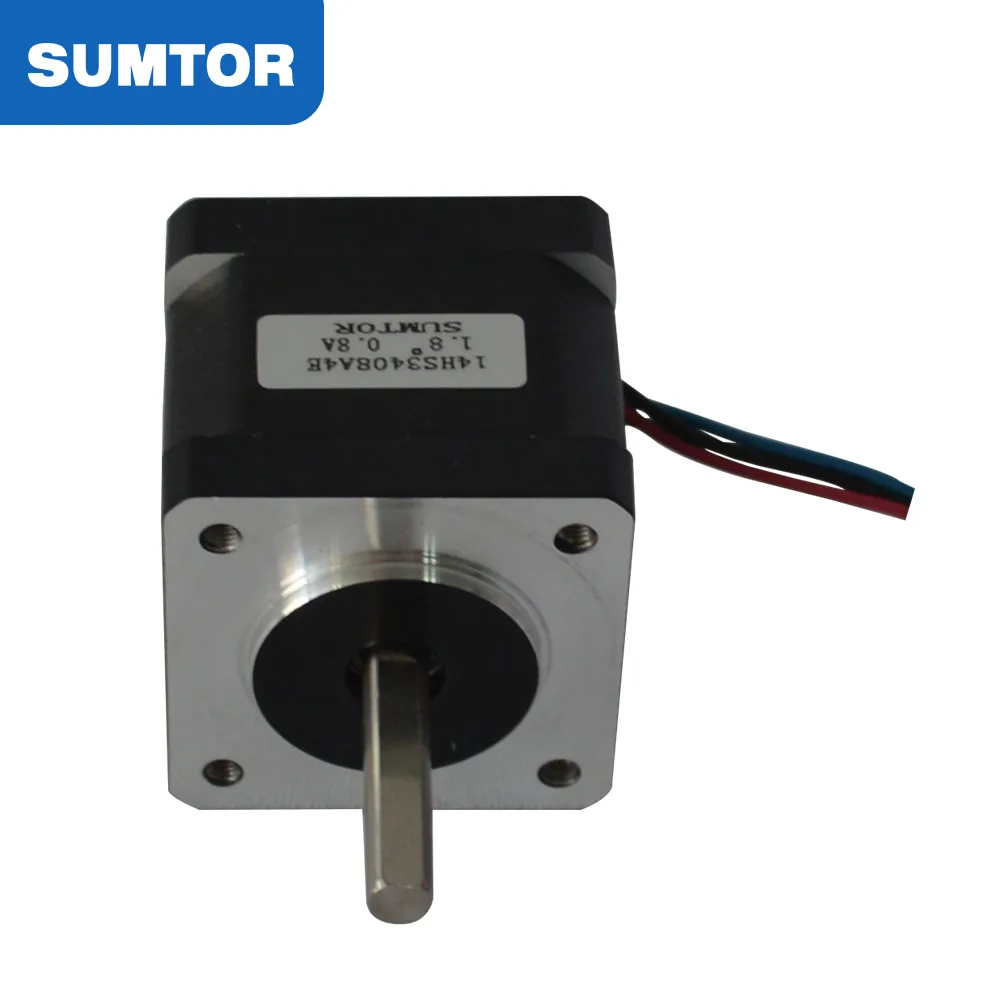

nema 14 mini stepper 12v 34mm motor length 1N.cm 0.8A
- Category: Stepper Motor >>>
- Supplier: Sumtor (wuxi) Electric Co. Ltd.
Share on (62398778696):
Product Overview
Description
Product categories
Product Description
MOQ | 2 set |
Sample time | 3-7 days |
Production time | 7-15 days |
Certification | CE & ROHS |
After-sales | 12 months |
delivery time | after get the money if the good is in stock |
Nema 14 stepper motor Electrical Specifications
Series Model | Step Angle (°) | Rated Current (A) | Phase Resistance (Ω) | Phaes Inductance (mH) | Holding torque (N.cm) | Detent Torque (N.cm) | Rotor Inertia (g.cm2) | Motor Lenth (mm) | Lead Wire (NO) | |||||||||
35HS2804A4 | 1.8 | 0.46 | 20 | 14 | 12 | 0.8 | 11 | 28 | 4 | |||||||||
35HS2808A4 | 1.8 | 0.8 | 5 | 5 | 12 | 0.8 | 11 | 28 | 4 | |||||||||
35HS2804A4 | 1.8 | 0.4 | 30 | 11 | 9 | 0.8 | 11 | 28 | 4 | |||||||||
35HS3404A4 | 1.8 | 0.42 | 25 | 32 | 18 | 1 | 13 | 34 | 4 | |||||||||
35HS3408A4 | 1.8 | 0.8 | 6.5 | 9.8 | 12 | 1 | 13 | 34 | 4 | |||||||||
35HS3404A6 | 1.8 | 0.4 | 30 | 22 | 12 | 1 | 13 | 34 | 4 | |||||||||

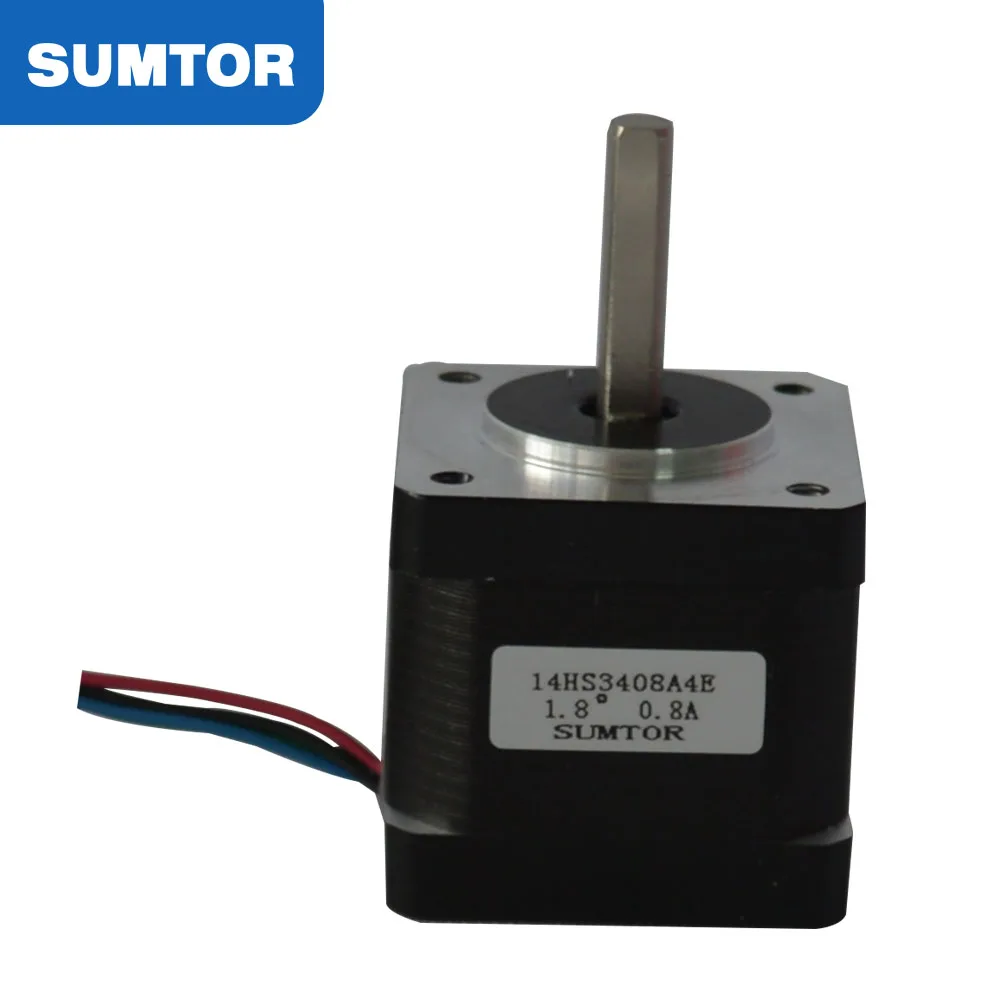

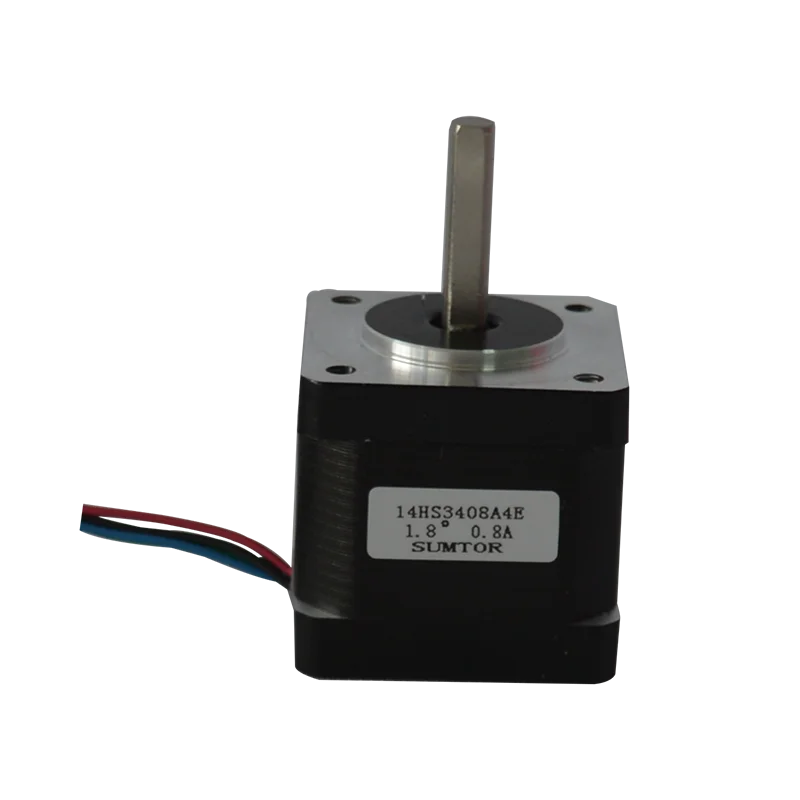

35HS3408A4E | 1.8 | 0.8 | 6.4 | 10 | 18 | 1 | 13 | 34 | 4 | |||||||||
*Tips: We can manufacture products according to custorm's requirments. | Waist | 24.4 | 26 | 27.9 | 29.9 | 31.9 | ||||||||||||
Detailed Images
material：
Shaft: stainless steel 303; end cap: die-cast aluminum parts; stator: silicon steel sheet;

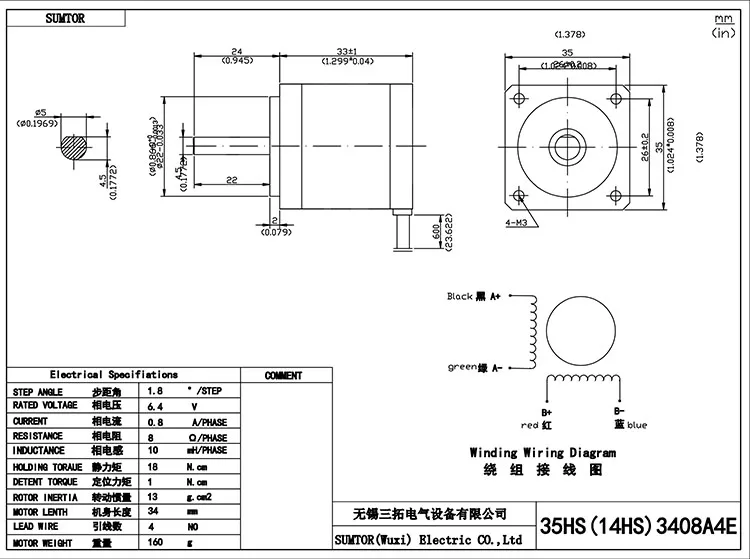

Installation method
Winding
Stator waveform caheck

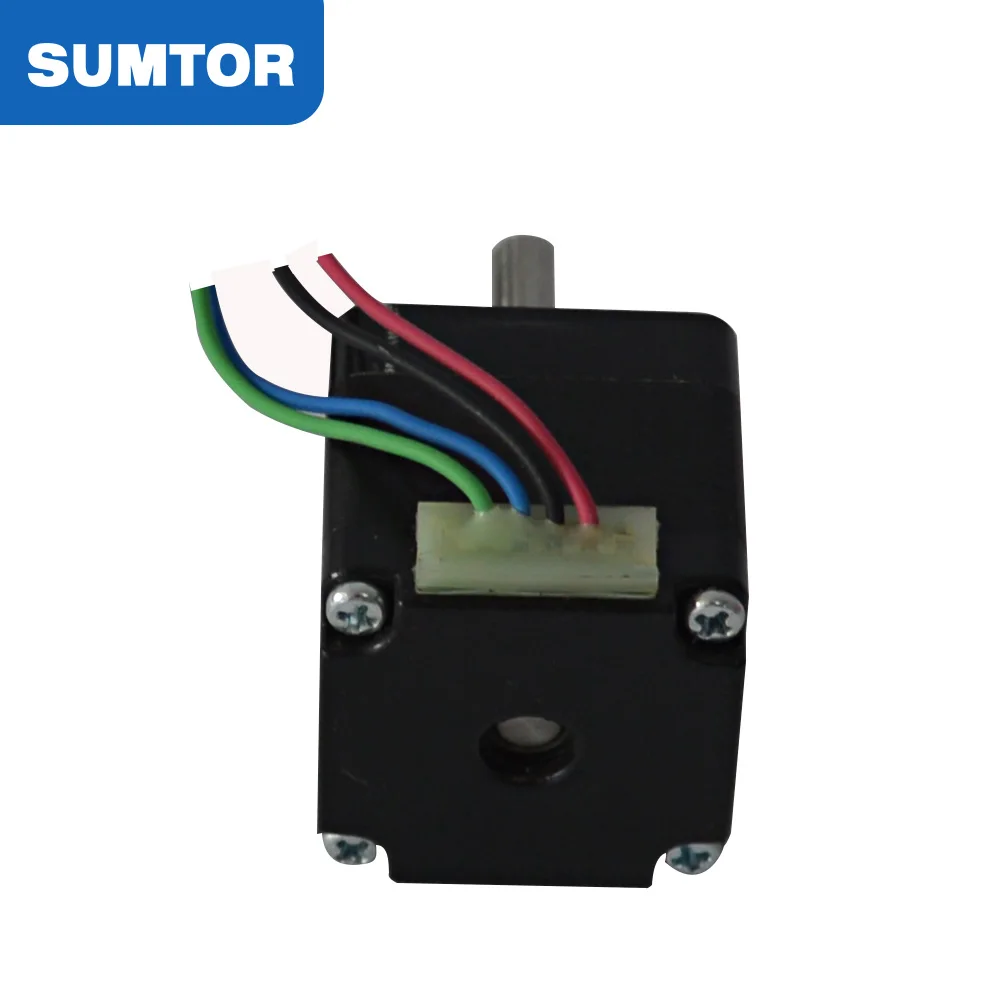

Wiring
Magnetizing
Characteristics check
Shaft height check
Visual inspection
Labelling
Packaging
