Full Automatic Pet Blow Machine Auto Bottle Blowing Machine
US $13000-$30000
500ml / 1L / 2L /5L /10L /20L PET bottle blowing machine plastic bottle machine
- Category: Stretch Blow Moulding Machines >>>
- Supplier: Zhangjiagang,City,Sigma,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Main Features

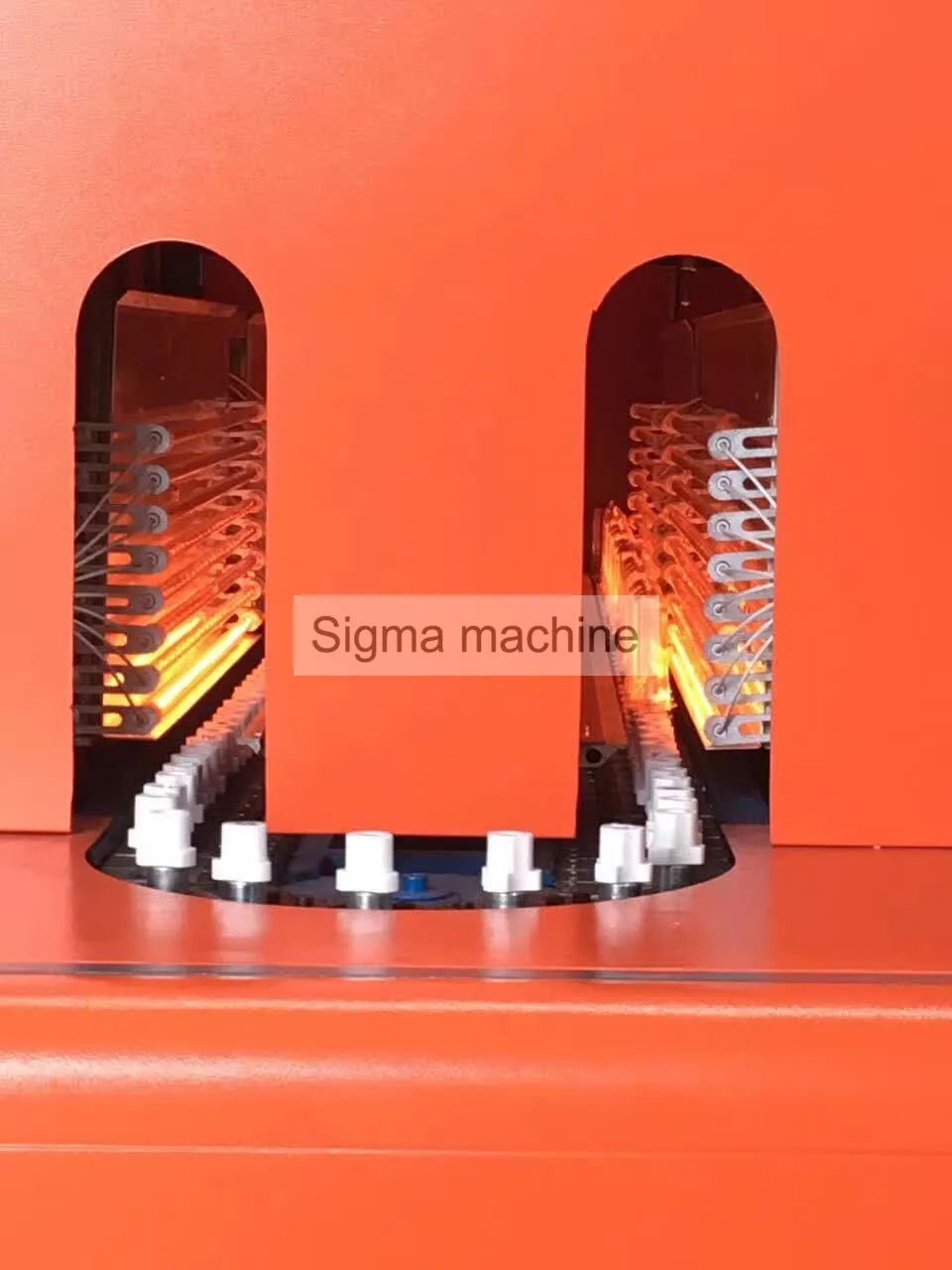

1,Infrared lamps adoped in the pre-heater ensures PET preforms being heated evenly.
2,Mechanical-double-arm calmping ensures mould being tightly closed under hight pressure and high temperature.

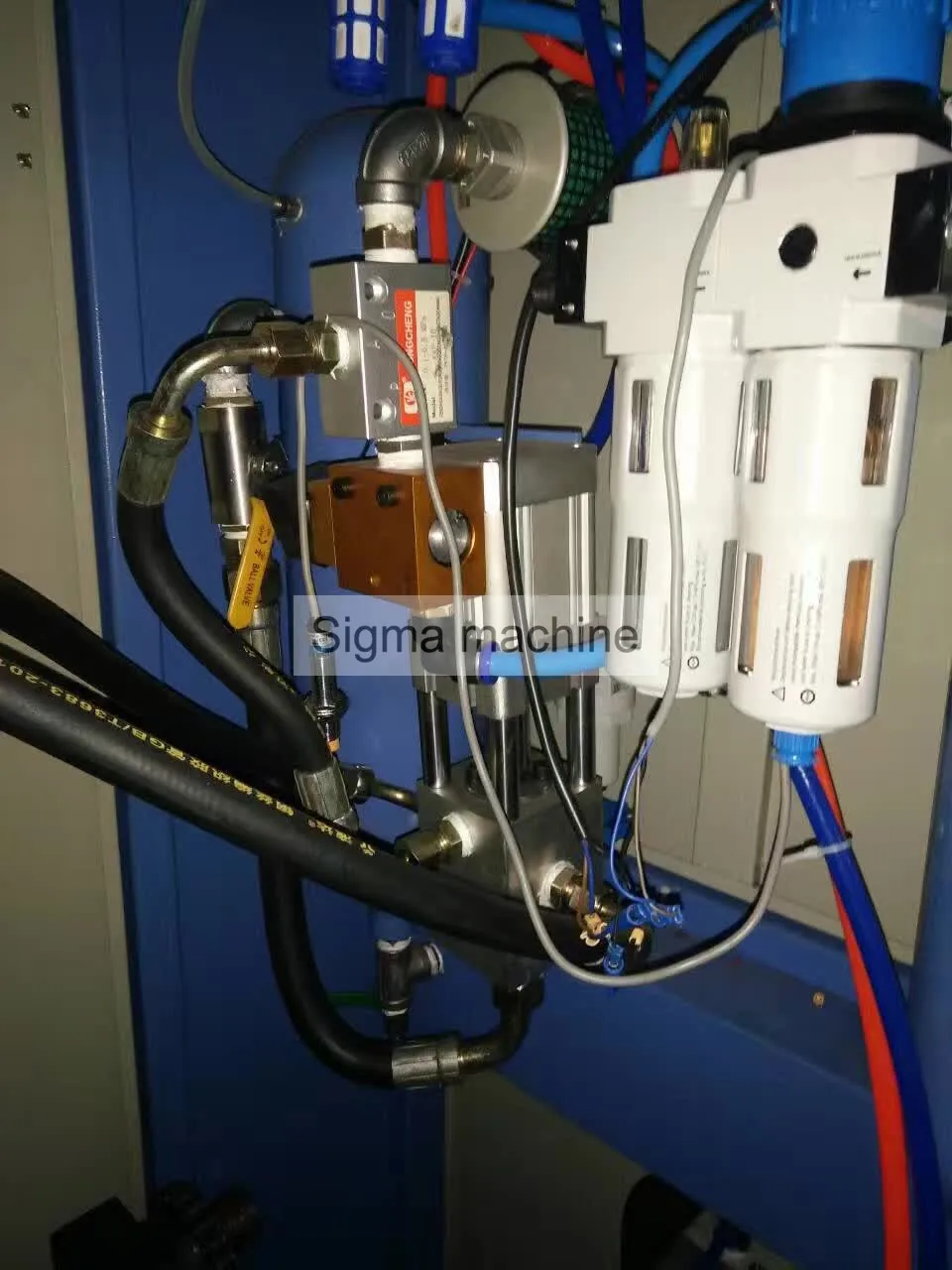

3,Pneumatic system consists of two parts. pneumatic acting part and bottle blowing part in order to meet different requirements for both acting and blowing. It provides sufficient steady high pressure to blowing. It provides sufficient steady high pressure to bloww large irregular shape bottles.
4,Equipped with silencer and oiling system to lubricate the mechanical pars of the machine.
5,Operated step-by-step and in semi-auto made.

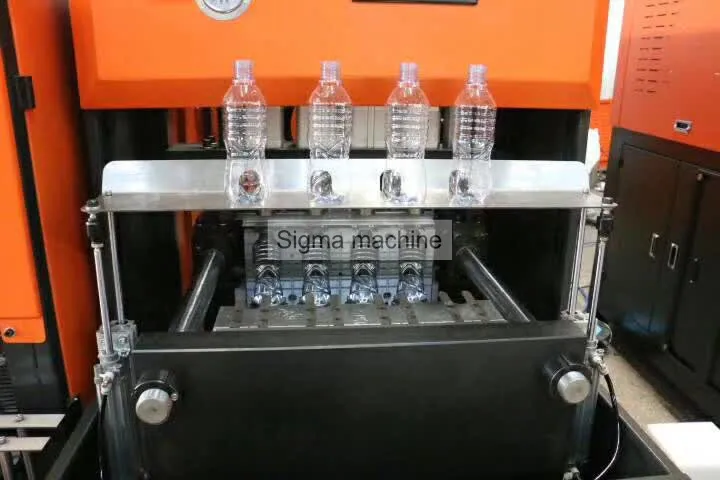

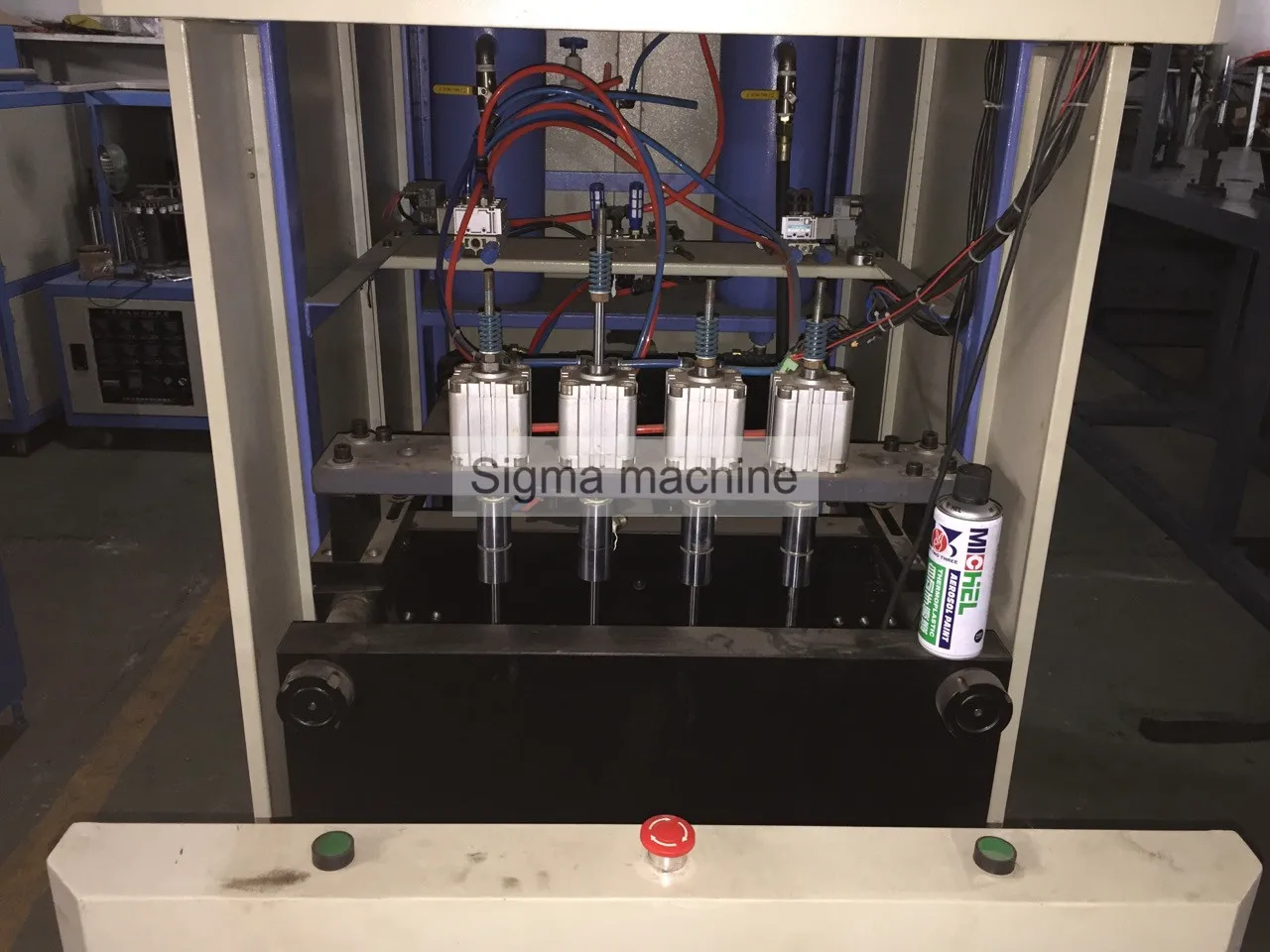

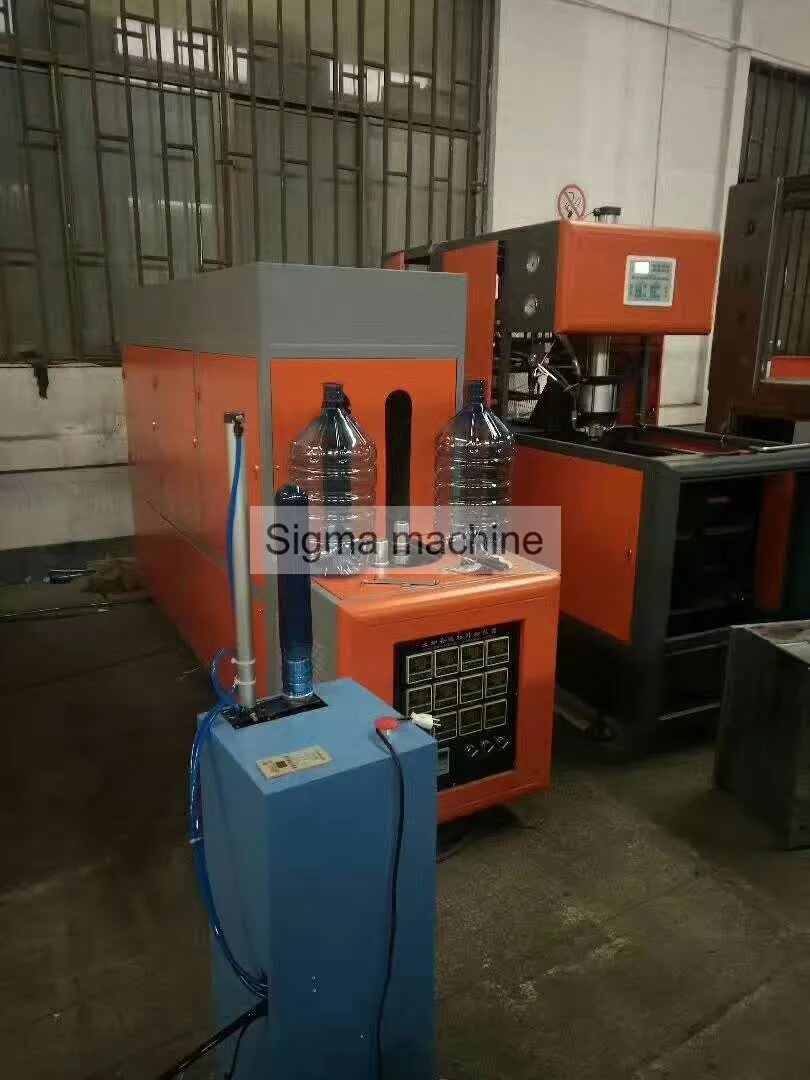

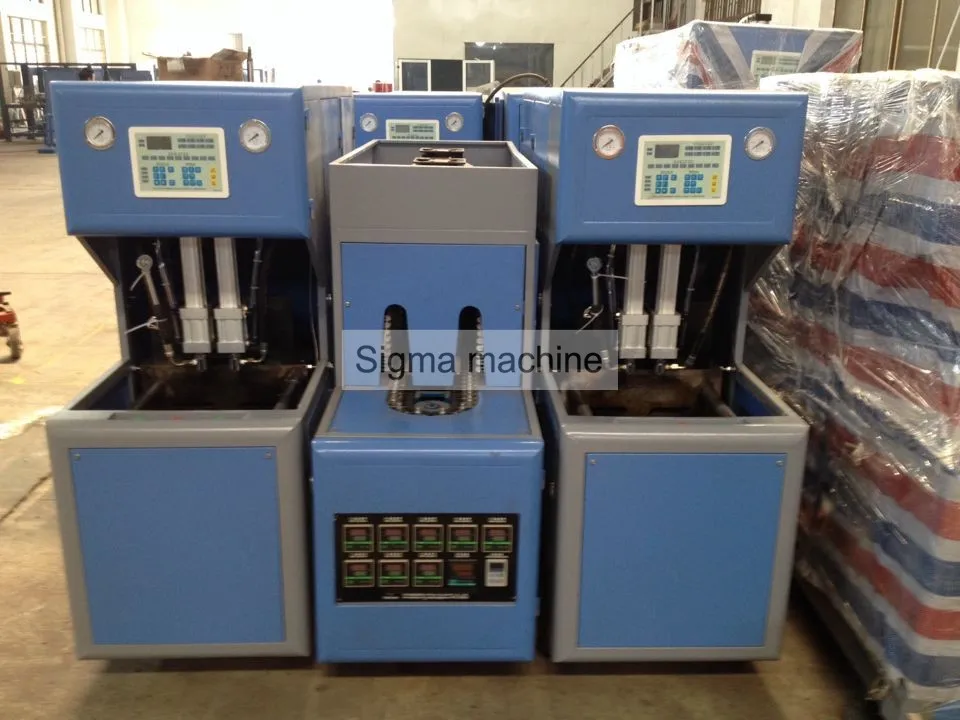

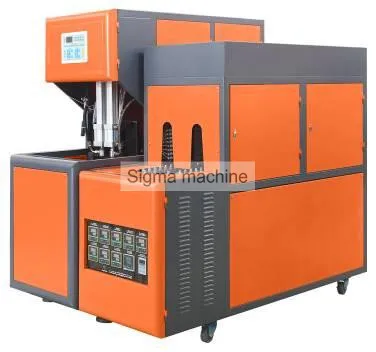

Detailed Images

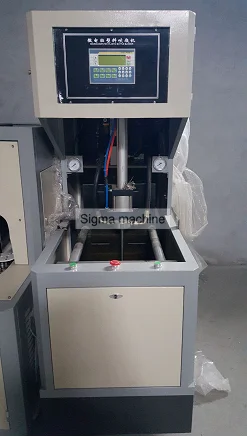

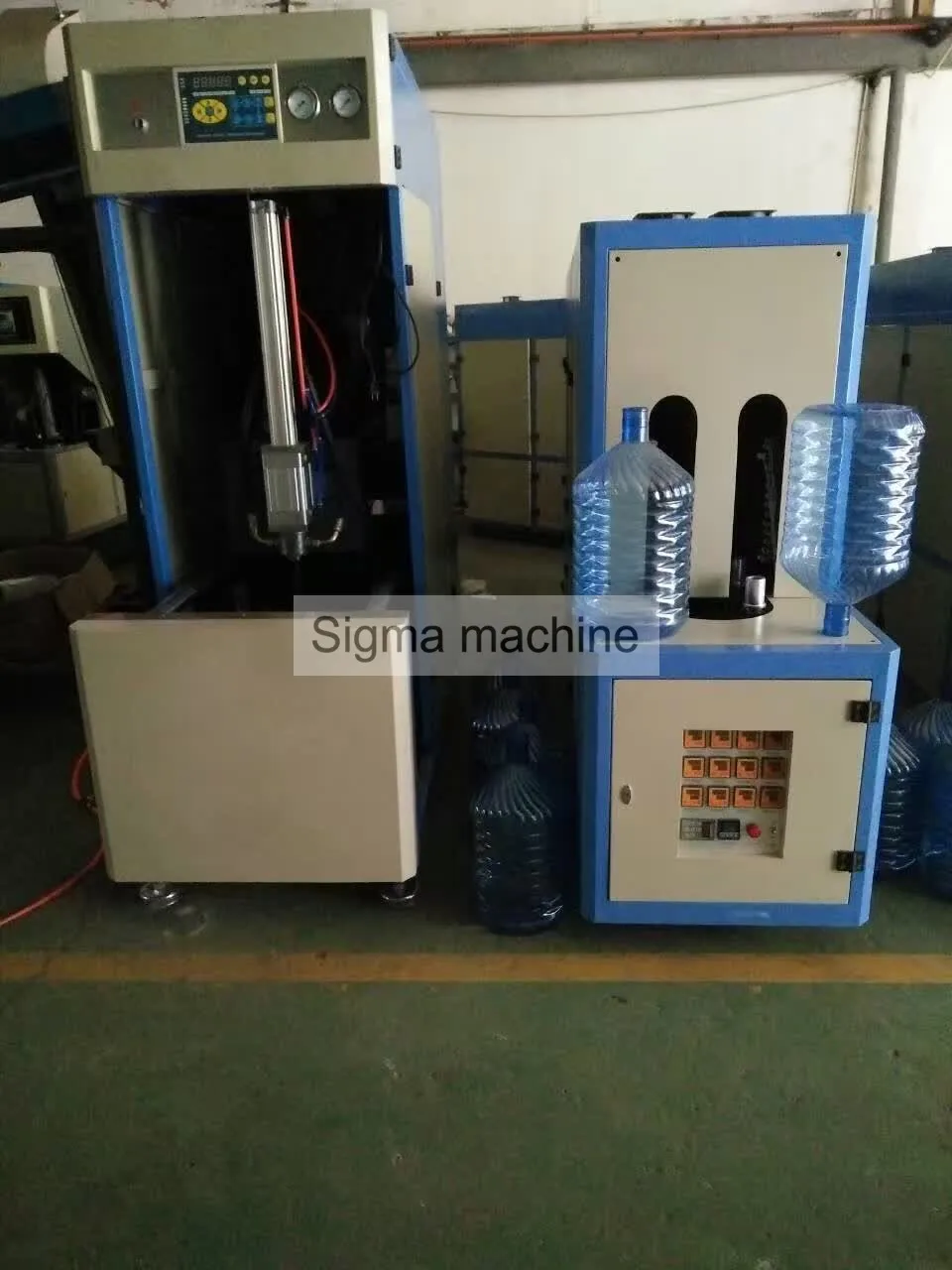

A.1 cavity semi-auto bottle blow machine
B.2 Cavities semi-auto Pet bottle blowing machine

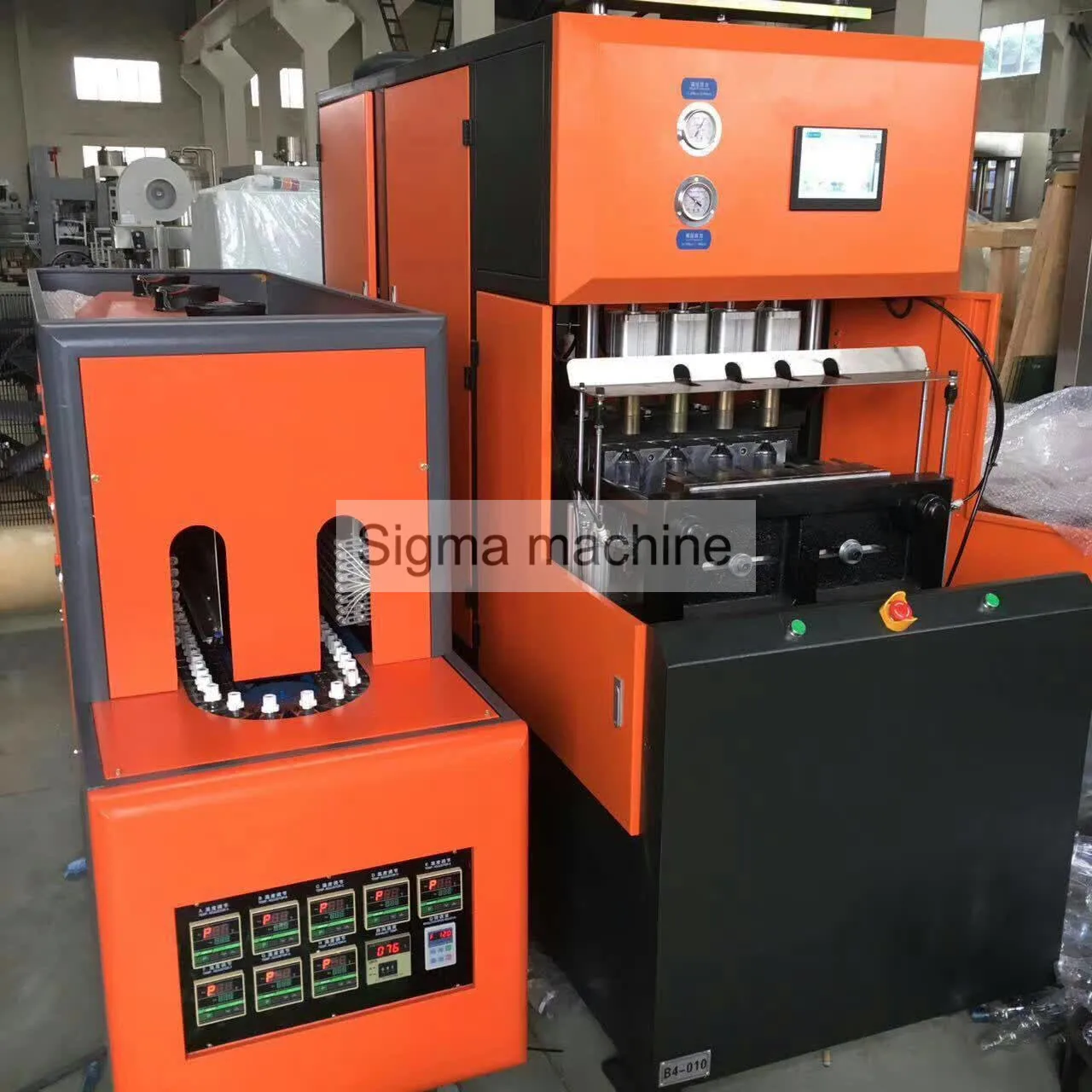

C. 4 Cavities semi-auto Pet bottle blowing machine
Size Information
主机+烘箱 Host+oven | 规格Specifications | 单位Units | SG-2L-2 | SG-5L-1 | SG-5L-2 | SG-20L-1 | Others Machine |
产品规格 Product specifications | 最大产品容量 Maximum product aperture | L/cav | 2 | 5.5 | 5.5 | 20 | |
瓶胚最大口径 preform maximum aperture | mm | 100 | 150 | 200 | 200 | ||
瓶子最大口径 Maximum diameter of bottle | mm | 180 | 200 | 300 | 400 | ||
瓶子最大高度 Bottle height | mm | 300 | 400 | 600 | 600 | ||
腔数 Number of cavities | 2 | 1 | 2 | 1 | |||
吹瓶机 Blow molding machine | 合模力 Clamping force | kn | 100 | 120 | 150 | 150 | |
开合模行程 Clamping stroke | mm | 270 | 320 | 340 | 340 | ||
最大模具尺寸 Maximun mould size | mm | 390*345 | 390*350 | 420*500 | 420*500 | ||
模具厚度 Mould thicness | Adjustable | 可调 change | Adjustable | Adjustable | |||
模具间距 Mould spacing | mm | 可调 change | 400 | 400 | |||
最大拉伸行程 Maximum tensile itinerary | mm | 400 | 500 | 500 | 500 | ||
工作压力 work pressure | Mpa | 0.8-1.0 | 0.8-1.0 | 0.8-1.0 | 0.8-1.0 | ||
运行气压耗气量 Operating air pressure oil consumption | 1tr/min | 200 | 350 | 560 | 560 | ||
吹塑气量 Gas blow | Mpa | 1.2-2.8 | 1.2-2.8 | 1.2-2.8 | 1.8-2.8 | ||
吹塑气压耗气量 Blow air pressure air consumption | 1t/min | 300 | 300 | 650 | 650 | ||
产量 output per hour | Pcs/h | 1000-1800 | 1000-1600 | 600-900 | 600-900 | ||
机器尺寸Machine size | L*W*H/m | 1.46*0.58*1.8 | 1.56*0.7*1.9 | 2.18*0.77*1.96 | 2.18*0.77*1.96 | ||
重量 weight | Kg | 650 | 700 | 1000 | 1000 | ||
温度等级 Temperature class | 8 | 8 | 8 | 8 | |||
加热时间 heating time | 秒 | 90-200 | 90-200 | 90-200 | 90-200 | ||
电压 Voltage | V | 220 | 220 | 220 | 220 | ||
频率 Frequency | HZ | 50/60 | 50/60 | 50/60 | 50/60 | ||
总功率 Total power | kw | 16 | 16 | 15-40 | 15-40 | ||
OVEN 烘箱 | 烘箱尺寸 Oven diemensions | 1.35*0.65*1.65 | 1.45*0.65*1.65 | 2.37*0.68*1.65 | 2.37*0.68*1.65 | ||
烘箱重量 Oven weight | kg | 300 | 330 | 380 | 380 |
The equipment Brand
Related Products
Packing&Shipping
Semi automatic PET bottle blow moulding machines are packed with wooden pallets, covered with plastic film; auxiliary machines and spare parts are packed with wooden boxes. The loading to containers is done according to weight balance, every package's position is fixed in containers to avoid moving. The photos of whole delivery will be sent to you for reference.

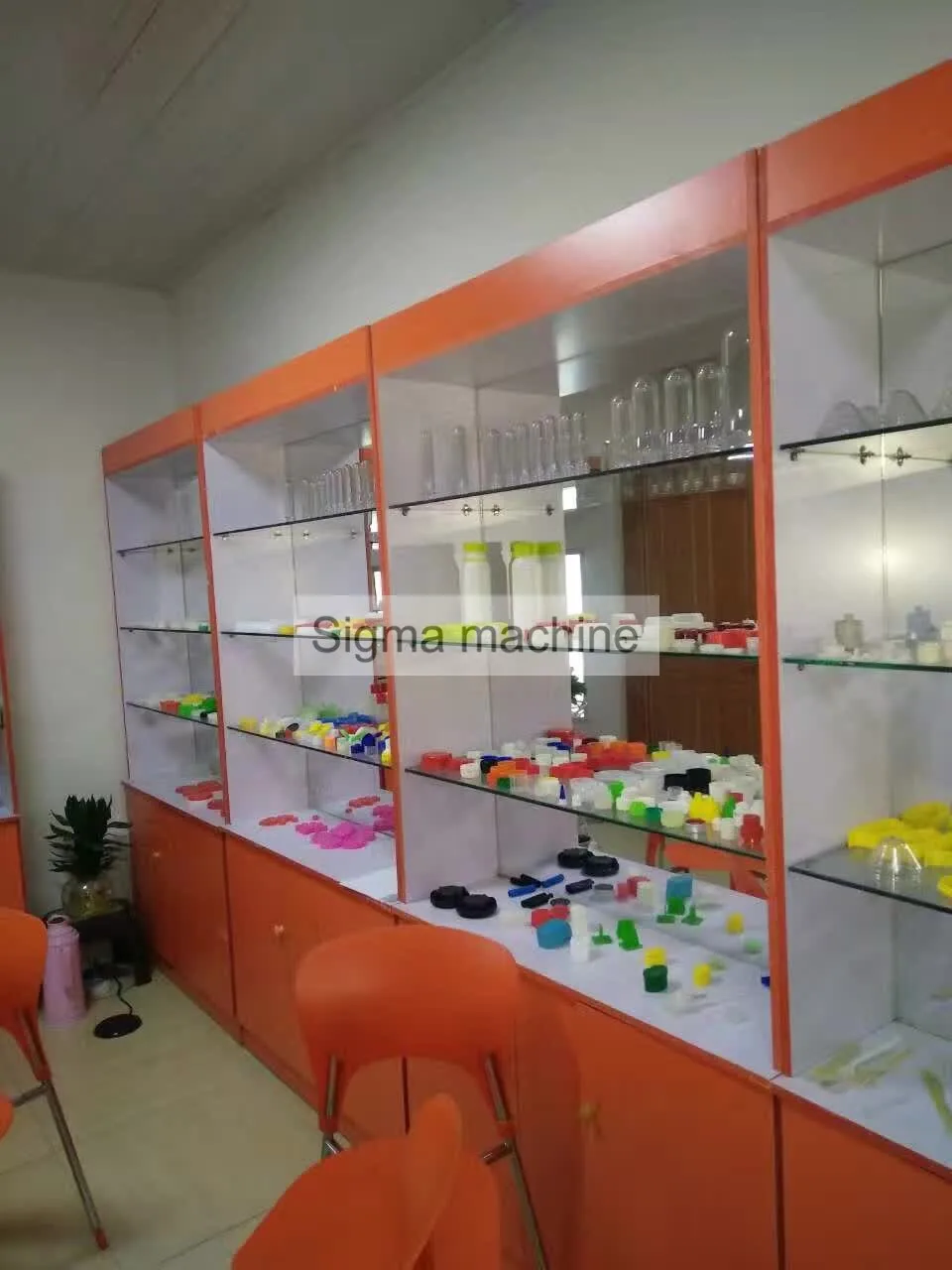

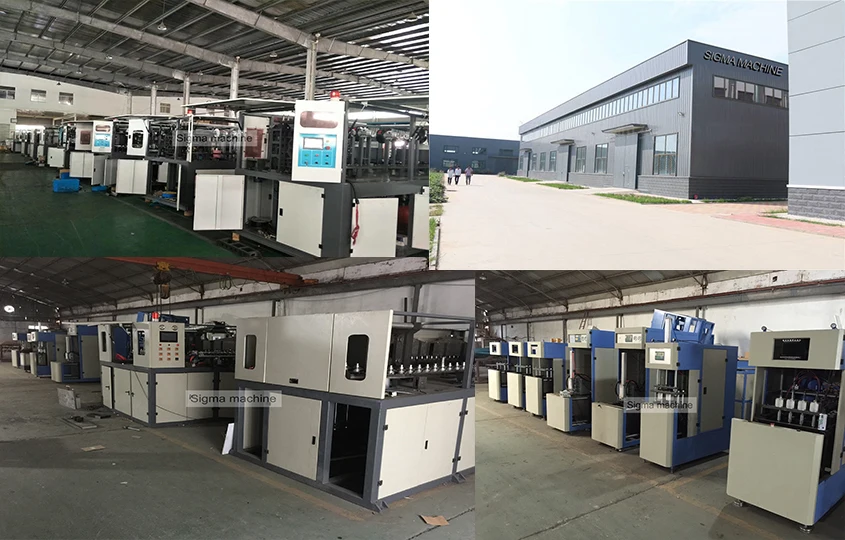

Company Introduction
FAQ
For choosing proper machine and saving your time, please read below questions carefully and send your inquiry soon , thanks !
1.weight for plastic product
2.pictures for plastic product (including dimension for plastic product)
3.what output per hour do you need ?
4.Other requirements about the machine you want.
2.pictures for plastic product (including dimension for plastic product)
3.what output per hour do you need ?
4.Other requirements about the machine you want.
Turnkey project service:
1. we will provide all the machines for the complete production according to customer's requirements.
2. we will provide complete service for factory layout and other information to help customer to build the factory.
3. we can also provide the raw material to the customer if you need.
4. we will provide good service for machine installation and training, until the customers can run the machines and make stably production.
5. Except one year quality guarantee, we will provide after-sell service for all the life.
6. For long-term cooperation, we always provide good quality, good price and good service to customer. we are the professional and trustable supplier for turnkey projects. Let us do win-win business together.
2. we will provide complete service for factory layout and other information to help customer to build the factory.
3. we can also provide the raw material to the customer if you need.
4. we will provide good service for machine installation and training, until the customers can run the machines and make stably production.
5. Except one year quality guarantee, we will provide after-sell service for all the life.
6. For long-term cooperation, we always provide good quality, good price and good service to customer. we are the professional and trustable supplier for turnkey projects. Let us do win-win business together.
By the way , Our company is about 110 km away from Shanghai(1.5 hour bus driving from shanghai airport) . Warmly welcome you to visit our factory at any time.
