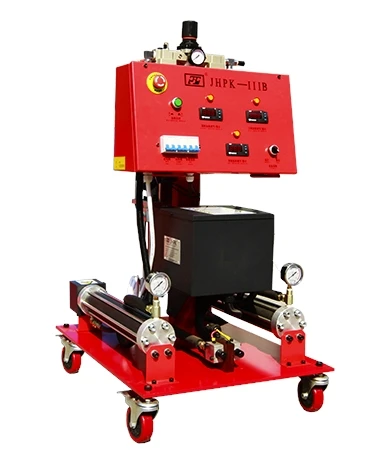

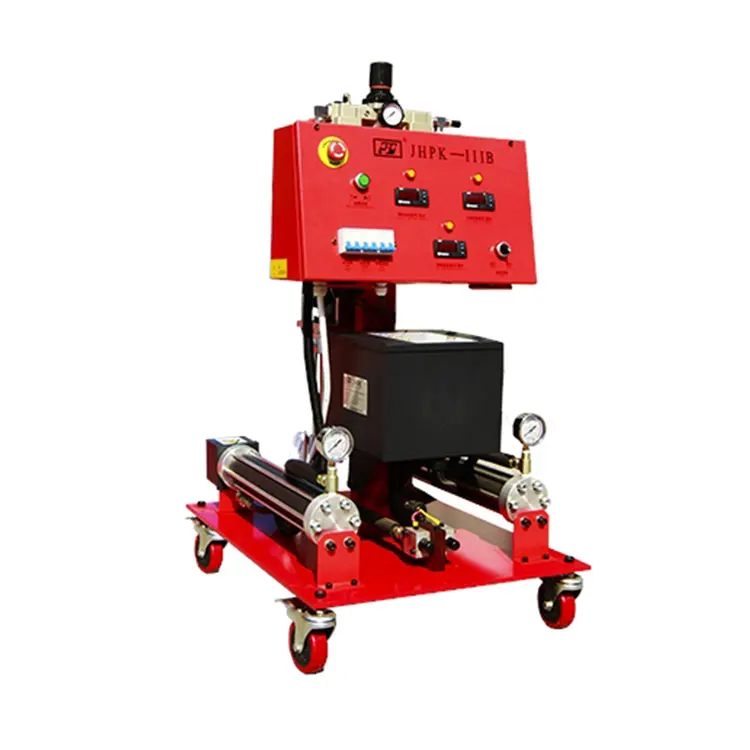

Our company has obtained Quality Management System Certificates ISO9000. The advanced management system and high efficient and modern production mode provide reliable quality assurance for our products. JHPK-IIIB ,High-pressure Polyurethane Spray and Perfusion Equipment.The parts of the equipment are from America making sure the pressure is enough for mixing the double component materials together.It has the separate heater which is 2500 watt;provides the reliable heat source for the row materials.The pipe of heating and preserved is 15 meters and it preserves the heat energy of the materials.The system of spray gun with non-solvents washing makes the machine easy to operate,and maintain.
Standard Configuration:
Main equipment
1set
Spray gun
1 piece
Heating pipe
15 meter
1.5m pipe connecting to the gun
1 sets
Feeding pump
2 set
Spare parts
1 set
Tools
1 set
English manual
1 set
Package
plywood tray
Technical Parameter:
Ratio of raw materials
1:1
Viscosity range
200~1000CPS
Output of raw materials
4~8L/ min
Heating power
2500W*2
Hose heating power
3200W
Electrical source
single phase ,220v 7000w
Air source
0.5~0.8Mpa(70~120psi) ≥ 0.9m3/min
Single component output pressure
5~10Mpa (700~1500psi)
Max. length (optional)
90 meter
Our company
Hot sales
Certifications
Packing
FAQ
Q: Are You the factory or trade company?
A:We are the factory,found in 2003, we have worked on alibaba export for 7 years.
Q: what’s the machine voltage?can it suitable for my local place?
A: the Standard machine is 3 phase ,380V,50HZ .We can change the electrical wire for your local place.
Q:Do you have any training videos on how to operate and maintain the machine?
If you come to China,We have two days free training in the factory.
Engineers on-site service (some countries and regions),but the fee is charged.
Q: What’s the warranty period?
A: our machine warranty period is 12 month, and support lifelong consultantservice.
Q: What’s the delivery time?
A: Generally speaking ,we can send the machines 2~3 days after we get the payment if you don’t need to change the wire.Pls ask the salesmans about the details. Q:What’s the shpping way?How to get the spare parts if the machines are broken?
A:We can send the machines by sea,by air or by railway.It depends on your choose.
We can send the spare parts through DHL ,FedEx,UPS,TNT internation Express,very fast.
