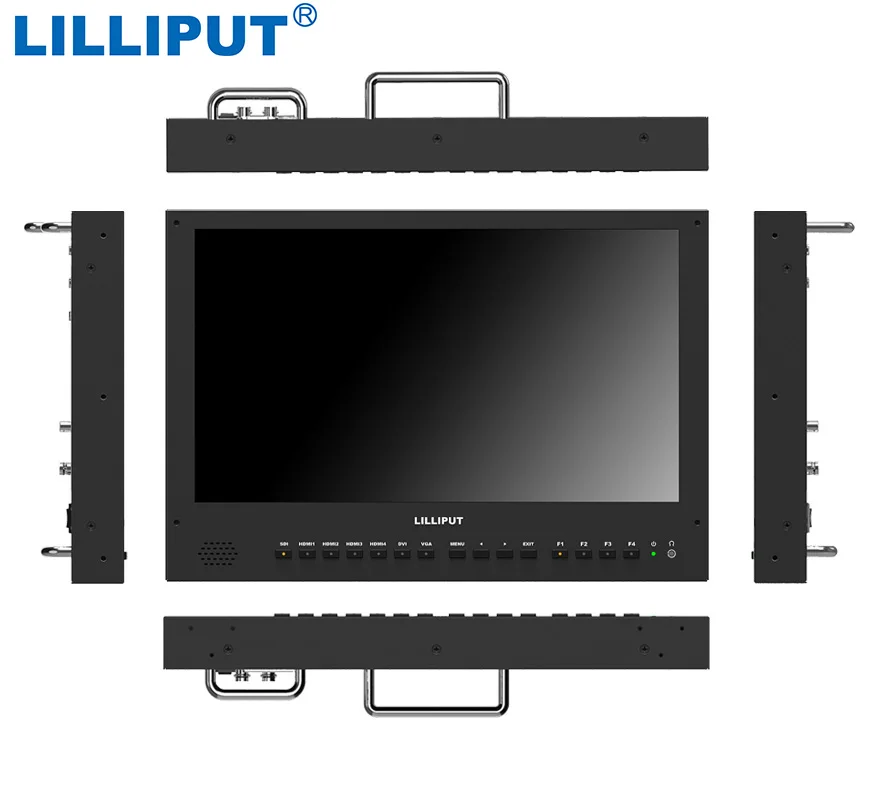

LILLIPUT 15.6 inch 4K UHD Resolution Medical Monitor HDMI Monitor SDI broadcast equipment

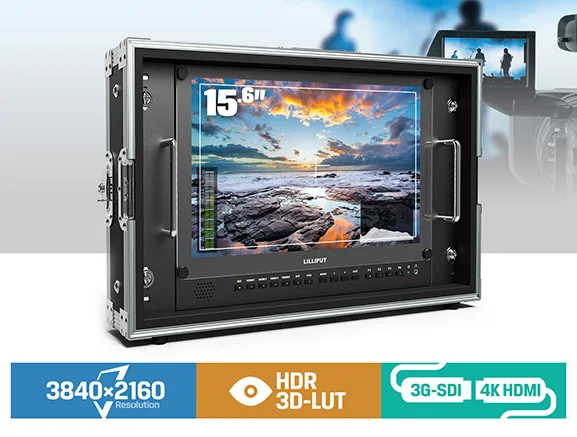

LILLIPUT 15.6" Carry-on/Rackable 4K Monitor for Medical I
Brand Name: LILLIPUT
Model No.: BM150-4KS
Features
4K (3840×2160) Ultra-HD native resolution
15.6" perfect size for both 6RU rackmount & suitcase
HDR, 3D-LUT & Color space
High contrast: 1000:1
176° Ultra high viewing angle
Rich interfaces: 3G-SDI, HDMI, DVI, VGA, AV input
Wide voltage: DC12-24V
Metal housing design
Display Functions
Accurate Color Calibration
A specific calibration to reproduce the colors of the image color space.
Color calibration supports the PRO/LTE version of LightSpace CMS by Light Illusion.
Adjustable Color Space
Native, Rec.709 and 3 User
Defined are Optional for Color Space
Without HDR With HDR
Inaccurate exposure, reduced image detail, Enjoy sharper images, greater detail and richer colors.
unsatisfactory viewing experience. Auto / HDR10 are for optional.
When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing lighter
and darker details to be displayed more clearly. Effectively enhancing the overall picture quality.

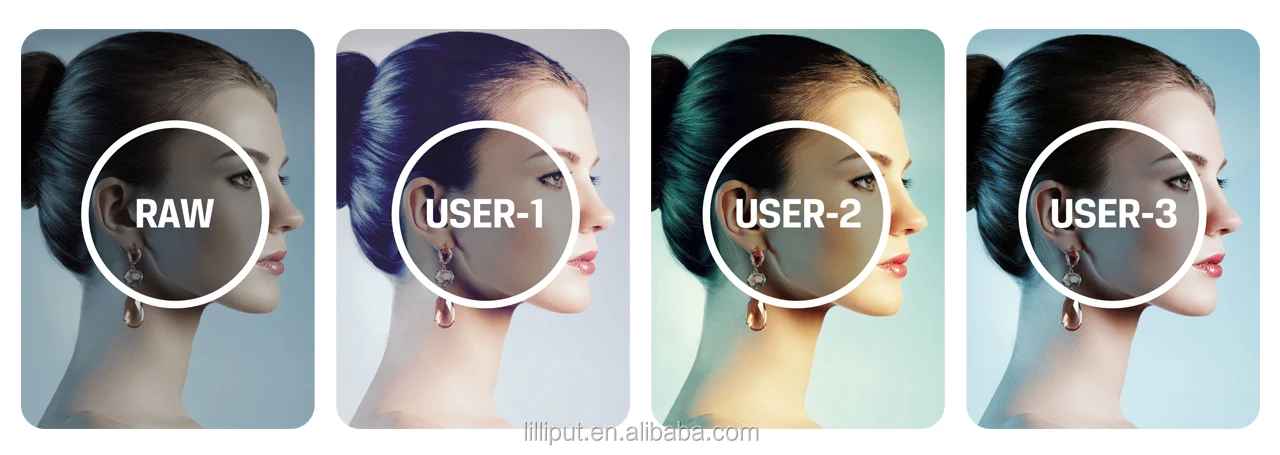

3D LUT

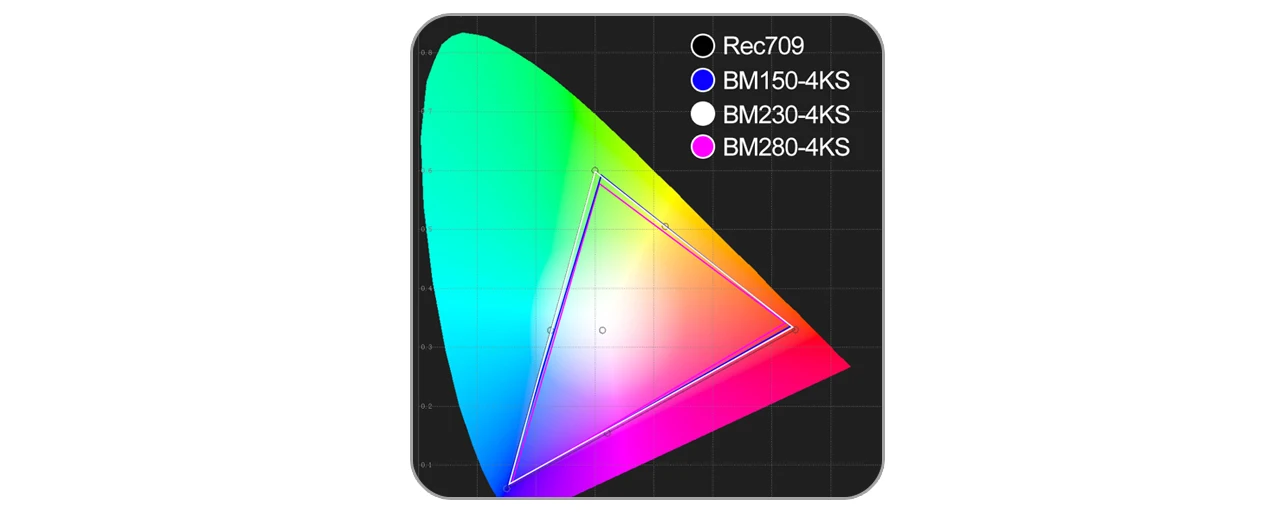

Wider color gamut range to make precise color reproduction of Rec. 709 color space with built-in 3D LUT, featuring 3 user logs. Supports loading the .cube file via USB flash disk.
3D LUT LOAD
Supports loading the .cube file via USB flash disk.

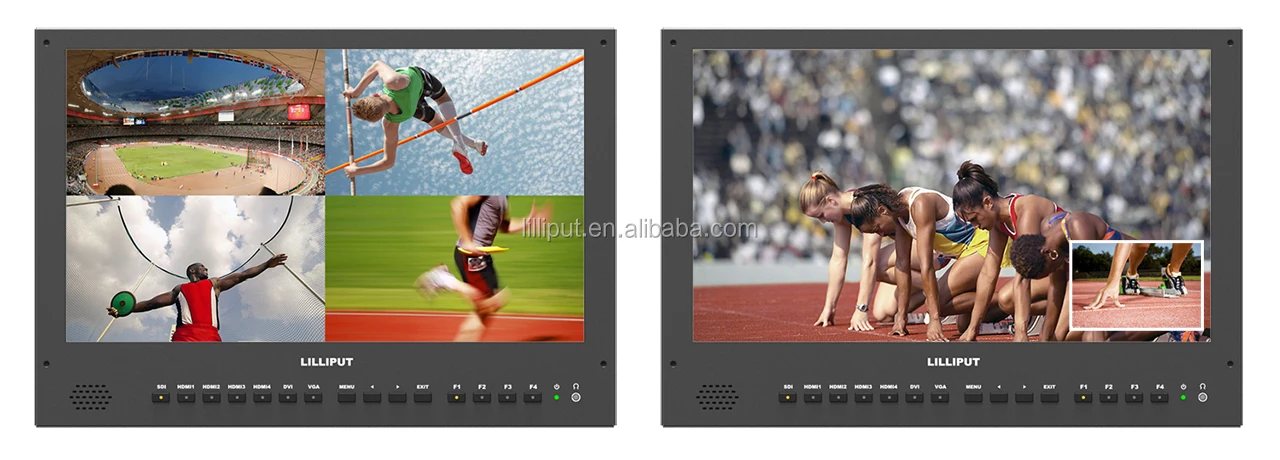

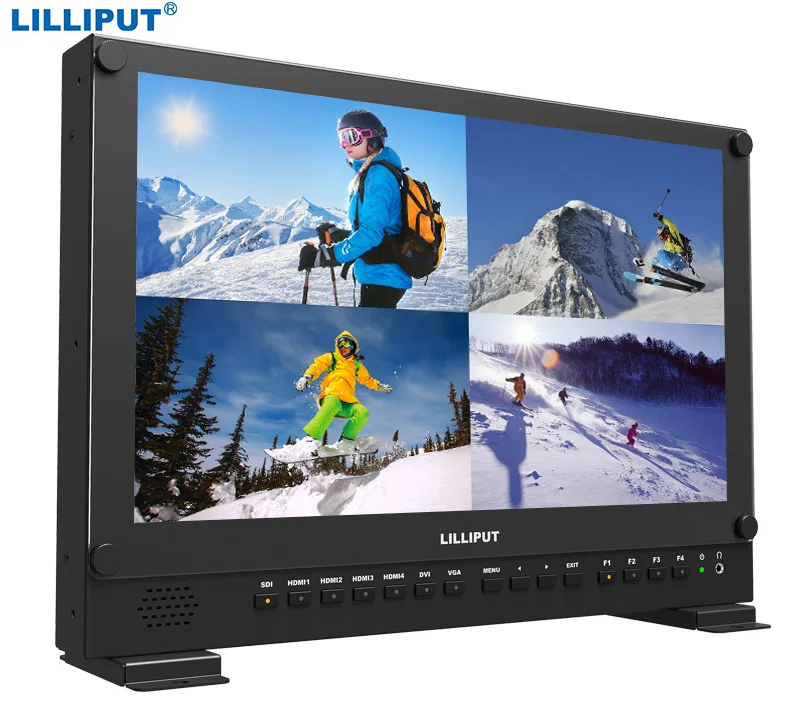

Multiple Views Display
It supports quad views splitted from different input signals simultaneously, such as SDI, HDMI, DVI and VGA.

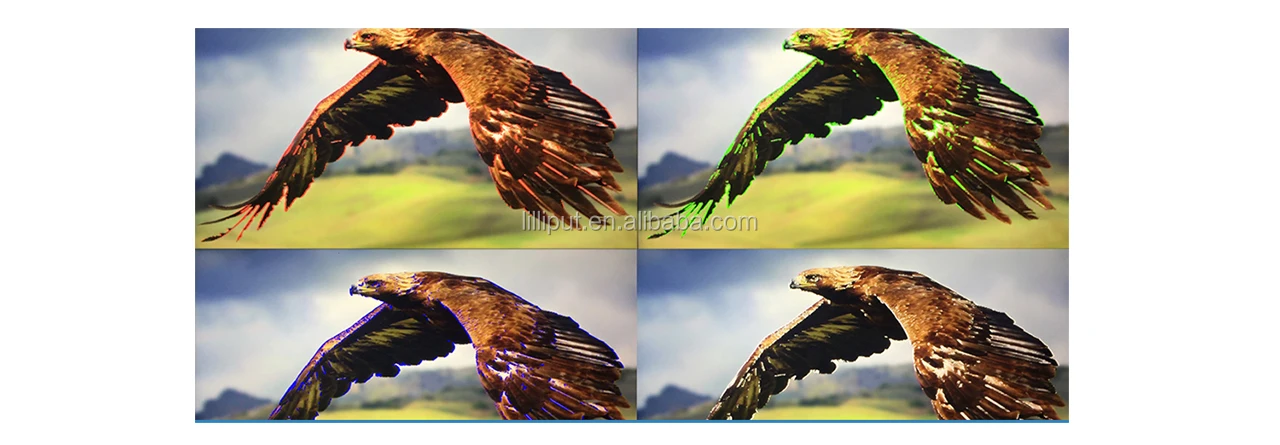

PEAKING FILTER (SDI)

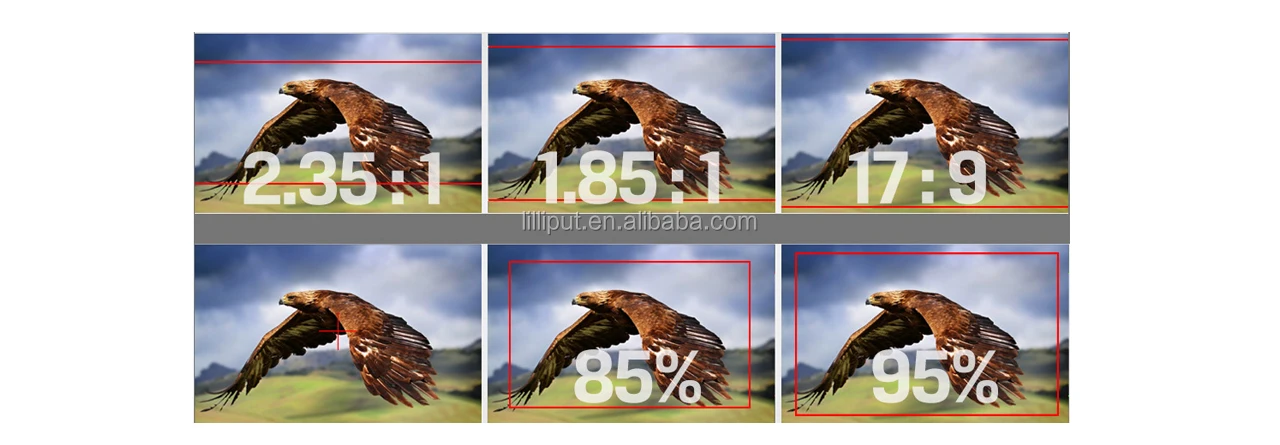

ASPECT / CENTER / SAFETY MARKER

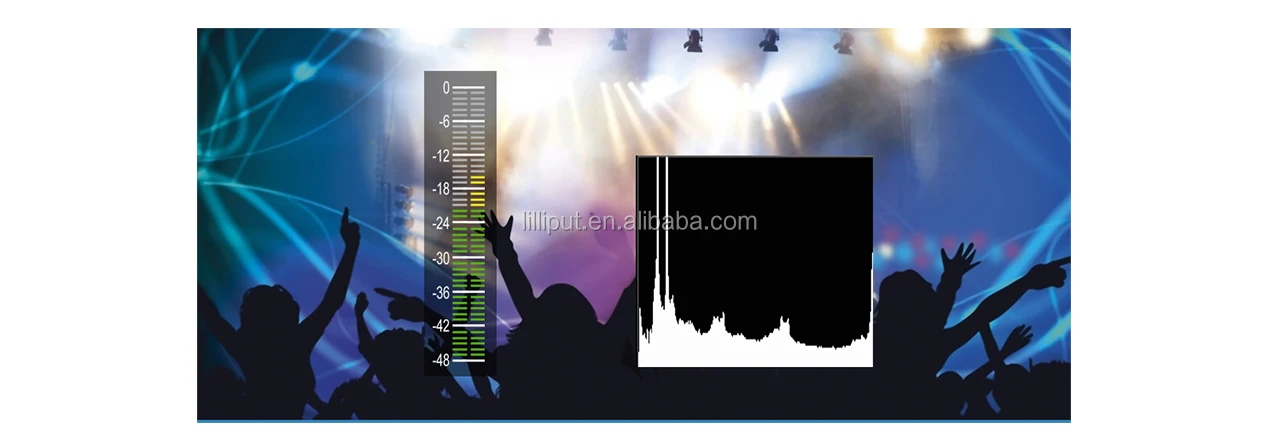

AUDIO LEVEL METER / HISTOGRAM

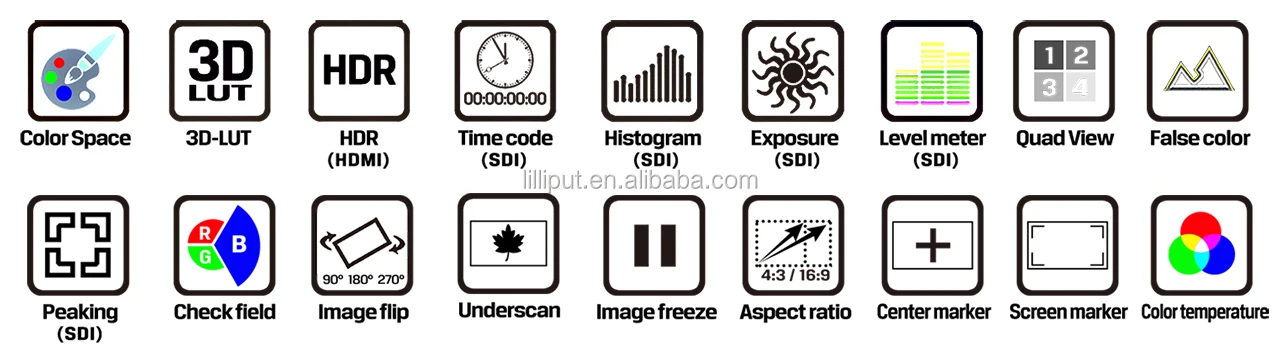

Auxiliary Functions
Color space / 3D-LUT / HDR(HDMI) / Time code(SDI) / Histogram(SDI) / Exposure(SDI) / Level meter(SDI) / Quad view / False color / Peaking(SDI) / Check field / Image flip / Underscan / Image freeze / Aspect ratio / Center marker / Screen marker / Color temperature

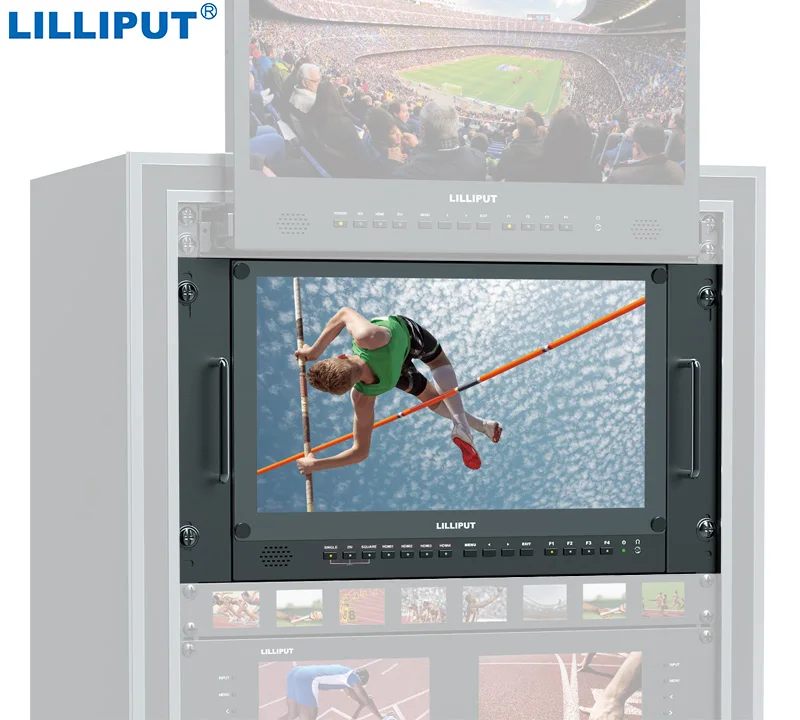

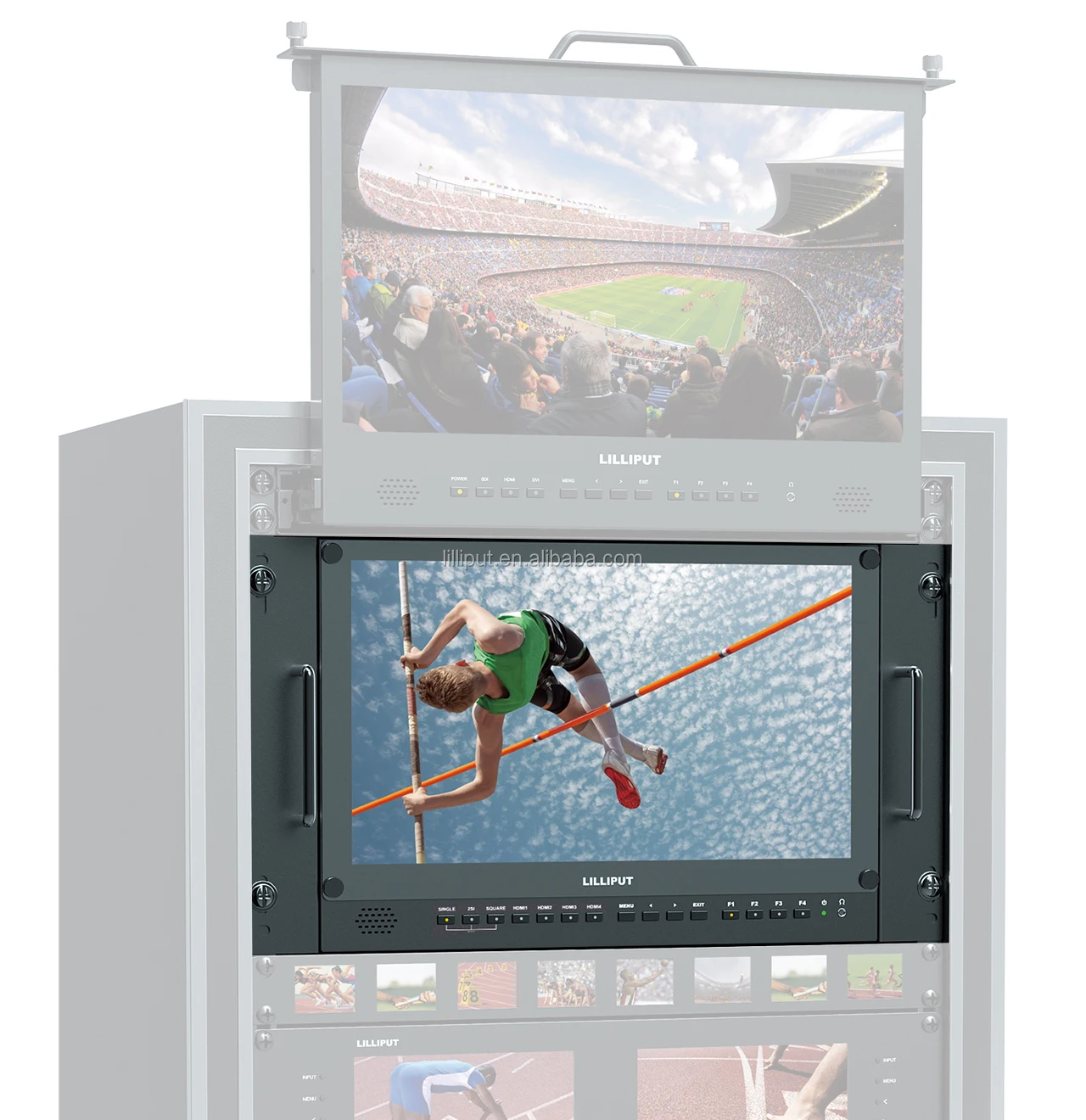

6U Rack Mout Intelligent SDI Monitoring
It has a various of mounting methods for broadcast, on-site monitoring and live broadcast van, etc. As well as setup a video wall of rack monitors in control room and see all the scenes. A 6U rack for a customized monitoring solution also can be supported for viewing from different angles and images displays.

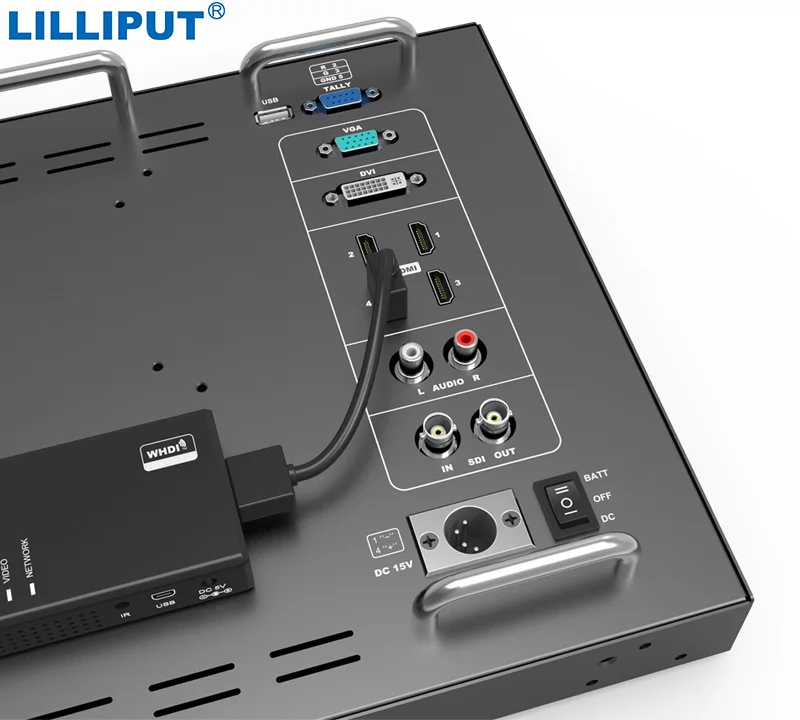

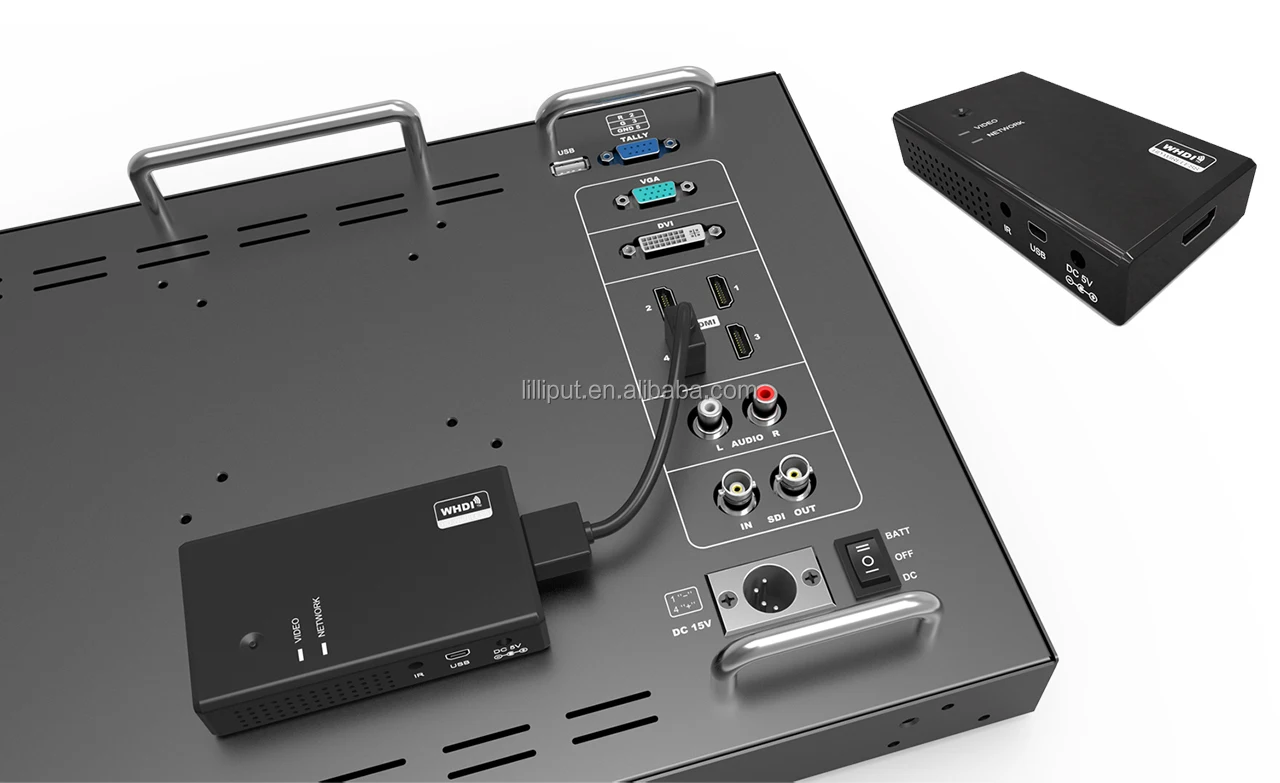

Wireless HDMI (optional)
With Wireless HDMI (WHDI) technology, which has a 50-meter transmission distance, supports up to 1080p 60Hz. One transmitter can work with one or more receivers.
Product Paramenters
DISPLAY | Display Screen | 15.6” 8bit |
Physical Resolution | 3840×2160, 4K | |
Aspect Ratio | 16:9 | |
Brightness | 330cd/m² | |
Contrast | 1000:1 | |
Viewing Angle | 176°/176°(H/V) | |

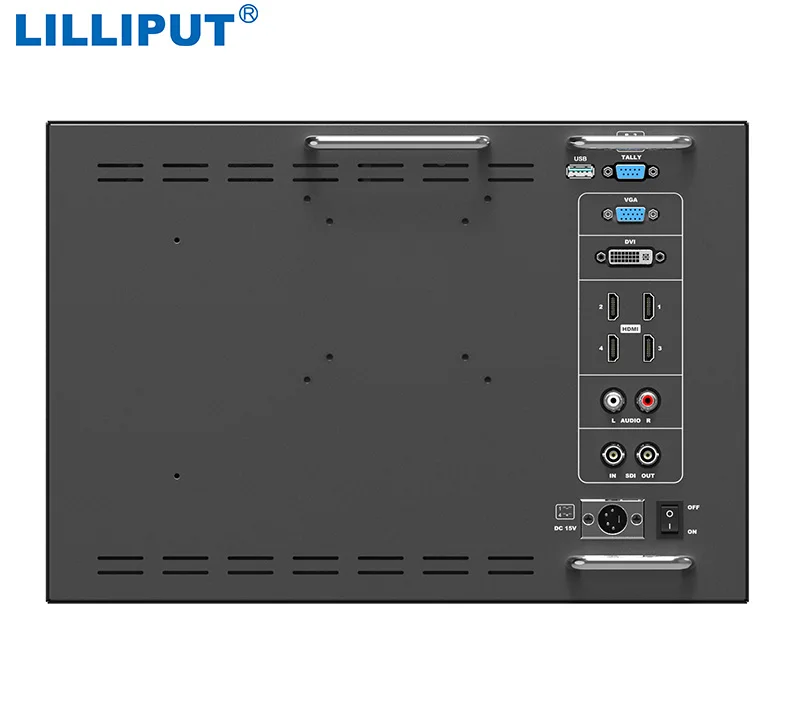

INPUT | 3G-SDI | 1 |
Wireless HDMI | 1 (optional) | |
HDMI | HDMI 2.0×1 (4K@60Hz) HDMI 1.4×3 (4K@30Hz) | |
DVI | 1 | |
VGA | 1 | |
USB | 1 (3D-LUT) | |
Audio | 2 (L/R) | |
TALLY | 1 | |
OUTPUT | 3G-SDI | 1 |
AUDIO | Speaker | 1 |
Ear Phone Slot | 1 | |
POWER | Current | 1.2A (15V) |
Input Voltage | DC 12-24V (XLR) | |
Battery Plate | V-mount / Anton Bauer mount | |
Power Consumption | ≤18W | |
ENVIRONMENT | Operating Temperature | 0°C~60°C |
Storage Temperature | -20°C~60°C | |
DIMENSION | Dimension(LWD) | Dimension(LWD) |
Weight | 3.4kg / 12kg (with case) | |
SDI Format | SMPTE-125M | 480i(59.94) |
SMPTE-274M | 1080i(60/59.94/50) 1080p(30/29.97/25/24/24sF/23.98/23.98sF) | |
SMPTE-292M | 1080p(30/29.97/25/24/24sF/23.98/23.98sF) | |
SMPTE-296M | 720p(60/59.94/50/30/29/25/24/23.98) 720p(60/59.94/50) | |
SMPTE-372M | 1080i(29.97/25/24/23.98) 1080p(60/59.94/50/30/29.97/25/24/23.98) | |
SMPTE-425M | 1080p(60/59.94/50) | |
ITU-R BT.656 | 576i(50) | |
HDMI Format | 4K | 4096×2160 / 3840×2160 |
Other | 1080p, 1080i, 720p, 720i, 480p ... |
Product packaging
Sun shade
TALLY connector
Mount plate bracket
Fixing Belt
V-mount / Anton Bauer mount
15V DC adapter
Carry-on suitcase
Manual
WHDI Accessories (optional)
