GSR W120 15 38 Crane Rail Clips For Crane Railroad Construction
- Category: Railway Parts & Accessories >>>
- Supplier: Tianjin Ocean Mechanical & Electrical Equipment Co. Ltd.
Share on (62399806048):
Product Overview
Description
Product Description

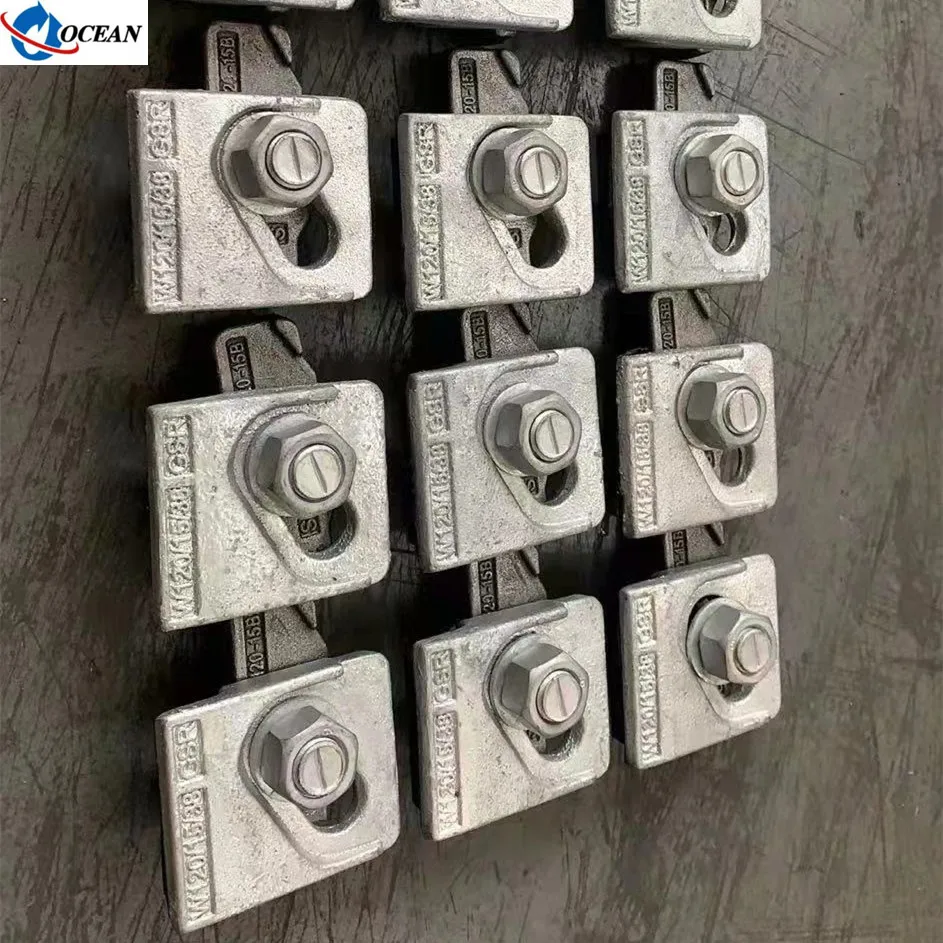

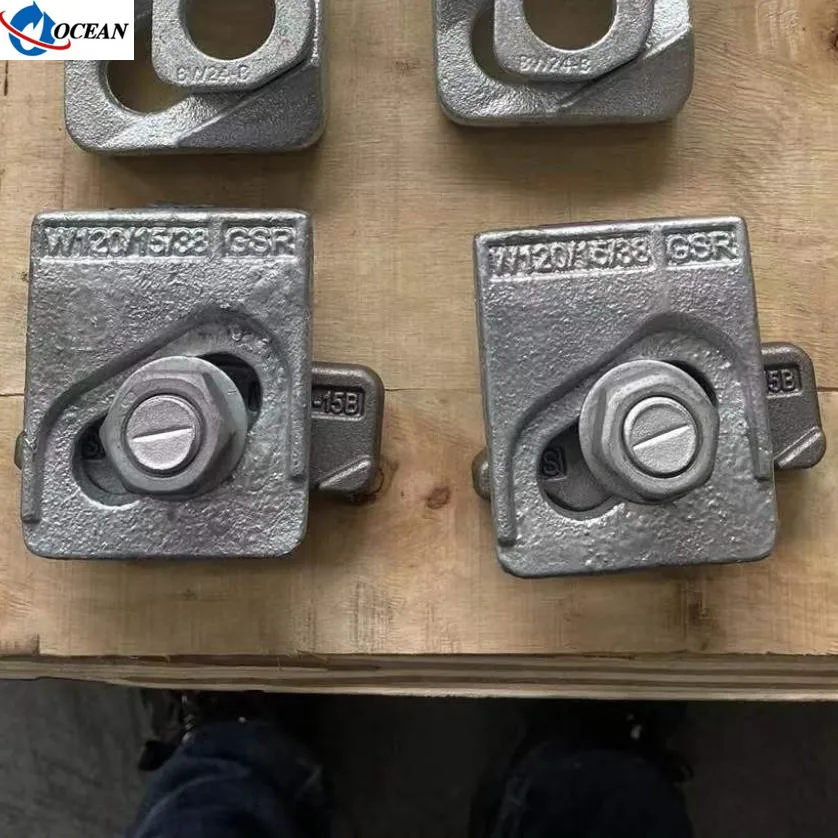

W120-15
GSR Welded Base Fixing
GSR Welded Base Fixing
The GSR W120-15 adjustable crane rail clip is designed to fix heavy rails, on narrow steel plate, in the most arduous applications. It can withstand a horizontal force from the rail of 125kN.
Its low profile allows it to be used with cranes that are fitted with guide rollers.
Specification
Max side load : 125kN

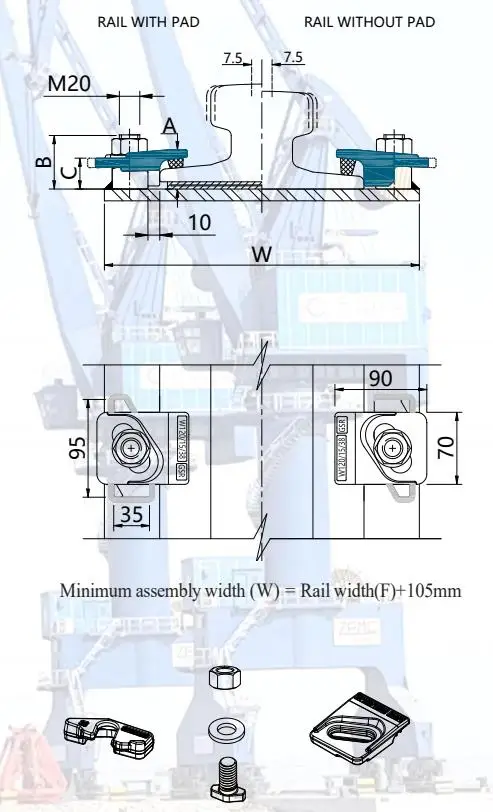

DIMENSIONS (mm):
Horizontal rail adjustment : 15mm
DIMENSIONS (mm):
No. | A | B | C | WEIGHT(KG) |
W120-15-38 | 38 | 48 | 30 | 1.0 |
W120-15-41 | 41 | 48 | 30 | 1.1 |

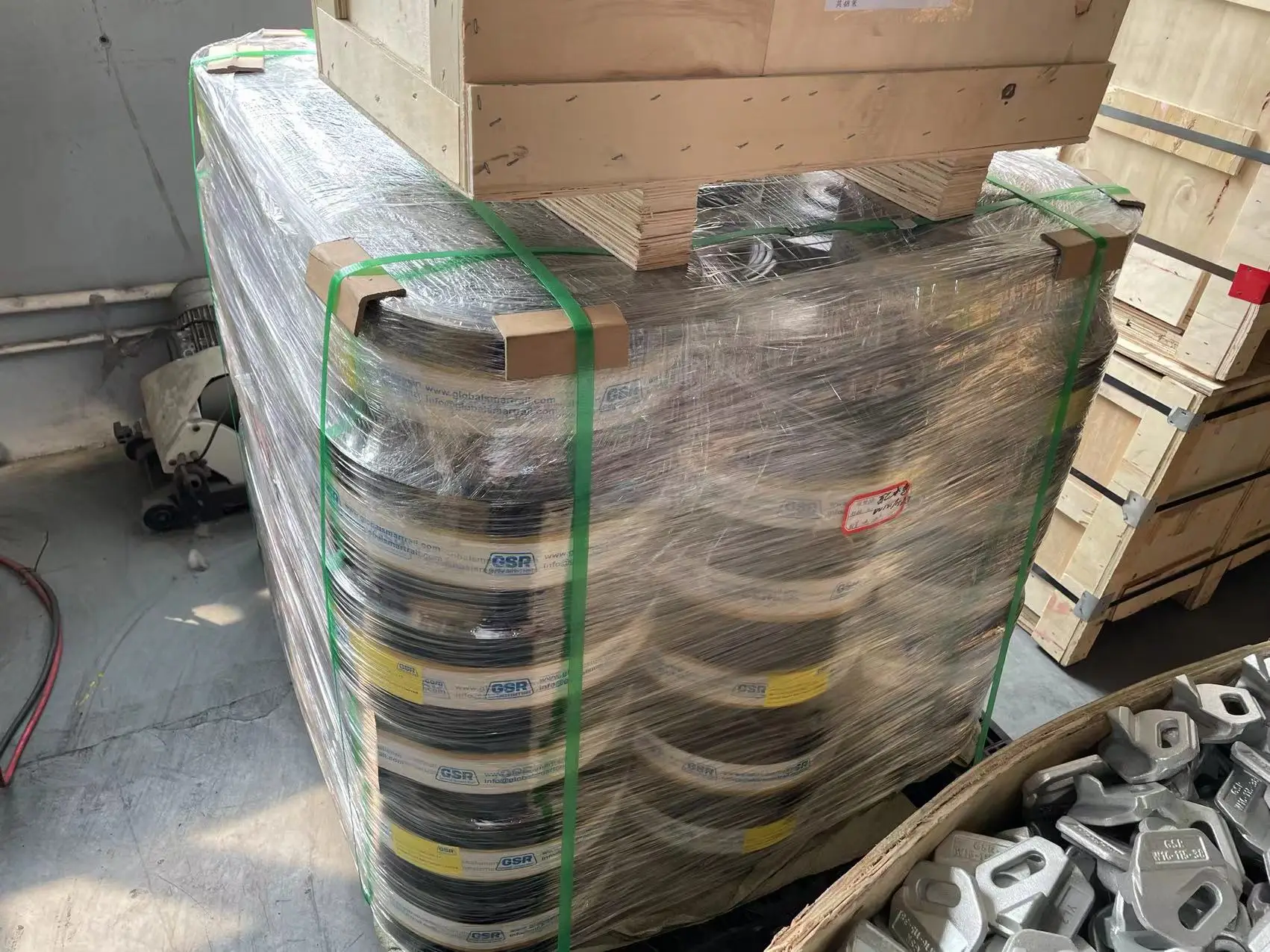

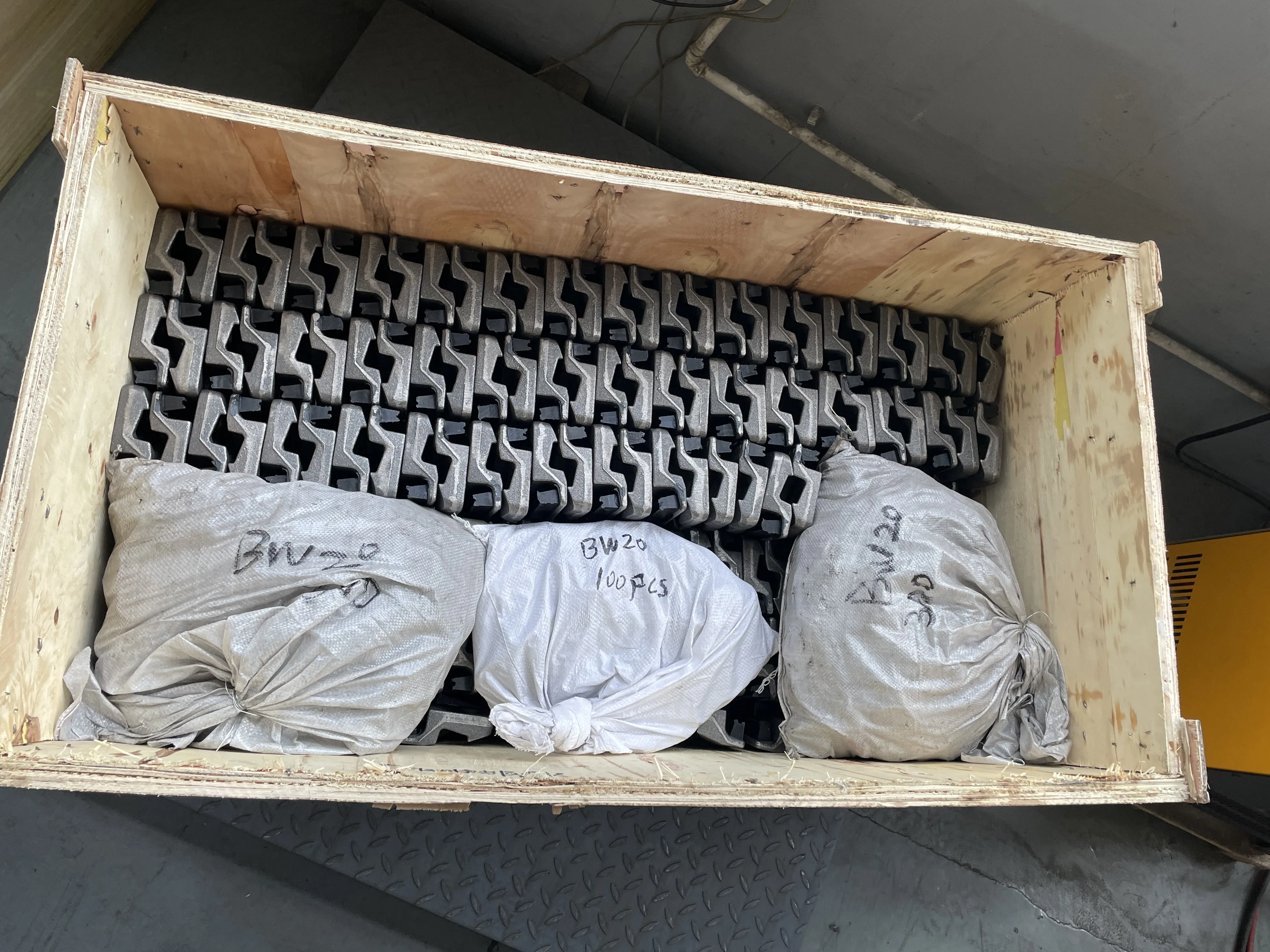

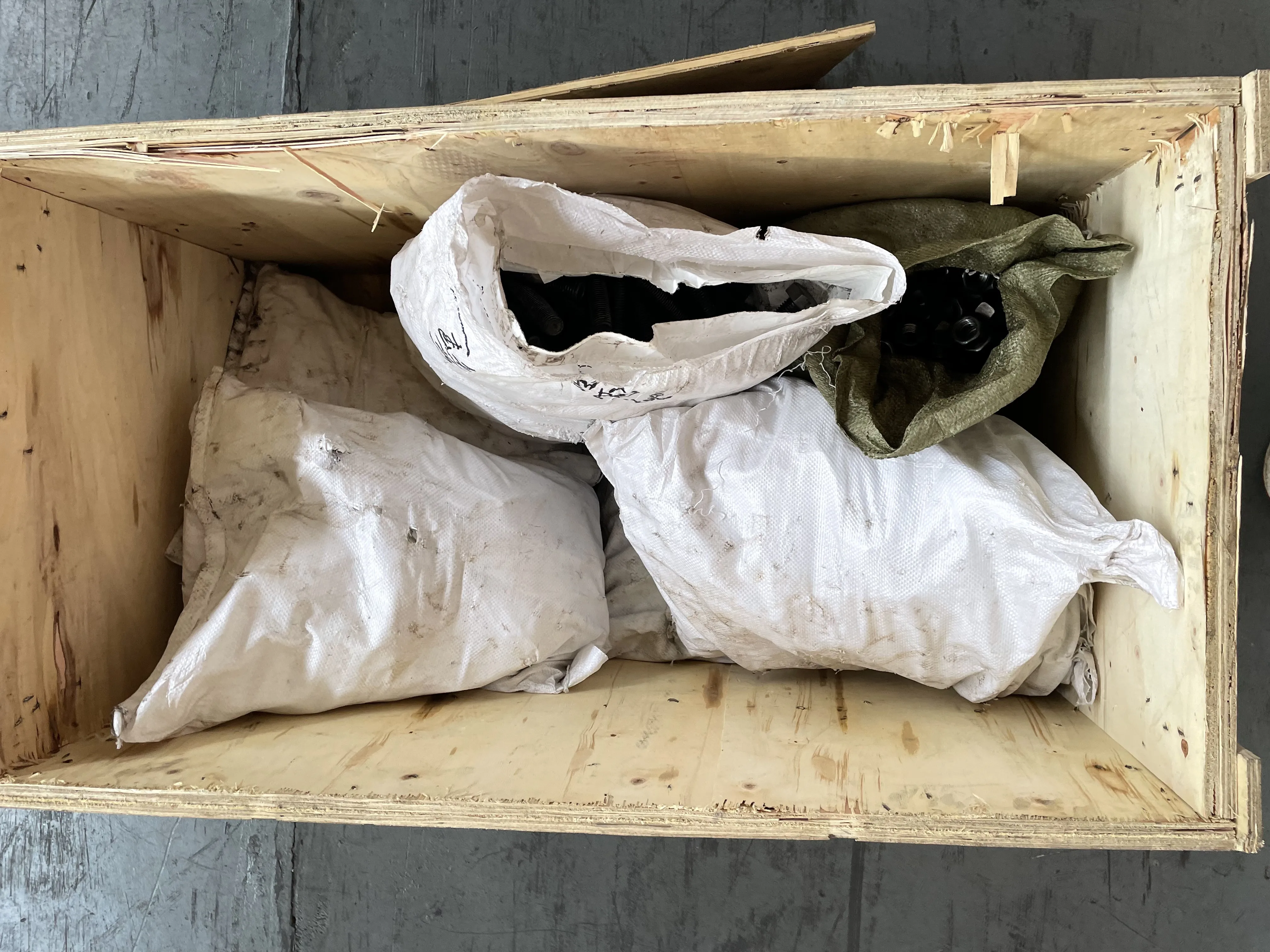

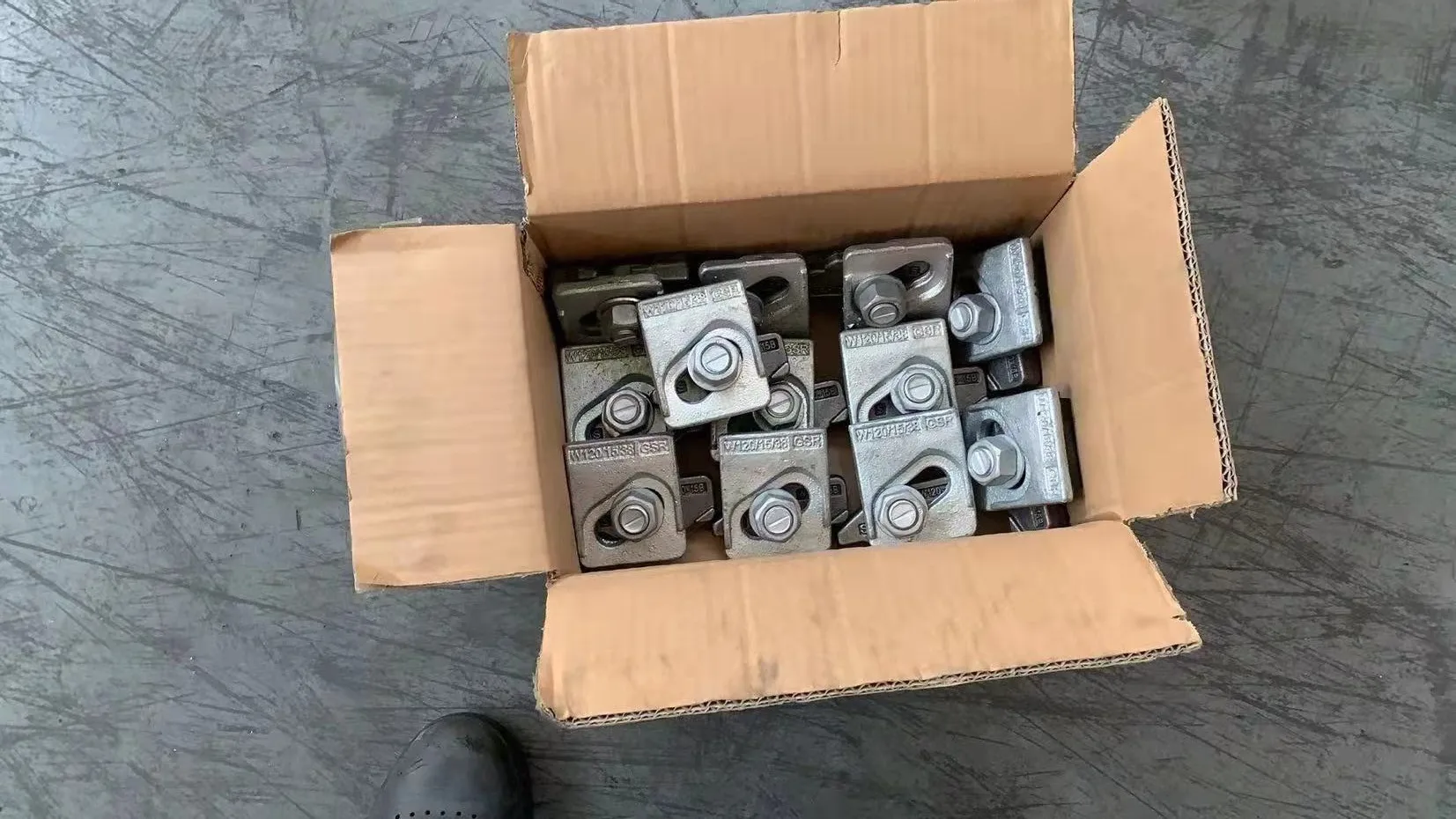

Packing & Delivery

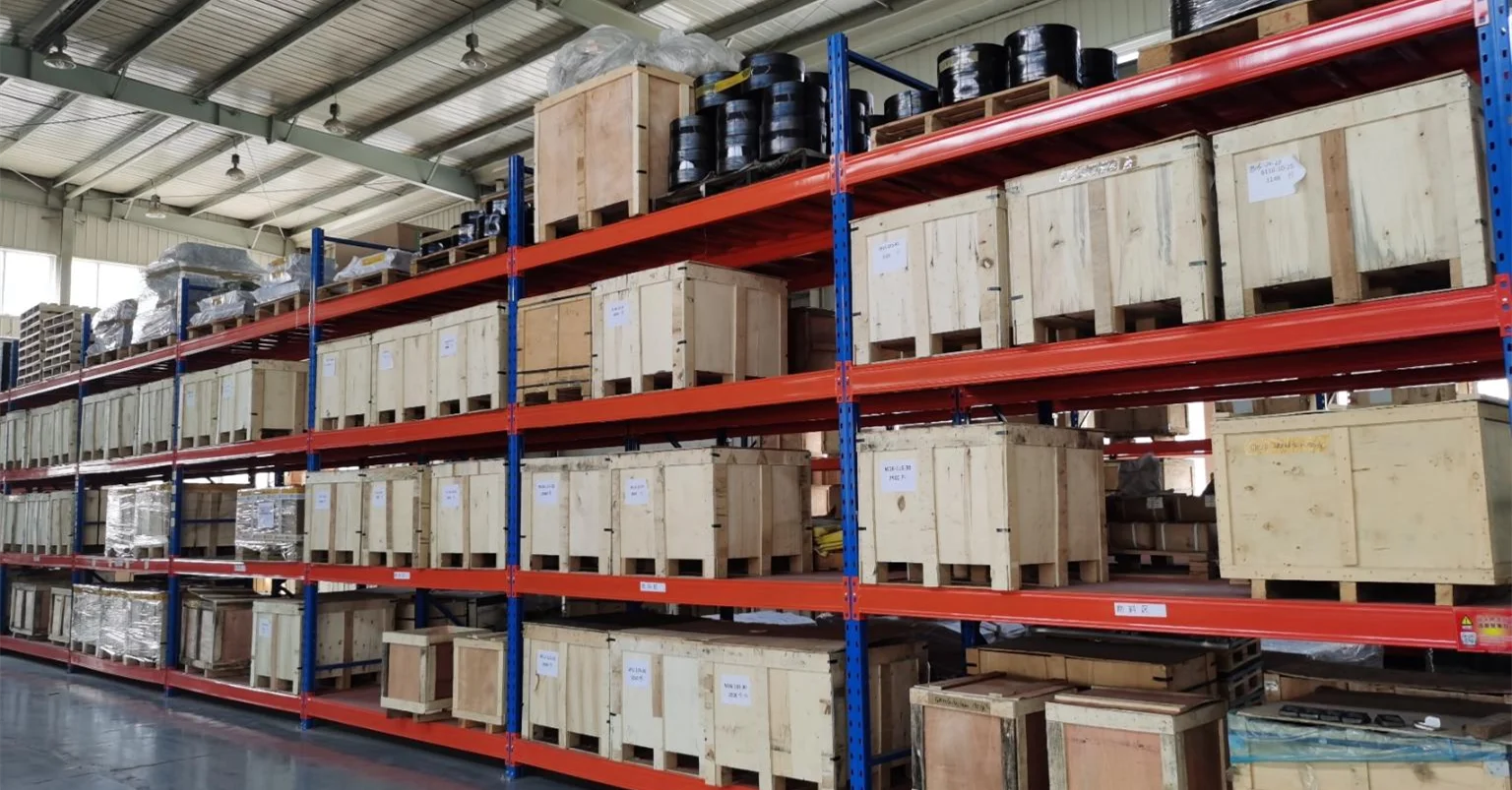

Company Profile
We, as a council member of China Port Association and Chinese Machinery Association of port machinery branch, also is the exclusive agent of British GSR crane rail system products in China. It is a professional technological company specializing in designing, manufacturing, sales and installation of rail fixing systems for cranes and other transport machinery and rail related products.
Our business scopes:
1. Supply GSR clips/pads, it is equivalent to the clips and pads of other brands.
2. Supply all series of cements and epoxy grout and repair materials.
3. Supply various domestic and international rails and service for rail cutting, drilling and bending.
4. Supply rail aluminum heat welding materials and aluminum heat welding service for rails.
5. Process and make all kinds of rail fittings, soleplates, anchor bolts and rubber pads.
6. Supply anchorage connection device for small steel structure and steel structure crane beam.
7. Supply Anchor box,compressible joint filler,force transmission plate,jacking points,storm pin.
8. Supply bollard, cable trench, rubber fenders, buffer stops and a variety of embedded parts for wharves.
9. Supply all kinds of stainless steel products.
10.Technical service for rail systems design and installation.
Major Projects
TAKRAF project:
New A150 rail project:we provided the GSR pads
and bolt clips for TAKRAF project in Tianjin.
and bolt clips for TAKRAF project in Tianjin.
Rizhao port project:
GSR W220/20 clip and GSR CRS 215 pad for A150
rail.
rail.
Contact Details
Company name: Tianjin Ocean Mechanical & Electrical Equipment Co., Ltd.
Address: 2-1207 Boling Building No.108 Dazhigu Mid Road Hedong District, Tianjin, China.
Tel: 0086 22 24387905
Fax: 0086 22 24387909
Ckype/WhatsApp/WeChat: 86 131 32559262 (Amy Guo)
