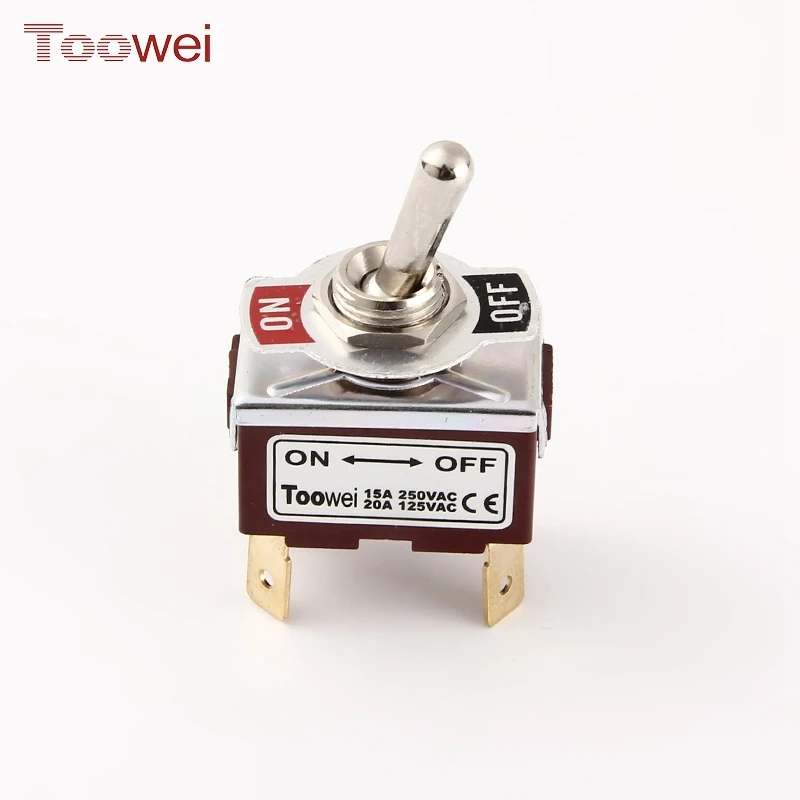

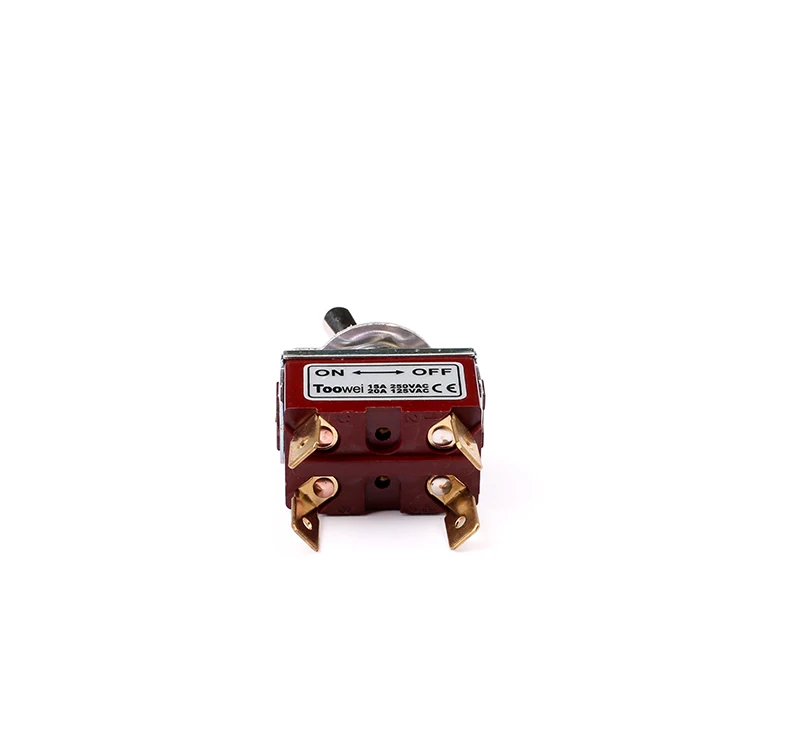

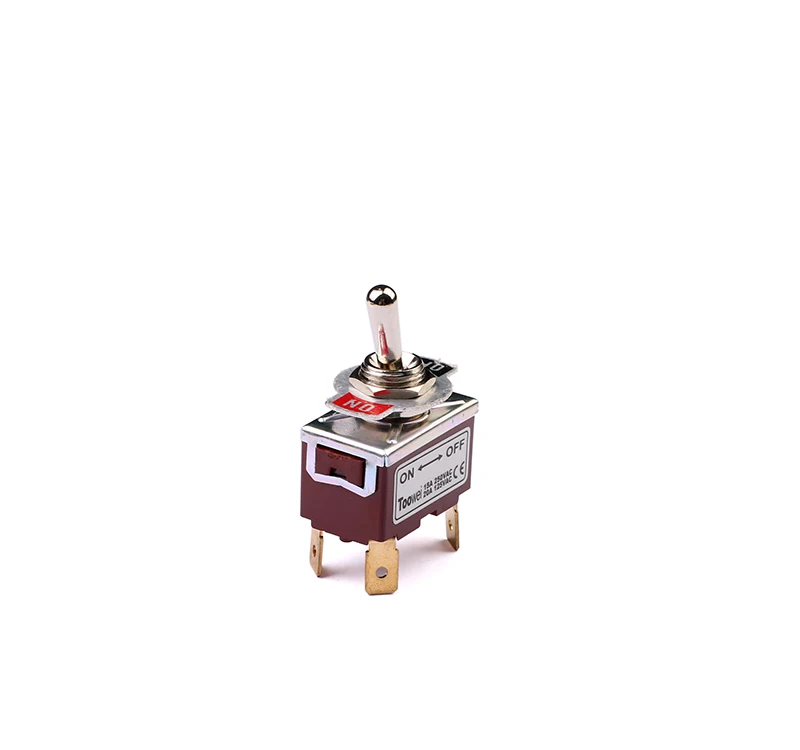

Toowei factory 12mm 4 pin mini on off toggle switch
Toowei factory 12mm 4 pin mini on off toggle switch
Toowei factory 12mm 4 pin mini on off toggle switch
Toowei factory 12mm 4 pin mini on off toggle switch

Toowei factory 12mm 4 pin mini on off toggle switch

Share on (62399870728):


Price:$0.75

Quantity:


Product Overview

Description


Product Description
The T700 series toggle switch is rated at 10A 250V/15A 250v, suitable for AC 50Hz/60Hz. This switch is used as the switching mode and reset mode in the circuit. The terminal block has screws, quick-connect terminals and soldering terminals. Dust, waterproof and oil proof, suitable for the whole series.
Model name
T702AT
Rating Value
10A 250VAC
Pole code
double group
Function code
ON-OFF
Terminal form
Quick-connect terminal/Soldering terminal/Screw terminal
color
Brown Black

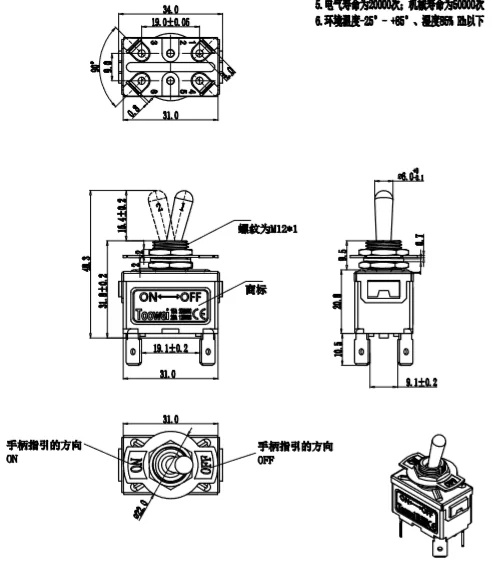

Technical parameters
Technical parameters
1. Rating Value: 10A 250VAC
2. Operating Force: 8N-24N
3. Ambient temperature: -25℃~+85℃
4. Withstand voltage： 1500VAC 50/60hz
Leakage current：5mA
5. Insulation resistance ≥100mΩ
Contact resistance ≤ 50mΩ
6. Electrical life： 20,000 times
Mechanical life: 50,000 times
7. Humidity： below 85% RH
8. Terminal form : Quick-connect terminal
Solderable soldering iron: 345±5° 1~2S
Solder resistance soldering iron：345±5° 3~5S
