The EA15A can be mounted in various place, like generator control panel, switchgear cabinets, ect. But prevent high temperature, high moisture, or severe vibration places. The EA15A surface temperature will be over 60°C when operations. DO not touch the heat sink.
Technical Data
Brushless AVR
EA15A
Sensing Voltage Input
190-500V AC, 1 phase 2 wire Jumper selectable
Voltage Input
100-300V AC, 1 phase 2 wire
Frequency
50-60Hz nominal
Voltage Output
max 90V dc at 240V ac input
Current
continuous 15A. Intermittent 20A for 10secs
Resistance
9 Ω minimum
Regulator
±0.5% with 4% engine governing
Type
brushless
Detailed Images

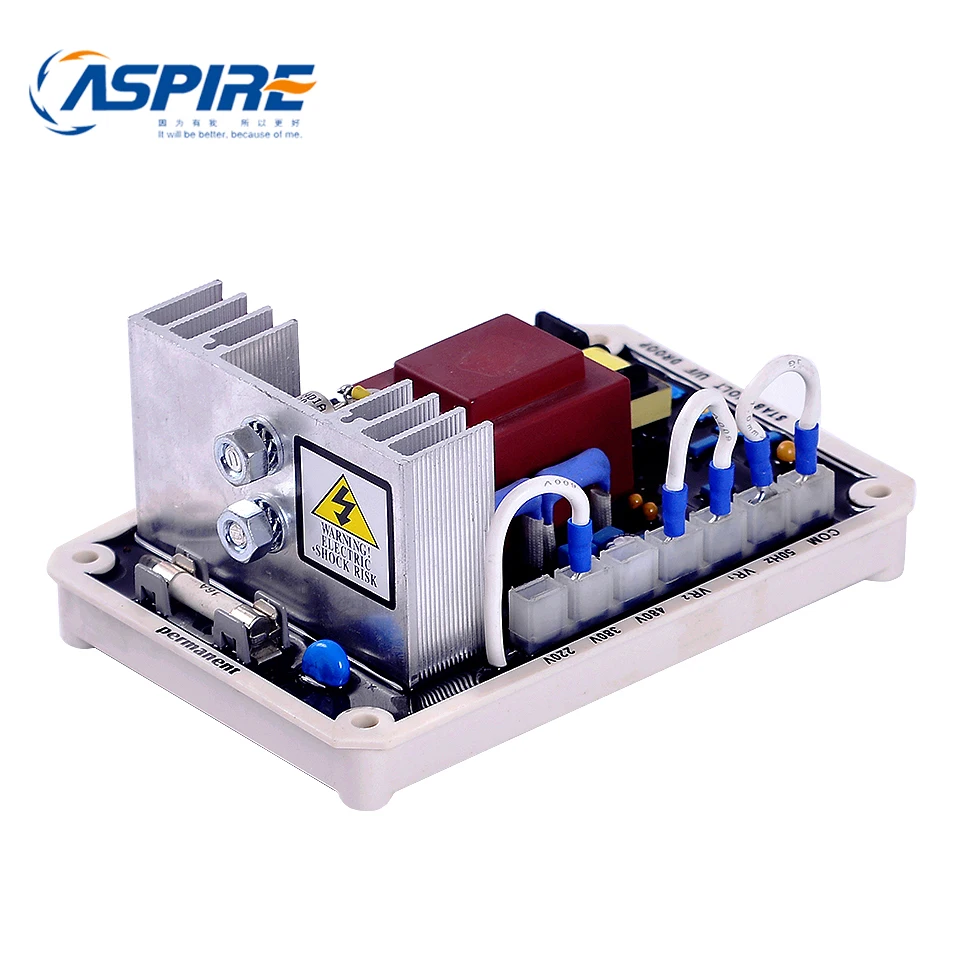

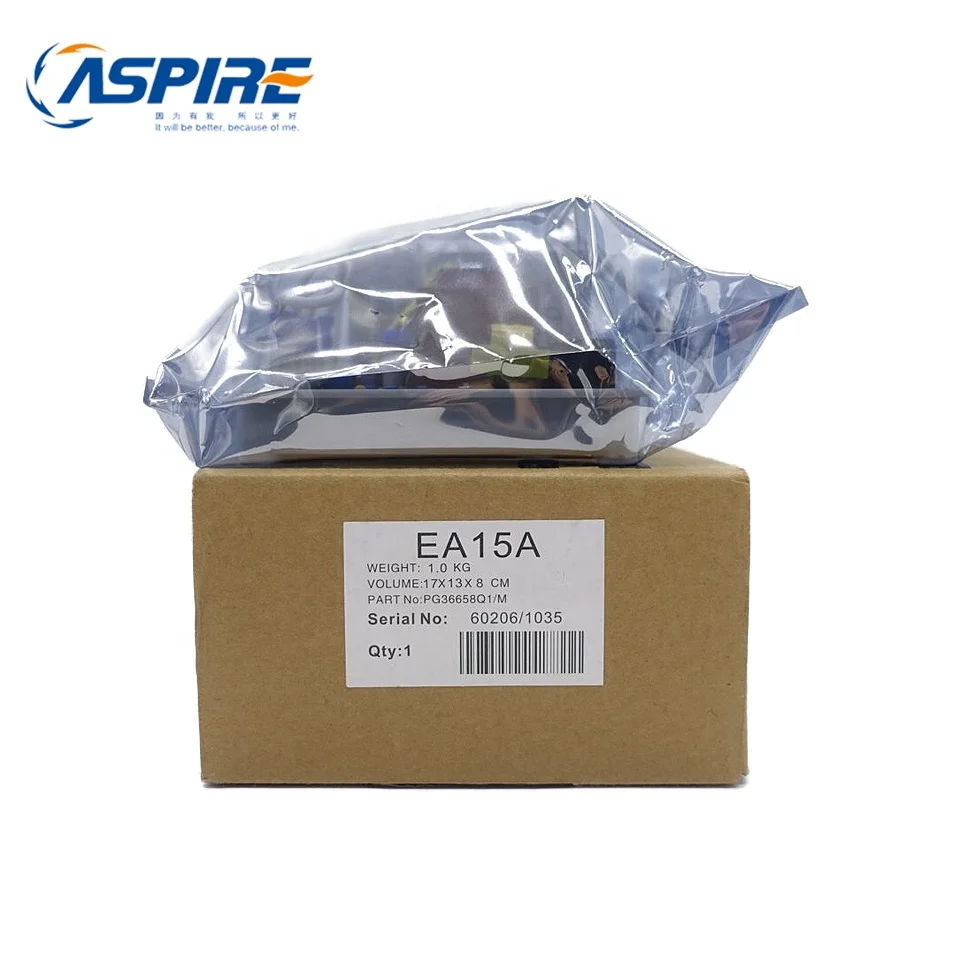

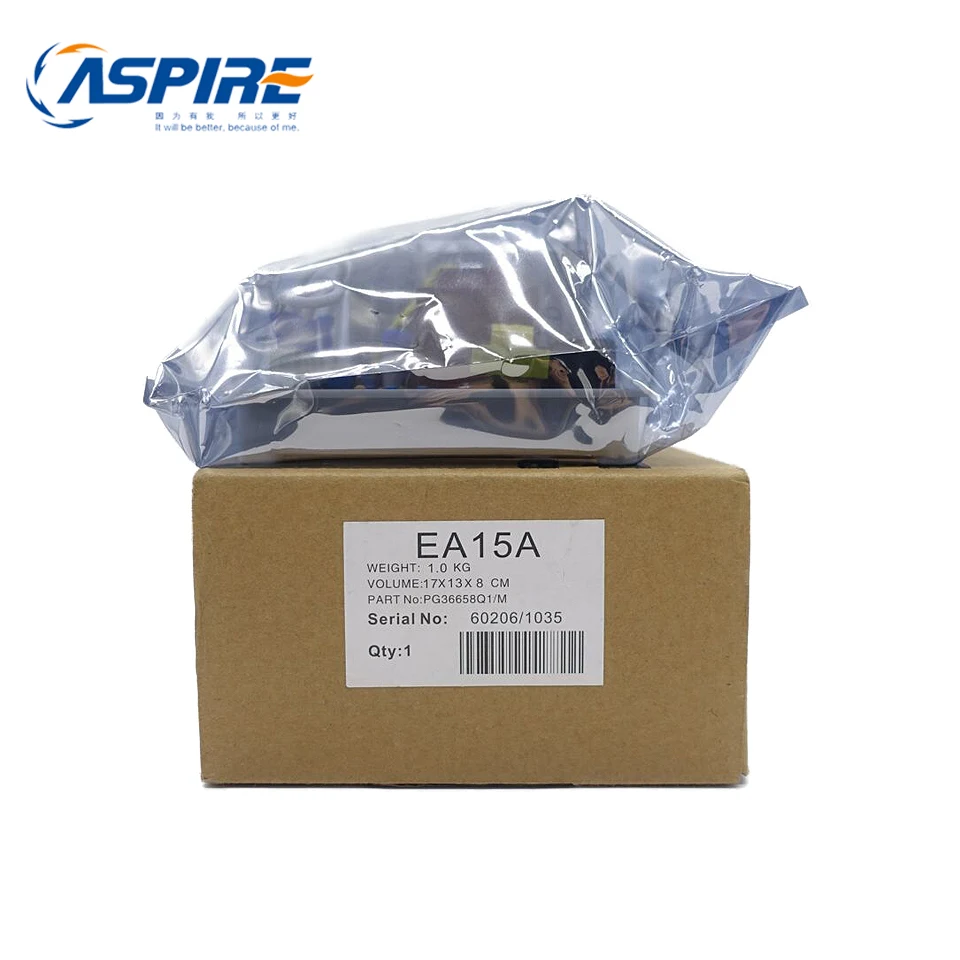

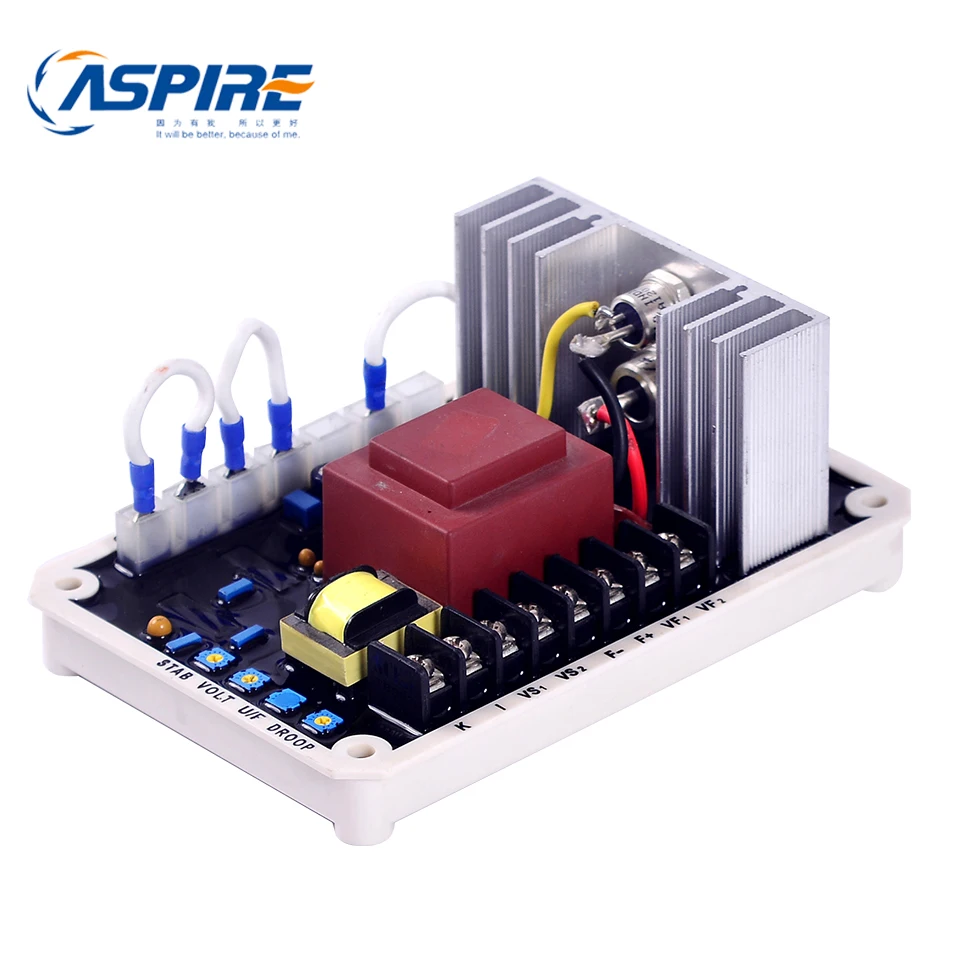

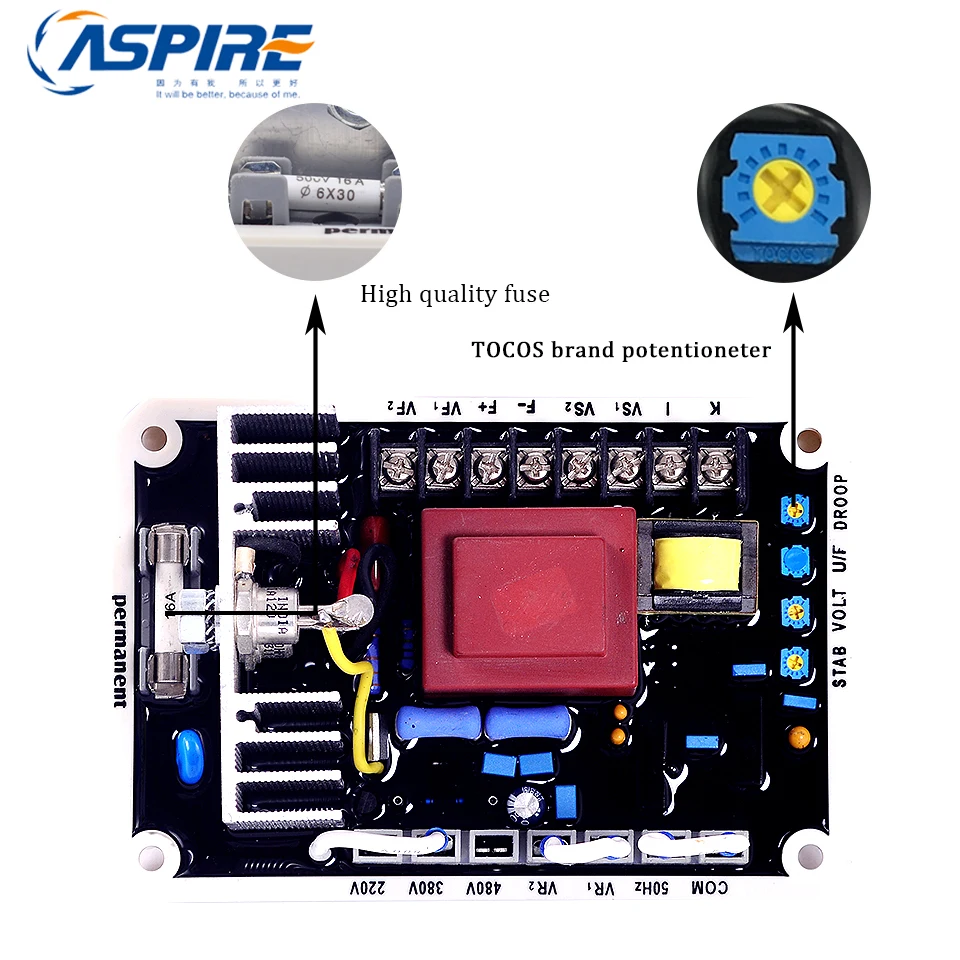

AVR EA15A Pictures
Related Products
Company Information
Certificate
Contact Us
FAQ
Q1: Are you trading company or manufacturer ?
A: We are factory more than 12 years since 2006.We have a professional team to develop and manufacture the generator spare parts and supply technical support, with factory price and timely delivery.
Q2: How long is your delivery time?
A: Most parts are in stock.Generally it is 2-3 days if the goods are in stock. or it is 7-15 days if the goods are not in stock, it based on the quantity.
Q3: What is your guarantee ?
A: Our warranty is one year for neutral products and two years for Aspire logo products .We can replace a new one in your next order if the product is broken during this period.However, even your products are beyond the warranty,we are still glad to supply technical support for you.
Q4:Can your products be used in severe condition place?
A: Don't worry. We test our products both in high temperatuer and low temperature testing equipment, from -40°C to 80°C.
