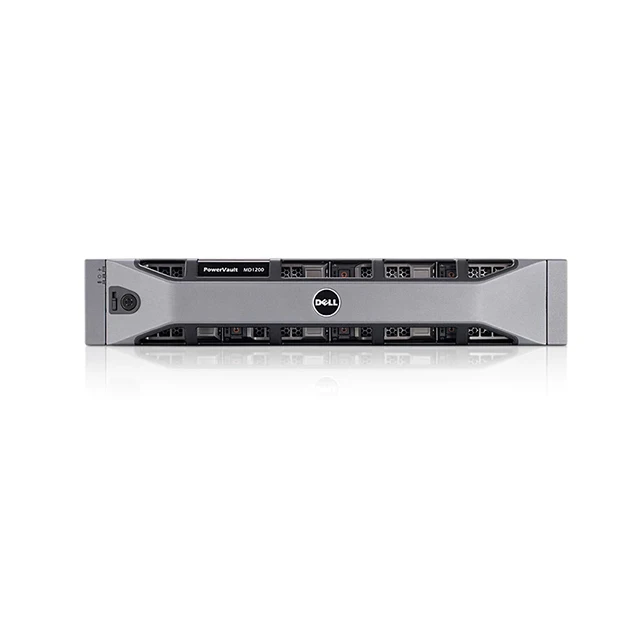

Stock new network storage Dell PowerVault MD1220

Feature

Dell PowerVault MD1220

PERC H810

PCI-E 2.0 HostRAID adapter with two external x4 SAS ports, standard 512MB cache and TBBU

Drives and capacity

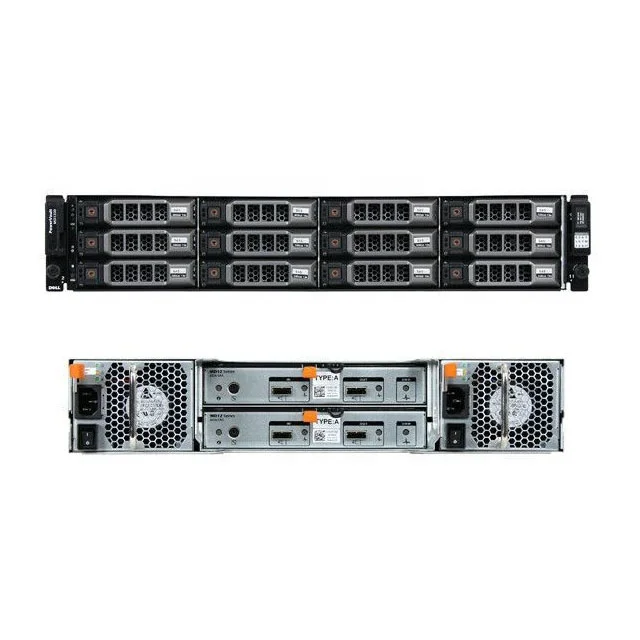

Drives

Up to twelve (12) hot-pluggable SAS HDDs at 7.2K, 10K, and 15K RPM and SAS SSDs; mix and match 3.5” and 2.5” drives (2.5” requires 3.5” carriers)

Drive performance and capacities

3.5” 6Gbps SAS:

HDD 15K – 300GB, 450GB, 600GB

HDD 7.2K – 1TB, 2TB, 3TB, 4TB, 6TB

3.5” 12Gbps NL-SAS: 1

HDD 7.2K SAS 512e – 6TB, 8TB, 10TB

2.5” 12Gbps SAS with 3.5” carrier:

7.2K HDD NL-SAS 512e – 2TB

SSD – 200GB, 400GB, 800GB, 1.6TB MU MLC

SSD – 200GB, 400GB, 800GB WI MLC

SSD – 800GB, 1.6TB RI MLC

2.5” 6Gbps SAS with 3.5” carrier:

HDD 10K – 300GB, 600GB, 900GB, 1.2TB

HDD 10K 512e – 1.8TB

SSD – 400GB mainstream SLC; 200GB, 800GB

value SLC; 800GB RI MLC; 200GB, 400GB WI SLC

Maximum capacity

(per enclosure) Up to 120TB when using 12 x 10TB NL-SAS 3.5” HDDs

Expansion capabilities

PERC H810 HostRAID adapter enables expansion to 8 enclosures (4 enclosures per port)

Host connectivity

Unified mode

Unified mode (single path) for daisy chaining of up to 8 enclosures per PERC H810

(4 enclosures per port, single path)

Unified mode (recommended redundant path) for daisy chaining up to 4 enclosures per PERC H810 (4

enclosures connected to both ports via redundant path cabling)

Split-mode/dual-host access

Split mode with dual EMM providing direct connectivity to drives 0 though 5 and a separate connectivity to drives 6 through 11

Enclosure Management Modules (EMM) and RAID

EMM

2 EMMs provide redundant enclosure management capability; hot-swappable

RAID

PERC H810 supports RAID levels 0, 1, 5, 6, 10, 50, and 60

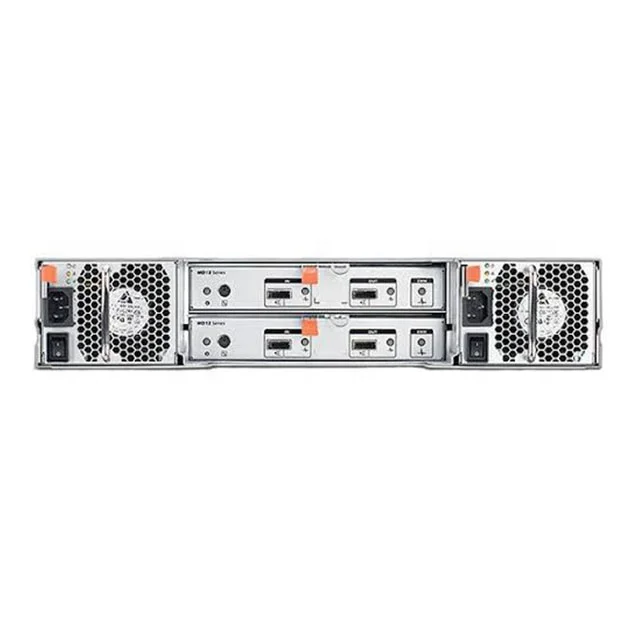

Back-panel connectors (per EMM)

Host connectivity

1 SAS (SFF 8088) IN connector for connection to the host

Expansion connectivity

1 SAS (SFF 8088) OUT connector for expansion to an additional enclosure

Service management

1 6-pin UART mini-DIN connector (for factory use only)
