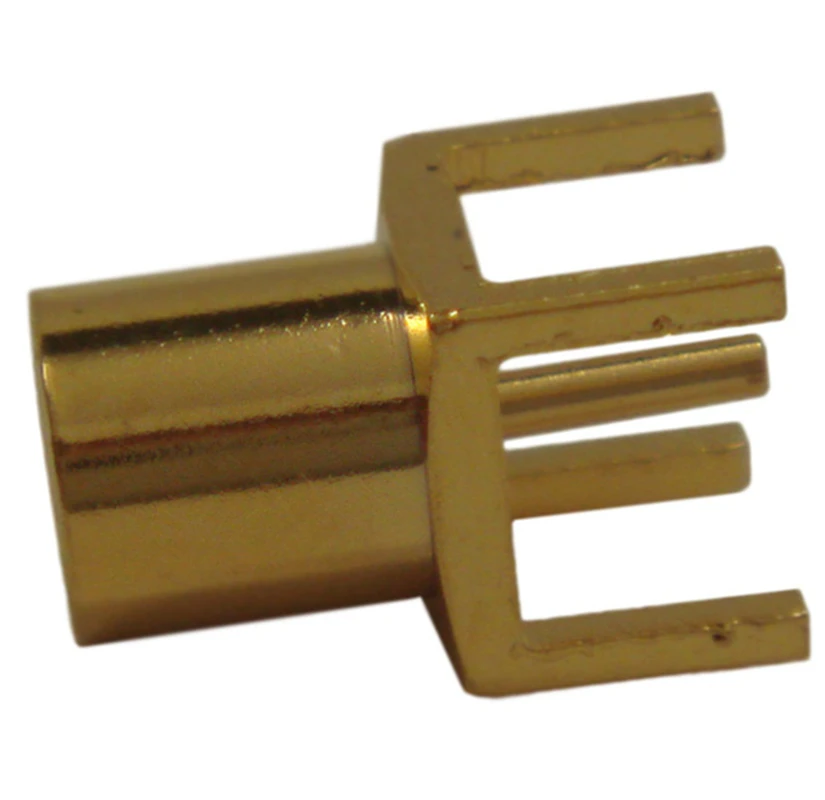

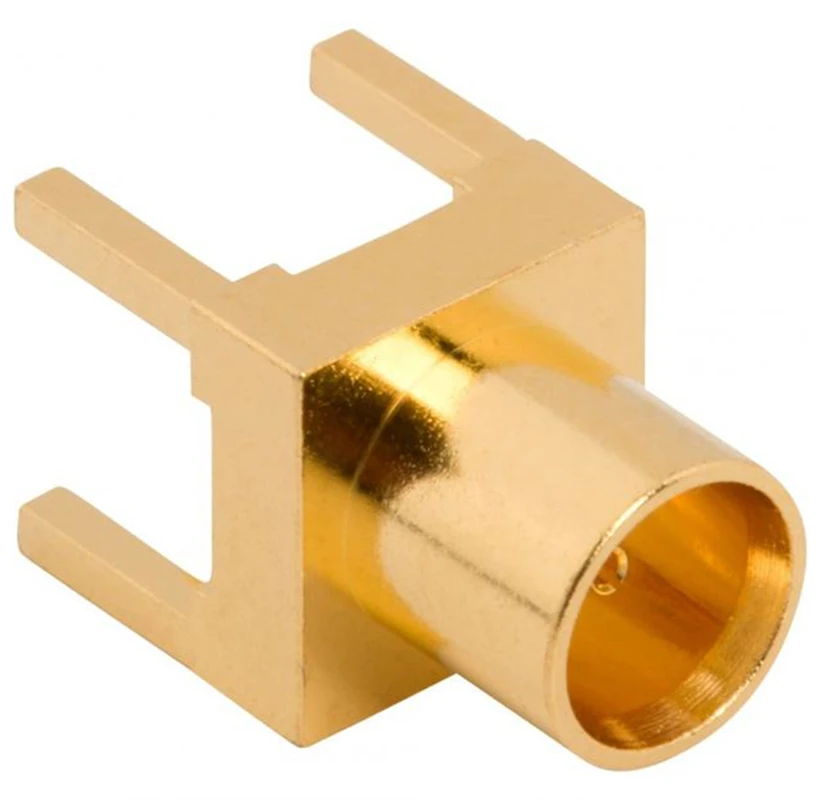

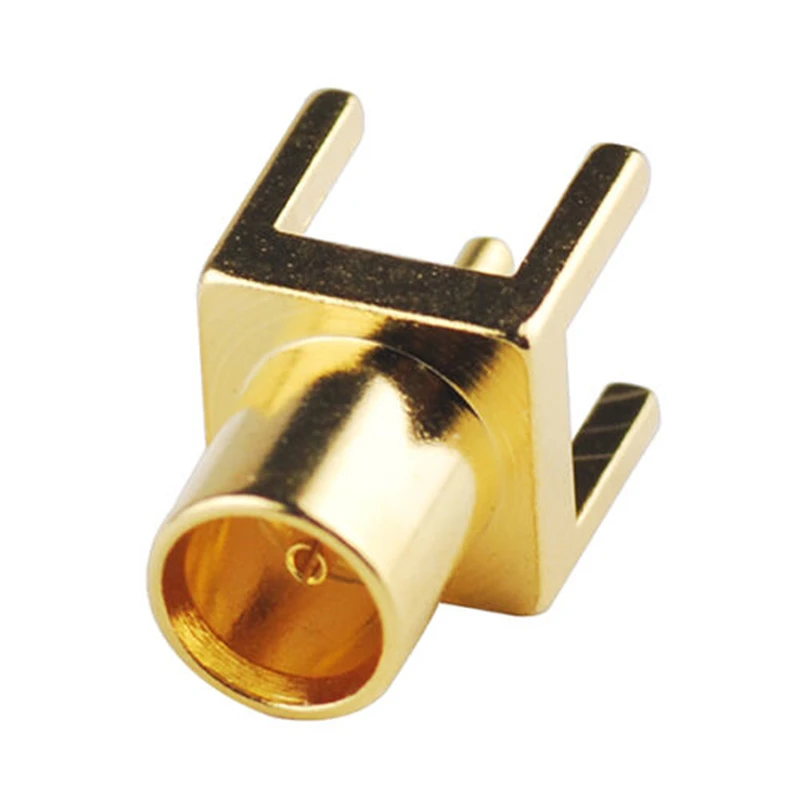

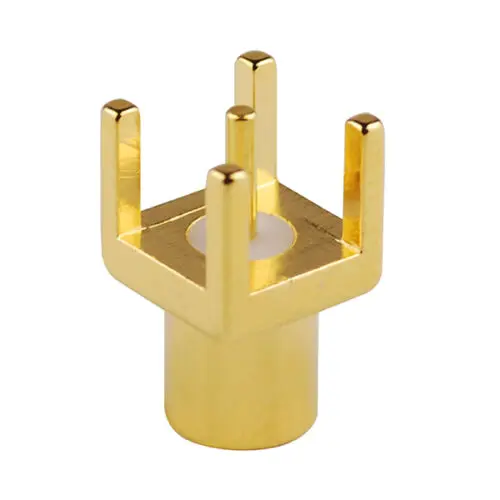

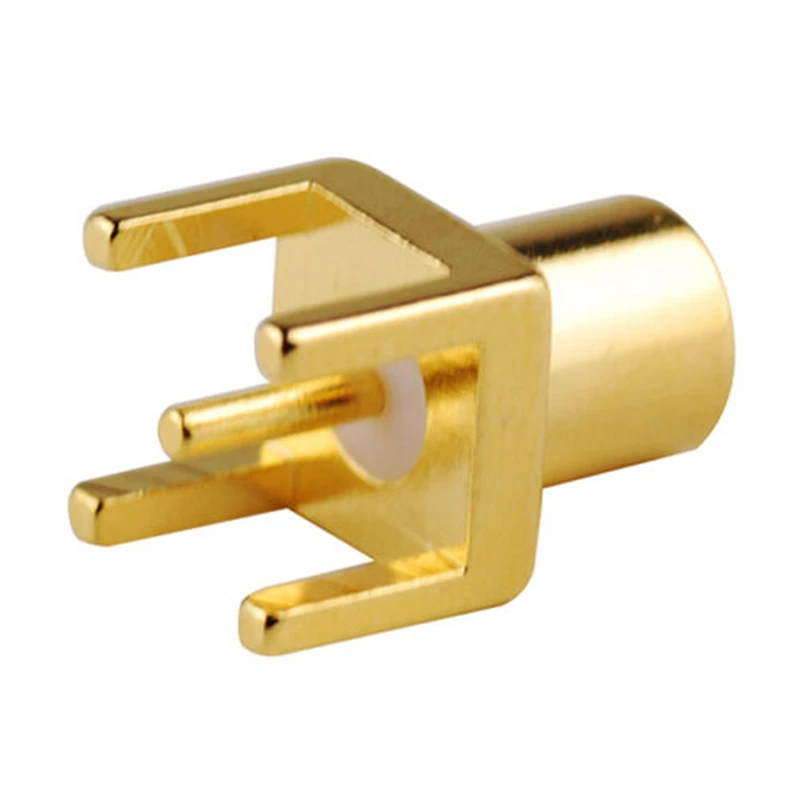

MCX Type Female Socket Mount PCB Board straight 50ohm RF Coax Adapter Connectors
MCX Type Female Socket Mount PCB Board straight 50ohm RF Coax Adapter Connectors
MCX Type Female Socket Mount PCB Board straight 50ohm RF Coax Adapter Connectors
MCX Type Female Socket Mount PCB Board straight 50ohm RF Coax Adapter Connectors
MCX Type Female Socket Mount PCB Board straight 50ohm RF Coax Adapter Connectors
MCX Type Female Socket Mount PCB Board straight 50ohm RF Coax Adapter Connectors
MCX Type Female Socket Mount PCB Board straight 50ohm RF Coax Adapter Connectors

MCX Type Female Socket Mount PCB Board straight 50ohm RF Coax Adapter Connectors

Share on (62402863628):


Price:$0.10

Quantity:


Product Overview

Description


Product Description
THE series of MCX radio frequency joining device is that one kind is since pushed the lock type joining divice small-scaly,it has a small,light,characteristic with comapct structure.Small-scale electronic equippment or network system that can be used for requiring to volume,weight and installaton way.
Temp.range
-65~ + 165℃
Impedance
50 Ω
Frequency range
0 ~ 6 GHz
Center conductor withdrawal force
≥ 0.25 N
Contact resistance
Center conductor ≤ 4 mΩ
Outer conductor   ≤ 2 mΩ
Insulation resistance
≥ 1000 mΩ
Withstand voltage
750 V rms ( At seal level )
Working voltage
33.5 V
VSWR
Straight ≤ 1.3
Angel     ≤ 1.5
Durability
500 cycles
Connector Part
Material
Plating
Bodies
Brass
Gold
Socket Contact
Beryllium-copper
Gold
Insulator
PTFE
Natural

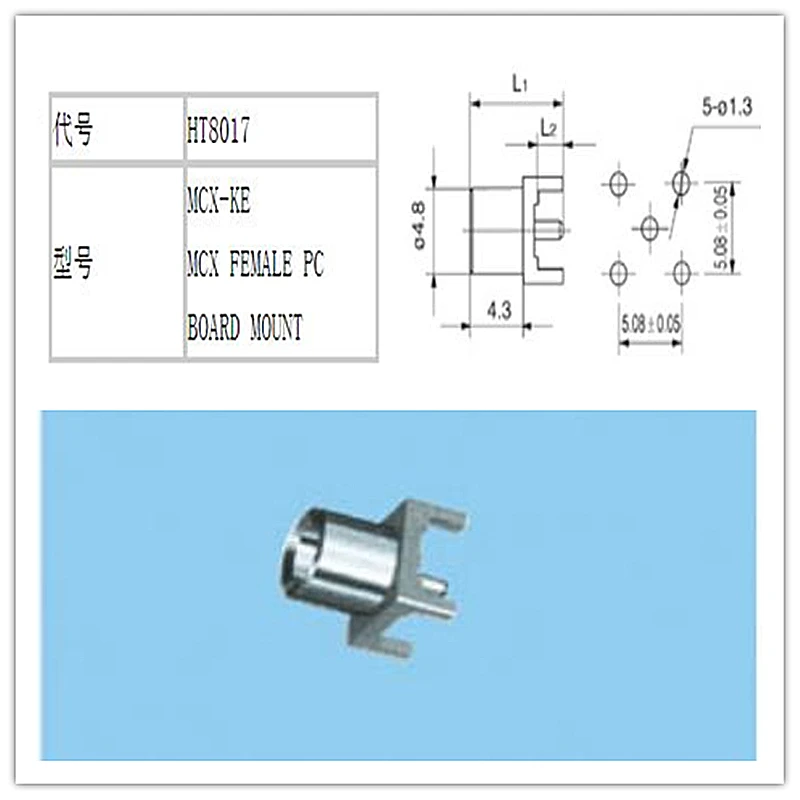

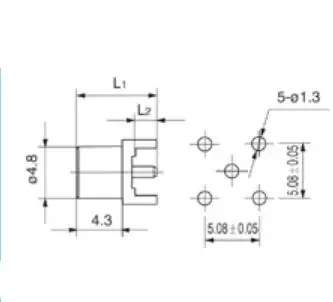

Size Information
Applicable Standard: CECC 22340
Size:  International Standard Or Customized
Application

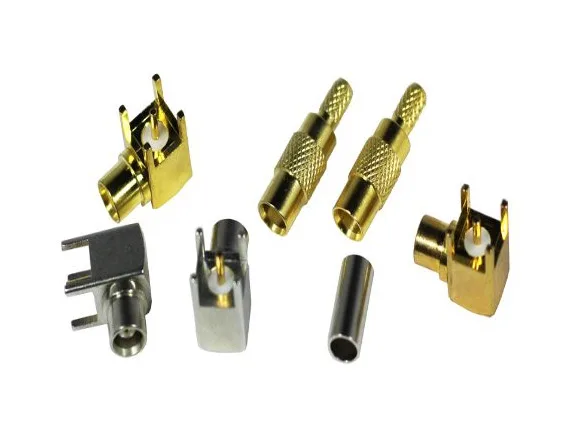

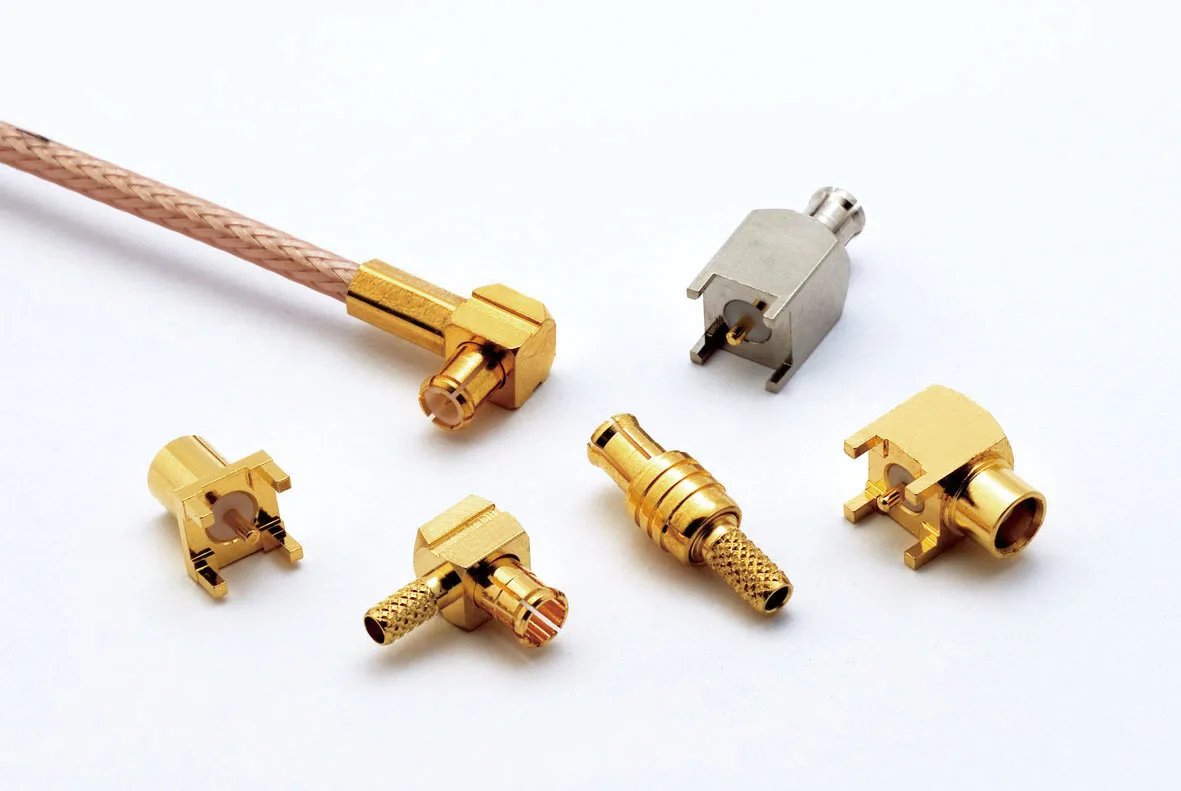

MCX Connector Application:
Antenna, Broadband Communication, Cellular Phone, GPS, Instrumentation, Radio Board, RF Test port, Satellite Reception Terminal, Telecom, Wireless Application, Wireless LAN

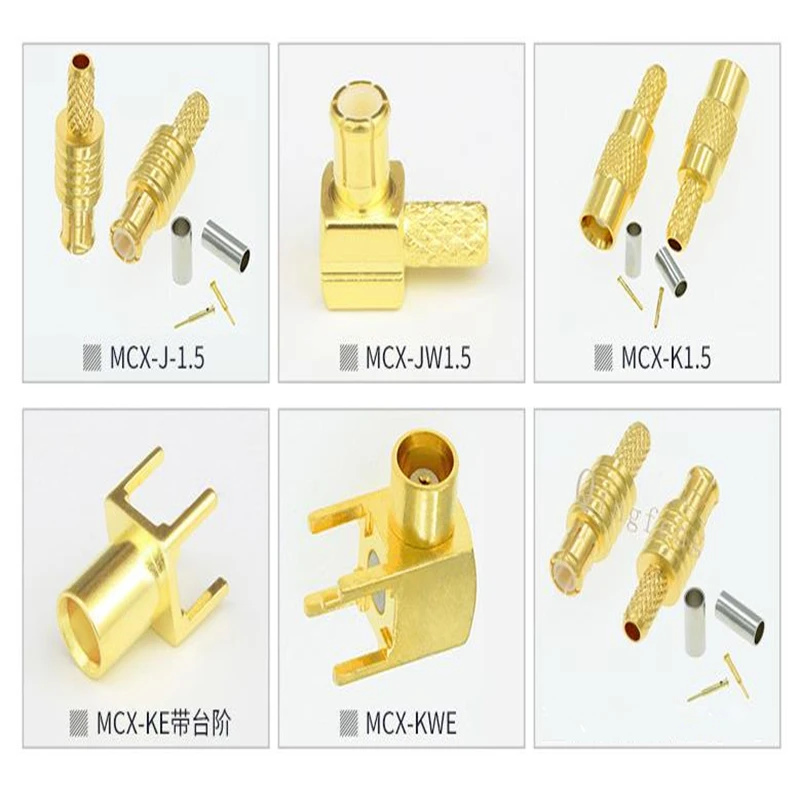

Related Products
Packing&Shipping
Can provide various sizes and packing according to specific requirements; Packing material: PP bag,copy
paper,carton,wooden box,palltes; Meet export requirement; According to customer's required.
