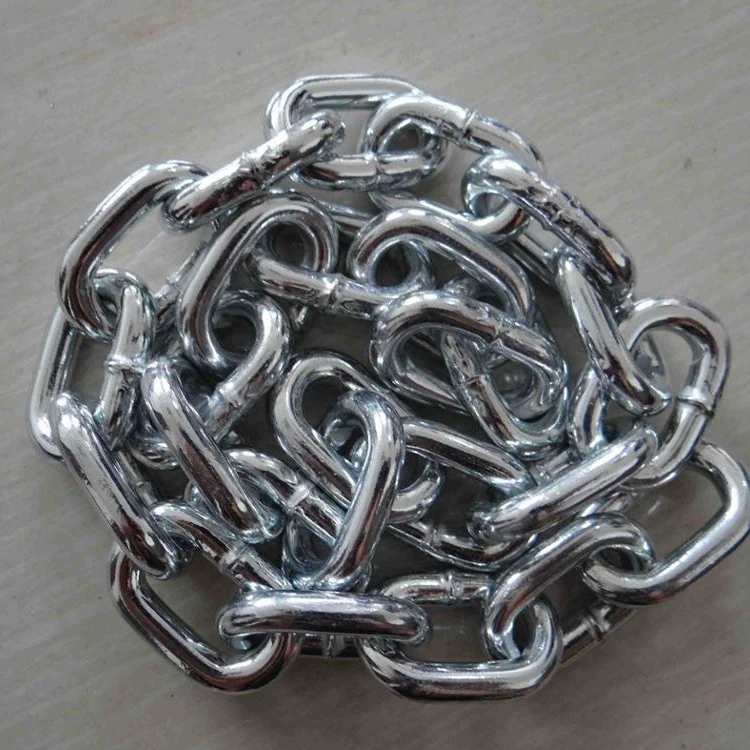

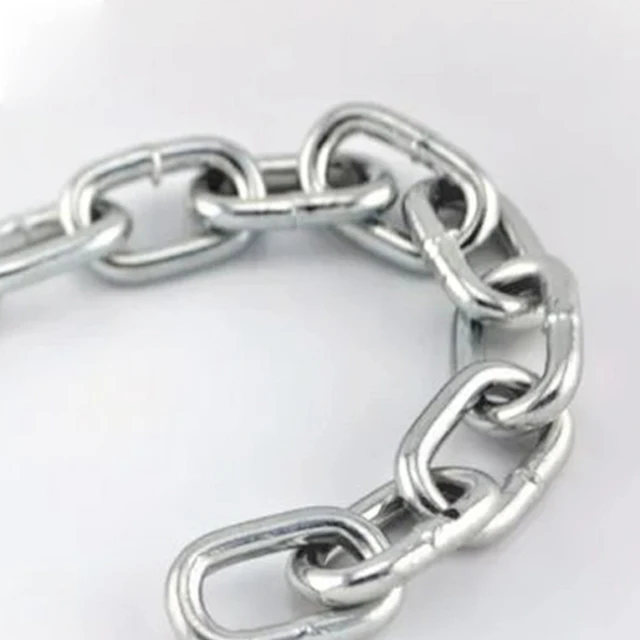

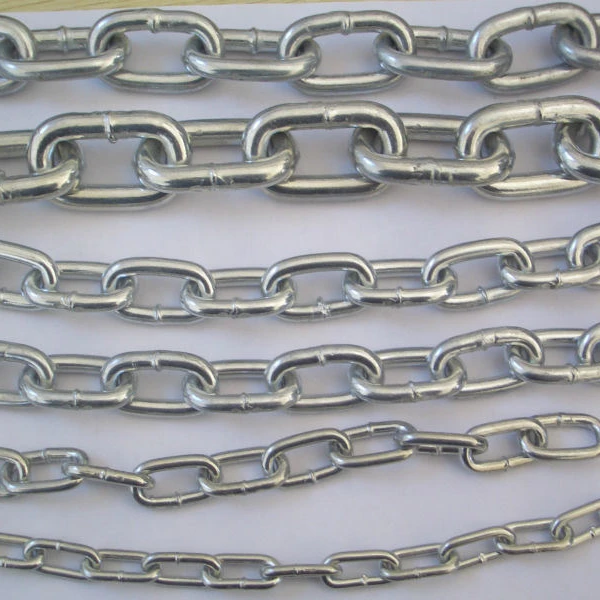

Stainless Steel 304 and 316 Long Link Chain

Stainless Steel 304 and 316 Long Link Chain

Category: Chains >>>
Supplier: Weifang First Rigging Co. Ltd.

Price:

Quantity:

Product Overview

Description

Product Description

DIN 5685A/C Short/Long Link Chain:

Size	Inside Length		Outside Width	Weight Per 100M		Working Load	Breaking Load	Grade
MM	MM		MM	KG		N	N	Grade
2	12	22	8	7	6	500	1250	A	C
2.5	14	24	10	11	10	750	2000	A	C
3	16	26	12	16.5	15	1120	2800	A	C
3.5	18	28	14	22.5	20	1500	3850	A	C
4	19	32	16	30	27	2000	5000	A	C
4.5	20	34	18	39.5	35	2500	6300	A	C
5	21	35	20	50	43	3150	7750	A	C
5.5	23	38.5	22	60.5	52	3800	9500	A	C
6	24	42	24	73	63	4500	11500	A	C
6.5	26	45.5	26	86	74	5400	13500	A	C
7	28	49	28	100	86	6000	15000	A	C
8	32	52	32	130	100	8000	20000	A	C
8.5	34	56	34	149	125	9000	22500	A	C
9	36	59	36	165	141	10000	25000	A	C
10	40	65	40	205	175	12500	31000	A	C
11	44	72	44	250	211	15000	38000	A	C
12	48	78	48	290	255	18000	45000	A	C
13	52	82	52	345	295	21200	53000	A	C
