Full Automatic Pet Blow Machine Auto Bottle Blowing Machine
US $13000-$30000
PET automatic stretching blow molding machine JS 600B
- Category: Stretch Blow Moulding Machines >>>
- Supplier: Taizhou Jiansheng Machinery Co. Ltd.
Share on (62402943043):
Product Overview
Description
Company Information

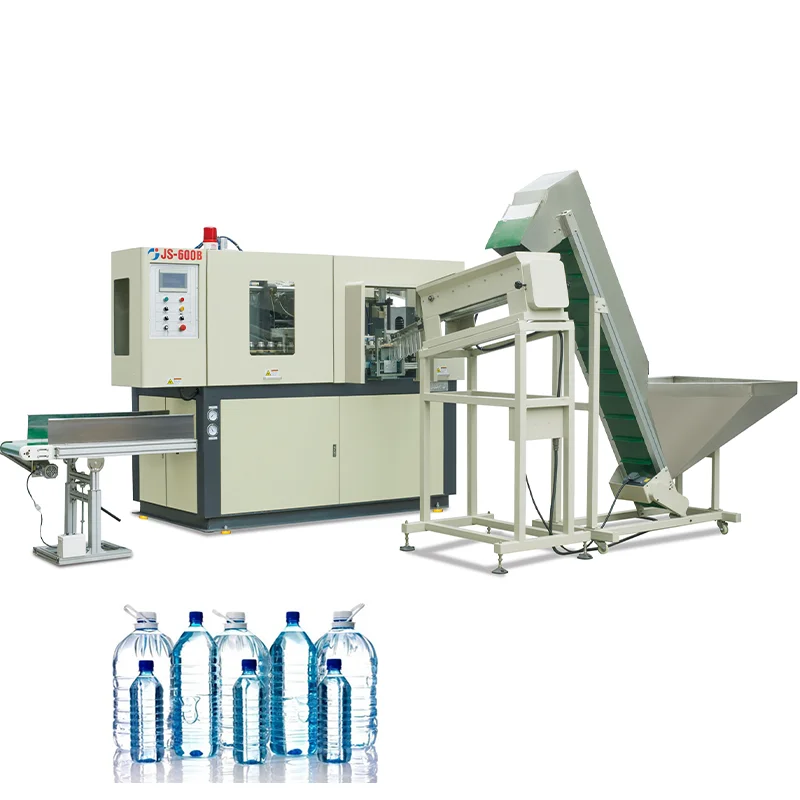

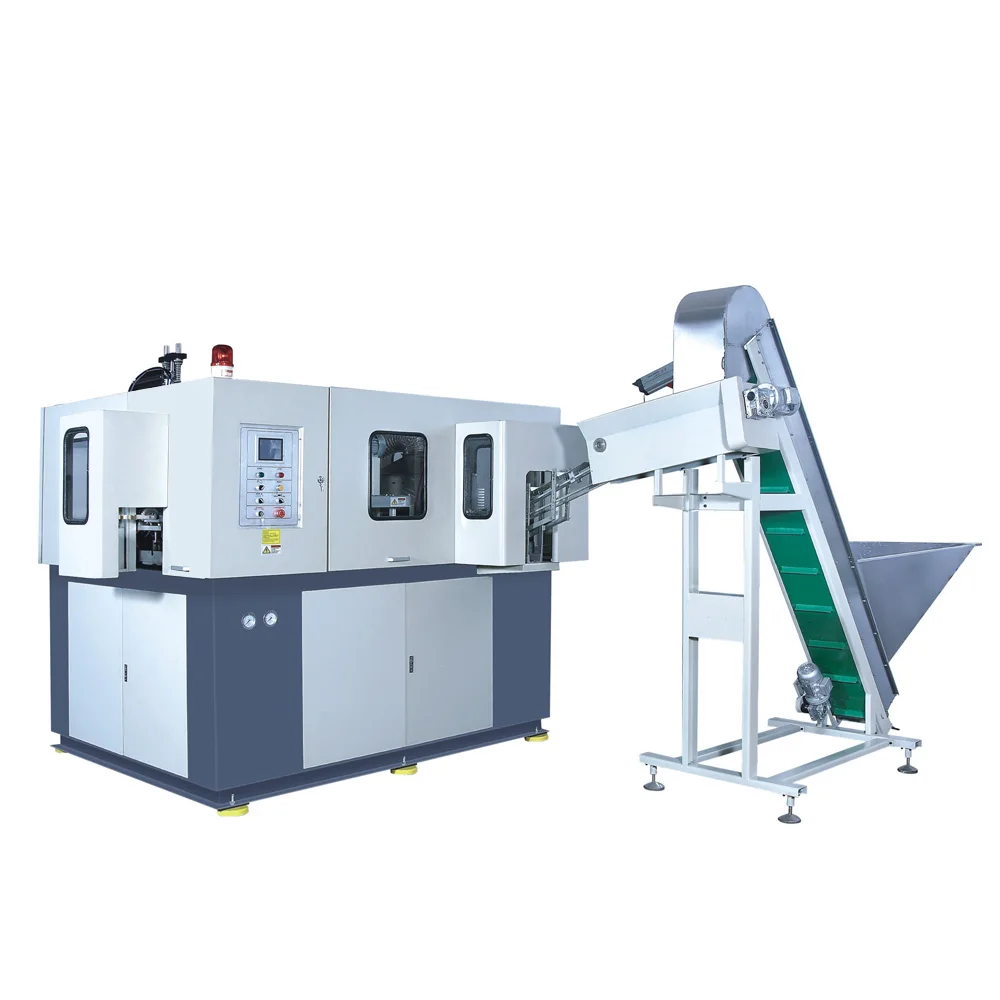

Full Automatic Stretch Blow Molding Machine
Type: JS-600B
Company Profile:
Component

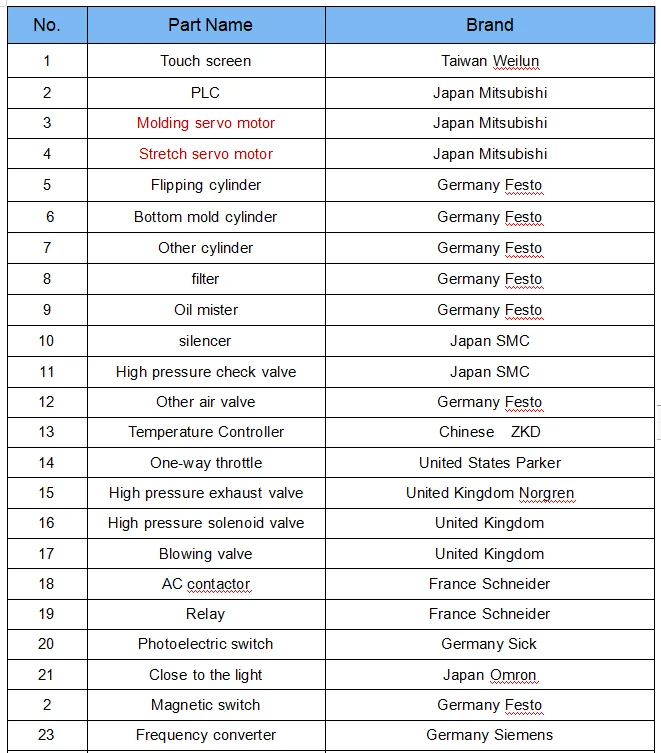

Machine Component:
parameter:
parameter:
General Infomation | JS-600B | |
Container | Theoretical Output | 500-750pcs/hr |
Max.container volume | 5L | |
Max.neck diameter | 120mm | |
Max.container diameter | 180mm | |
Max.container height | 350mm | |
Number of cavity | 1cavity | |
Electrical System | Total Power | 31kw |
Use Power | 18kw | |
Air System | Working Pressure | 1.0Mpa |
Low Pressure Consuming | 1000L/min | |
Blow Pressure | ≤3.5Mpa | |
High Pressure Consuming | 1600L/min | |
Chiller Water | Operating Pressure | 0.3-0.5Mpa |
Temperature | 10-12℃ | |
Flow Rate | 45L/min | |
Machine | Machine Dimension | 2.5*1.5*2.0m |
Machine Weight | 4500kg | |
Conveyor belt | Yes | |
Feeding Machine Dimension | 2000*1300*2300 |
CONNECTIONS:
Other Products
Exhibition&ship&pack
Exhibition:

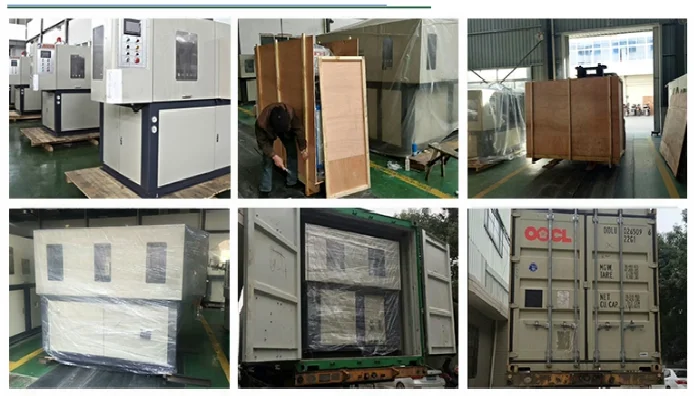

SHIPPING:

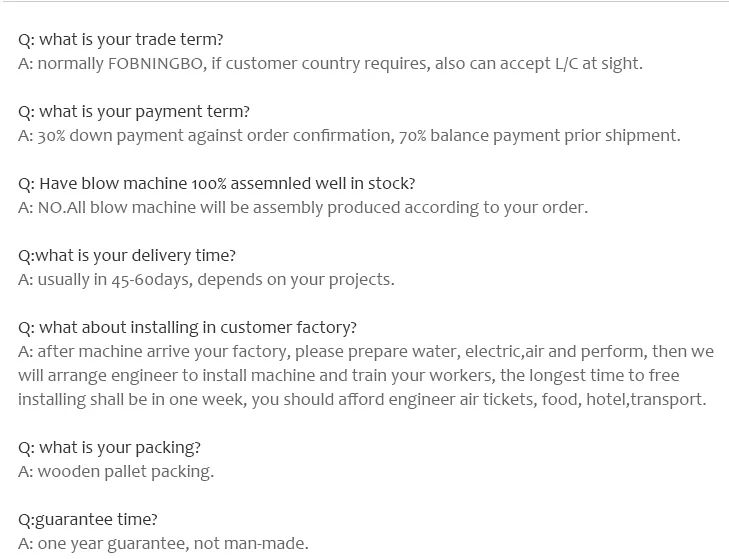

FAQ--
