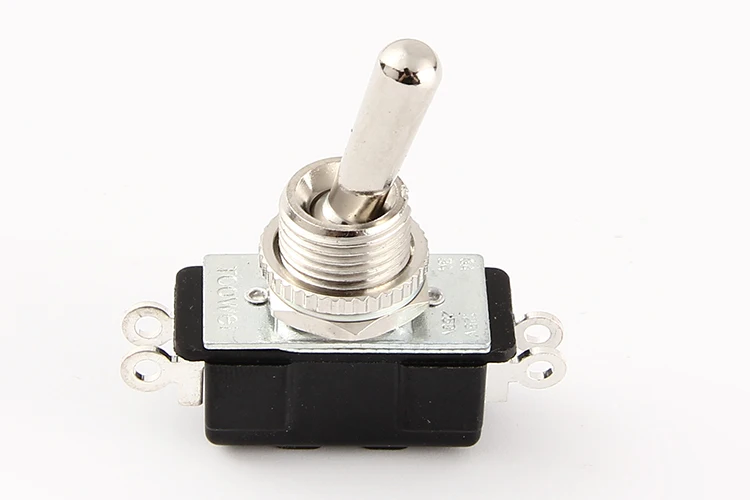

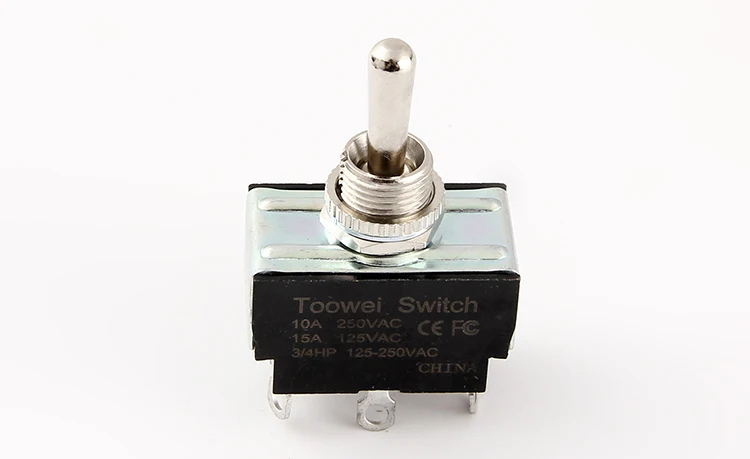

Toowei 12mm spring return on off on toggle switch
Toowei 12mm spring return on off on toggle switch

Toowei 12mm spring return on off on toggle switch

Share on (62403240780):


Price:$1.26

Quantity:


Product Overview

Description


Product Description
Designed to fit most needs, the T600 Series is designed to accommodate a wide range of actuators, bushings, terminals and circuits, making this versatile switch easy to integrate into a wide range of applications. Applications of the T series: food machinery, generators, industrial controls, office automation and markets. These are all used in low voltage AC/DC applications, as well as in the proper operating range.

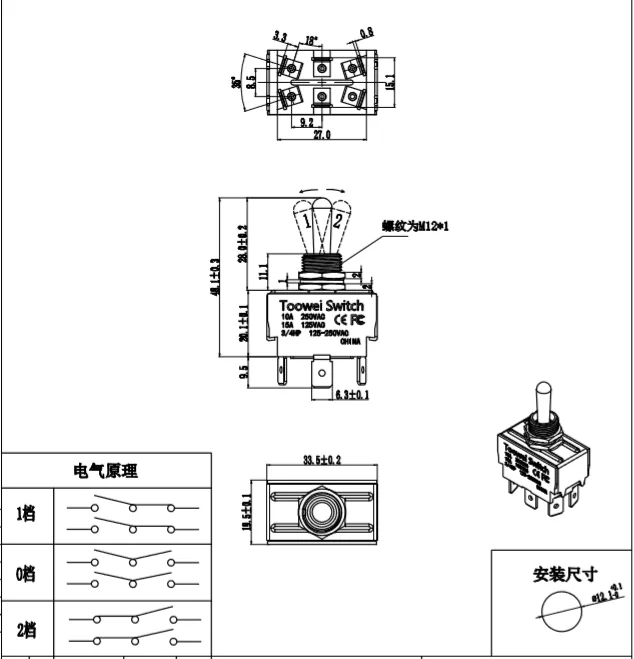

Pole code
double group
Function code
ON-OFF-ON
Terminal form
 Quick-connect terminal
color
Black
Technical parameters
Technical parameters
1. Rating Value: 10A 250VAC/15A 125VAC
2. Operating Force: 8N-24N
3. Ambient temperature: -25℃~+85℃
4. Withstand voltage： 1500VAC 50/60hz
Leakage current：5mA
5. Insulation resistance ≥100mΩ
Contact resistance ≤ 50mΩ
6. Electrical life： 20,000 times
Mechanical life: 50,000 times
7. Humidity： below 85% RH
8. Terminal form : Soldering terminal
Solderable soldering iron: 345±5° 1~2S
Solder resistance soldering iron：345±5° 3~5S
