Hot Video 4 port Kvm HDMI Switch With EDID 4K 60hz
- Category: KVM Switches >>>
- Supplier: Shenzhen Tesla Elec Technology Co. Ltd
Share on (62403408015):
Product Overview
Description
Product Description
Hot Video 4 port Kvm HDMI Switch With EDID 4K 60hz
The 4x1 HDMI KVM Switch supports USB 2.0 device, you even can attach USB drive, printer, barcode scanner or other USB devices to the KVM. Switching can be controlled through variable methods, front panel buttons, IR signals, keyboard hot keys and mouse gesture to control KVM to switch inputs. Support analog L/R audio output. Support keyboard and mouse pass through mode to improve
KM compatibility.

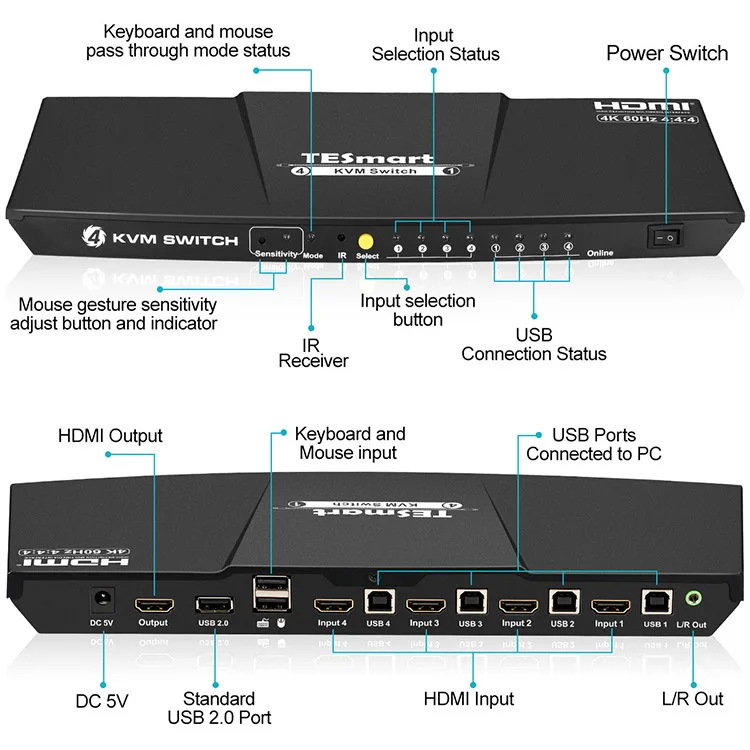

Panel Description
Features
* Using only 1 set of keyboard, mouse and monitor to control 4 PCs
* Support auto switching to monitor computers in a specified time interval
* Support front panel buttons, IR signals, keyboard hot keys and mouse gesture to control KVM to switch inputs
* Available to use keyboard and mouse without any delay after switch input sources
* Support resolution up to 3840*2160@60Hz 4:4:4
* HDCP 2.2 compliant
* Support USB 2.0 for printers, USB drives, etc
* With EDID emulators in eachinput port, keep PCs always having correct display information
* Support Unix/Windows/Debian/Ubuntu/Fedora /Mac OS X/Raspbian/Ubuntu for Raspberry Pi and other Linux based system.
* Support hot plugged, connect or disconnect devices to the KVM switch in any time and without turn off devices
* Support analog L/R audio output
* Support HDR 10 and Dolby Vision
* Support keyboard and mouse pass through mode to improve KM compatibility
* Support auto switching to monitor computers in a specified time interval
* Support front panel buttons, IR signals, keyboard hot keys and mouse gesture to control KVM to switch inputs
* Available to use keyboard and mouse without any delay after switch input sources
* Support resolution up to 3840*2160@60Hz 4:4:4
* HDCP 2.2 compliant
* Support USB 2.0 for printers, USB drives, etc
* With EDID emulators in eachinput port, keep PCs always having correct display information
* Support Unix/Windows/Debian/Ubuntu/Fedora /Mac OS X/Raspbian/Ubuntu for Raspberry Pi and other Linux based system.
* Support hot plugged, connect or disconnect devices to the KVM switch in any time and without turn off devices
* Support analog L/R audio output
* Support HDR 10 and Dolby Vision
* Support keyboard and mouse pass through mode to improve KM compatibility

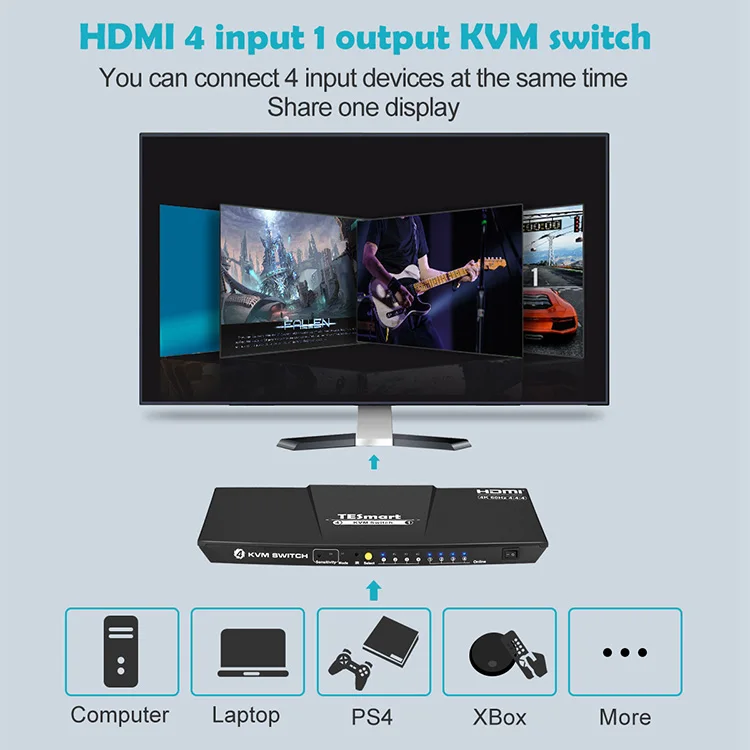

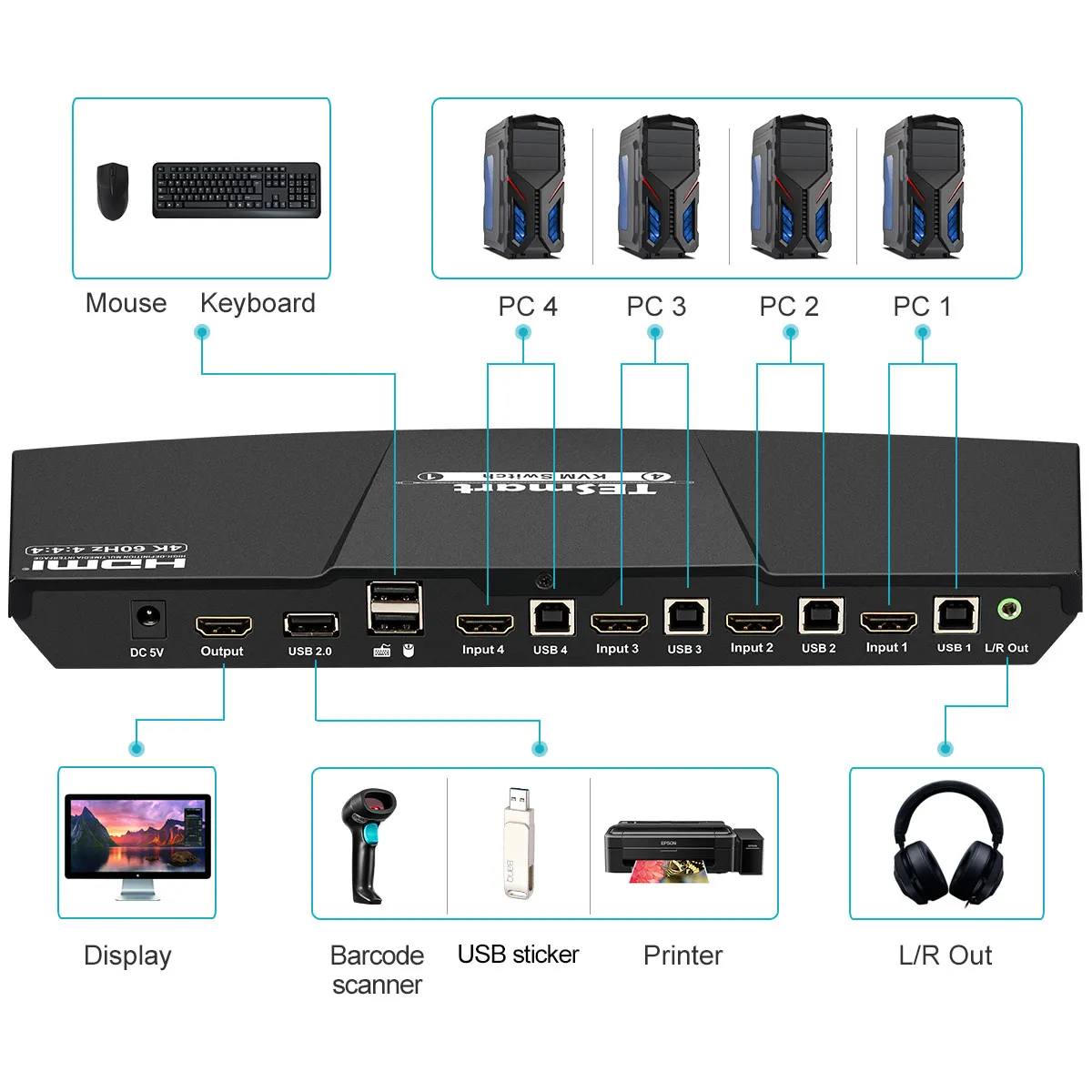

Connection Diagram
Specification
HKS0401B2U | 4x1 HDMI KVM Switch 4K@60Hz 4:4:4 | |||
Functionality: | ||||
Auto Scan | Yes | |||
Port selection | Front panel buttons | Yes | ||
Keyboard hotkeys | Yes | |||
IR remote control | Yes | |||
Technical: | ||||
Resolution | Up to 3840x2160@60Hz 4:4:4 | |||
Auto to get EDID | Yes | |||
Data rate | 18 Gbps | |||
Auto scan interval | 1~250 Seconds | |||
Beep Sound | On/Off | |||
OSD | No | |||
Supported OS | Unix/Windows/Debian /Ubuntu /Fedora /Mac OS X/ Raspbian /Ubuntu for Raspberry Pi and other Linux based system | |||
Console ports | Keyboard emulation | 1 * USB Type A | ||
Mouse emulation | 1 * USB Type A | |||
USB 2.0 Hub ports | 1 * USB Type A | |||
Video /Audio | 1 * HDMI Type A | |||
System ports | USB Data | 4 * USB Type B | ||
L/R Audio output | 1 * AUX | |||
Video / Audio | 4 * HDMI Type A | |||
ESD protection | Human body model - ±8kV (Air-gap discharge) | |||
Mechanical: | ||||
Chasing material | Aluminum Alloy | |||
Product dimensions | 262 (L) x 108 (W) x 33w (H) mm | |||
Item weight | 800g | |||

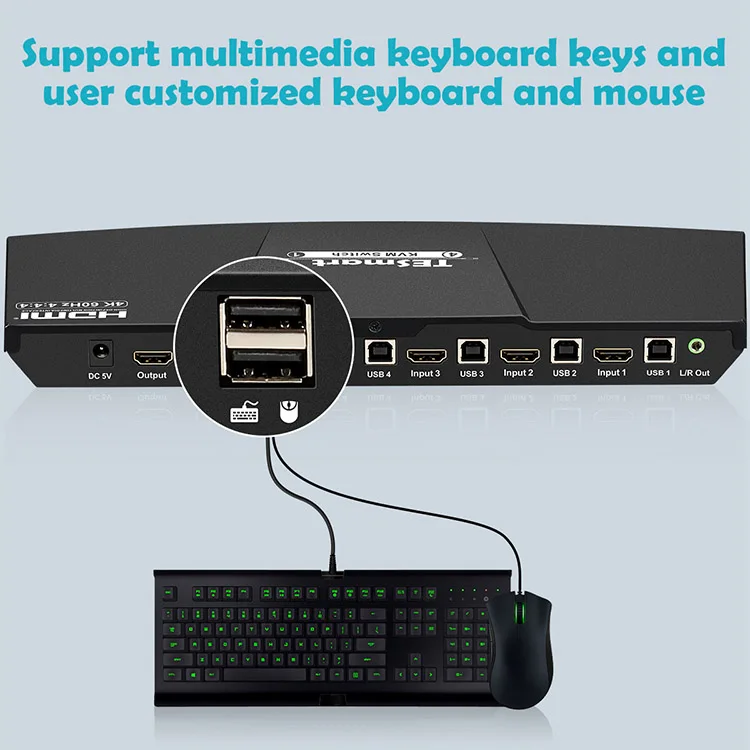

Details Images
Packing list
1 * 4x1 HDMI KVM Switch
1 * DC 5V Power Adapter
1 * IR Remote Control
1 * User manual
1 * DC 5V Power Adapter
1 * IR Remote Control
1 * User manual
