Профессиональный поставщик, высокоэффективный алюминиевый тормозной станок для заклепок среднего размера
- Category: Riveting Machine >>>
- Supplier: Dongguan Co-Win Machinery Equipment Co. Ltd.
Share on (62403785254):
Product Overview
Description

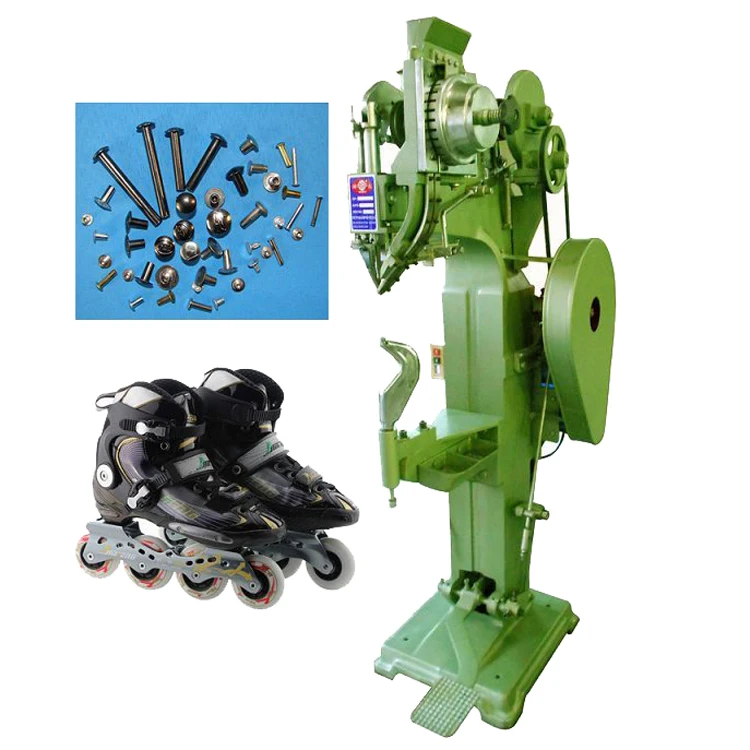

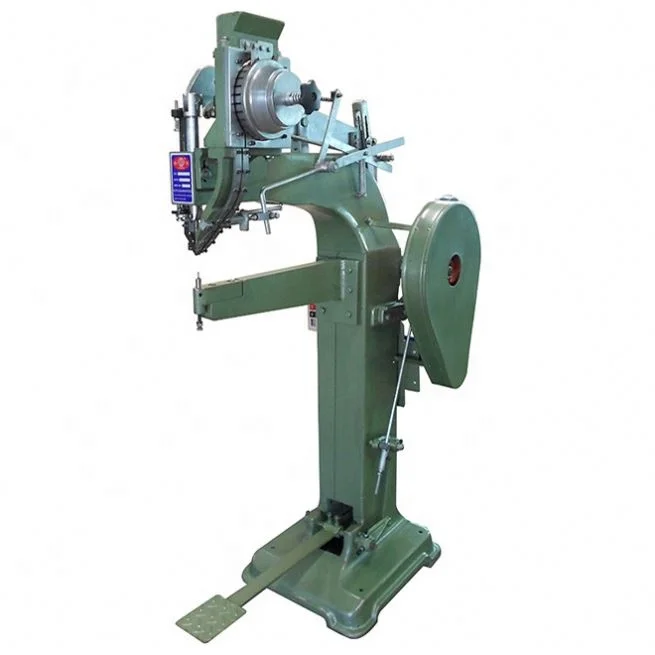

Professional Supplier High Efficiency Middle-sized Aluminium Making Rivet Brake Machine
Product Introduction
| Item | riveting machine |
| Max Force for 6bar | 76KN |
| Total Stroke | 100mm |
| Power Stroke | 12mm |

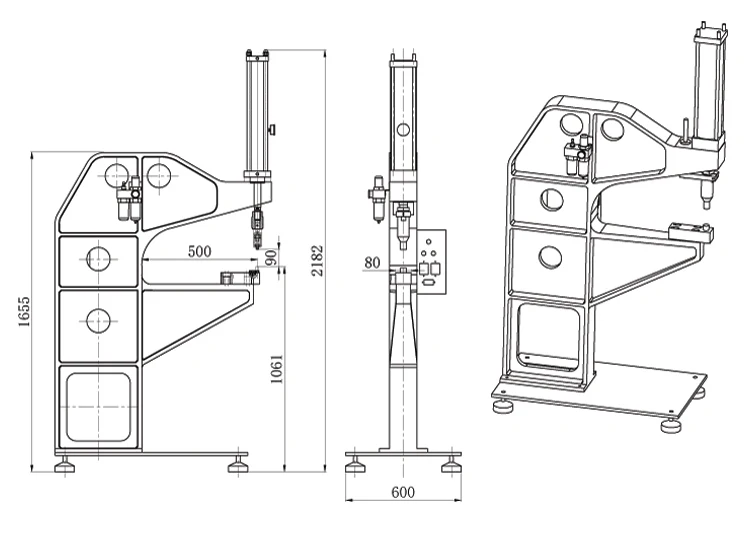

| Throat Depth | 500 |
| Weight | 500KG |
| Power supply | 220V/50W |
| Standard parts | Laser locating light, 2 sets of punch and dies, Life:Above 150000 times |
| Oil | 46# hydraulic oil |
| Suitable sheetmetal plate and clinching times | From 0.5-2.5mm/pc. Below 2.0mm Plated Zn, Aluminum, Life: About 100000-150000 times. in 1.2mm stainless steel, Life: About 50000 times |
Product Features
1. Faster drive speed and more stable pressure transmission than hydraulic press machine.
2. Simple device, easy adjustment, convenient maintenance.
3. High output, up to the oil pressure.
4. Cheaper price than hydraulic press machine.
5. Simple maintenance, easy to clean the working environment.
6. Convenient to obtain the power source (air).
7. Convenient energy conversion, oil tight.
8. Easy and light equipment, easy to handle.
9. Low action noise.
10. Saving more energy than hydraulic press machine.
11. No trouble of temperature rising of oil pressure system.
Product Details
