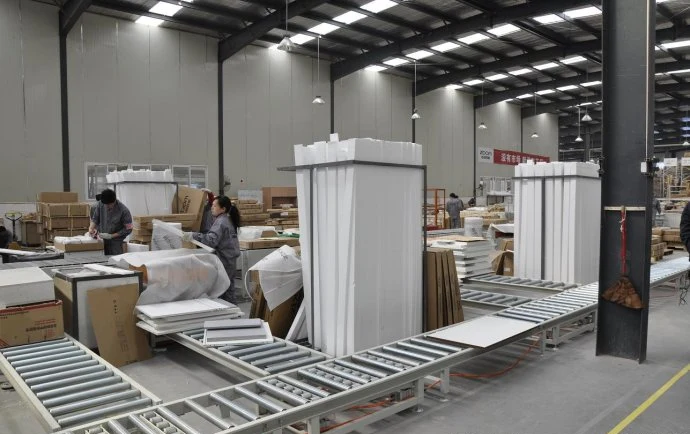

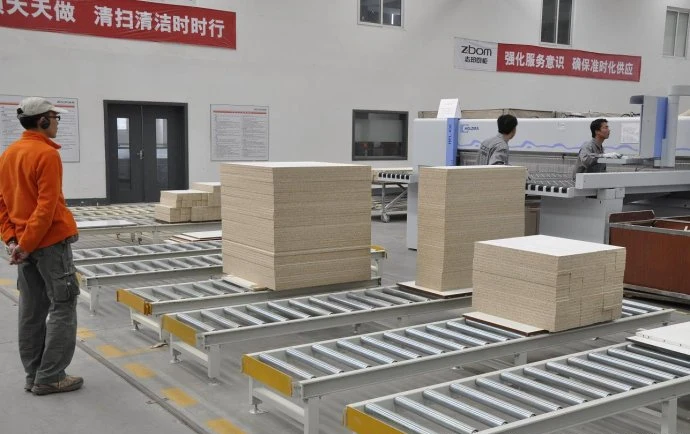

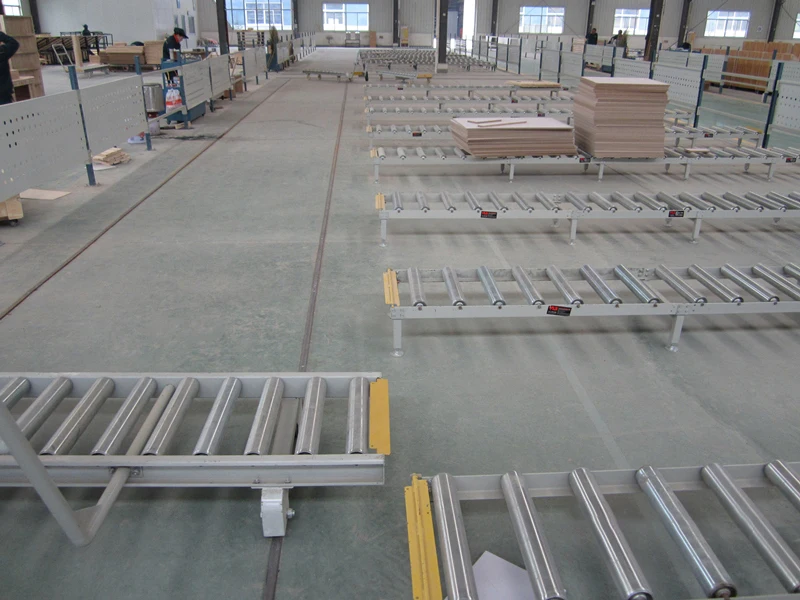

Factory supplying gravity infeed roller conveyor for board storage
- Category: Conveyors >>>
- Supplier: Qingdao Youchuang Packaging Equipment Co. Ltd.
Share on (62405066560):
Product Overview
Description
Product Description
UCPACK has specialized in manufacturing conveyor system and material handling equipment since 2007, and we are the leading automatic conveyor systems manufacturer in the industry. we can provide various kinds of conveyors including Gravity and Powered roller conveyor, Belt conveyor, Chain conveyor, Modular conveyor, Mesh belt conveyors, Slat conveyors and Scissor lift etc.. Depending on your budget and output, we can advise the best solution.

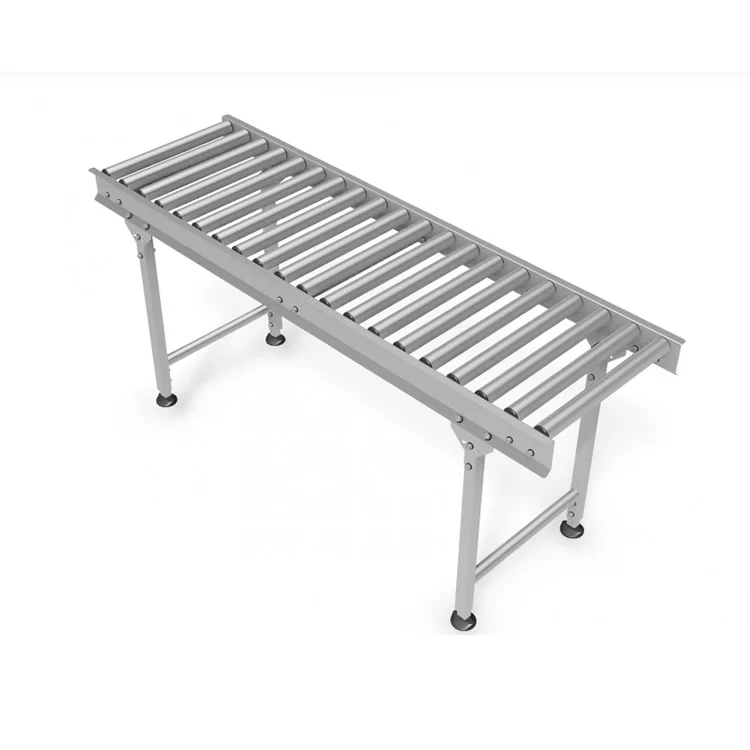

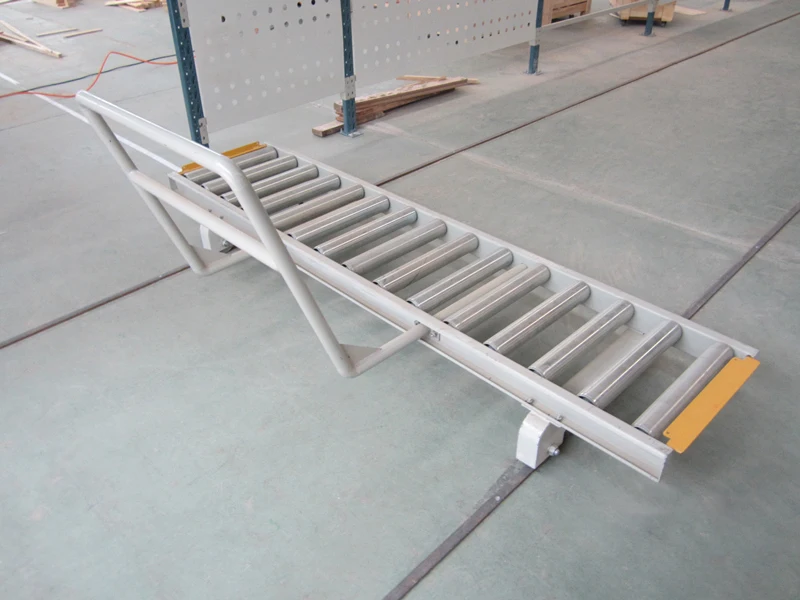

UCPACK Professional manufacturer 20 feet long gravity infeed rollcase for timber conveying are designed for light, medium and heavy loads, available in a number of styles and sizes. Temporary and permanent setups are available.
Detailed Images
Specifications
Model | UC-102 | Option |
Unit Length | Standard in 1000mm or 1500mm increments | Custom |
Between frame width (BF) | Standard 400mm and 600mm | Custom |
Overall width (OW) | BF+60mm | Custom |
Angle | Flat | Option 30。,45。,90。Curve |
Frame | Carbon steel | Option Steel channel/Stainless steel/Aluminium |
Frame Finish | Standard white powder painted | Option green, beige, gray, orange, black and yellow. |
Frame coupler | Bolted butt couplers standard on both ends of channel | |
Roller centers | Standard 100mm | Custom |
Roller diameter | Standard 50mm | Option 25mm, 60mm, 76mm and 89mm |
Rollers | Galvanized carbon steel tube with steel ball bearing | Stainless steel/PVC/Aluminum/ Orange Polyurethane roller cover |
Roller tube thickness | Standard 2mm | Option 1.5mm, 2.0mm, 2.5mm, 3.0mm, 3.5mm and 4.0mm |
Load Capacity | 300kg/m | Custom |
Support stands height | Standard 450mm and 750mm | Custom |
Options
Side guides;
End stop;
Caster wheel with brake;
Heavy duty adjustable feet can be anchored to the ground;

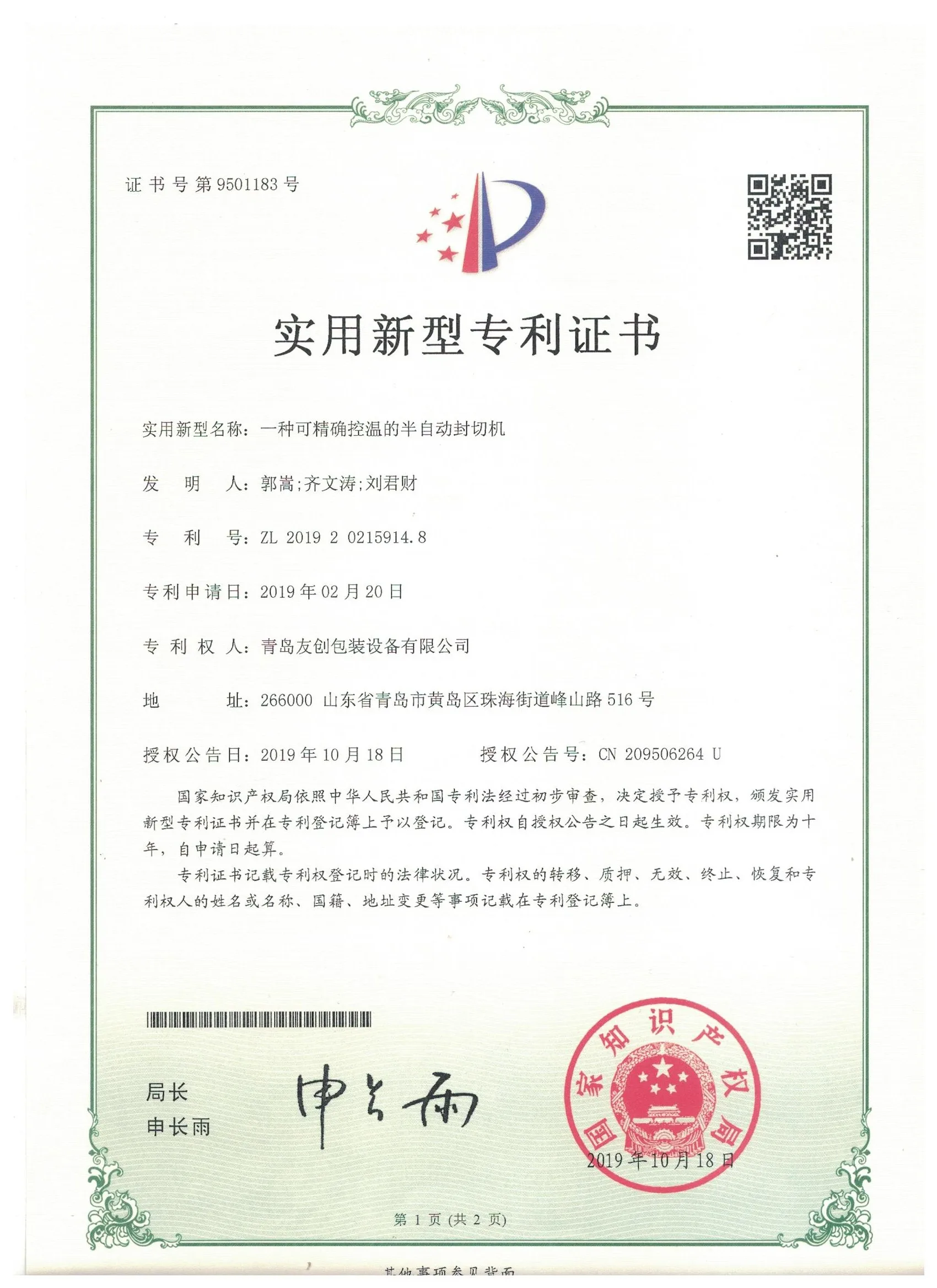

Certifications
Packing&Shipping
Packaging Details: Wooden case
Port: Qingdao Port
Our service
24/7 online support service;
One year warranty;
90% of replacement parts can be shipped for next day delivery;
Field installation available.
90% of replacement parts can be shipped for next day delivery;
Field installation available.
Company Profile
Qingdao Youchuang Packaging Equipment Co., Ltd. was specialized in designing, researching and developing, manufacturing packaging equipment and providing customized automation packaging solutions. With more than12 years of R&D and manufacturing experience, we provide various kinds of packaging equipment and solutions, including shrinking wrapper, strapper, vacuum packer, stretch wrapper, case erector, case sealing, palletizer and conveying system, etc..
Qingdao Youchuang Packaging Equipment believes people make the difference, and without our team we would not be able to provide you with the excellent service we are known for. Our teams of highly trained and experienced engineers have the knowledge to not only meet your requirements but exceed your expectations. Commit to the highest standards in both our product and our staff, we are eager to please so please let us know how we can help.
