Product Overview
Description

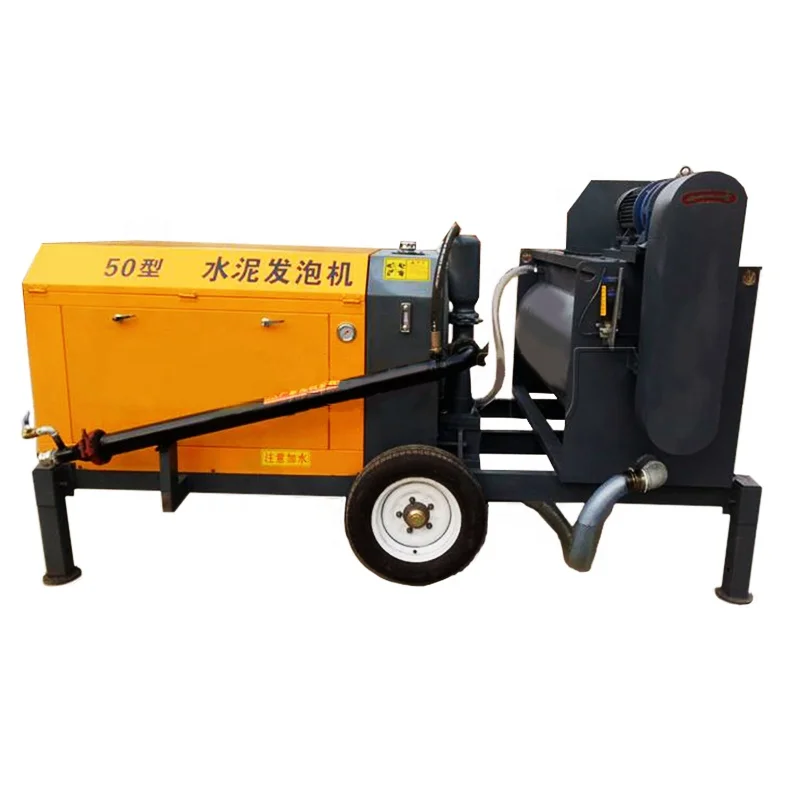

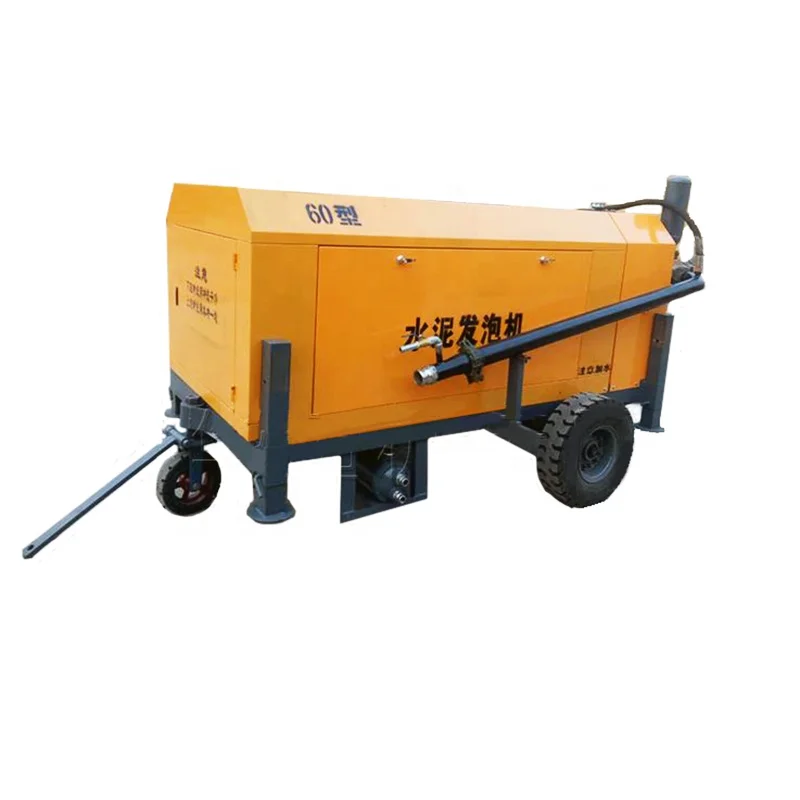

Concrete Cement foaming machine for ground and roofing insulation

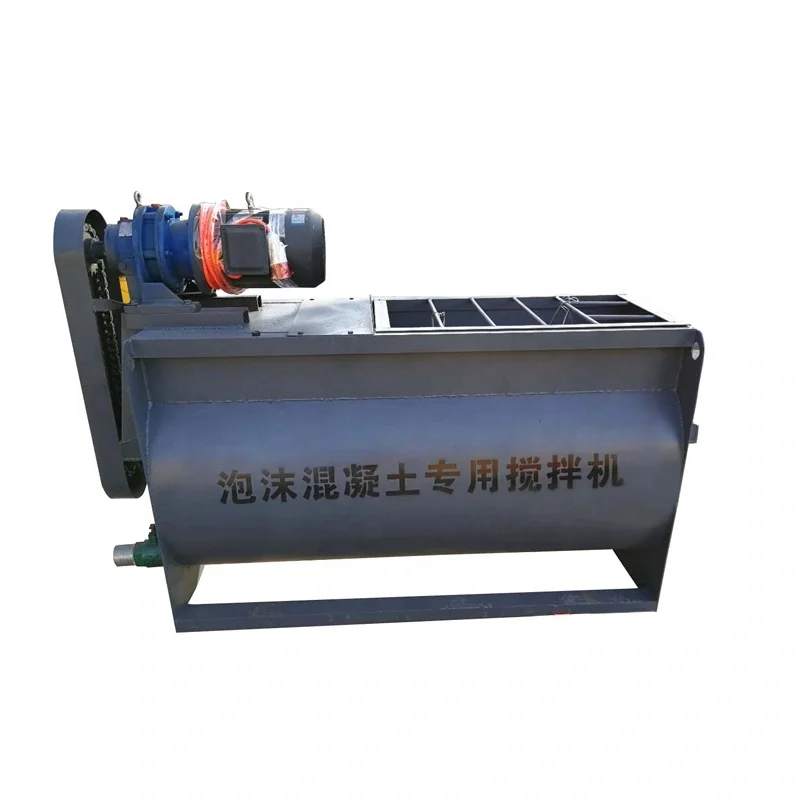

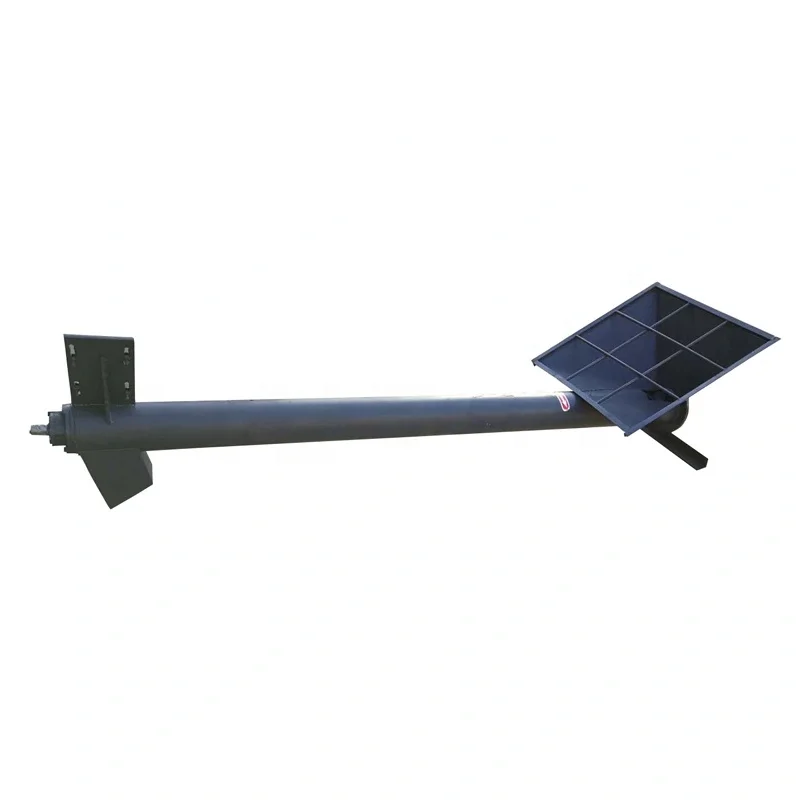

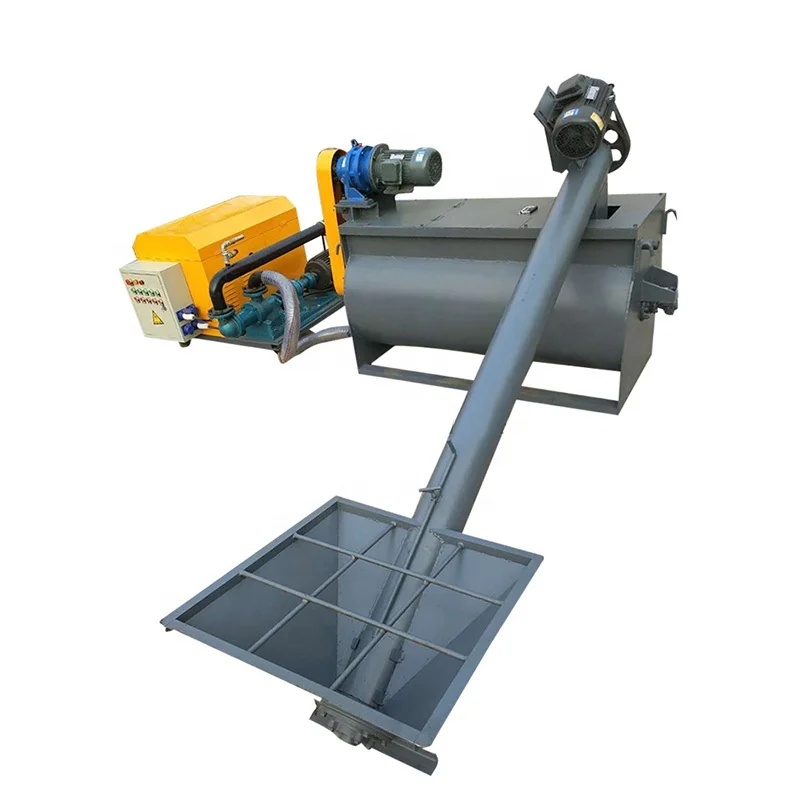

This line use the technology of pump transportation.The whole process line include four parts: feeding conveyor, concrete mixing
machine, foam machine used in block , foam agent and pump, the transportation capacity is 10~15m³/h, the max level transportation
distance is 50m, the max horizon distance is 400m.
Applications:
Floor/roof casting
Block
Wall panel
Framed wall and house structure casting
Subway and coal mining backfill
Machine features:

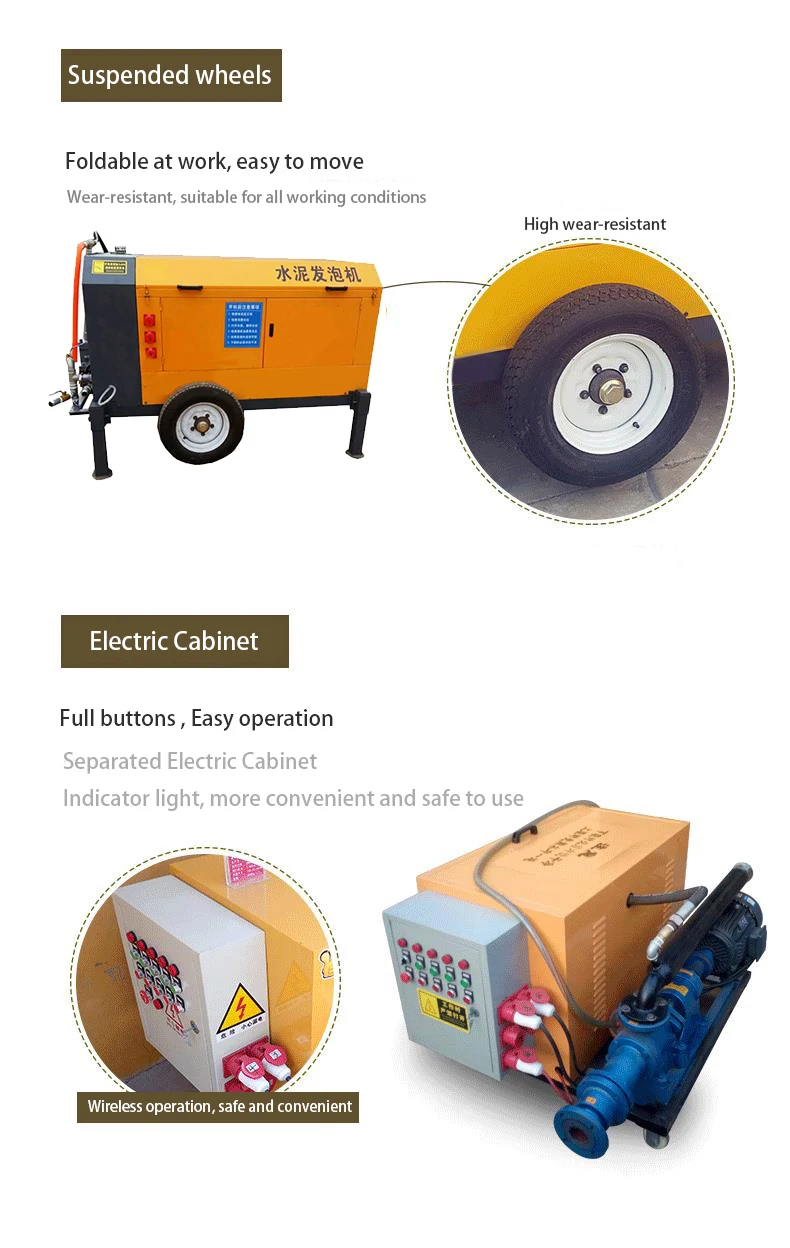

1).the machines is with wheels, then the process line is easy to move, so it can be used for many places, such as construction
plant, block plant, and so on.
2).Light weight, the main machine is only 600kg, you also can equip with the forklift, it will save more time, labour and costLow
consumption, the whole line is about 15kw.
3).Use the pump to transport the cement foam
It can use plant type foam agent, animal type foam agent and synthetic foam agent.
You can adjust the volume of the raw material.
Model | BLM-F10 | BLM-F20 | BLM-F30 | BLM-F40 | BLM-F50 | BLM-F60 | ||||
Mortar pump | Screw mortar pump | Double hydraulic pump | Double hydraulic pump | Double hydraulic pump | Double hydraulic pump | Double hydraulic pump | ||||
Pump power | 5kw | 15kw | 22kw | 30kw | 45kw | 45kw | ||||
Vertical | 40m | 80m | 100m | 120m | 150m | 180m | ||||
horizontal | 300m | 600m | 800m | 1000m | 1200m | 1400m | ||||
Capacity | 10m³/h | 20m³/h | 30m³/h | 40 m³/h | 50m³/h | 60m³/h | ||||
Outlet pressure | 1mpa | 8mpa | 10mpa | 14mpa | 16mpa | 16mpa | ||||
Dimension | 1500*950 *800mm | 2300*950* 1600mm | 2500*1050* 1800mm | 3200*1500* 1400mm | 3500*1600* 1800mm | 3500*1600* 1800mm | ||||
Weight | 300kg | 1100kg | 1300kg | 1600kg | 2200kg | 2400kg | ||||
2.Technical Parameter
3.Product Advantages

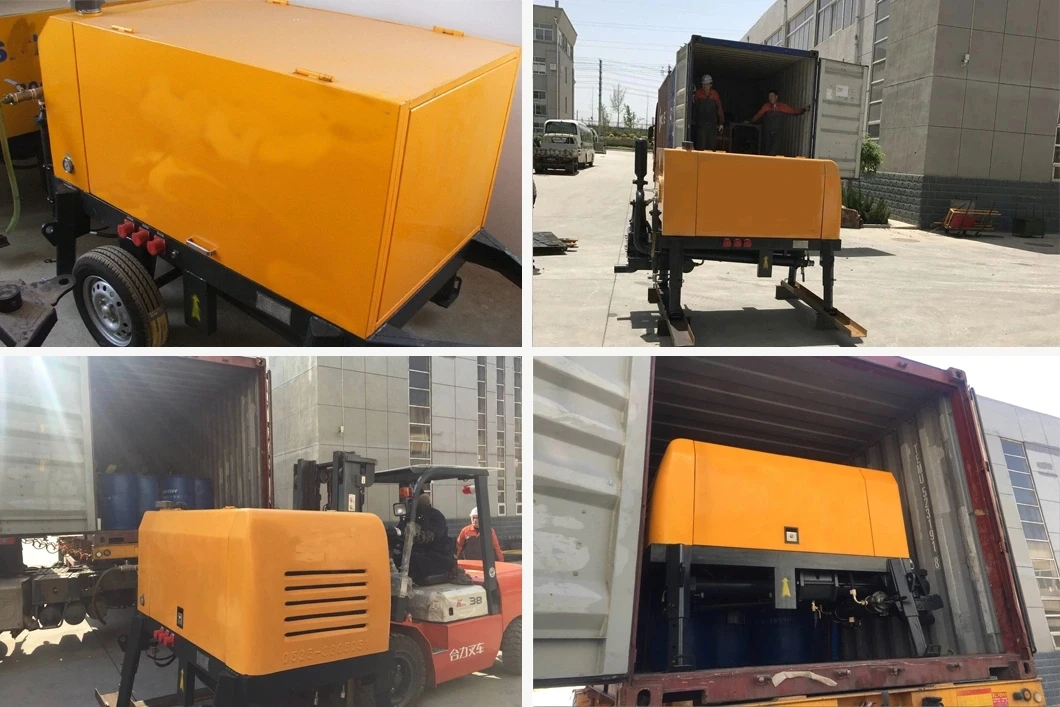

4.Packing&Delivery:
1. Answer consultation from users according to users' demands, help user chose suitable type.
2. Offer design drawing and solution accroding to users' demands.
During sales services:
1. Produce and ship the goods for customer safe and timely;
2. If need, arrange engineer to train works how to operate the machine rightly.
3. Highly inspecting equipments in every working procedure, quality comes first;
After sales services:
1. Give a clear reply upon customers questions within 24 hours;
2. If necessary, we send engineer to user's site to solve the problem timely;
3. Reture visti at regular intervals;
4. Establishing user's record;
5. One year guarantee and whole life services and techinal support;
6. Supply latest industrial informaion.
2. Offer design drawing and solution accroding to users' demands.
During sales services:
1. Produce and ship the goods for customer safe and timely;
2. If need, arrange engineer to train works how to operate the machine rightly.
3. Highly inspecting equipments in every working procedure, quality comes first;
After sales services:
1. Give a clear reply upon customers questions within 24 hours;
2. If necessary, we send engineer to user's site to solve the problem timely;
3. Reture visti at regular intervals;
4. Establishing user's record;
5. One year guarantee and whole life services and techinal support;
6. Supply latest industrial informaion.
we are the 10 years' manufacture experiences manufacture company in China.
2.what is your machine advantage than other foam concrete machines?
A.Our machine can make the foaming , mix , pump together.
B. Our machine can automatically adjust the density.
C. Our foam concrete machine can easy to control and operate .
A.Our machine can make the foaming , mix , pump together.
B. Our machine can automatically adjust the density.
C. Our foam concrete machine can easy to control and operate .
3.what is the density your machine can arrive ?
From 300-800kg/m³ , if your have any other requirements , we can try to satisfy you .
From 300-800kg/m³ , if your have any other requirements , we can try to satisfy you .
4. how to guarantee the machine work well before shipping ?
We have our professional testing department ,we will have twice testing when we finish our machine and before shipping.
We have our professional testing department ,we will have twice testing when we finish our machine and before shipping.
5. Warranty period ?
The warranty will be one year from the date of shipment. Any detected parts during this period caused by the quality of products
will be replaced by seller free of cost (exclude wear and tie parts), improper operation and other manmade reasons are excluded.
The warranty will be one year from the date of shipment. Any detected parts during this period caused by the quality of products
will be replaced by seller free of cost (exclude wear and tie parts), improper operation and other manmade reasons are excluded.
