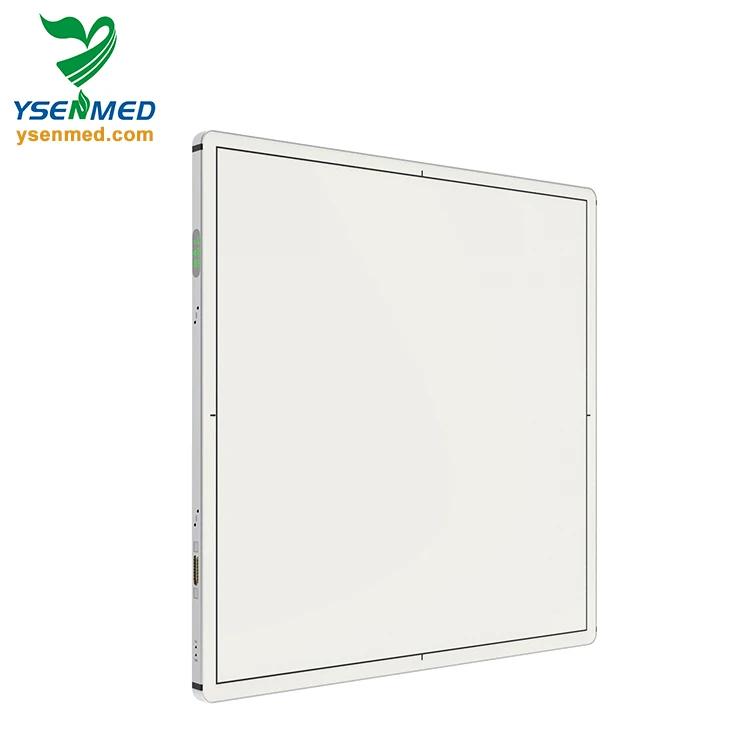

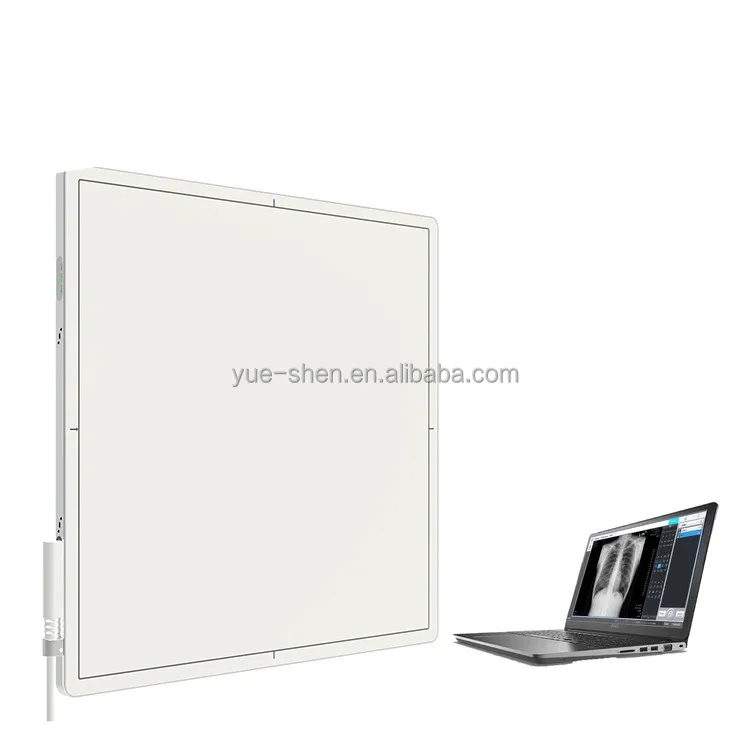

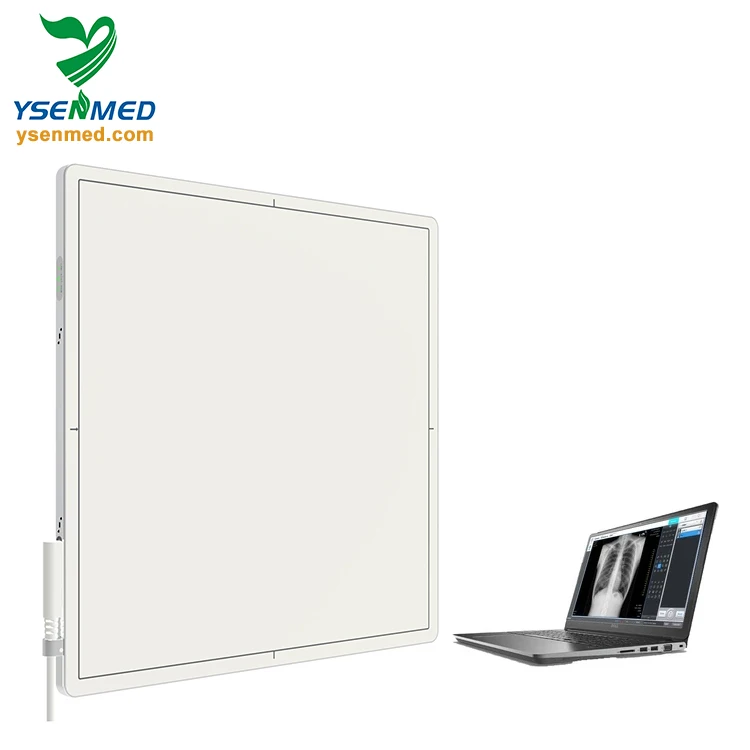

Detector connected and synchronized with any kind of generators digital x ray flat panel
Model:YSFPD4343A
YSFPD4343A is a high performance, cassette-sized flat paneldetector which has both wired and wireless version. Batterystands by for at least8 hours. YSFPD4343Asupports IEEE 802.11acwith transmission speed up to 1300M bps. The detectoracquires outstanding imageswith high DQE and high resolution. Equippedwith highly sensitiveAED function, the detector can be easily connected to and synchronized with any kind of generators.
Description
Specification
Specification
Detector Technology
a-Si
a-Si
Scintillator
GOS
CsI
Image Size
43×43 cm
43×43 cm
Pixels Matrix
3072×3072
3072×3072
Pixel Pitch
140µm
140µm
A/D Conversion
16bit
16bit
Minimum Detectable Dose (RQA5)
20nGy
14nGy
Maximum Linear Dose (RQA5)
150µGy
110µGy
MTF @ 1.0 LP/mm
0.51/0.56/-
0.60/0.65/-
MTF @ 2.0 LP/mm
0.22/0.24/-
0.30/0.33/-
MTF @ 3.0 LP/mm
0.09/0.11/-
0.15/0.18/-
DQE @ 0.0 LP/mm (2.5µGy RQA5)
0.48/0.50/-
0.62/0.66/-
DQE @ 1.0 LP/mm (2.5µGy RQA5)
0.30/0.32/-
0.43/0.45/-
DQE@ 2.0 LP/mm (2.5µGy RQA5)
0.14/0.15/-
0.30/0.32/-
DQE @ 3.0 LP/mm (2.5µGy RQA5)
0.04/0.05/-
0.13/0.15/-
Ghost (300µGy, 60s)
<0.25%
<0.25%
Spatial Resolution
3.6 LP/mm
3.6 LP/mm
Image Acquisition Time (Wired/Wireless)
1s / 2~3s
1s / 2~3s
X-ray Voltage Range
40-150 KV
40-150 KV
Battery standby time
8H
8H
Data Interface
GigE/802.11ac
GigE /802.11ac
Power Dissipation
20 W
20 W
Adapter Input
AC 100-240V,50-60Hz
AC 100-240V,50-60Hz
Adapter Output
DC 24V,60W
DC 24V,60W
Dimensions
46×46×1.5 cm
46×46×1.5 cm
Weight (Wireless with Batteries/Wired)
3.9kg / 4.5kg
3.9kg / 4.5kg
Detector Housing Material
Carbon, Alloy
Carbon, Alloy
Water tightness
IPX3
IPX3
Operating Environment
5-35ºC,10-75% RH
5-35ºC,10-75% RH
