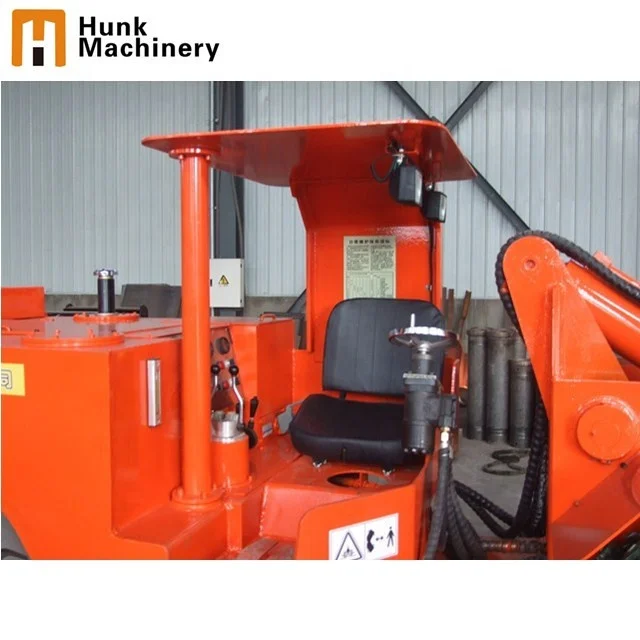

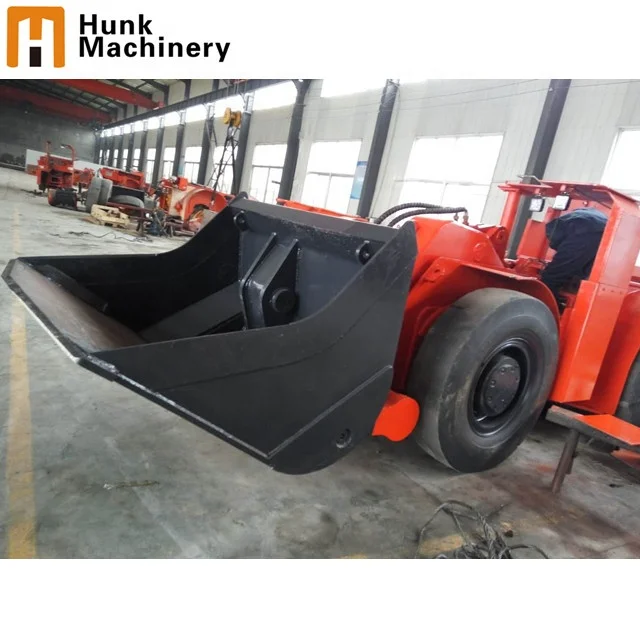

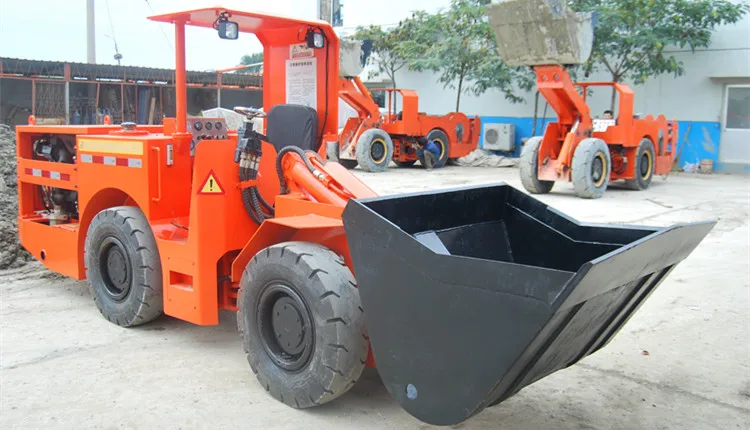

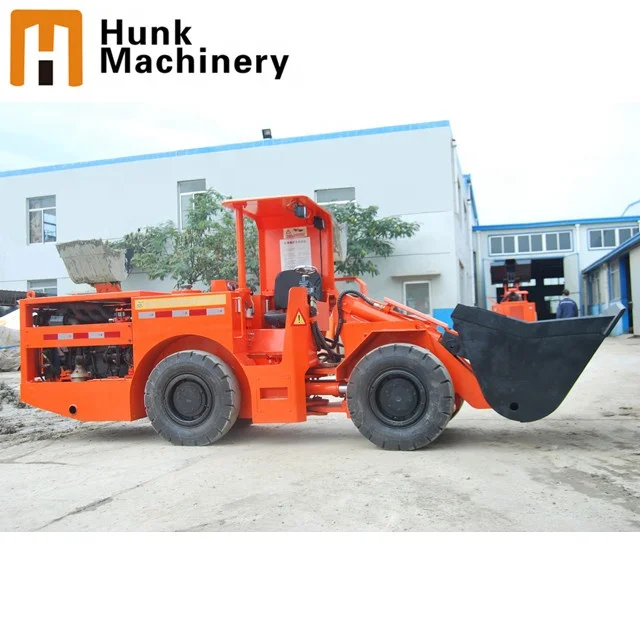

Antiskid underground loader 0.5 cbm 0.75 yard
- Category: Other Mining Machines >>>
- Supplier: Yantai Hunk Machinery Co. Ltd.
Share on (62407582213):
Product Overview
Description
Product Description
Product name: Antiskid underground loader 0.5 cbm 0.75 yard
=====================================================
Main Configuartion,Technical Charactersistics & Parameters
Diesel Engine: German DEUTZ
Hydraulic Torque Converter: DANA
Power Shift Transmission: DANA
Drive Axle: No-spin antiskid differential
Braking System: SAHR (Spring Applied Hydraulic Released)
Bucket Capacity: 0.5m³(0.75yd3)
Rated Loading Capacity: 1200kg ~ 1500kg
Max.Traction: 40KN
Max.Climbing Ability: 15°
Rear Drive Axle Swing Angle: ±8°
Min.Turning Radius: 3350mm (Outer) , 1830mm (Inner)
Dimensions(transport): 5040mm (L) * 1150mm(W) * 1990mm (H)
Weight: 4400kg
Specification of 2CBM underground scooptram | ||||
Engine | Manufacturer | Deutz | ||
Model | BF4L914 | |||
Rated Power | 66kw/2300rpm | |||
Main performance parameters | Max.Discharge Height | 689 mm | ||
Min.Discharge Distance | 800 mm | |||
Max.Shovel Force | 42 KN | |||
Running speed | Speed range | 0 ~ 9 km/h | ||
Main Features
Adopt DANA Torque Converter with hydraulic pump drive and power shift transmission.
SAHR brake (Spring Applied, Hydraulic Released)
Rear drive axle adopts double supports oscillating axle,front drive axle adopts No-spin differential.
Detailed Images

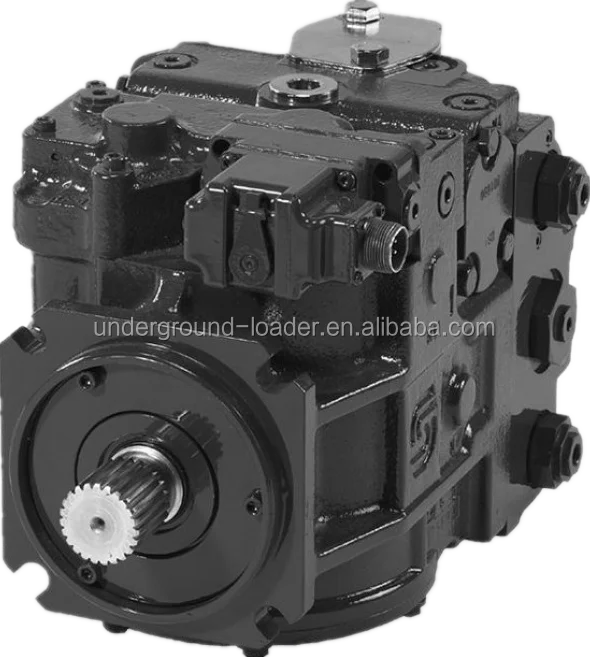

Danfoss pump
Series 90 hydrostatic pumps and motors can be applied together or combined with other products in a
system to transfer and control hydraulic power. They are intended for closed circuit applications.

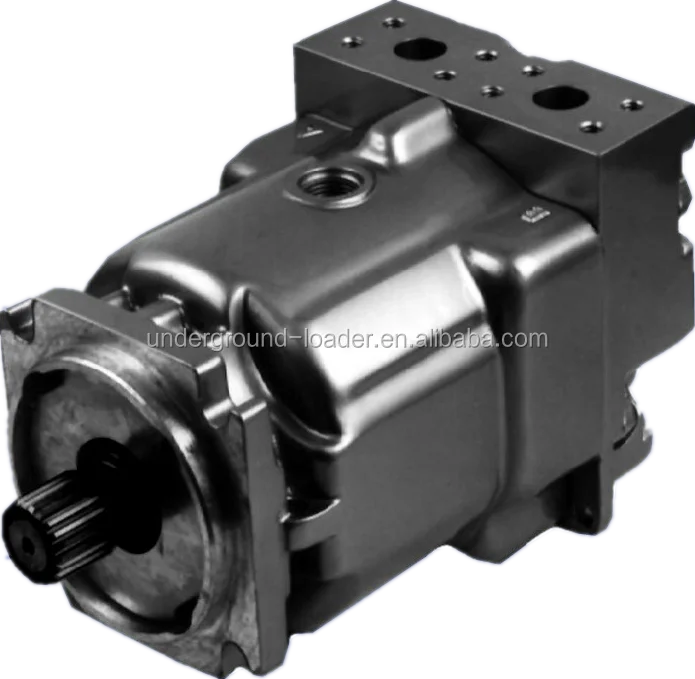

Danfoss motor
Series 90 motors use the parallel axial piston/slipper design in conjunction with a fixed or tiltable swashplate. They can intake/discharge fluid through either port; they are bidirectional. They include an optional loop flushing feature that provides additional cooling and cleaning of fluid in the working loop.

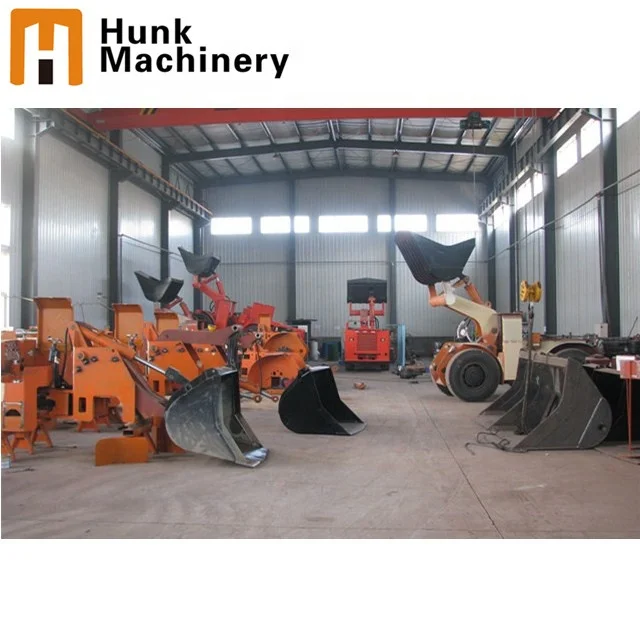

Factory
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* Factory visiting.
After-Sales Service
* Training how to install & use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging | ||
Size | 5040mmL * 1550mmW * 1990mmH | |
Weight | 4400kg | |
Packaging Details | Container | |
Packaging | ||
Size | 5040mmL * 1550mmW * 1990mmH | |
Weight | 4400kg | |
Packaging Details | Container | |
