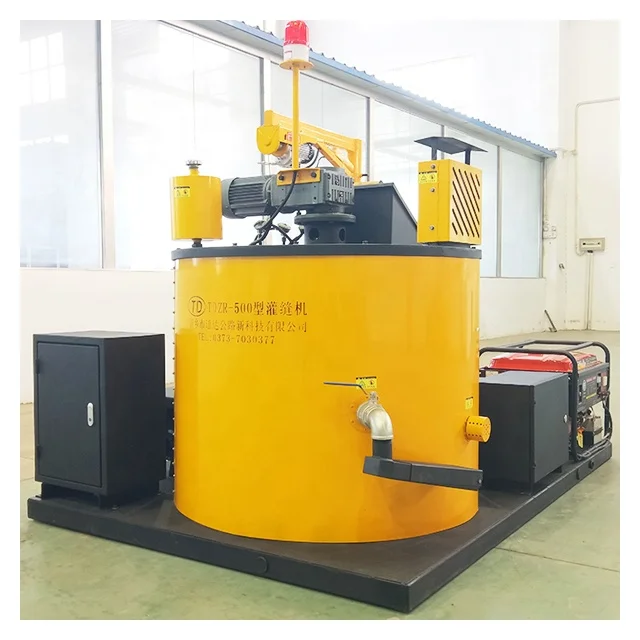

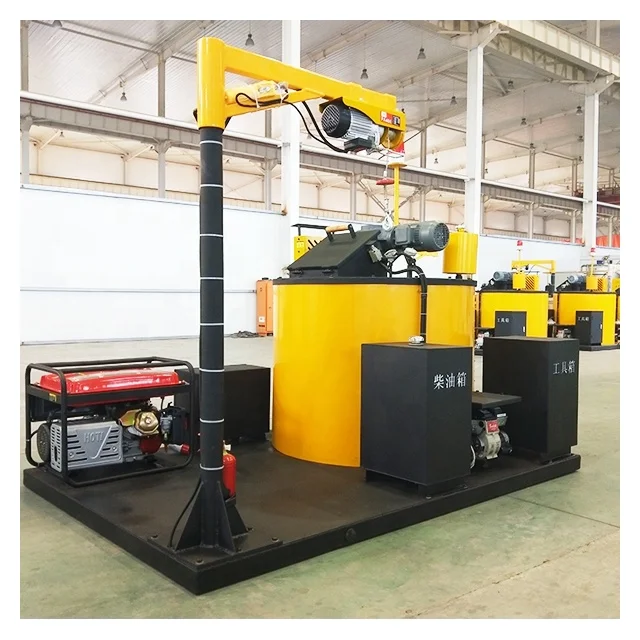

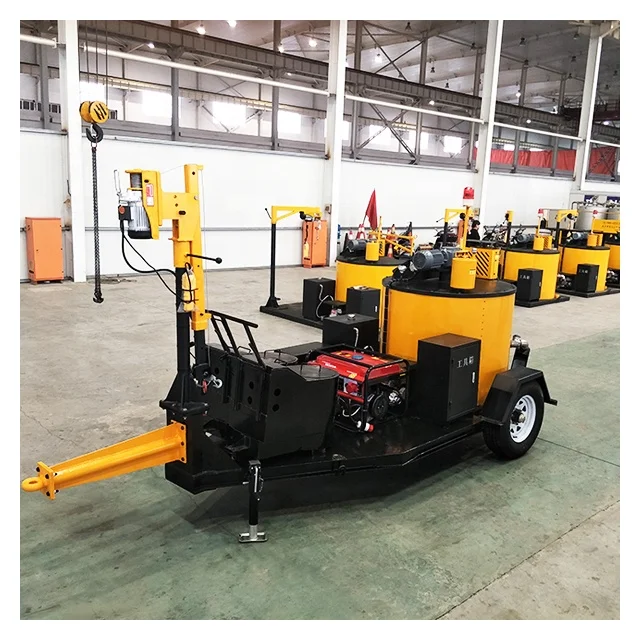

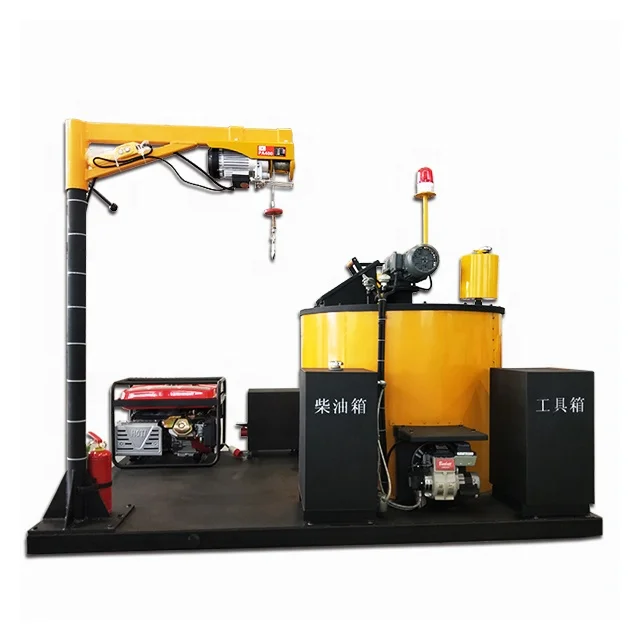

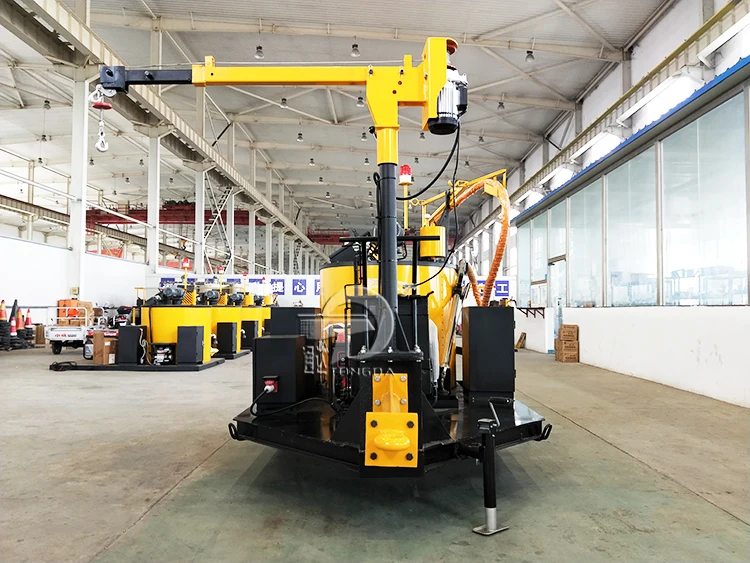

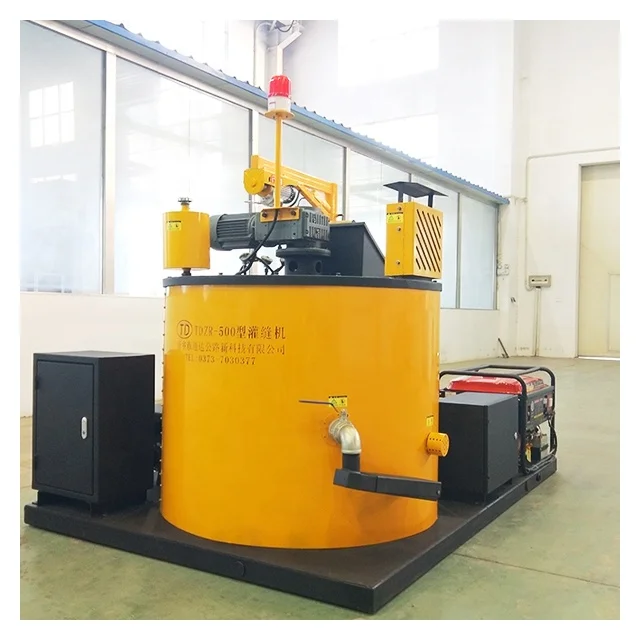

Hot Sale Asphalt Crack Filler Asphalt Bitumen Crack Joint Filling Machine Description:
Highway Asphalt Road Joint CrackFilling and Sealing Machine is independently developed by our company. It has large capacity hopper, fast heating and the thermal insulation effect is good, heat conduction oil cyclic heating. Compared with similar equipment, it is easy to operate, more stability and maneuverability, and have a long service life.


Hot Sale Asphalt Crack Filler Asphalt Bitumen Crack Joint Filling Machine Application:

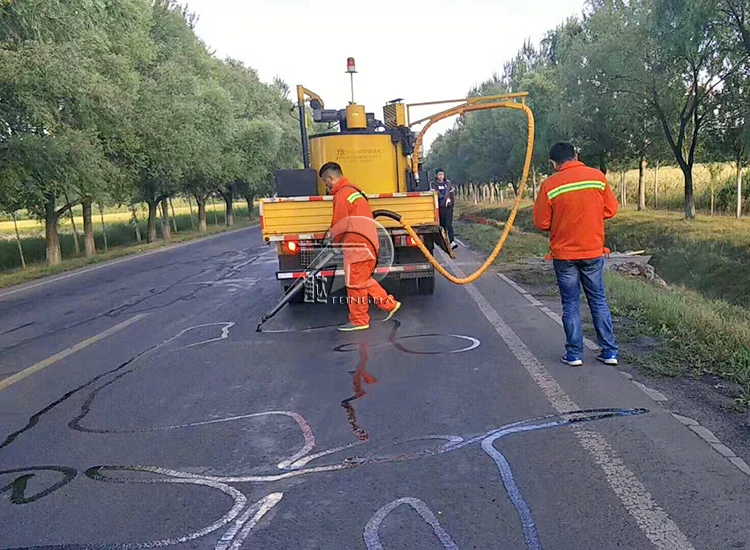

Road crack filler and sealer is mainly used for surface crack treatment of asphalt pavement, cement pavement and site etc.

Hot Sale Asphalt Crack Filler Asphalt Bitumen Crack Joint Filling Machine Features:
1.Set up maintenance-free rare earth permanent magnet generator as total power source, which has advantages of fully electric design and low maintenance cost.
2.Glue amount is adjusted by frequency converter motor, reduce rubber pump abrasiveness.
3.The hose adopts electrically heating, faster warming up.
4.The burner adopts fully automatic control, reduce oil consumption.
5.Material tank heating system use HTF indirect multi-area heating, 360°mixing, ensure evenly heating.
6.Quickly heating flue, which has good heat preservation.
7.The heating reactor replaces storage bin part.
| NO. | Items | TDQ-500 | TDQR-500 | TDZ-500 | TDZR-500 |
| 1 | Overall dimension | 4455x1820x2270mm | 4455x1820x2270mm | 3000x1700x2000mm | 2500x1700x1850mm |
| 2 | Sealant tank | 500L | 500L | 500L | 500L |
| 3 | Net weight | 1500kg | 1350kg | 1250kg | 1250kg |
| 4 | Melt capacity | 260kg/h | 260kg/h | 260kg/h | 260kg/h |
| 5 | Burner brand | Beckett | Beckett | Beckett | Beckett |
| 6 | Burner calorific value | 92400Kcal/h | 92400Kcal/h | 92400Kcal/h | 92400Kcal/h |
| 7 | Conduction oil consumption | 140L | 140L | 140L | 140L |
| 8 | Volume of burner diesel tank | 80L | 80L | 80L | 80L |
| 9 | Mixer power | 1.5KW | 1.5KW | 1.5KW | 1.5KW |
| 10 | Heating power for sealant output hose | 1.08KW | / | 1.08KW | / |
| 11 | Sealant output motor power | 1.1KW | / | 1.1KW | / |
| 12 | Sealant output hose length | 7m | / | 7m | / |
| 13 | Generator max. power | 7KW | 7KW | 7KW | 7KW |
| 14 | Generator oil tank | 25L | 25L | 25L | 25L |
| 15 | Generator oil consumption | 1.1L | 1.1L | 1.1L | 1.1L |
| 16 | Output voltage | 380V/220V | 380V/220V | 380V/220V | 380V/220V |
| 17 | Tyre model | ST255/75R15 | ST255/75R15 | / | / |
Contact Us for Detailed Quotation!


Xinxiang TongDa Road New Technology Co., Ltd. is a highly innovative science and technology enterprises engaged in making highway maintenance materials, road maintenance mechanical equipment and researching maintenance of new technology. TongDa is a R&D and export enterprise combined with sales and service, integrating road construction and equipment production. It mainly covers special-purpose vehicles (fiber micro-surface-slurry sealer paver series, asphalt distributor series, fiber synthetic chip sealer series) and pavement maintenance equipment (asphalt emulsification equipment, road sweeping equipment and potting smidahk construction equipment) and other equipments’ R&D, production, sales and technical services.


1. Are you manufacturer or trading company?
We are direct manufacturer with the experience of 17 years.
2. Do you have oversea service?
When you have some problems which you can't solve, we will arrange our engineers to your country to help you.
3. How about your product quality?
All our spare parts are from the original manufacturers, the quality is 100% guaranteed.
4. Payment terms?
TT, LC.
The price is for reference only, the specific price depends on the specific configuration of the product!
