YD 22 Railway Ballast Tamper Rail Tamping Machine

Product Overview

Description



Introduction of YD-22 Railway Ballast Tamper Rail Tamping Machine

YD-22hydraulic ballast tamping machine is a special purpose machinery used in the maintenance of the railway works. It is mainly used forthe ballast tamping of the rail sleeper. It can be used to work in the interval time of thetrains and no need for interval close. It has three kinds of engine: gasoline, diesel and motor.

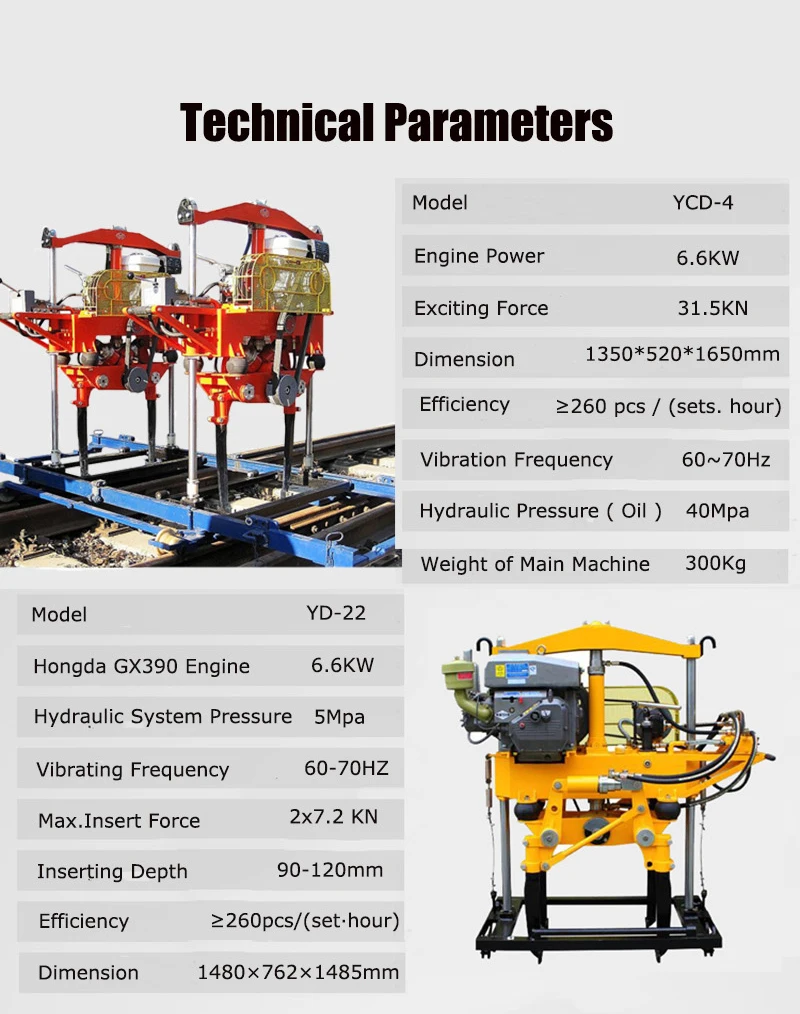

Parameter of YD-22 Railway Ballast Tamper Rail Tamping Machine

Model	YD-22 Hydraulic Ballast Tamping Machine

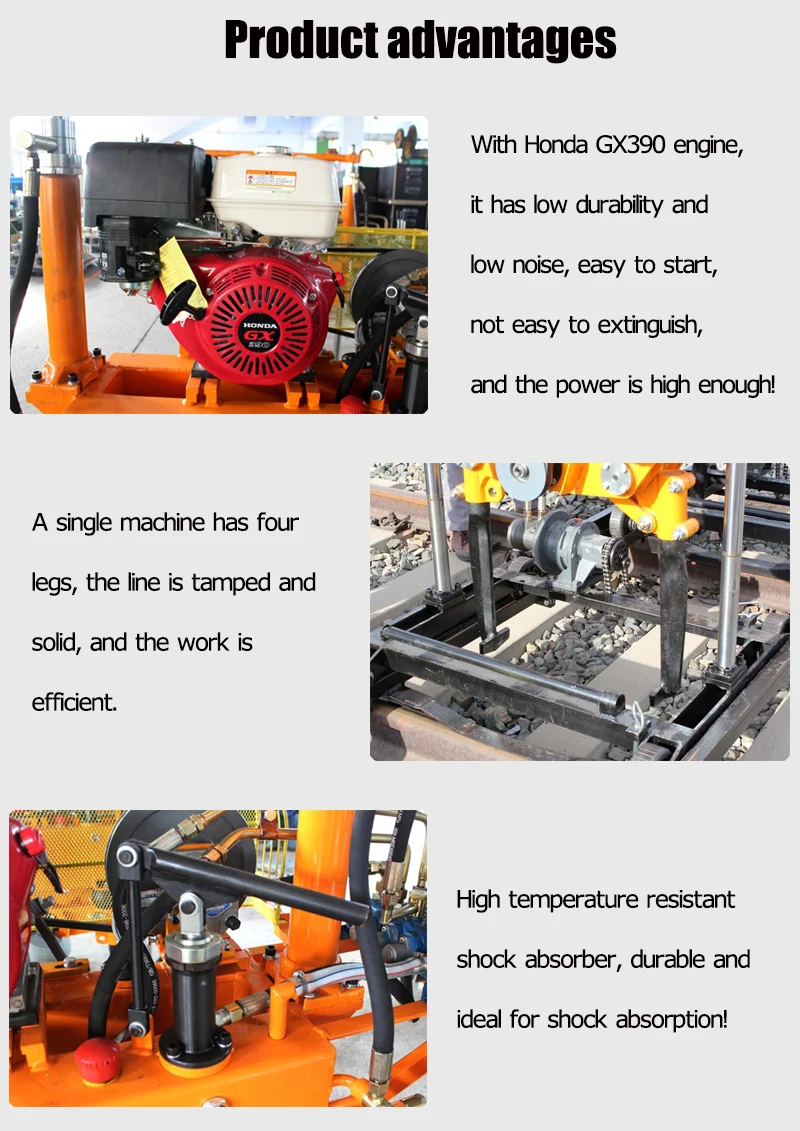

Hongda GX390 Engine	6.6KW
Hydraulic System Pressure	5Mpa
Vibrating Frequency	60-70HZ
Vibrating Force	22KN
Max.Insert Force	2x7.2 KN
Clamping Force	18.6
Inserting Depth	90-120mm
Efficiency	≥260pcs/(set·hour)
Weight	390KG
Dimension	1480×762×1485mm

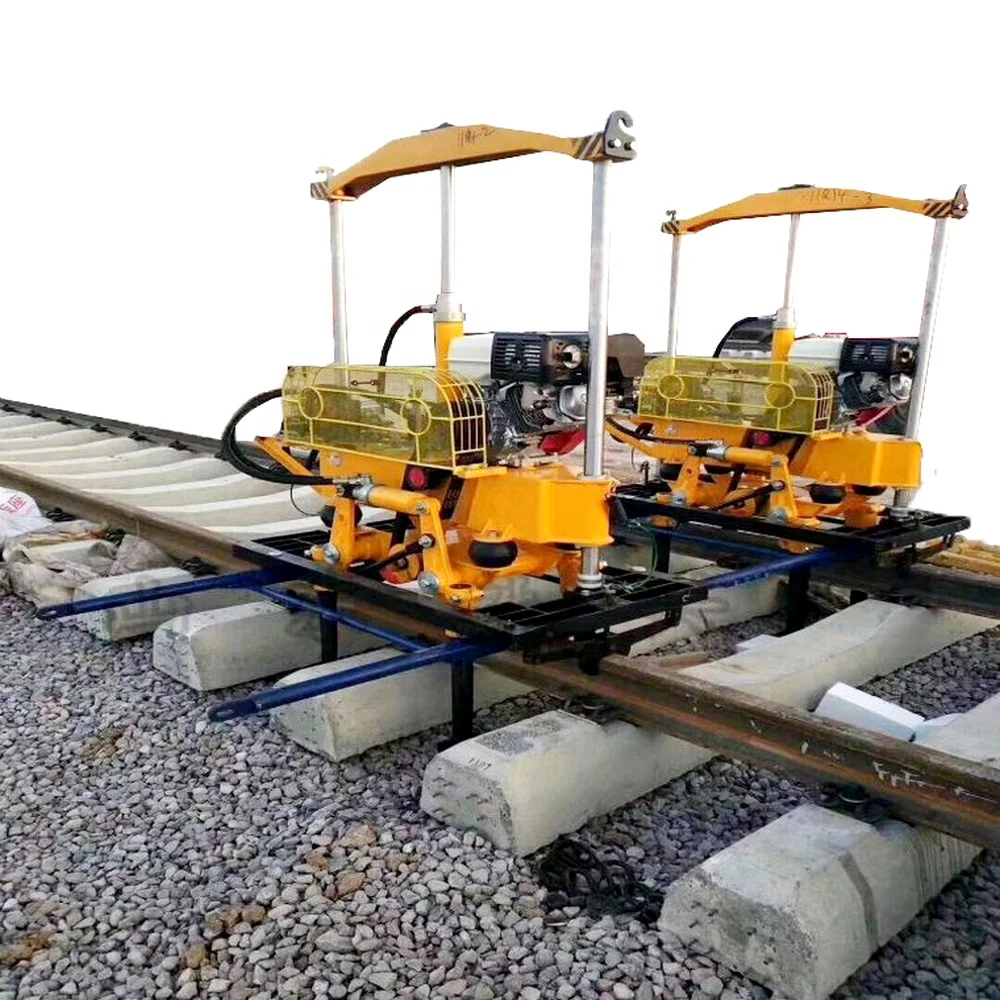

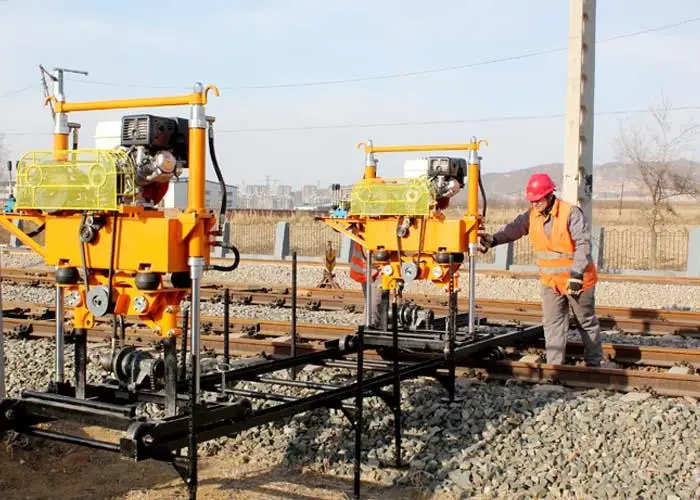

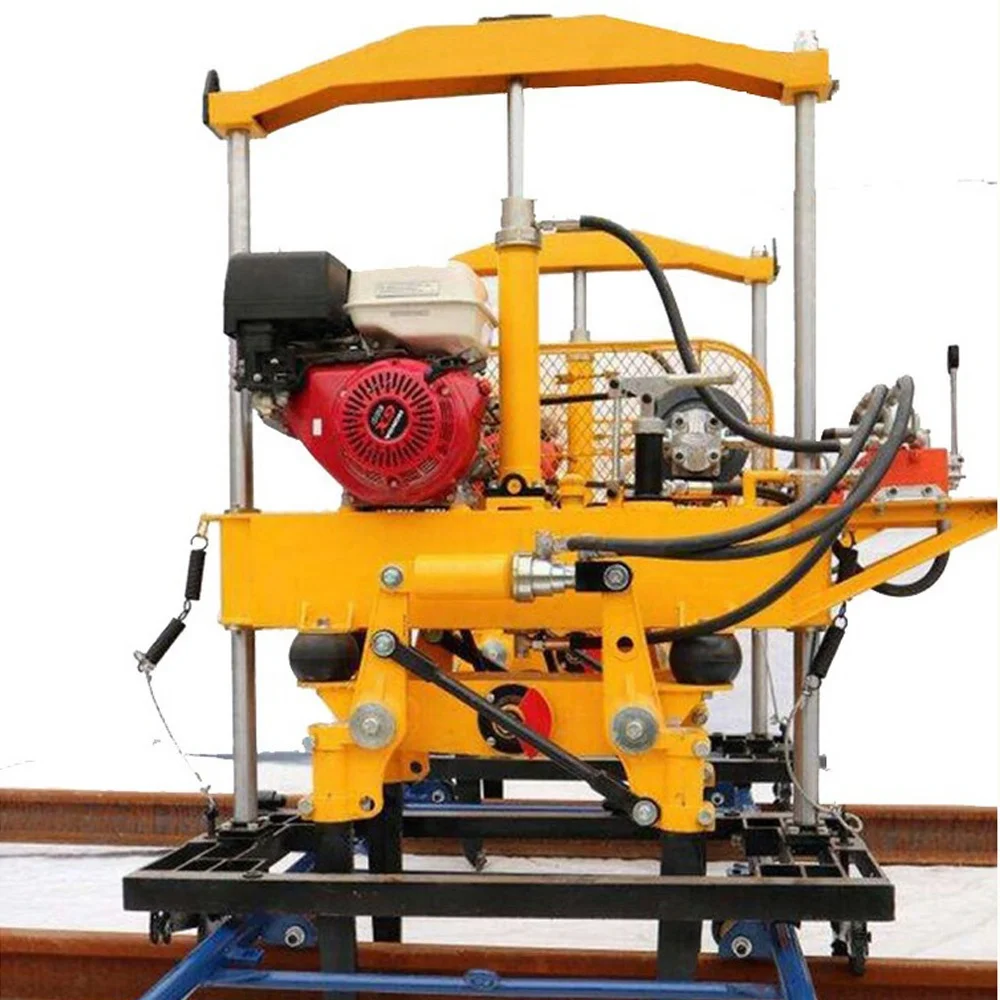

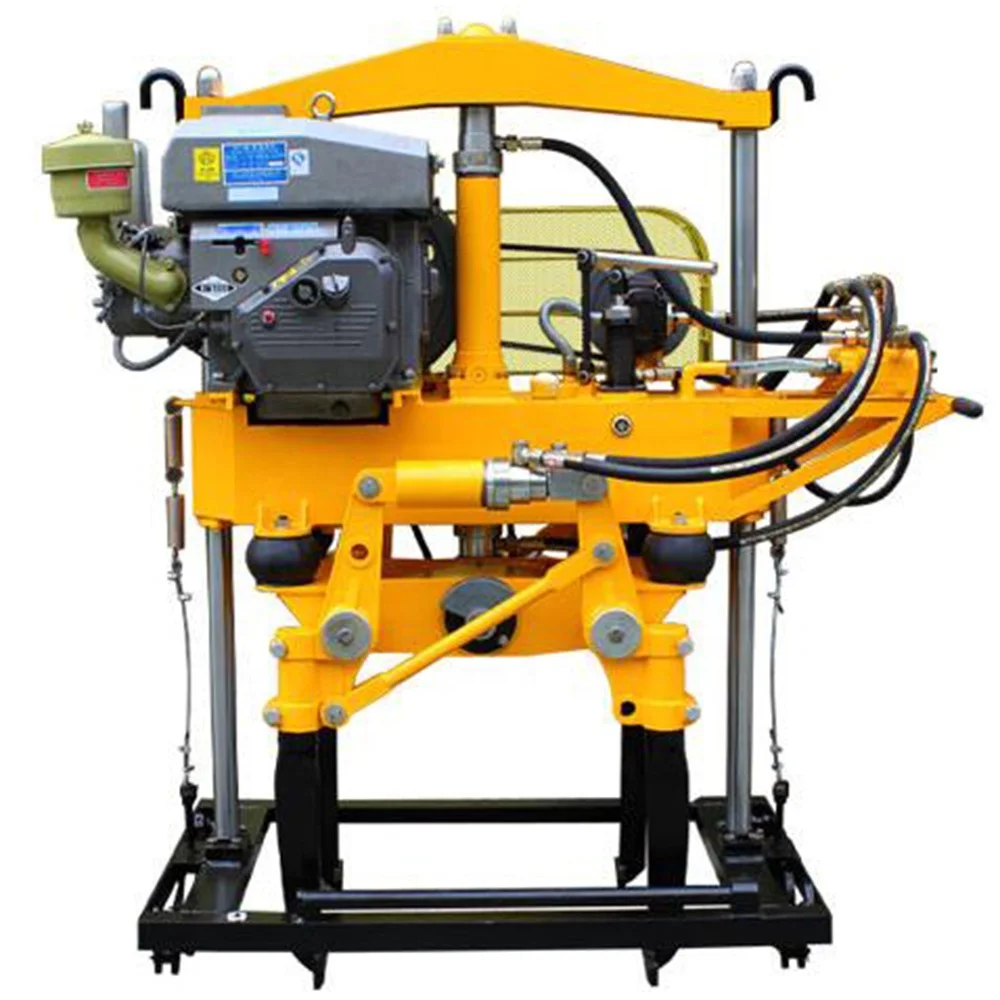

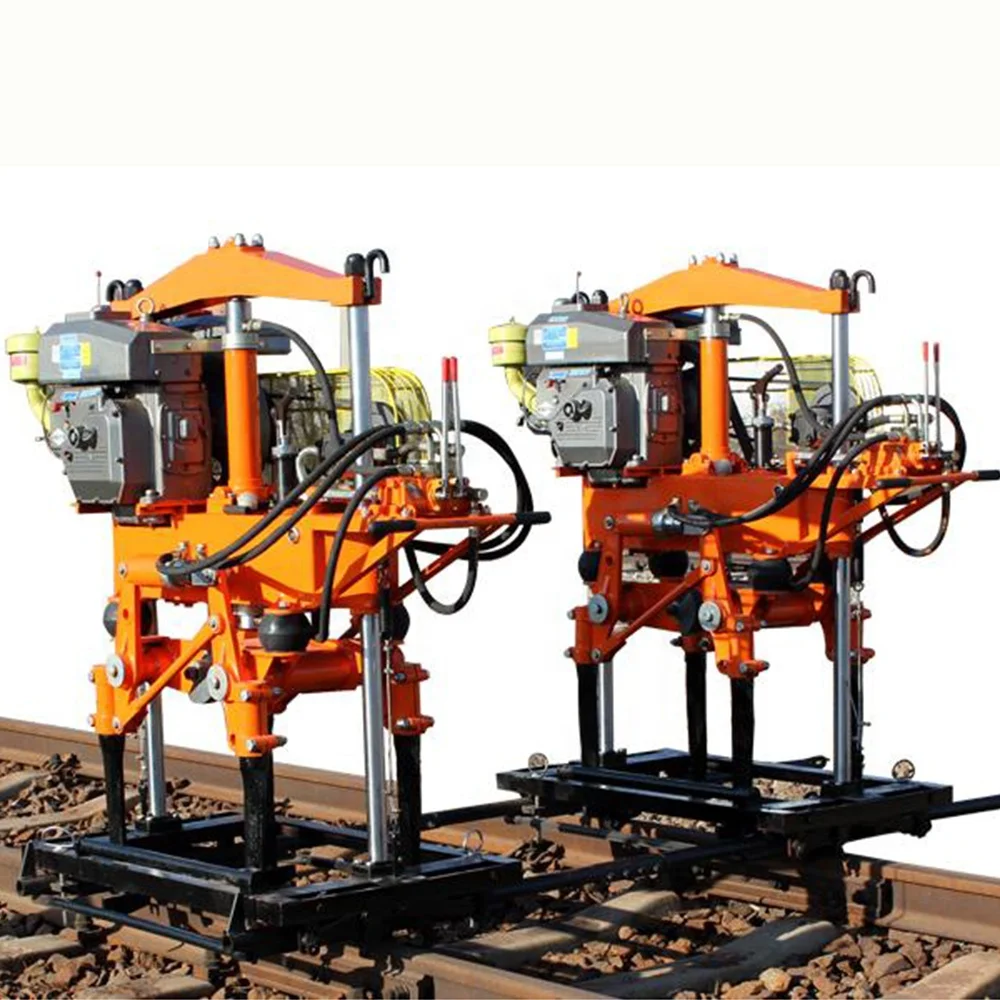

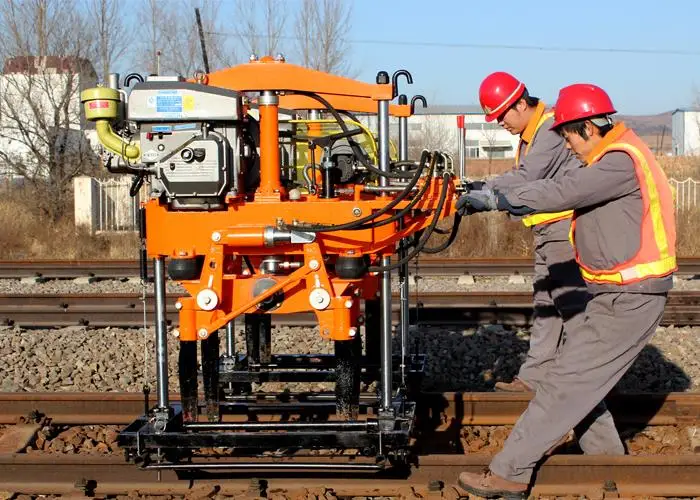

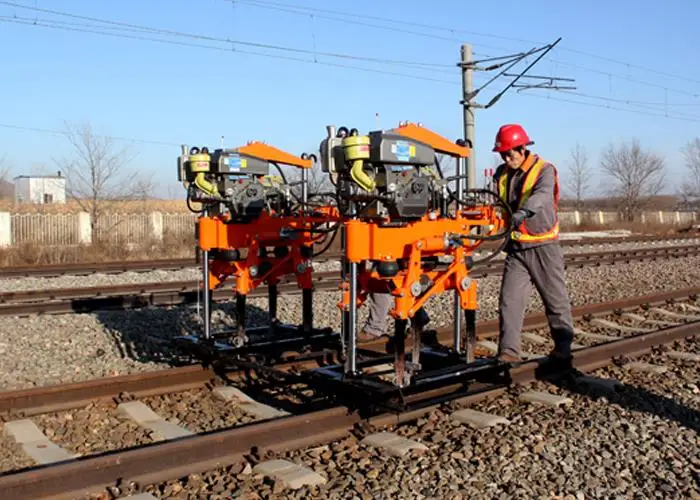

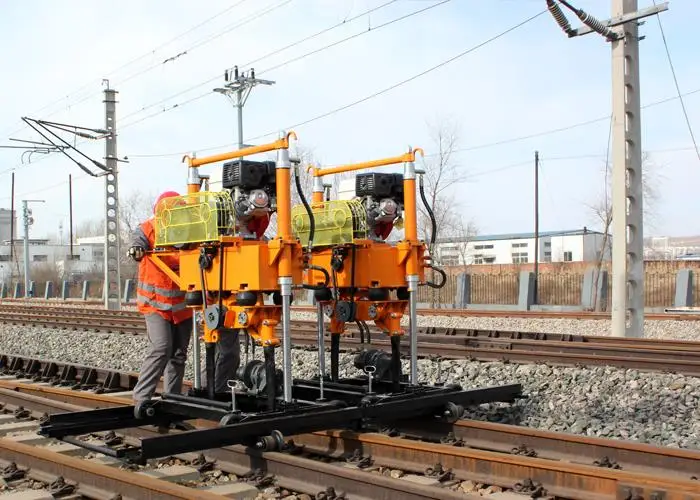

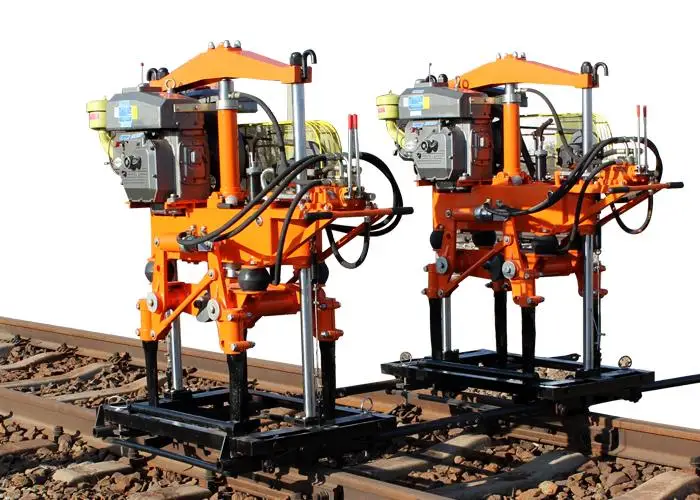

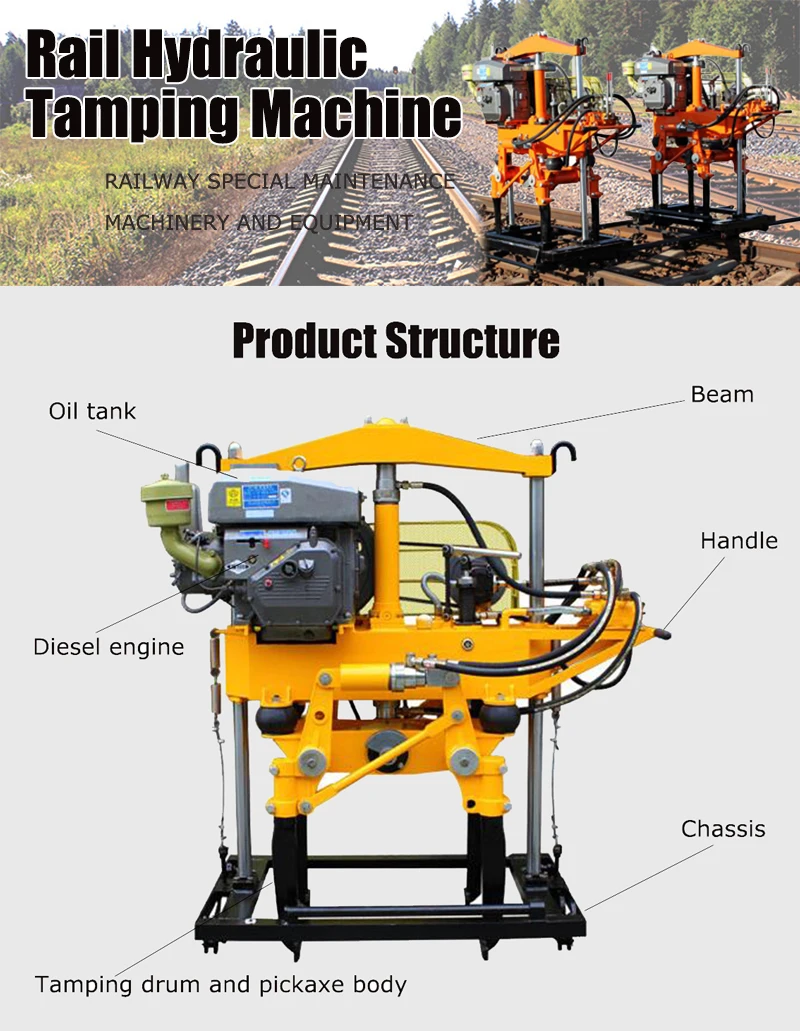

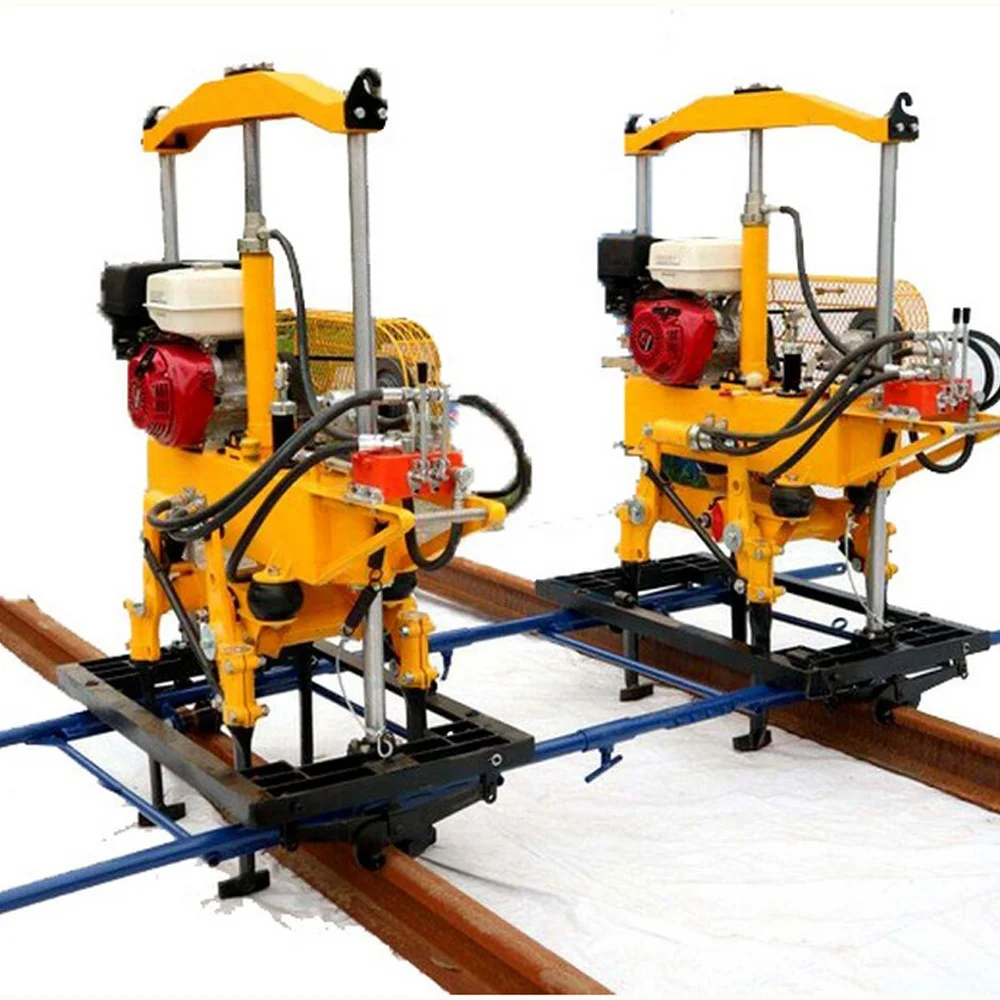

Photos of YD-22 Railway Ballast Tamper Rail Tamping Machine
