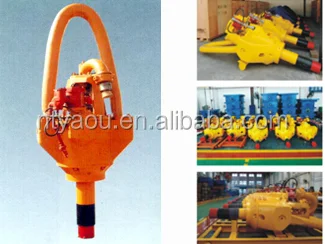

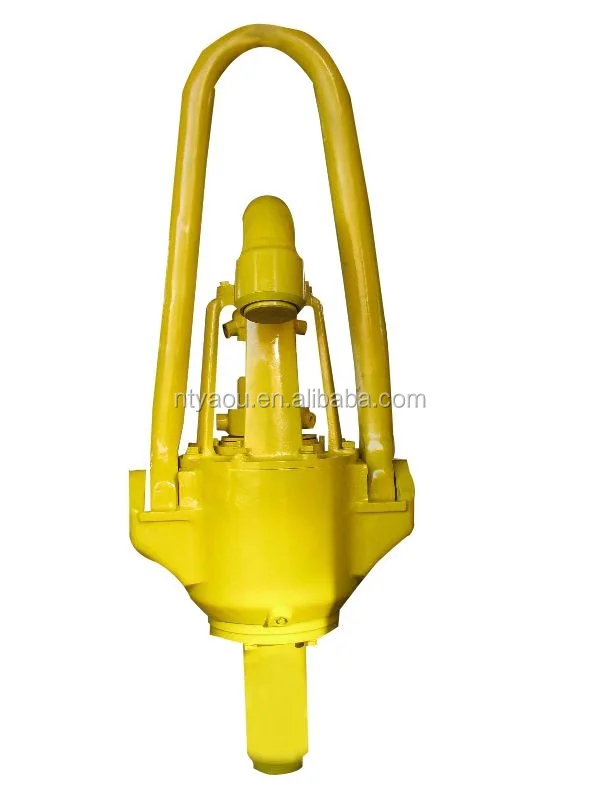

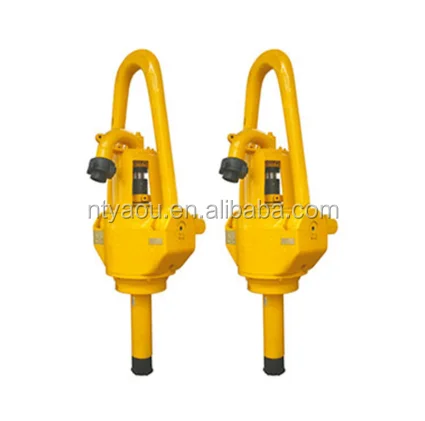

SL160 Swivels Oil drilling rig supporting equipment.
- Category: >>>
- Supplier: RUGAO YAOU IMPORT & EXPORT TRADE CO. LTD
Share on (624101958):
Product Overview
Description
Products Description

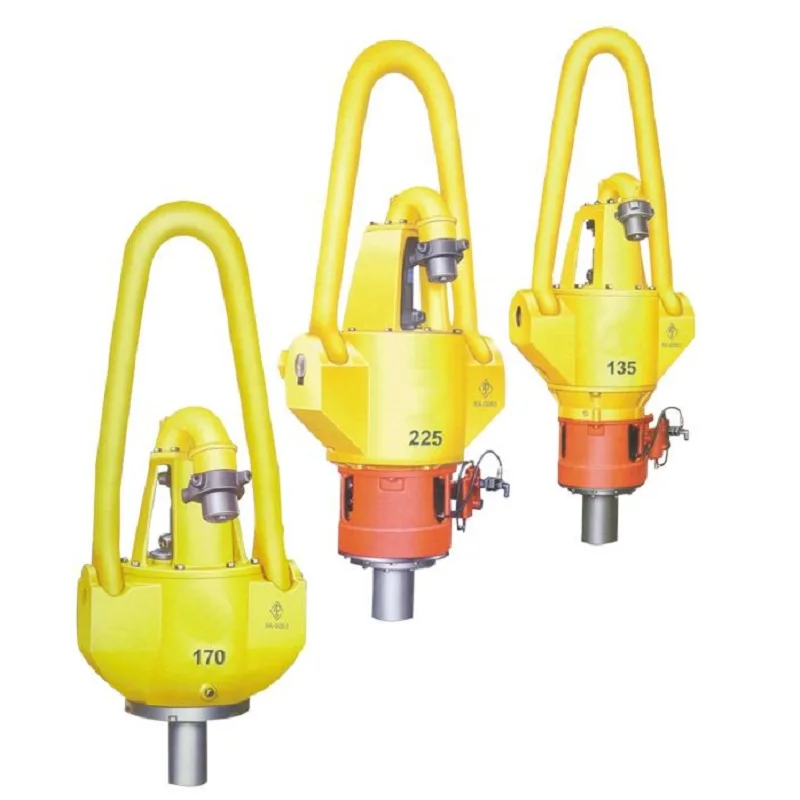

Type SL Swivels

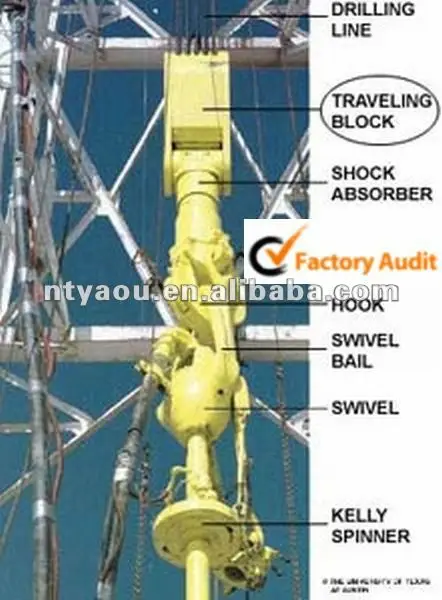

Swivel is one of the circulating equipment for petroleum drilling rig and workover rig for connecting rotary hose and drill pipe to perform mud recirculating during rotary operation in drilling service. The equipment is mainly used for matching with series of drilling rig and workover rig manufactured by SJ, including three types such as conventional, spinner and power swivel. It can be made in series with reliable quality and large versatility.
This equipment can be in accordance with API 8C.
The advanced heat treatment processes such as carburetion, etc. is used on some crucial driving components with high strength and long service life.
Pressure test and commissioning is performed on the equipment before delivery.
Main Parameters
Swivel is one of the circulating equipment for petroleum drilling rig and workover rig for connecting rotary hose and drill pipe to perform mud recirculating during rotary operation in drilling service. The equipment is mainly used for matching with series of drilling rig and workover rig manufactured by SJ, including three types such as conventional, spinner and power swivel. It can be made in series with reliable quality and large versatility.
This equipment can be in accordance with API 8C.
The advanced heat treatment processes such as carburetion, etc. is used on some crucial driving components with high strength and long service life.
Pressure test and commissioning is performed on the equipment before delivery.
Main Parameters
Model | SL90 | SL120 | SL135 |
Max. Static load lb(kN) | 202320(900) | 269760(1200) | 303480(1350) |
Max. RPM(r/min) | 300 | 300 | 300 |
Max. working pressure psi(MPa) | 3932.5(27.5) | 5005(35) | 5005(35) |
ID of stem in.(mm) | 2.36(60) | 2.13(54) | 2.24(57) |
Thread for connection with stem | 4-1/2″ FH-LH | 4-1/2″”DP thread LH | 4-1/2″ REG-LH |
Thread for connection with kelly | 6-5/8″ REG-LH | 3-1/2″ REG-LH | 6-5/8″ REG-LH |
Overall dimensions in.(mm) | -- | 74.72×24.72×28.43(1898×628×722) | 90.20×25.12×25.51(2291×638×648) |
Model | SL160 | SL225 | DSL160 |
Max. Static load lb(kN) | 359680(1600) | 505800(2250) | 359680(1600) |
Max. RPM(r/min) | 300 | 300 | 300 |
Max. working pressure psi(MPa) | 5005(35) | 5005(35) | 5005(35) |
ID of stem in.(mm) | 2.24(57) | 2.99(76) | 2.24(57) |
Thread for connection with stem | 4-1/2″ REG-LH | 6-5/8″ REG-LH | |
Thread for connection with kelly | 6-5/8″ REG-LH | 6-5/8″ REG-LH | 3-1/2″ IF-LH |
Overall dimensions in.(mm) | 85.63×30.75×25.98(2175×781×660) | 107.87×39.76×33.86(2740×1010×860) | 94.4×44.2×25.98(2397×1123×660) |
Marketing Campaign

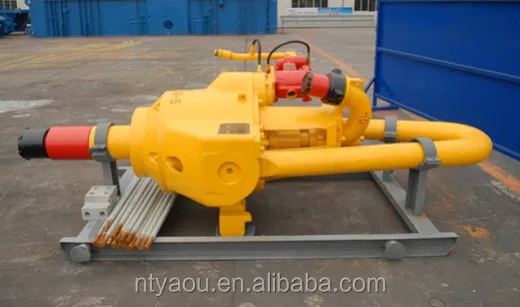

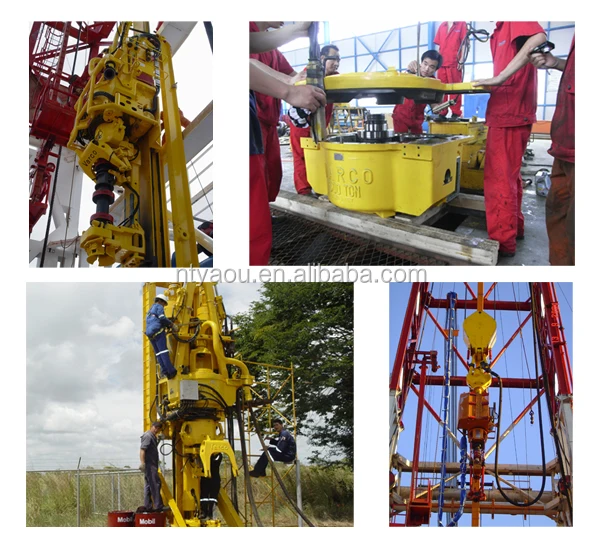

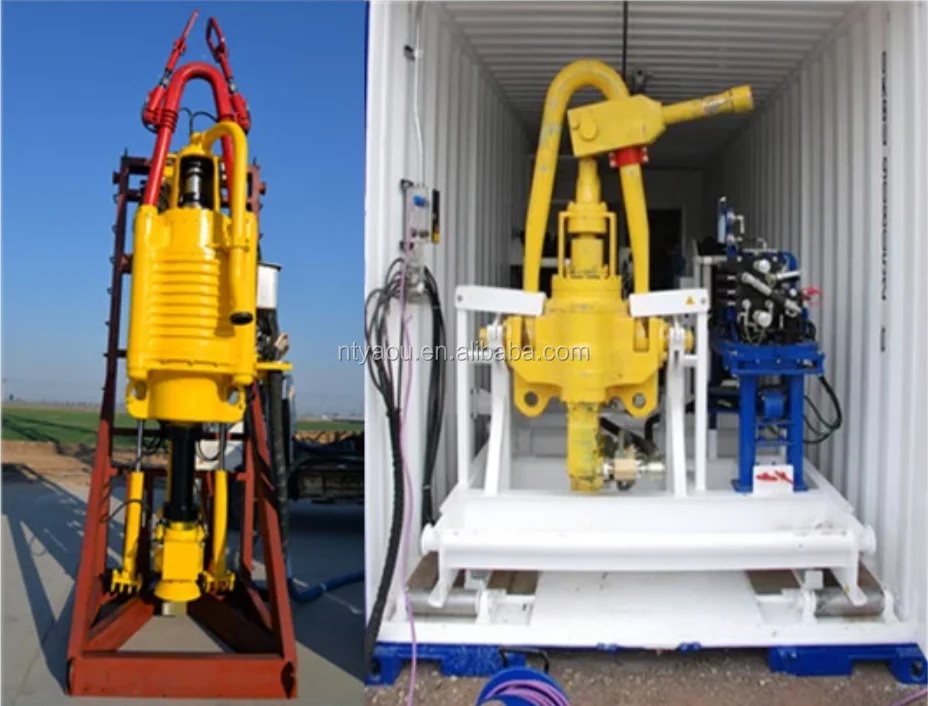

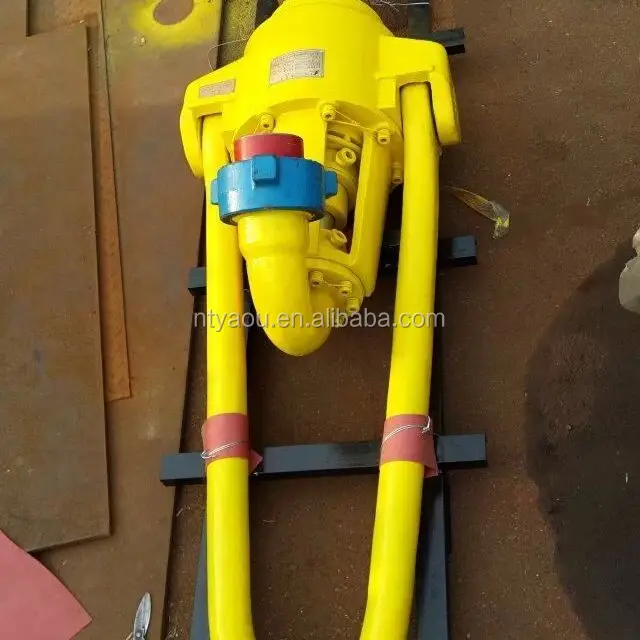

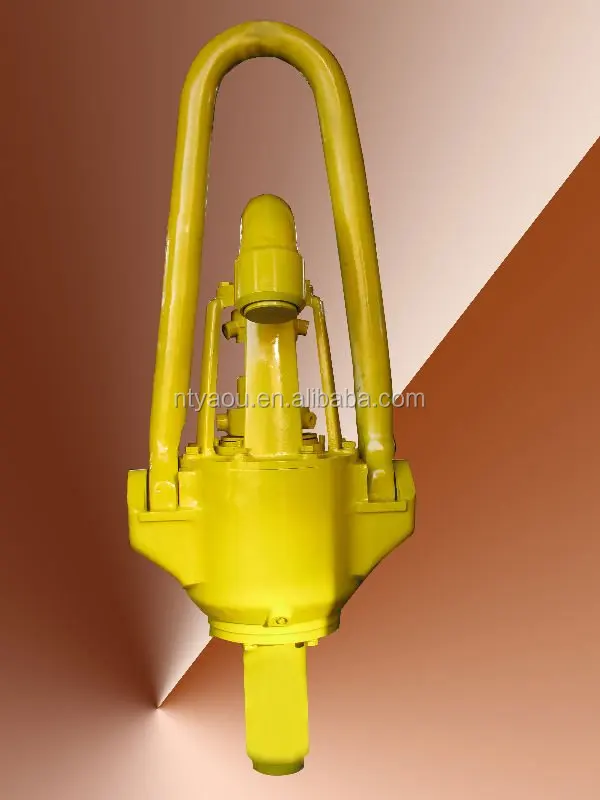

Details Images

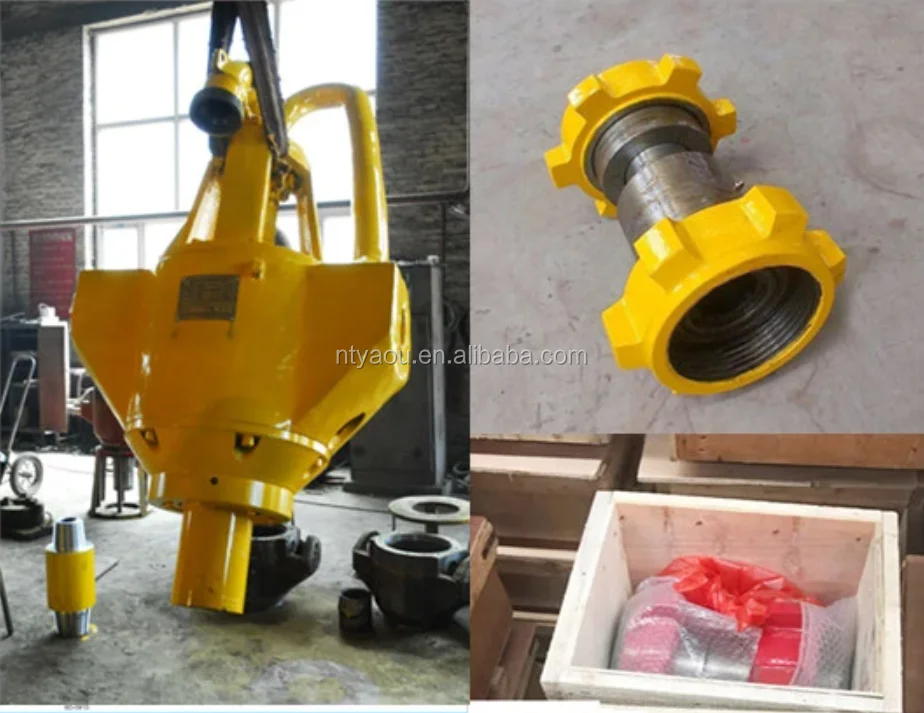

Product packaging
According to the volume and weight of the product and export requirements, provide multi-layer boxes and iron box packaging.
Transportation is based on customers in different regions using steam, rail, road and air transportation.
Transportation is based on customers in different regions using steam, rail, road and air transportation.
