Factory Directly Provide horizontal quick cutting cnc full automatic metal cutting band saw HL 400SK

Product Overview

Description

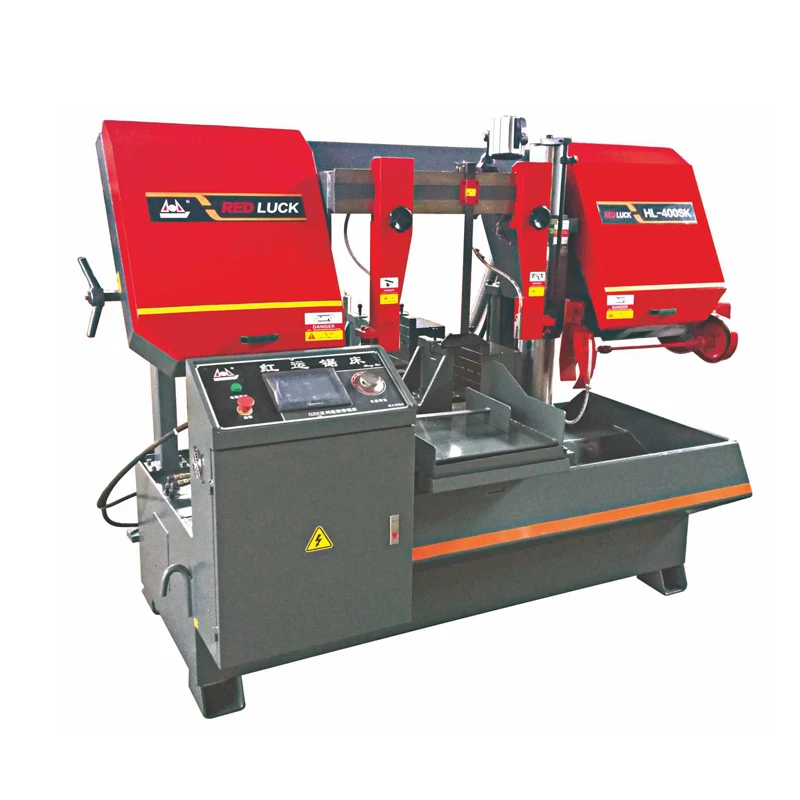

HL-400SK CNC Full Automatic Band Saw Machine

1. Human machine interface (HMI) instead of traditional control panel, and sawing parameters are set in figures.

2. PLC (programmable logic controller) for flexible setting

3. CNC Full-automatic Metal Band saw machine Mainly used for cutting various kinds of ferrous metal and non-ferrous metal.With the advantages of narrow saw cut,saving material , energy-saving , the structure of the machine tools is reasonable and reliable  performance and high precision



Model	HL-400SK
Max. Cutting Diameter	Round: 400	mm
	Plate: 400*400	mm
Blade Speed	27.45.60.78	m/min
Blade Size	1.1*34*4700	mm
Motor Output	4	kw
Hydraulic Pressure	1.5	kw
Coolant Pump	0.09	kw
Table height	600	mm
Machine Size(L*W*H)	2500*2200*1700	mm
Net Weight	2200	kg
Vice clamping	Hydraulic(two pairs)
Blade tensioning form	Maunal
Feeding cut adjust way	Hydraulic
Prcision of feeding	0.2mm-/+
Feeding way	Automatic(hydraulic oil cylinder)
Hydraulic cooling way	Wind cooling
Voltage	380V 50HZ 3Phase
