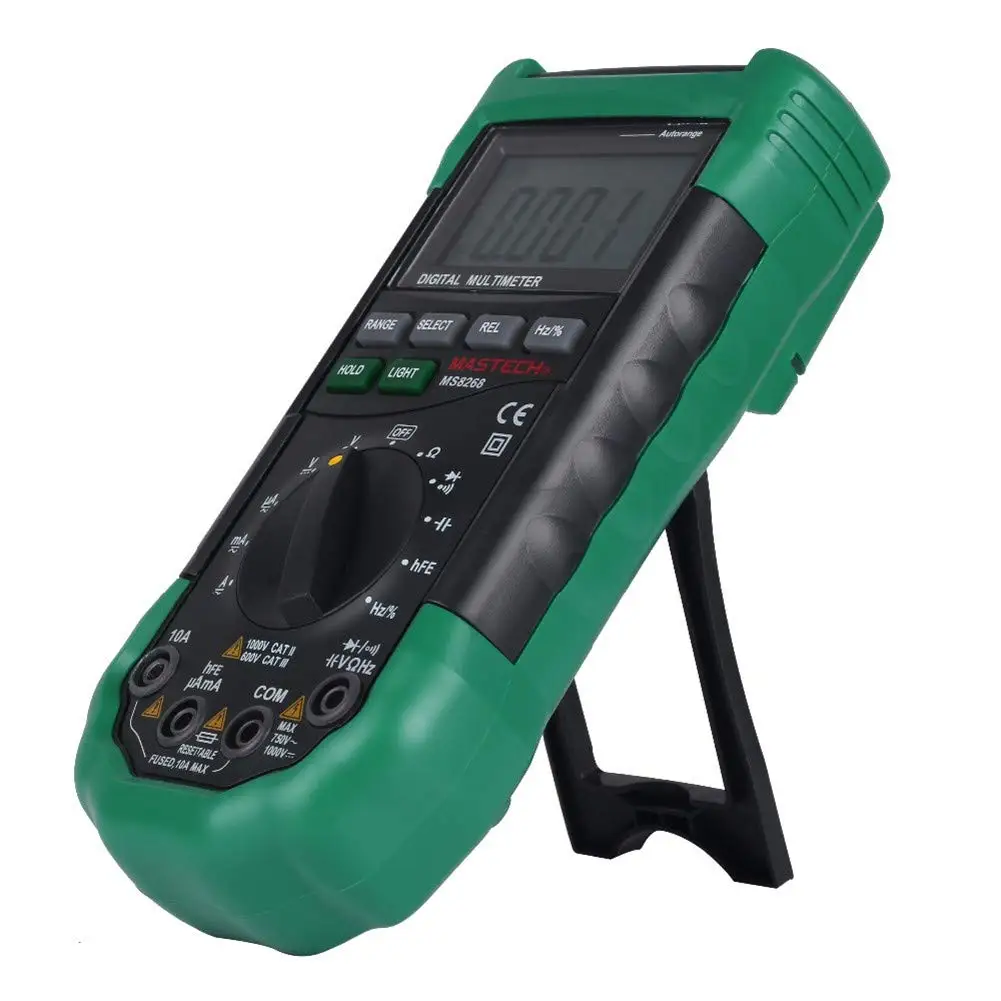

Mastech MS8268 Series Digital AC/DC Auto Manual Range Digital Multimeter
- Category: Multimeters >>>
- Supplier: Shenzhen Ruijing Technology Ltd.
Share on (62412991827):
Product Overview
Description
Product Description
AC/DC 1000V/10a 200kHz 200Uf 40Mohm relative measurement hfe diode check continuity
LED/sound warning when incorrect banana jacks are used relative to function switch setting
Auto and manual ranging with relative measurement (all ranges except frequency)
All range fused (resettable)
Auto power off
LED/sound warning when incorrect banana jacks are used relative to function switch setting
Auto and manual ranging with relative measurement (all ranges except frequency)
All range fused (resettable)
Auto power off
General specifications:
Safety Standards: IEC1010-1, CAT. III 600V & CAT. II 1000V
Pollution degree: 2
Operating temperature: 0~40 Celsius Degree, 32~122 Fahrenheit (<80%RH, <10 Celsius Degree non-condensing)
Storage temperature: -10~60 Celsius Degree, 14~140 Fahrenheit (<70% RH, battery removed)
MAX. V between terminals & earth: 750V AC rms or 1000V DC.
Fuse protection: uA / mA: Resettable fuse (400mA/250V); 10A: F 10A/250V (length * diameter: 6.3 * 32 mm)
Display: 3 3/4 digits LCD display
Max. displayed value: 3999 digits
Over range indication: LCD will display "OL".
Sample rate: 3 times/sec for digital data
Auto power off time: 15 min
Power supply: 3 * 1.5V AAA battery (not included)
Multimeter size: 19.5 * 9.2 * 5.5cm / 7.7 * 3.6 * 2.2in
Multimeter weight: 376g / 13.28oz
Package size: 24 * 17 * 6.5cm / 9.4 * 6.7 * 2.6in
Package weight: 545g / 19.22oz
Safety Standards: IEC1010-1, CAT. III 600V & CAT. II 1000V
Pollution degree: 2
Operating temperature: 0~40 Celsius Degree, 32~122 Fahrenheit (<80%RH, <10 Celsius Degree non-condensing)
Storage temperature: -10~60 Celsius Degree, 14~140 Fahrenheit (<70% RH, battery removed)
MAX. V between terminals & earth: 750V AC rms or 1000V DC.
Fuse protection: uA / mA: Resettable fuse (400mA/250V); 10A: F 10A/250V (length * diameter: 6.3 * 32 mm)
Display: 3 3/4 digits LCD display
Max. displayed value: 3999 digits
Over range indication: LCD will display "OL".
Sample rate: 3 times/sec for digital data
Auto power off time: 15 min
Power supply: 3 * 1.5V AAA battery (not included)
Multimeter size: 19.5 * 9.2 * 5.5cm / 7.7 * 3.6 * 2.2in
Multimeter weight: 376g / 13.28oz
Package size: 24 * 17 * 6.5cm / 9.4 * 6.7 * 2.6in
Package weight: 545g / 19.22oz
Specification
Power supply: 3 * 1.5V AAA battery
Multimeter size: 19.5 * 9.2 * 5.5cm / 7.7 * 3.6 * 2.2in
Multimeter weight: 376g / 13.28oz
Package size: 24 * 17 * 6.5cm / 9.4 * 6.7 * 2.6in
Package weight: 545g / 19.22oz
Measurement specifications (accuracy):
DC Voltage 400mV/4V/40V/400V ±0.7%
1000V ±0.8%
AC Voltage 400mV ±3.0%
4V/40V/400V ±0.8%
750V ±1.0%
Resistance 400Ω/4kΩ/40kΩ/400kΩ/4MΩ ±1.2%
40MΩ ±2.0%
Capacitance 4nF ±5.0%
40nF/400nF/4uF/40uF/200uF ±3.0%
Frequency 9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/199.9kHz ±2.0%
>200kHz Unspecified @ >200kHz
DC current 400uA/4000uA/40mA/400mA ±1.2%
10A ±2.0%
AC current 400uA/4000uA/40mA/400mA ±1.5%
10A ±3.0%
Multimeter size: 19.5 * 9.2 * 5.5cm / 7.7 * 3.6 * 2.2in
Multimeter weight: 376g / 13.28oz
Package size: 24 * 17 * 6.5cm / 9.4 * 6.7 * 2.6in
Package weight: 545g / 19.22oz
Measurement specifications (accuracy):
DC Voltage 400mV/4V/40V/400V ±0.7%
1000V ±0.8%
AC Voltage 400mV ±3.0%
4V/40V/400V ±0.8%
750V ±1.0%
Resistance 400Ω/4kΩ/40kΩ/400kΩ/4MΩ ±1.2%
40MΩ ±2.0%
Capacitance 4nF ±5.0%
40nF/400nF/4uF/40uF/200uF ±3.0%
Frequency 9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/199.9kHz ±2.0%
>200kHz Unspecified @ >200kHz
DC current 400uA/4000uA/40mA/400mA ±1.2%
10A ±2.0%
AC current 400uA/4000uA/40mA/400mA ±1.5%
10A ±3.0%
Detailed Images
Detail Pictures
Related Products
Packing&Shipping
Most products have stock, for small trial order can ship out immediately. For OEM order also can be finished very fast.Well packed with brown Carton box to ensure safty on transportation.
We provide different shipping way like air fright and Sea freight, courier method by DHL, FEDEX,UPS,TNT, Aremex and also EMS by post to meet your requirements.
Company Introduction
We are an professional distance meter, multimeters and handheld tools producer and wholesale. We provides the customized products and OEM service. Most models have ready stock to ensure fast delivery. and aso help online retailers to ship to FBA warehouse.
Warranty
We provide 1 Year Warranty, free replacement or repair.
We will do full test before shipment to ensure quality.
FAQ
1. Can you print our logo? Yes.
2. Can you help to handle shipment to Amazon FBA? Yes
3. Do you have MOQ limited?
No, Most models we have stock, So no MOQ limited. MOQ only for OEM order.
4. What is your lead time?
Most model we have stocks, So we can ship your order immediately. For OEM order, normally, we can finish with 15 working days.
5.Can we buy a sample before mass order? Yes
2. Can you help to handle shipment to Amazon FBA? Yes
3. Do you have MOQ limited?
No, Most models we have stock, So no MOQ limited. MOQ only for OEM order.
4. What is your lead time?
Most model we have stocks, So we can ship your order immediately. For OEM order, normally, we can finish with 15 working days.
5.Can we buy a sample before mass order? Yes
