jinan AOL factory price oscillatory though cut v cut AOL digital cutting machine for Recording Studio Soundproofing board
- Category: Foam Cutting Machine >>>
- Supplier: Jinan AOL CNC Equipment Co. Ltd.
Share on (62413476264):
Product Overview
Description

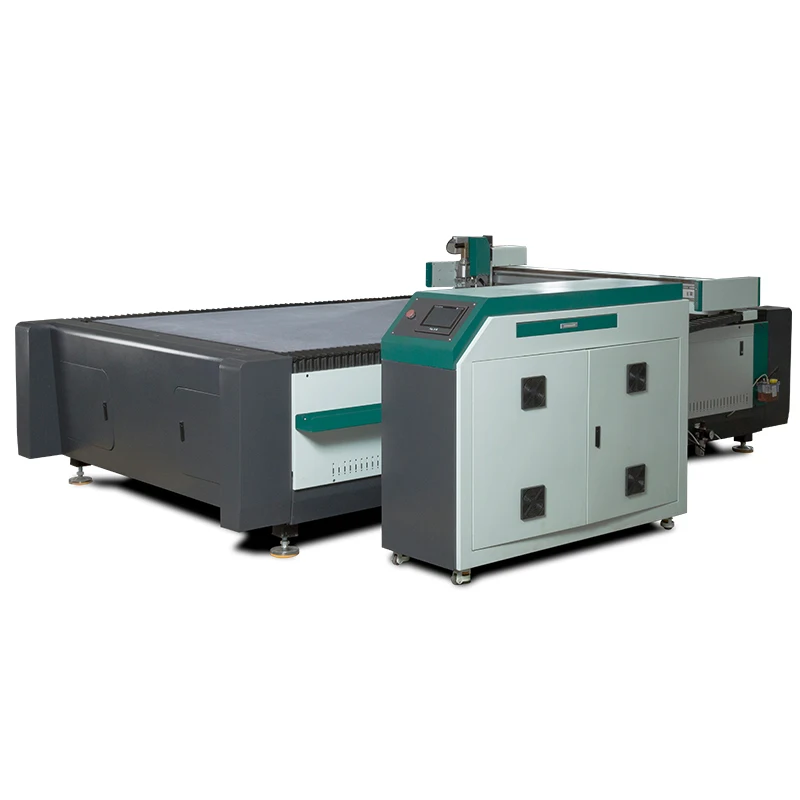

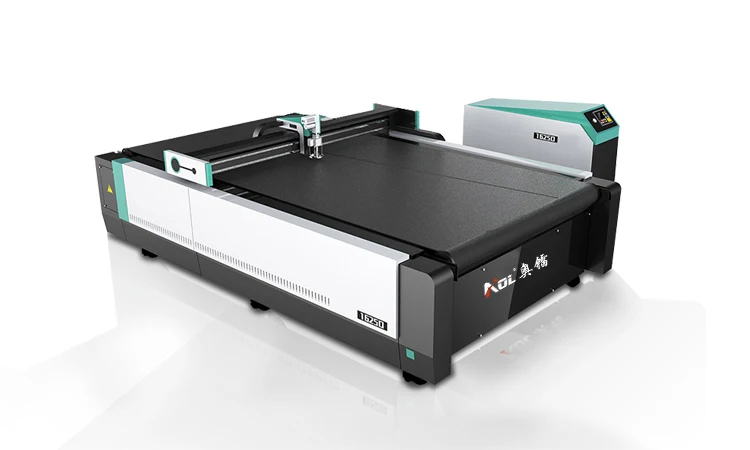

jinan AOL factory price oscillatory though cut v cut AOL digital cutting machine for Recording Studio Soundproofing board
Product Description
1.Our cutter pvc foam board design engineers have specified heavy duty precision fabricated and machined structures combined.
2.With twin hardened and ground linear bearings in all axes, powerful digital drives and precision transmissions.
3.Todeliver high accuracy and repeatability and produce smooth motion with high speed and acceleration for the highest.
Model | AOL-1625 | AOL-1390 | AOL-1625 (auto feeding) |
Working area | 2500×1600mm | 1300*900mm | 2500×1600mm |
Machine size (mm) | 3450×2300×1250 | 2250*1600*1250 | 3600×2300×1250 |
Rated power | 11KW | 11KW | |
Fixed mode | flat plate table | Auto feeding type table | |
Multifunctional head | Swiss imported knife: with vibration full cutting, vibration half cutting and cursor location function. | ||
Tool configuration | Multiple cutting knives | ||
Using infrared sensors, responsive, safe and reliable. | |||
| 800-1200mm/s | ||
Cutting speed | 200-800mm/s(according to different cutting materials) | ||
Cutting thickness | ≤22mm(according to different cutting materials) | ||
Cutting materials | Leather, all kinds of clothing flexible material, Sponge composite leather, PVC, soft glass, Silicon, rubber | ||
≤0.1mm | |||
Capacity | 2GB | ||
Transmission system | imported(Digital servo motor, linear guide, synchronous belt, ball screw) | ||
| HP-GL compatible format | ||
Voltage | 380V±10% | ||
Other configuration | Japanese Yaskawa servo motor,Germany imported conveyor belt, vacuum table, auto feeding, Taiwan Hiwin rail, 9.0kw vacuum pump | ||
Advantage of cutter pvc foam board
1).Cutting function of oscillation tool
It can cut many different materials (such as corrugated paper, cardboard, offset paper, grey board, rubber,honeycomb board, PP,PE,PVC, gasket, leather ,carpet and mat )
(2). Folding function: It can fold corrugated paper, card paper and offset board into perfect folding line.
(3). Function of dotted line: It is used to fold them after half cutting corrugated paper and grey card paper, and to cut dotted line.
(4). Location: Location with laser.
(5). Drawing function
It can draw various high precision drawing cutting materials: corrugated board, foam, PVC, styrene, Coroplast, Celtec, magnetic film, adhesive vinyl, leather, rubber, fabrics, high intensity reflective films, paper, cardboard, polystyrene, magnetic films, vinyl etc.
(6). Punching function: It can punch hole on the material, such as leather,carton, pvc, carpet and mat ,etc.
Applicable materials
It can cut on fabric, leather, cardboard, plastic, paper, rubber, EVA foam, and it can cut many types of foam, such as closed cell foam, rubber foam, foamex, foam core, KT board, EPE foam, polyethylene foam, PE foam, PVC foam, etc. It's widely used for packaging protection, advertising display, termal insulation, model & mock up making, puzzle and pattern cutting, etc.
Buyer Feedback
Packaging
The company shows
Jinan AOL CNC Equipment Co., Ltd. is a professional manufacturer of cutter pvc foam board. The company specializes in providing cutting and engraving integrated solutions for the non-metal industry. In the environment of advocating environmental cutting, the company replaced the laser with a smart blade and developed a vibrating knife, a drag knife, a round knife and a half cutter.
Various tools such as beveling cutters, pressure rollers, punching knives, milling cutters, etc., combined and equipped, coupled with the assistance of large cameras and projectors, have basically met the cutting and engraving needs of all flexible industries.
The company's main products are advertising material cutting machine, car interior cutting machine, clothing bag shoe and hat cutting machine, packaging carton cutting machine, composite material cutting machine, furniture home textile cutting machine, sound insulation material cutting machine.
The company attaches great importance to R&D innovation and excellence, and has won many national invention patents. It has passed ISO9001 international quality system certification, EU CE safety certification and US FAD safety certification, and its products are exported to more than 120 countries and regions.
