Product Overview

Description





Product Description



4 Port KVM Switch With Multi-view

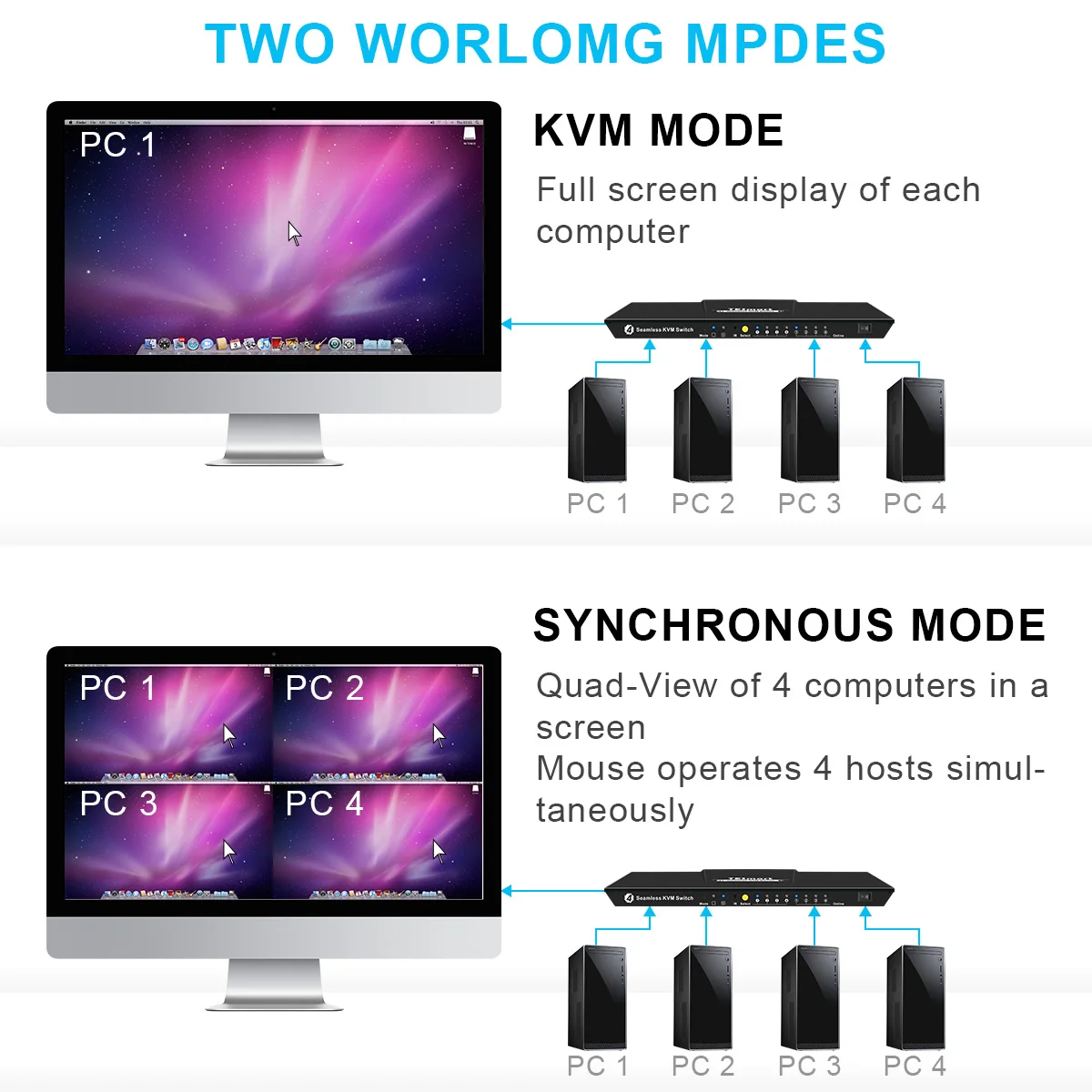

The KVM Switch supports two output mode: KVM mode and synchronizer mode. In synchronizer mode, a set of keyboard and mouse can control four PCs simultaneously; In KVM mode, a set of keyboard and mouse can only control one PC at a time. It supports four HDMI input sources which can be displayed on one screen with multiple multi-view modes.


Features


 ◪ Using only 1 set of keyboard, mouse and monitor to control 4 PCs l No latency, support seamless switching
◪ Support resolution up to 1080P
◪ Support two working modes: KVM mode and synchronizer mode
◪ Support multiple multi-view display modes
◪ Available to use keyboard and mouse without any delay after switching input sources
◪ Support hot plug, connect or disconnect devices to the KVM switch at any time without turning off devices
◪ Support auto switching among all devices so as to monitor the devices in a specified time interval
◪ Support keyboard hotkeys, IR remote control, front panel buttons and mouse gesture to control the device to switch inputs
◪ With extra standard USB port, it is possible to connect bar code scanner, USB hard drive or other USB devices to KVM

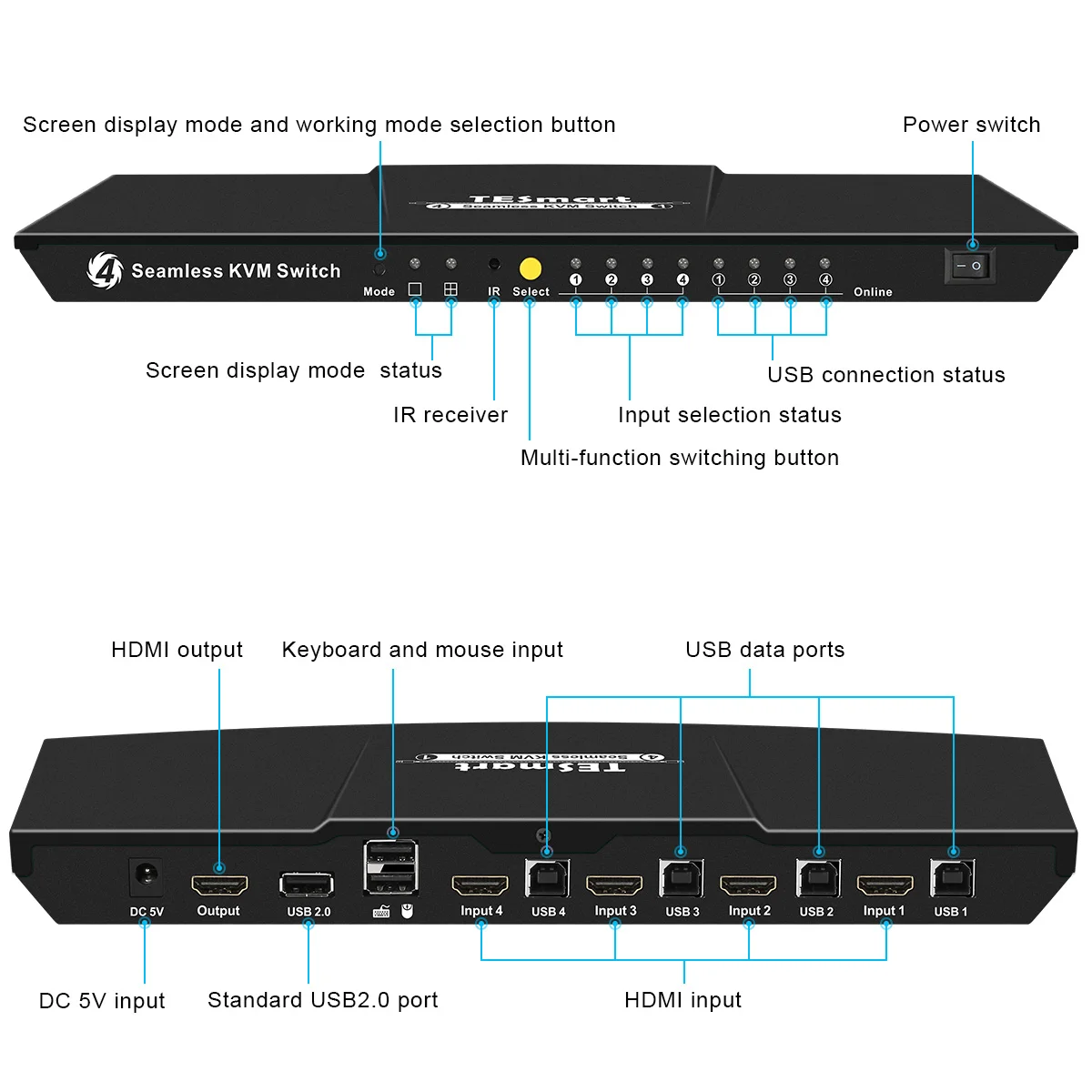

Panel Description

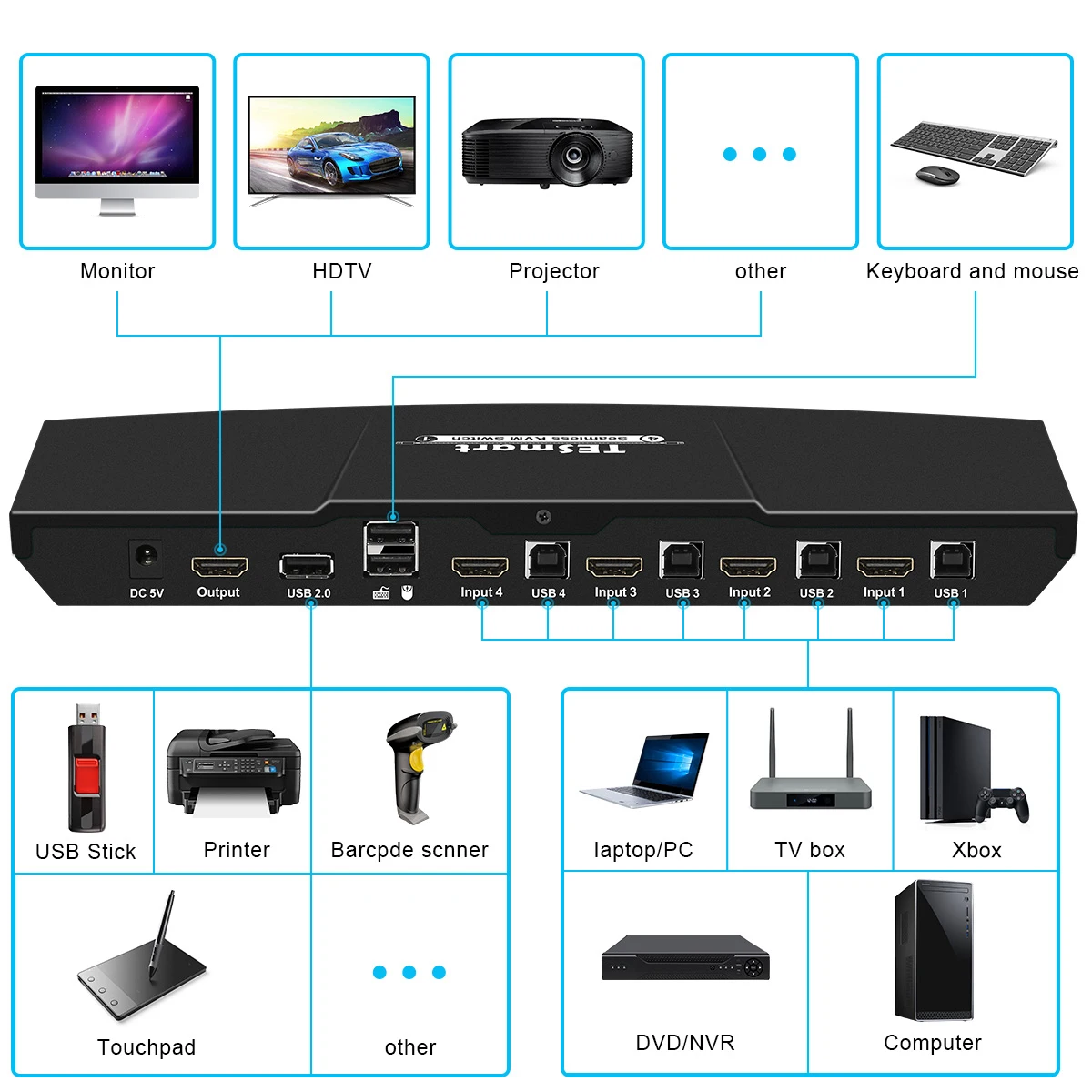

Connection Diagram




Specification


HKS0401A40
4 Port KVM Switch With Multi-view
Functionality:
Auto Scan
Yes
Port selection
Front panel buttons
Yes
Keyboard hotkeys
Yes
IR remote control
Yes
Console commands
No
Technical:
Resolution
1080P
Auto to get EDID
Yes
Data rate
10.2 Gbps
Auto scan interval
1~250 Seconds
Beep Sound
On/Off
OSD
No
Supported OS
Unix/Windows/Debian /Ubuntu /Fedora /Mac OS X/ Raspbian /Ubuntu for Raspberry Pi
and other Linux based system
Console ports
Keyboard emulation
1 * USB Type A
Mouse emulation
1 * USB Type A
USB 2.0 Hub ports
1 * USB Type A
Video /Audio
1 * HDMI Type A
RS232
NA
LAN
NA
System ports
USB Data
4 * USB Type B
Video / Audio
4 * HDMI Type A
Mechanical:
Chasing material
Aluminum Alloy

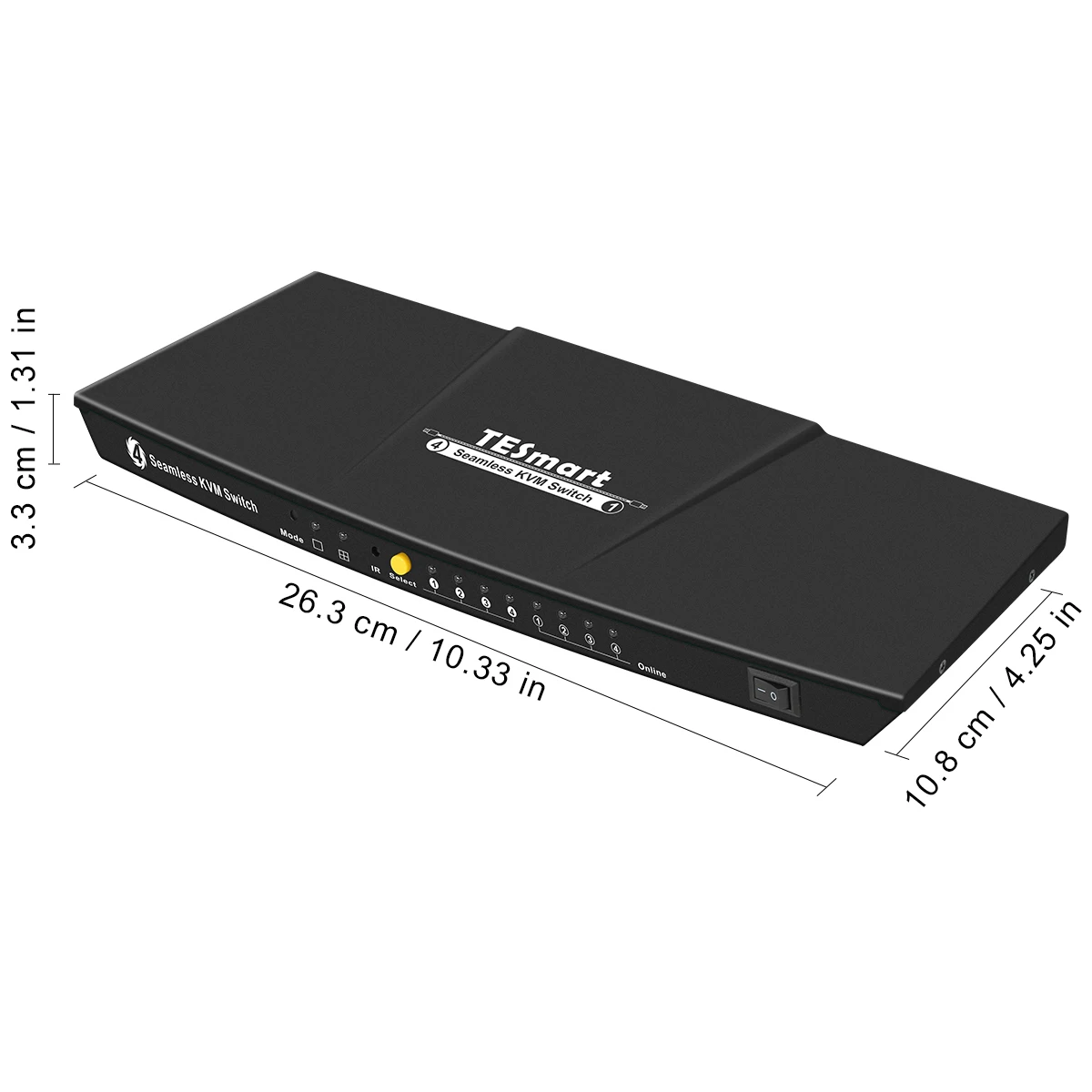

Product Dimensions
262.5 (L) x 108 (W) x 33.3 (H) mm
Item Weight
800g


Details Images




Packing and Shippment








Packing list


1 * 4x1 HDMI KVM Switch
1 * DC 5V Power Adapter
1 * IR Remote Control
1 * Quick-Start Guide


     DHL, UPS, EMS, FedEx,  TNT, Air freight supported.




FAQ


1. What is KVM Switch?

A KVM (keyboard, video, mouse) switch is a hardware device that allows a user to control multiple computers from one set of keyboard, video monitor, and mouse. Previously KVM's were mostly seen in data centers but in recent years have expanded to the consumer market due to the number of video devices that many homeowners use (computers, streaming devices, game consoles, security systems, etc.)

2. How long of a cable can I use?

A cable that is 30 ft or less can transmit High Def quality at 60Hz
A cable that is 15 ft or less can transmit Ultra HD quality at 30Hz
A cable that is 10 ft or less can transmit Ultra HD quality at 60Hz

3.What can I do if the mouse does not respond correctly?

Occasionally the mouse movement for Mac operating systems may jump. Please try using the USB2.0 port for your mouse input. If problems continue, please confirm the mouse works correctly when plugged directly into the PC that exhibits the issue.
