57J1880EC-1000 Two phase Closed Loop Step Servo Motor
US $35.00-$38.00

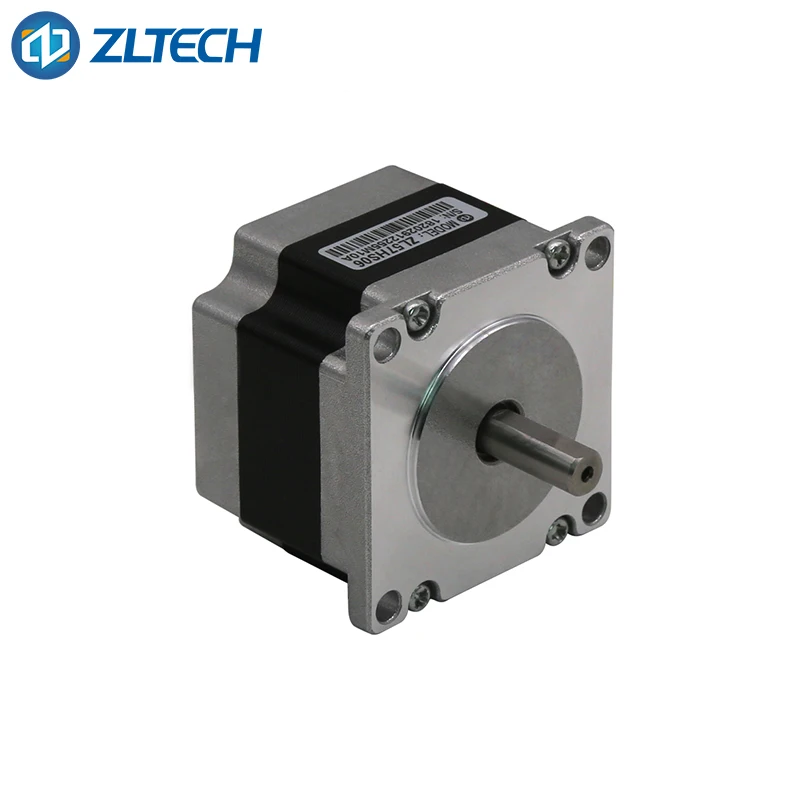

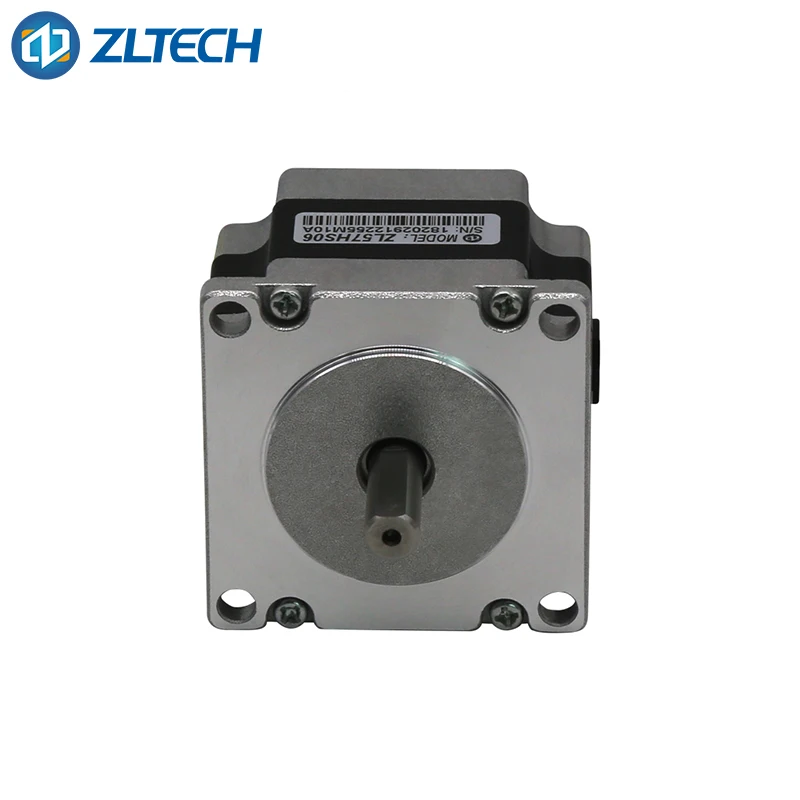

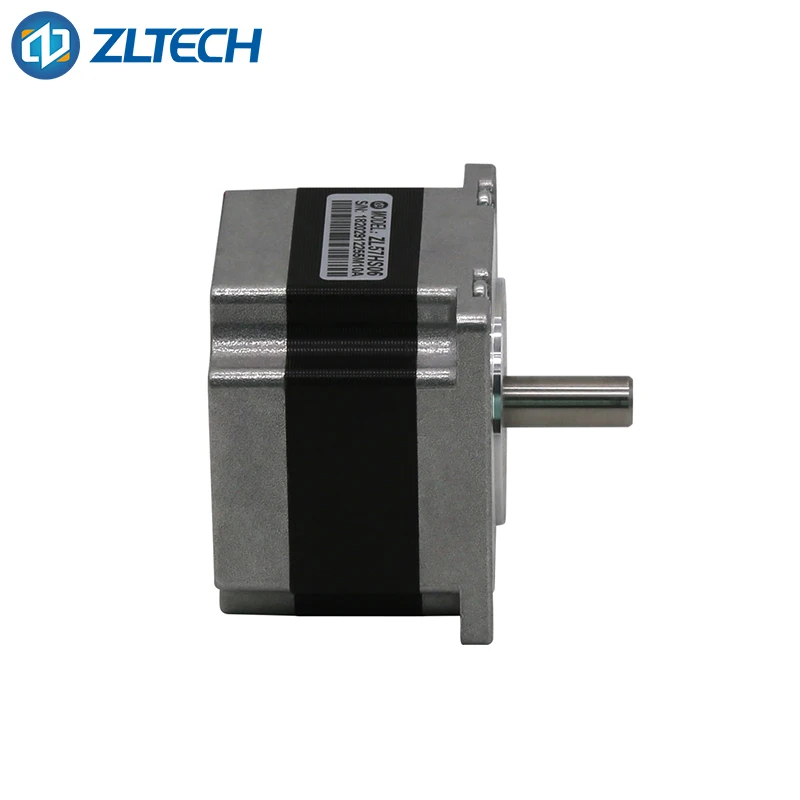

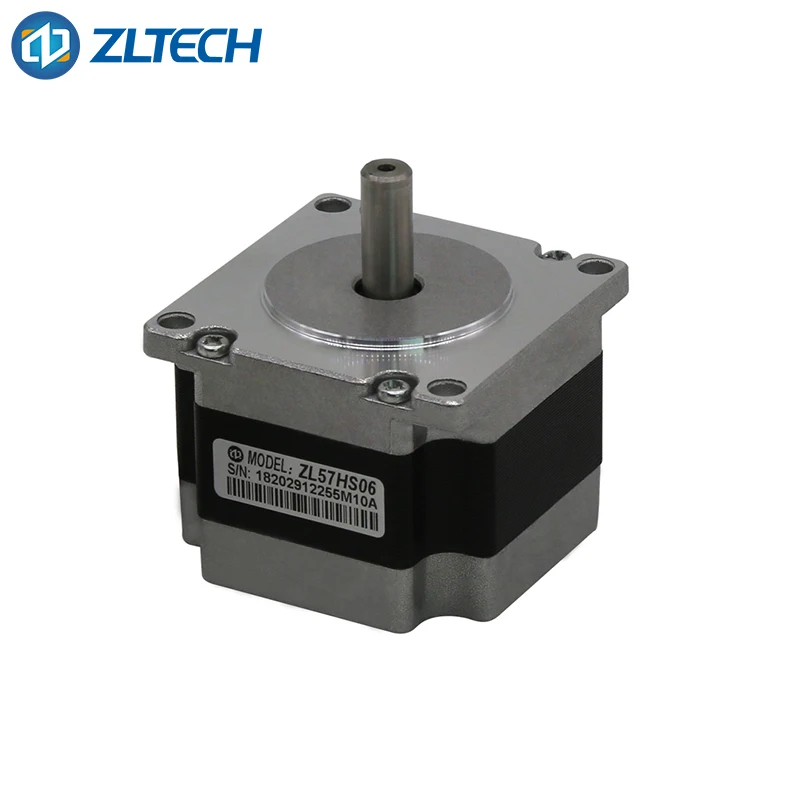

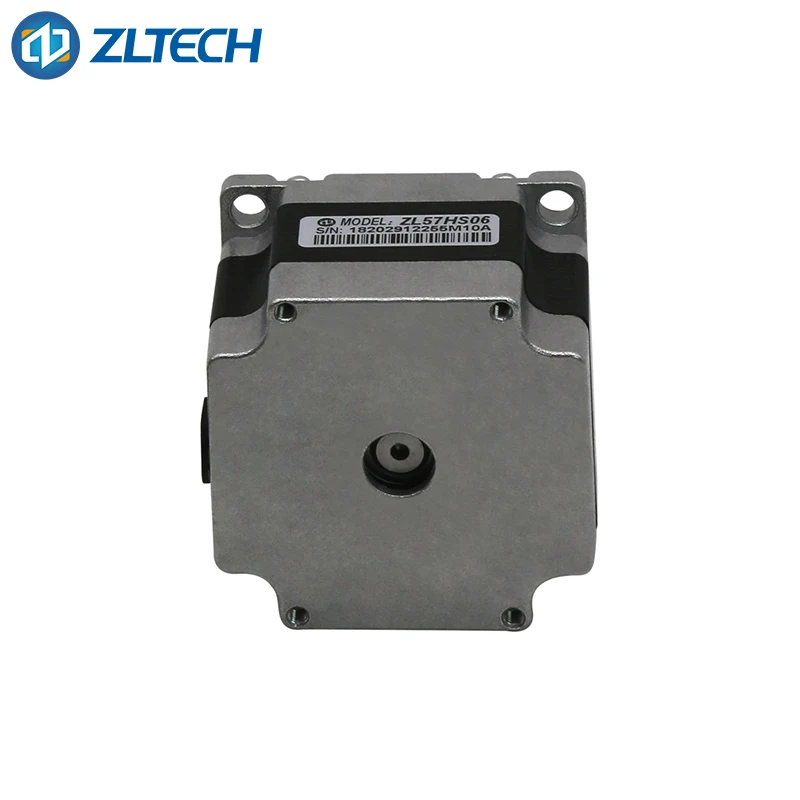

Двухфазный 1,8 градусов Nema 23 57 0.6N.m 2A DC гибридный шаговый двигатель с одним валом CNC для запчастей 3D принтера REPRAP
- Category: Stepper Motor >>>
- Supplier: Shenzhen Zhongling Technology Co. Ltd.
Share on (62414225151):
Product Overview
Description
Product Description
Stepper motor is an open-loop control motor that converts electrical pulse signal into angular displacement or linear displacement. It is the main actuator in modern digital program control systems, which is normally used for CNC, dispenser, laser cutting machine, engraving machine, marking machine, medical equipment, and automatic assembly equipment, etc.
Stepper Motor | ZL57HS06 |
Shaft | Single Shaft |
Size | Nema23 |
step angle | 1.8° |
shaft diameter | 8mm |
shaft length | 21mm |
Holding Torque | 0.6N.m |
Rated Current | 2A |
Phase Resistance | 1.2Ω |
Phase Inductance | 2.3mH |
Lead Wire | 4 |
Motor Length | 42mm |

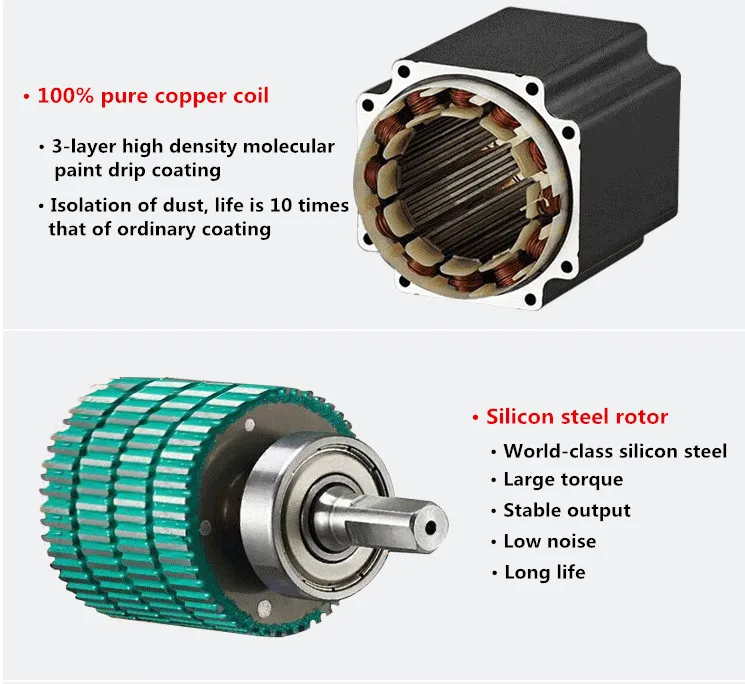

* Large output torque, high speed and no step loss.
* Low heat, low noise, low vibration and high precision and long lifespan.

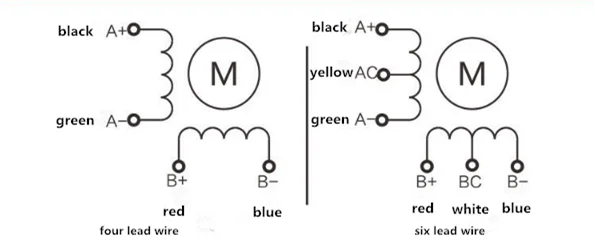

Motor wiring
1. When installing the motor, be sure to use the front end cover of the motor to install the stop position, and pay attention to the cooperation, strictly ensure the concentricity of the motor shaft and the load.
2. When the motor is connected to the driver, do not connect the wrong phase.
2. When the motor is connected to the driver, do not connect the wrong phase.

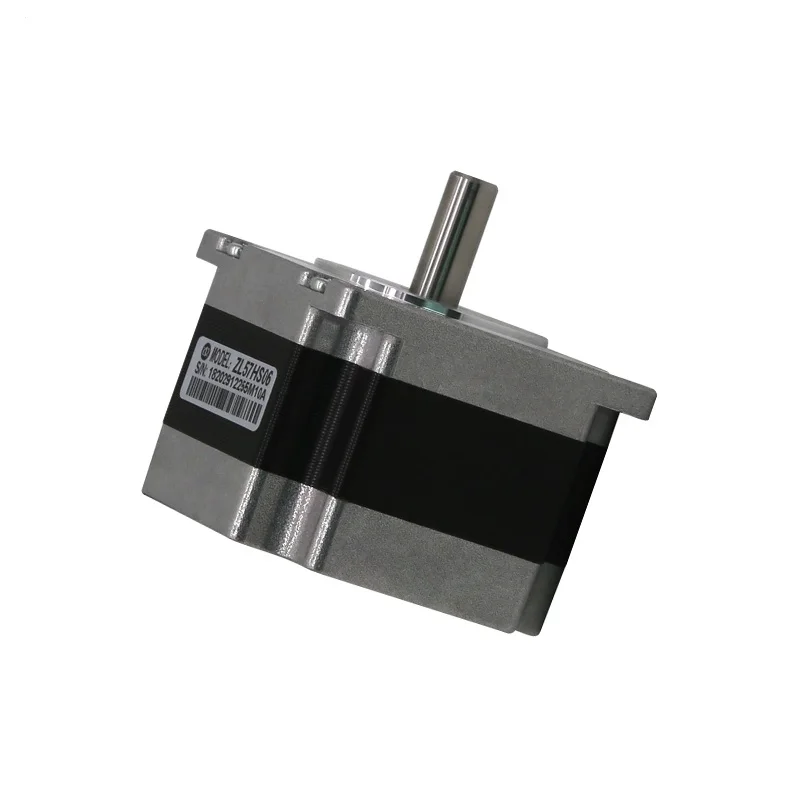

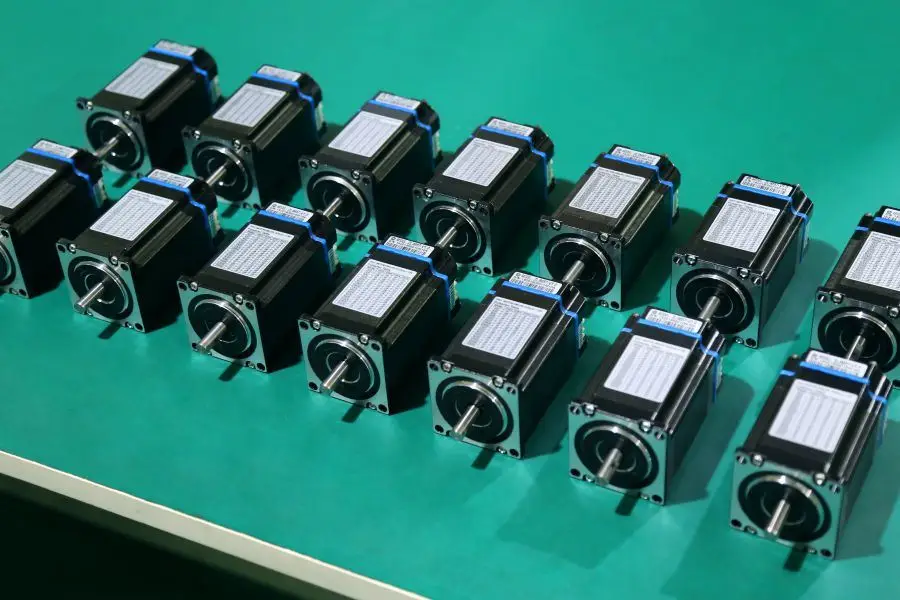

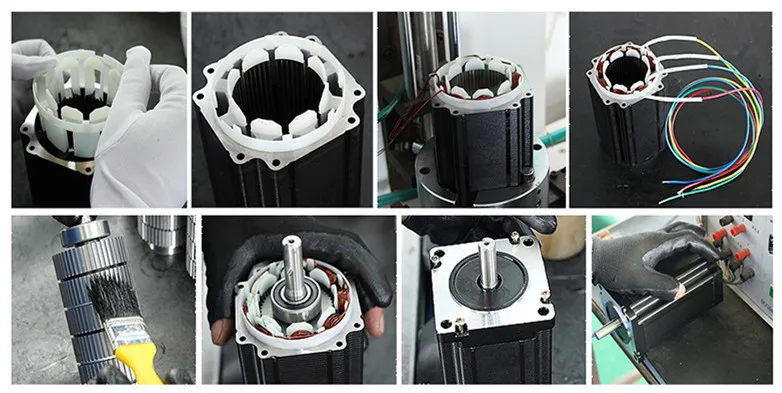

Detailed Images

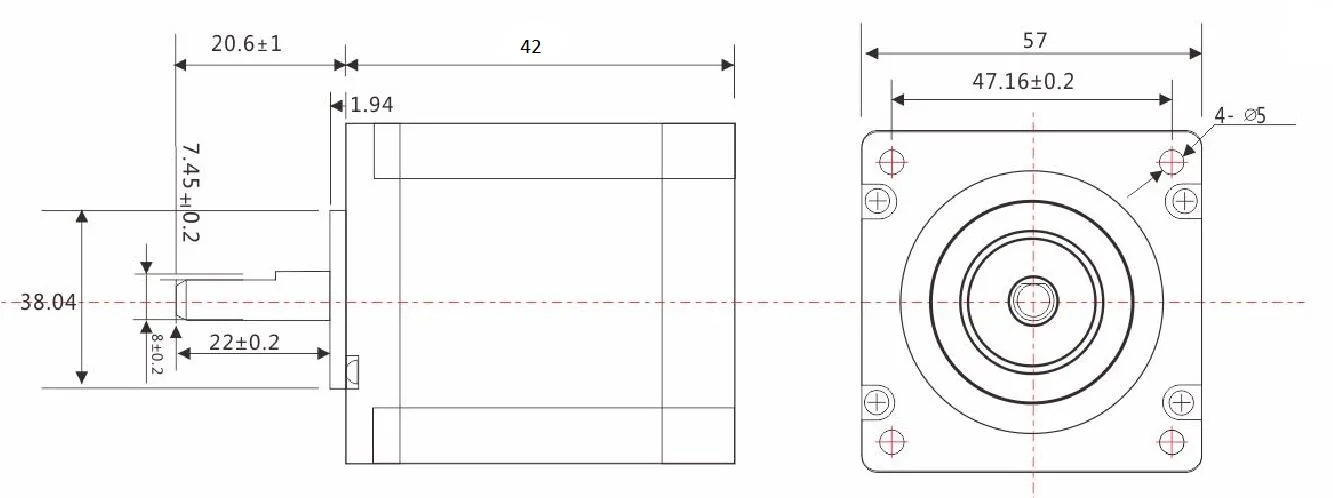

Size Information
Related Products
Packing&Shipping
Motor weight: 0.46kg
Motor total length: 63mm
Package: carton with foam, quantity per carton will depend on the motor size.
Shipping: goods will be deliveried by air(EMS, DHL, FedEx,TNT etc), by boat according to your requirements.
Motor total length: 63mm
Package: carton with foam, quantity per carton will depend on the motor size.
Shipping: goods will be deliveried by air(EMS, DHL, FedEx,TNT etc), by boat according to your requirements.
Company Introduction
Shenzhen Zhongling Technology Co., Ltd is a high-tech company integrated R&D, production and sales, has been focusing on industrial automation product since its establishment. Our product including digital stepper motor, integrated open/closed loop stepper motor, standard split closed loop stepper motor, Ethernet TCP/IP stepper driver, low voltage DC servo motor, AGV robot dedicated hub servo motor, high precision DD motor indexing plate, SCARA robot arm, and so on, have been applied by thousands of customers, and provide one-stop service for AGV industry. And our product has been exported to Southeast Asia, Europe, United States and other countries.
FAQ
1. Factory or trader?
-->ZLTECH is a manufacture of hub servo motor, stepper motor, servo motor and driver. We have professional R&D team and factory.
2. How about the delivery?
--> Sample: 7 days.
--> Mass order: 15-30 days.
3. What is your after-sales services?
a. Free maintenance within 12 months guarantee, lifetime consultant.
b. Professional solutions in installation and maintence.
4. Why choose ZLTECH?
-->a. OEM & ODM.
b. Factory Price & 24/7 services.
c. From mold customization to material processing and welding, from fine components to finished assembly, 72 processes, 24 control points, strict aging, finished product inspection.
d. One-stop service, from design to after-sale service.
5. Do you get the relevant certification?
-->All products are made according to ISO9001, CE requirements.
